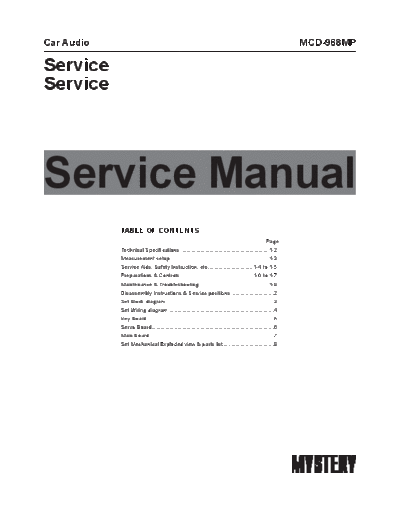

Image preview - the first page of the document
Mystery MCD-968MP-969MP


>> Download Mystery MCD-968MP-969MP documenatation <<

Text preview - extract from the document
Car Audio                                                                                                    MCD-968MP

Service
Service




Service Manual
            TABLE OF CONTENTS
                                                                                                   Page
            Technical Specifications.......................................................... 1-2
            Measurement setup. ............................................................... 1-3
                             .
            Service Aids, Safety Instruction, etc.............................. 1-4 to 1-5
            Preparations & Controls................................................ 1-6 to 1-7
            Maintenance & Troubleshooting.............................................. 1-8
            Disassembly Instructions & Service positions ............................2
            Set Block diagram.......................................................................3
            Set Wiring diagram......................................................................4
            Key Board. ..................................................................................5
                     .
            Servo Board................................................................................6
            Main Board..................................................................................7
            Set Mechanical Exploded view & parts list..................................8
                                                                     1-2
SPECIFICATIONS

General
Power supply                   12V DC(11V-16V)
                               Test voltage 14.4V, negative ground
Maximum power output           45Wx4 channels
Continuous power output        25Wx4 channels (4 10% T.H.D.)
Suitable speaker impedance     4-8 ohm
Pre-Amp output voltage         2.0V(CD play mode: 1KHz, 0 dB, 10 K load)
Fuse                           15A
ESP(optional):                 30s(CD-DA)/120s (MP3)
Weight                         2.38kg
Dimensions(WxHxD)              188x100x168mm



FM Stereo Radio
Frequency range                87.5 - 108.0 Mhz (Europe mode)
                               87.5 - 107.9 Mhz (USA mode)
Usable sensitivity             8 dB
Frequency response             30 Hz-15kHz
Stereo separation              30dB(1 kHz)
Image response ratio           50dB
IF response ratio              70dB
Signal/noise ratio             55dB



AM(MW) Radio
Frequency range                522-1620 khz (Europe mode)
                               530-1710 khz (USA mode)
Usable sensitivity(S/N=20dB)   30 dB



Disc Player
System                         Disc digital audio system
Frequency response             20 Hz - 20 kHz
Signal/noise ratio             >86 dB
Total harmonic distortion      Less than 0.20%(1 kHz)
Wow and flutter                Below measurable limits
Channel separation             >60 dB



Components
Mounting collar                1
Wire connector                 1
Operating instructions         1
Rubber cushion                 1
Remote Control                 1




Note: Specifications and the design are subject to change without notice due to improvements in technology.
                    1-3
MEASUREMENT SETUP
                           1-4
HANDLING CHIP COMPONENTS
1-5
                    1-6
PREPARATIONS

Wiring Diagram




                                                ( White)
                          Line-out              ( Red )


          Antenna                    Fuse 15A
                                                                    1-7
CONTROLS
Power on : Press button of PWR or any other button to turn on the unit.




   -Power ON/OFF
   -Radio
   -Disc play(when disc is in)
   -FM Stereo Radio/AM Radio/BAND SELECT
   -Mute
   -Rotete the control to adjust volume level.
   -Push once or more to select Volume/Bass/Treble/Balance/Fader, rotate the control to adjust level.
   -Push for more than 2 seconds to menu function.
   -SEEK mode
   -Disc play/pause top play(press more than 2 sec.)
   -Program scan play (10 sec.)
   -Track repeat play
   -Track random play
   -MP3 Folder down: MP3 track -10 down
   -MP3 Folder up: MP3 track +10 up
   -Radio Tune
   AMS
   -Radio preset scan
   -Radio auto preset
   -MP3 search mode
   -Time setup(press more than 2 sec.)
   -Display switch
   -Sound select
   -Loudness(press more than 2 sec.)
   -Reset switch
   -Disc Eject
 . -       Radio Preset
   Press to tune in a preset station. Hold for more than 2 seconds to store station.
                                                                            1-8
MAINTENANCE AND TROUBLESHOOTING

Maintenance

Clearing disc
When a disc becomes dirty, clean it with a cleaning cloth.
Wipe the disc from the center out.

Cleaning the disc lens
After prolonged use, dirt or dust may accumulate at the lens. To ensure good playback quality, clean the disc with Philips CD lens Cleaner or any
commercially available cleaner. Follow the instructions supplied with cleaner.

Cleaning the heads and the Tape Parts
To ensure good playback quality, clean the heads A , the capstan B , and pressure roller C after every 50 hours of tape operation. Used a
cotton swab slightly moistened with cleaning fluid or alcohol.
You can also clean the heads by playing a cleaning tape once.




Troubleshooting

If you suspect something is wrong, immediately switch power off. Do not use the unit in abnormal condition, for example without sound, or with
smoke or foul smell, can cause fire or electric shock. Immediately stop using it and call the store where you purchased it. Never try to repair the
unit yourself because it is dangerous to do so.


General
                             Car's engine switch is not on:        Turn your car's key to ACC or ON.
    No power or              Cable is not correctly connected:     Check connection.
     no sound                Fuse is burnt. Replace fuse:          Check volume or mute on / off.
                             If the above solutions cannot help:   Press the RESET button.
Disc

 Disc is inside but          Disc is upside down:                  Place disc in the correct direction,and the label side up.
    no sound.                Disc is dirty or damaged:             Clean disc or change another disc.



 Disc sound skips,
                             Disc is dirty or damaged:             Clean CD or change another CD.
tone quality is low.



 Sound skips due             Mounting angle is over 30o:           Adjust mounting angle to less than 30o.
   to vibration.             Unstable mounting:                    Mount the unit securely with the mounting parts.

Radio

   Much noise in
                             Station is too far, or signals are too weak:         Select other stations of higher signal level.
    broadcasts



   Preset station
                             Battery cable is not correctly connected:            Connect the battery cable to the terminal that is always live.
       lost


Error Display Messages

                             Disc mechanism error: Press              button more than 2 seconds to eject the disc. In case that the disc
                             cannot be ejected by pressing           button, press the RESET switch and press the       button 2 seconds
                             to eject the disc. If still not ejecting, consult your dealer.




                             Disc upside down.



                             Disc format is not support or file date is wrong, check the disc.
                                           2-1                                                                2-1

DISMANTLING INSTRUCTIONS

1 Remove the front panel.


                                                                    Pull out the
                                                                    FPC wire.




2 Remove the top, bottom cover and heatsank.

              Loosen the 2 pcs screw
              to remove the top cover.
                                                 Loosen the 11 pcs screw
                                                 to remove the heatsank.




            Loosen the 2 pcs screw
            to remove the bottom
            cover.



3 Loosen 4 pcs screw to remove the deck and mainboard.


                                                                                   Loosen the 2 pcs screw
                                                                                   to remove the mainboard.




                         Loosen the 2
                         pcs screw.




                                                   Pull out the 2
                                                   FPC wires.




       Loosen the 2 pcs screw.
                            2-2                              2-2

DISMANTLING INSTRUCTIONS




                            Service PositionA   Service Position C




                           Service Position B   Service Position D
                    3   3

SET BLOCK DIAGRAM
                     4   4

SET WIRING DIAGRAM
                                 5-1                                                                          5-1
                                                                                        LCD PIN CONNECTION




       KEY BOARD



TABLE OF CONTENTS
                                                                                        PIN SEGMENT DISPLAY
LCD Display ..................................................................... 5-1
Key Board Circuit Diagram .............................................. 5-2
Key Board Layout Diagram ............................................. 5-3
Elect rical Parts List ....................................... ...... . 5-4
                         5-2   5-2

KEY BOARD - CIRCUIT DIAGRAM
                        5-3   5-3

KEY BOARD - LAYOUT DIAGRAM
TOP VIEW




KEY BOARD - LAYOUT DIAGRAM
BOTTOM VIEW
                                             5-4                                                                                                                       5-4

ELECTRICAL PARTS LIST - KEY BOARD                                                                               ELECTRICAL PARTS LIST - KEY BOARD
GREEN LIGHT                                                                                                     RED LIGHT
Part N O.        Description                                               Q TY   Loc ation                     Part N O.        Desc ription                                               Q TY   Loc ation
12160 40001 02   RES,1 K,
