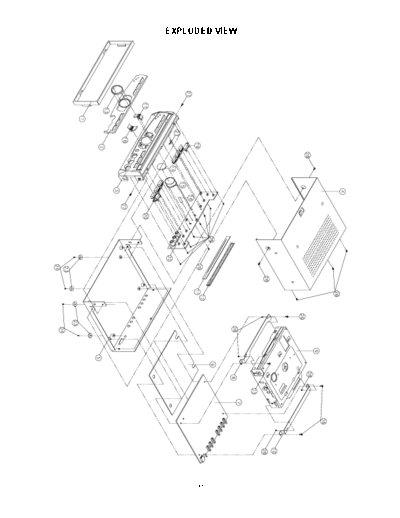

EXPLODED VIEW
13
EXPLODED VIEW PARTS LIST
Ref. No. Description RS Part No. Mfr's Part No.
1 Ring /777 (S. OPC1201) 51-H2020-80
2 Lens: DVD2013 (S. PMS877C/Black) 53-B2030-81B
3 Base (S. OPC1201/PMS433C) 51-D2030-81Y
4 Top Cover (S. OPC0204) 61-H2003-80S
5 Bottom Cabinet (S. OPC0204/Black) 61-H2010-81
6 Main PCB Paper 43-H2001-00
7 Main Board 11-02013-007
8 Deck Front Bracket 39-B2001-01
9 DVD MECH. Slot Type (Hop-1200A Pick Up) 94-02680-00
10 Deck Rear Bracket 39-B2002-01
11 Shade 81-69005-02
12 CD Windows Sheet 43-A3101-00
13 Top Decoctroplated With Silver 52-B2030-80
14 PVC Sheet 43-B2013-00
15 Direction Knob (L-Up) (S. OP0000) 52-B2031-31
16 Direct Knob Bracket 52-B2037-00
17 Setup Knob (L-Up) (S. OPC1201) 52-B2032-81
18 Enter Knob (L-Up) (S. OPC1201) 52-B2033-81
19 PWR/Source/Stop/Play Knob (L-Up) (S. OPC1201) 52-B2034-81
20 Audio/VOL Knob (L-Up) (S. OPC1201) 52-B2035-81
21 Reset Knob (S. OP1201) 52-B2036-80
22 Key Board 11-02013-337
23 Rubber Foot DVD171 81-D1701-00
24 Bracket Screw M2.0 40-A1516-00
