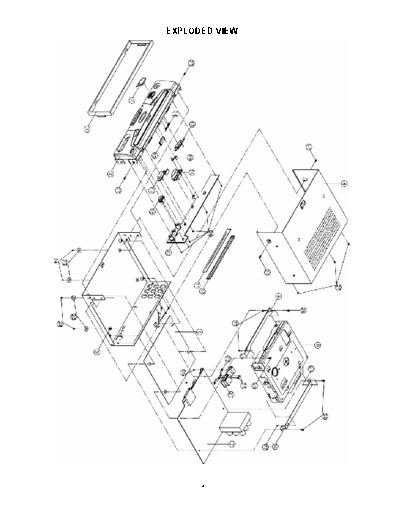

Image preview - the first page of the document
>> Download BOM documenatation <<
Text preview - extract from the document
EXPLODED VIEW
16
EXPLODED VIEW PARTS LIST
Ref. No. Description RS Part No. Mfr's Part No.
1 Ring/777 ROHS 5100-0H2020-00
2 Panel(S.N1307+N0000/WHT)DVD1030 W/TV 4ANT ROHS 5100-0P0620-11
3 USB Cover (S. N1307) ROHS 5200-0D6126-10
4 Top Cabinet DVD1010 ROHS 6100-101001-00
5 Bottom Cabinet W/TV ROHS 6100-101002-00
6 Main PCB Paper ROHS 4300-0B2002-00
7 Main Board 1121-103032-0010
8 Deck Front Bracket ROHS 3900-0B2001-01
9 DVD MECH Slot-IN DR-28SANYO:SF-HD850CHU dong ROHS 9400-020280-01
10 Deck Rear Bracket ROHS 3900-0B2002-01
11 Double Shade ROHS 8100-069005-03
12 CD Windows Sheet ROHS 4300-0A3103-00
13 IR Lens ROHS 5200-0P0624-00
14 Press Piece ROHS 5200-0P0628-00
15 Lamp Cover ROHS 5200-0P0623-00
16 Power Knob (L-Up) (S. N1307) ROHS 5200-0P0625-11
17 Play Knob (L-Up) ROHS 5200-0P0626-31
18 EJ Knob (L-Up) (S. N1307) ROHS 5200-0P0621-11
19 Reset Knob (S. OPC0000) ROHS 5200-0P0622-30
20 Key Board 1121-103030-3310
21 USB Board 1121-103030-3310
22 Stand Bracket ROHS 3900-103001-00
23 Rubber Foot (Black) ROHS 8100-0D1701-02
24 Bracket Screw M2.0 ROHS 4000-0A1516-00
25 Screw ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
