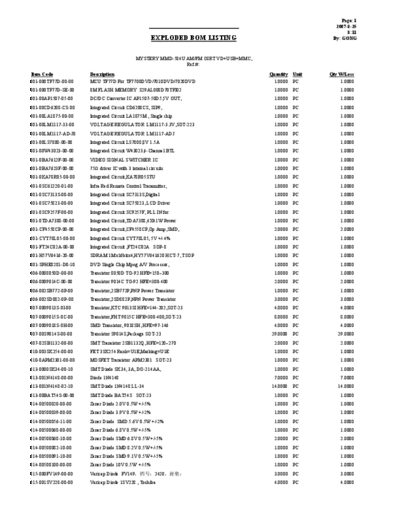

Image preview - the first page of the document
>> Download MMD 584 DVD PART LIST documenatation <<
Text preview - extract from the document
Page: 1
2007-8-25
8:11
EXPLODED BOM LISTING By: GONG
MYSTERY MMD-584U AM/FM OIRT VD+USB+MMC,
Ref.#:
Item Code Description Quantity Unit Qty W/Loss
001-000TF77D-00-00 MCU TF77D For TF7700DVD/7010DVD/7020DVD 1.0000 PC 1.0000
001-000TF77D-SE-00 8M FLASH MEMORY S29AL008D70TFI02 1.0000 PC 1.0000
001-00AP1507-05-00 DC/DC Converter IC AP1507-50D5,5V OUT, 1.0000 PC 1.0000
001-00CD6208-CS-00 Integrated Circuit CD6208CS, SIP9, 1.0000 PC 1.0000
001-00LA1875-00-00 Integrated Circuit LA1875M , Single chip 1.0000 PC 1.0000
001-00LM1117-33-00 VOLTAGE REGULATOR LM1117-3.3V,SOT-223 1.0000 PC 1.0000
001-00LM1117-AD-J0 VOLTAGE REGULATOR LM1117-ADJ 1.0000 PC 1.0000
001-00LS7808-00-00 Integrated Circuit LS7808,8V 1.5A 1.0000 PC 1.0000
001-00W43023-00-00 Integrated Circuit W43023,4-Channel BTL 1.0000 PC 1.0000
001-0BA7612F-00-00 VIDEO SIGNAL SWITCHER IC 1.0000 PC 1.0000
001-0BA7623F-00-00 75 driver IC with 3 internal circuits 1.0000 PC 1.0000
001-0KA78R05-00-00 Integrated Circuit,KA78R05STU 1.0000 PC 1.0000
001-0SC61220-01-00 Infra Red Remote Control Transmitter, 1.0000 PC 1.0000
001-0SC7313S-00-00 Integrated Circuit SC7313S,Digital 1.0000 PC 1.0000
001-0SC75823-00-00 Integrated Circuit SC75823, LCD Driver 1.0000 PC 1.0000
001-0SC9257F-00-00 Integrated Circuit SC9257F, PLL IN for 1.0000 PC 1.0000
001-0TDA7388-00-00 Integrated Circuit,TDA7388,4X41W Power 1.0000 PC 1.0000
001-CF4558CP-00-00 Integrated Circuit,CF4558CP,Op Amp,SMD, 2.0000 PC 2.0000
001-CYT78L05-00-00 Integrated Circuit CYT78L05, 5V +/-4% 1.0000 PC 1.0000
001-FT24C02A-00-00 Integrated Circuit ,FT24C02A SOP-8 1.0000 PC 1.0000
001-H57V6416-20-00 SDRAM 1Mx16bitx4,HY57V641620 HCT-7, TSOP 1.0000 PC 1.0000
001-SPHE8281-D0-10 DVD Single Chip Mpeg A/V Processor, 1.0000 PC 1.0000
006-0008050D-00-00 Transistor 8050D TO-92 HFE=150~300 1.0000 PC 1.0000
006-0009014C-00-00 Transistor 9014C TO-92 HFE=300-400 2.0000 PC 2.0000
006-002SB772-0P-00 Transistor,2SB772P,PNP Power Transistor 1.0000 PC 1.0000
006-002SD882-0P-00 Transistor,2SD882P,NPN Power Transistor 3.0000 PC 3.0000
007-0009013S-0I-00 Transistor,KTC 9013SI HFE=144-202,SOT-23 4.0000 PC 4.0000
007-0009015S-0C-00 Transistor,FHT 9015C HFE=300-400,SOT-23 8.0000 PC 8.0000
007-0009018S-0H-00 SMD Transistor, 9018SH, HFE=97-146 4.0000 PC 4.0000
007-00S9014S-00-00 Transistor S9014S,Package SOT-23 29.0000 PC 29.0000
007-02SB1132-00-00 SMT Transistor 2SB1132Q, HFE=120~270 2.0000 PC 2.0000
010-003SK254-00-00 FET 3SK254 Rank=U1E,Marking=U1E 1.0000 PC 1.0000
010-0APM2301-00-00 MOSFET Transistor APM2301 SOT-23 1.0000 PC 1.0000
013-0000SK34-00-10 SMT Diode SK34, 3A, DO-214AA, 1.0000 PC 1.0000
013-001N4148-00-00 Diode 1N4148 7.0000 PC 7.0000
013-001N4148-02-10 SMT Diode 1N4148 LL-34 14.0000 PC 14.0000
013-00BAT54S-00-00 SMT Diode BAT54S SOT-23 1.0000 PC 1.0000
014-00500020-00-00 Zener Diode 2.0V 0.5W +/-5% 1.0000 PC 1.0000
014-00500039-00-00 Zener Diode 3.9V 0.5W +/-2% 1.0000 PC 1.0000
014-00500056-11-00 Zener Diode SMD 5.6V 0.5W +/-2% 1.0000 PC 1.0000
014-00500068-00-00 Zener Diode 6.8V 0.5W +/-5% 1.0000 PC 1.0000
014-00500068-10-00 Zener Diode SMD 6.8V 0.5W +/-5% 2.0000 PC 2.0000
014-00500082-10-00 Zener Diode SMD 8.2V 0.5W +/-5% 1.0000 PC 1.0000
014-00500091-10-00 Zener Diode SMD 9.1V 0.5W +/-5% 1.0000 PC 1.0000
014-00500100-00-00 Zener Diode 10V 0.5W +/-5% 1.0000 PC 1.0000
015-000FV149-00-00 Varicap Diode FV1492420 3.0000 PC 3.0000
015-001SV228-00-00 Varicap Diode 1SV228 , Toshiba 4.0000 PC 4.0000
Page: 2
2007-8-25
8:11
EXPLODED BOM LISTING By: GONG
MYSTERY MMD-584U AM/FM OIRT VD+USB+MMC,
Ref.#:
Item Code Description Quantity Unit Qty W/Loss
016-001N4007-00-00 Rectifier 1N4007 (Tape-Mount) 4.0000 PC 4.0000
016-00IN5401-00-00 Rectifier IN5401 (Tape-Mount) 1.0000 PC 1.0000
017-00000023-00-00 LED D3mm Red,Super Bright,Model:023, 1.0000 PC 1.0000
017-000L34HD-00-00 LED Red D3mm Leg length = 27mm 1.0000 PC 1.0000
017-01206DRC-00-A0 LED 3.0X1.5MM RED, Module:YH-1206DRC 1.0000 PC 1.0000
017-0144A1MC-00-00 Infrared LED, MIE-144A1MC, Dyna-Link 2.0000 PC 2.0000
017-3AX3SBD4-N2-A0 LED(3mm Blue), 2-Pin IF=20MA, 1000mcd 7.0000 PC 7.0000
017-MIE334A4-00-10 Infrared LED, E-IR3411C-2A, D=3mm, 1.0000 PC 1.0000
017-WW03B3SW-F4-B4 LED D=3mm White,"WW03B3SWF4-B4",1300mcd, 2.0000 PC 2.0000
051-00543100-00-00 Carbon Film Resistor 100 Ohm 1/6W +/-5% 1.0000 PC 1.0000
051-00546680-00-00 Carbon Film Resistor 680 K Ohm 1/6W 1.0000 PC 1.0000
051-00841100-00-00 Carbon Film Resistor 1.0 Ohm 1/2w +/-5% 1.0000 PC 1.0000
051-00842100-00-00 Carbon Film Resistor 10 Ohm 1/2W +/-5% 1.0000 PC 1.0000
051-00842220-00-00 Carbon Film Resistor 22 Ohm 1/2W +/-5% 2.0000 PC 2.0000
058-00340000-00-00 Chip Resistor (0603) 0 Ohm (Jumper wire) 38.0000 PC 38.0000
058-00341100-00-00 Chip Resistor (0603) 1.0Ohm 1/10W +/-5% 6.0000 PC 6.0000
058-00341220-00-00 Chip Resistor (0603) 2.2Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00342100-00-00 Chip Resistor (0603) 10 Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00342220-00-00 Chip Resistor (0603) 22 Ohm 1/10W +/-5% 10.0000 PC 10.0000
058-00342330-00-00 Chip Resistor (0603) 33 Ohm 1/10W +/-5% 3.0000 PC 3.0000
058-00342470-00-00 Chip Resistor (0603) 47 Ohm 1/10W +/-5% 3.0000 PC 3.0000
058-00342560-00-00 Chip Resistor (0603) 56 Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00342750-00-00 Chip Resistor (0603) 75 Ohm 1/10W +/-5% 6.0000 PC 6.0000
058-00343100-00-00 Chip Resistor (0603) 100 Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00343150-00-00 Chip Resistor (0603) 150 Ohm 1/10W +/-5% 9.0000 PC 9.0000
058-00343180-00-00 Chip Resistor (0603) 180 Ohm 1/10W +/-5% 3.0000 PC 3.0000
058-00343200-00-00 Chip Resistor (0603) 200 Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00343220-00-00 Chip Resistor (0603) 220 Ohm 1/10W +/-5% 7.0000 PC 7.0000
058-00343330-00-00 Chip Pesistor (0603) 330 Ohm 1/10W +/-5% 5.0000 PC 5.0000
058-00343390-00-00 Chip Pesistor (0603) 390 Ohm 1/10W +/-5% 3.0000 PC 3.0000
058-00343470-00-00 Chip Pesistor (0603) 470 Ohm 1/10W +/-5% 4.0000 PC 4.0000
058-00343680-00-00 Chip Resistor(0603)680 Ohm 1/10W +/-5% 5.0000 PC 5.0000
058-00343820-00-00 Chip Resistor(0603)820 Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00344100-00-00 Chip Resistor (0603) 1K Ohm 1/10W +/-5% 33.0000 PC 33.0000
058-00344120-00-00 Chip Resistor (0603)1.2K Ohm 1/10W +/-5% 5.0000 PC 5.0000
058-00344150-00-00 Chip Resistor(0603)1.5K Ohm 1/10W +/-5% 10.0000 PC 10.0000
058-00344220-00-00 Chip Resistor(0603) 2.2K Ohm 1/10W +/-5% 17.0000 PC 17.0000
058-00344270-00-00 Chip Resistor(0603) 2.7K Ohm 1/10W +/-5% 3.0000 PC 3.0000
058-00344330-00-00 Chip Resistor(0603) 3.3K Ohm 1/10W +/-5% 10.0000 PC 10.0000
058-00344390-00-00 Chip Resistor(0603) 3.9K Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00344470-00-00 Chip Resistor(0603) 4.7K Ohm 1/10W +/-5% 32.0000 PC 32.0000
058-00344510-00-00 Chip Resistor(0603) 5.1K Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00344560-00-00 Chip Resistor(0603) 5.6K Ohm 1/10W +/-5% 7.0000 PC 7.0000
058-00344820-00-00 Chip Resistor(0603) 8.2K Ohm 1/10W +/-5% 7.0000 PC 7.0000
058-00345100-00-00 Chip Resistor (0603) 10K Ohm 1/10W +/-5% 47.0000 PC 47.0000
058-00345120-00-00 Chip Resistor (0603) 12K Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00345150-00-00 Chip Resistor (0603) 15K Ohm 1/10W +/-5% 3.0000 PC 3.0000
Page: 3
2007-8-25
8:11
EXPLODED BOM LISTING By: GONG
MYSTERY MMD-584U AM/FM OIRT VD+USB+MMC
Item Code Description Quantity Unit Qty W/Loss
058-00345180-00-00 Chip Resistor (0603) 18K Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00345200-00-00 Chip Resistor (0603) 20K Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00345220-00-00 Chip Resistor (0603) 22K Ohm 1/10W +/-5% 22.0000 PC 22.0000
058-00345300-00-00 Chip Resistor (0603) 30K Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00345330-00-00 Chip Resistop (0603) 33K Ohm 1/10W +/-5% 3.0000 PC 3.0000
058-00345470-00-00 Chip Resistor (0603) 47K Ohm 1/10W +/-5% 22.0000 PC 22.0000
058-00345680-00-00 Chip Resistor (0603) 68K Ohm 1/10W +/-5% 3.0000 PC 3.0000
058-00345820-00-00 Chip Resistor (0603) 82K Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00346100-00-00 Chip Resistor(0603) 100K Ohm 1/10W +/-5% 17.0000 PC 17.0000
058-00346150-00-00 Chip Resistor(0603) 150K Ohm 1/10W +/-5% 3.0000 PC 3.0000
058-00346220-00-00 Chip Resistor(0603) 220K Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00346270-00-00 Chip Resistor(0603) 270K Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00346330-00-00 Chip Resistor(0603) 330K Ohm 1/10W +/-5% 3.0000 PC 3.0000
058-00346390-00-00 Chip Resistor(0603) 390K Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00346470-00-00 Chip Resistor(0603) 470K Ohm 1/10W +/-5% 9.0000 PC 9.0000
058-00346820-00-00 Chip Resistor(0603) 820K Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00347100-00-00 Chip Resistor (0603) 1M Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00440000-00-00 Chip Resistor (0805) 0 Ohm (Jumper wire) 12.0000 PC 12.0000
058-00441220-00-00 CHIP Resistor (0805) 2.2 Ohm 1/8W +/-5% 1.0000 PC 1.0000
058-00441510-00-00 CHIP Resistor (0805) 5.1 Ohm 1/8W +/-5% 2.0000 PC 2.0000
058-00442100-00-00 CHIP Resistor (0805) 10 Ohm 1/8W +/-5% 1.0000 PC 1.0000
058-00442470-00-00 Chip Resistor (0805) 47 Ohm 1/8W +/-5% 2.0000 PC 2.0000
058-00443470-00-00 CHIP Resistor (0805) 470 Ohm 1/8W +/-5% 1.0000 PC 1.0000
058-00443560-00-00 CHIP Resistor (0805) 560 Ohm 1/8W +/-5% 1.0000 PC 1.0000
058-00443680-00-00 CHIP Resistor (0805) 680 Ohm 1/8W +/-5% 1.0000 PC 1.0000
058-00444120-00-00 CHIP Resistor(0805) 1.2K Ohm 1/8W +/-5% 1.0000 PC 1.0000
058-00444220-00-00 CHIP Resistor (0805) 2K2 Ohm 1/8W +/-5% 2.0000 PC 2.0000
058-00640000-00-00 Chip Resistor (1206) 0 Ohm 1/4W +/-5% 1.0000 PC 1.0000
058-00642100-00-00 Chip Resistor (1206) 10 Ohm 1/4W +/-5% 2.0000 PC 2.0000
058-00642680-00-00 Chip Resistor (1206) 68 Ohm 1/4W +/-5% 3.0000 PC 3.0000
058-00643100-00-00 Chip Resistor (1206) 100 Ohm 1/4W +/-5% 2.0000 PC 2.0000
058-00643150-00-00 Chip Resistor (1206) 150 Ohm 1/4W +/-5% 2.0000 PC 2.0000
058-00644100-00-00 Chip Resistor (1206) 1K Ohm 1/4W +/-5% 1.0000 PC 1.0000
078-H3065300-00-00 Phenolic Moulding Type Semi-Fixed 1.0000 PC 1.0000
078-H3105100-00-00 Semi-Fixed Resistor , D8mm 10K Ohm 1.0000 PC 1.0000
078-V3064500-00-00 Phenolic Moulding Type Semi-Fixed 2.0000 PC 2.0000
101-016C6220-00-00 Ceramic Capacitor 0.22 uF 16V +80 -20% 2.0000 PC 2.0000
107-050A6470-00-00 Axial Lead Ceramic Capacitor 0.47uF 50V 1.0000 PC 1.0000
108-10A6470P-K0-00 Chip Capacitor (0603) X5R 0.47uF 10V 2.0000 PC 2.0000
108-10B3100B-K0-00 Chip Capacitor (0603) X7R 100pF 50V 7.0000 PC 7.0000
108-10B3220B-K0-00 Chip Capacitor (0603) X7R 220pF 50V 3.0000 PC 3.0000
108-10B3300B-K0-00 Chip Capacitor (0603) X7R 300pF 50V 1.0000 PC 1.0000
108-10B3330B-K0-00 Chip Capacitor (0603) X7R 330pF 50V 3.0000 PC 3.0000
108-10B3680B-K0-00 Chip Capacitor (0603) X7R 680pF 50V 6.0000 PC 6.0000
108-10B3820B-K0-00 Chip Capacitor (0603) X7R 820pF 50V 2.0000 PC 2.0000
108-10B4100B-K0-00 Chip Capacitor (0603) X7R 0.001uF 50V 14.0000 PC 14.0000
108-10B4220B-K0-00 Chip Capacitor (0603) X7R 0.0022uF 50V 2.0000 PC 2.0000
Page: 4
2007-8-25
8:11
EXPLODED BOM LISTING By: GONG
MYSTERY MMD-584U AM/FM OIRT VD+USB+MMC
Item Code Description Quantity Unit Qty W/Loss
108-10B4270B-K0-00 Chip Capacitor (0603) X7R 0.0027uF 50V 2.0000 PC 2.0000
108-10B4390B-K0-00 Chip Capacitor (0603) X7R 0.0039uF 50V 2.0000 PC 2.0000
108-10B4470B-K0-00 Chip Capacitor (0603) X7R 0.0047uF 50V 11.0000 PC 11.0000
108-10B5100B-K0-00 Chip Capacitor (0603) X7R 0.01uF 50V 12.0000 PC 12.0000
108-10B5220A-K0-00 Chip Capacitor (0603) X7R 0.022uF 25V 10.0000 PC 10.0000
108-10B5330A-K0-00 Chip Capacitor (0603) X7R 0.033uF 25V 1.0000 PC 1.0000
108-10B5470A-K0-00 Chip Capacitor (0603) X7R 0.047uF 25V 10.0000 PC 10.0000
108-10B6100O-K0-00 Chip Capacitor (0603) X7R 0.1uF 16V 59.0000 PC 59.0000
108-10B6220O-K0-00 Chip Capacitor (0603) X7R 0.22uF 16V 10.0000 PC 10.0000
108-10B6470O-K0-00 Chip Capacitor (0603) X7R 0.47uF 16V 8.0000 PC 8.0000
108-10B7100P-K0-00 Chip Capacitor (0603) X7R 1uF 10V 13.0000 PC 13.0000
108-10F6100A-M0-00 Chip Capacitor (0603) Y5V 0.1uF 25V 36.0000 PC 36.0000
108-10F7100O-M0-00 Chip Capacitor (0603) Y5V 1uF 16V 2.0000 PC 2.0000
108-10N1100B-C0-00 Chip Capacitor (0603) NPO 1pF 50V 2.0000 PC 2.0000
108-10N1300B-C0-00 Chip Capacitor (0603) NPO 3pF 50V 3.0000 PC 3.0000
108-10N1500B-J0-00 Chip Capacitor (0603) NPO 5pF 50V 2.0000 PC 2.0000
108-10N1600B-J0-00 Chip Capacitor (0603) NPO 6pF 50V 1.0000 PC 1.0000
108-10N1800B-J0-00 Chip Capacitor (0603) NPO 8pF 50V 1.0000 PC 1.0000
108-10N2100B-J0-00 Chip Capacitor (0603) NPO 10pF 50V 5.0000 PC 5.0000
108-10N2250B-J0-00 Chip Capacitor (0603) NPO 25pF 50V 1.0000 PC 1.0000
108-10N2270B-J0-00 Chip Capacitor (0603) NPO 27pF 50V 6.0000 PC 6.0000
108-10N2330B-J0-00 Chip Capacitor (0603) NPO 33pF 50V 4.0000 PC 4.0000
108-10N2390B-J0-00 Chip Capacitor (0603) NPO 39pF 50V 1.0000 PC 1.0000
108-10N2470B-J0-00 Chip Capactior (0603) NPO 47pF 50V 3.0000 PC 3.0000
108-10N2560B-J0-00 Chip Capacitor (0603) NPO 56pF 50V 1.0000 PC 1.0000
108-10N3430B-J0-00 Chip Capacitor (0603) NPO 430pF 50V 2.0000 PC 2.0000
108-21F7470O-Z0-00 Chip Capacitor (0805) Y5V 4.7uF 16V 14.0000 PC 14.0000
110-016C9100-00-00 Electrolytic Capacitor 100 uF 16V 19.0000 PC 19.0000
110-016C9220-00-00 Electrolytic Capacitor 220 uF 16V 1.0000 PC 1.0000
110-016CA220-00-00 Electrolytic Capacitor 2200 uF 16V +80 1.0000 PC 1.0000
112-010C8470-00-00 Electrolytic Capacitor , Small Size 47 1.0000 PC 1.0000
112-010C9220-00-00 Electrolytic Capacitor , Small Size 220 2.0000 PC 2.0000
112-010C9220-01-00 Electrolytic Capacitor , Small Size 220 1.0000 PC 1.0000
112-016C7100-00-00 Electrolytic Capacitor , Small Size 1 uF 2.0000 PC 2.0000
112-016C7220-00-00 Electrolytic Capacitor,Small Sized 2.2uF 1.0000 PC 1.0000
112-016C7470-00-00 Electrolytic Capacitor , Small Size 4.7u 2.0000 PC 2.0000
112-016C8100-00-00 Electrolytic Capacitor , Small Size 10 9.0000 PC 9.0000
112-016C8100-01-00 Electrolytic Capacitor , Super Mini Size 2.0000 PC 2.0000
112-016C8220-00-00 Electrolytic Capacitor , Small Size 22 5.0000 PC 5.0000
112-016C8470-00-00 Electrolytic Capacitor , Small Size 47 2.0000 PC 2.0000
112-016C8470-02-00 Electrolytic Capacitor , Small Size 47 15.0000 PC 15.0000
112-016C9100-00-00 Electrolytic Capacitor , Small Size 100u 6.0000 PC 6.0000
112-016C9470-01-00 Electrolytic Capacitor , Small Size 470 2.0000 PC 2.0000
117-05094100-00-00 Mylar Capacitor 0.001 uF 50V +/-10% 2.0000 PC 2.0000
124-0BN9100Q-M0-00 Tantalum Capacitor,100uF 6V3 (3528) 5.0000 PC 5.0000
136-06000020-00-00 Trimmer Capacitor 6 mm, 20 pF 1.0000 PC 1.0000
150-0000S634-00-00 6 mm IFT S634, Black, ARF1 1.0000 PC 1.0000
Page: 5
2007-8-25
8:11
EXPLODED BOM LISTING By: GONG
MYSTERY MMD-584U AM/FM OIRT VD+USB+MMC,
Ref.#:
Item Code Description Quantity Unit Qty W/Loss
150-0000S638-00-00 6 mm IFT S638, Yellow, AM IF 1.0000 PC 1.0000
150-0000S642-00-00 6 mm IFT S642, Red, AM OSC 1.0000 PC 1.0000
150-0000S646-00-00 6 mm IFT S646, Green, ARF2 1.0000 PC 1.0000
150-0007008S-00-00 6 mm IFT 7008S,FM Detector Coil 1.0000 PC 1.0000
150-00602984-00-00 6 mm IFT 602-984, FM IF COIL, INTELLECT 1.0000 PC 1.0000
156-03006500-00-01 FM Spring Coil 3.0mm x 6.5T (R) 1.0000 PC 1.0000
156-03402500-00-01 FM Spring Coil 3.4mm x 2.5T (R) 1.0000 PC 1.0000
156-03407500-00-01 FM Spring Coil 3.4mm x7.5T (R) 2.0000 PC 2.0000
156-03407500-01-01 FM Spring Coil 3.4mm x7.5T (R), 1.0000 PC 1.0000
158-10010000-00-00 Choke Coil 1uH (EC24-1R0K), Wittis 1.0000 PC 1.0000
158-10047000-01-00 Choke Coil 4.7 uH (EC24-4R7K), WITTIS 1.0000 PC 1.0000
158-10100000-00-00 Choke Coil 10uH (EC24-100K), Wittis 1.0000 PC 1.0000
158-11000000-01-00 Choke coil 100uH /2A, Pitch 4mm, 1.0000 PC 1.0000
158-20330000-01-00 Choke Coil 33mH +/-10% ,PREFORM L=12mm 2.0000 PC 2.0000
159-10018000-00-00 SMD POWER INDUCTORS(0805) 1.8UH 3.0000 PC 3.0000
159-10100000-00-00 SMD POWER INDUCTORS(0805) 10UH 2.0000 PC 2.0000
160-0CBW2600-M0-00 CHIP BEAD(CBW TYPE), 0805, 60 9.0000 PC 9.0000
169-22131730-03-00 Ferrite Choke Transformer OD=22 ID=13 1.0000 PC 1.0000
202-TS063543-00-00 Tact Switch TS-0635-4.3(White) H=4.3mm, 5.0000 PC 5.0000
202-TS1102VA-00-00 Tact Switch, Vertical Type, CTS1102VA, 1.0000 PC 1.0000
204-BS1001SW-00-00 Surface Mount Tact Switch(5-Directional) 1.0000 PC 1.0000
204-TS063543-09-00 Surface Mount Tact Switch H=4.3,L=6.0 10.0000 PC 10.0000
209-000SW111-00-00 Push Switch SW-111, Mini Switch for KMC 1.0000 PC 1.0000
214-EC121102-00-00 Rotary Encoder,D12mm,SMT Type W/O Switch 1.0000 PC 1.0000
252-04000000-00-00 Bare Wire 40 mm 209.0000 PC 209.0000
257-28030901-00-00 Rainbow Cable 3 pin (7 x 0.12) Length= 1.0000 PC 1.0000
350-103214U0-00-00 Housing Assembly,2.0x3. L=140mm. 1.0000 PC 1.0000
350-R1032000-02-00 RCA Cable Housing Ass'y,2.0x3,#30AWG, 1.0000 PC 1.0000
350-R1052000-02-00 RCA Cable Housing Ass'y,2.0x5,#30AWG, 1.0000 PC 1.0000
358-0MIM5383-J1-10 Infra Red Receiver,ARM138,37.9KHz,5V(CD/ 1.0000 PC 1.0000
359-220L3C2V-01-00 ANT. Socket & Cable Ass'y. For Car Audio 1.0000 PC 1.0000
373-0HSO2201-00-00 Detachable Connector (Plug),22pin,side 1.0000 PC 1.0000
374-0HSO2200-00-00 Detachable Connector (Socket),22 Pin 1.0000 PC 1.0000
375-JI416110-00-00 Wire to Board Plug,Jensen Type 20P+ISO 1.0000 PC 1.0000
376-FUSE0020-15-00 Wire to Board Connector,JensenType 20p, 1.0000 PC 1.0000
377-H009100L-03-00 FPC/FFC Connector 9 pin SMD 1.0000 PC 1.0000
377-R013100L-02-00 FPC/FFC Connector,13pin,Pitch=1.0, 2.0000 PC 2.0000
377-R1301000-00-00 FPC/FFC Connector,13 pin,Pitch=1.0,SMD, 2.0000 PC 2.0000
377-R2400500-10-00 FPC/FFC Connector,24 pin,Pitch=0.5,SMD, 1.0000 PC 1.0000
378-09100120-00-00 FFC 9 Pin UL2896 P=1.0 L=5+112+3 1.0000 PC 1.0000
378-13100120-00-00 FFC 13 Pin UL2896 P=1.0 L=4+112+4 2.0000 PC 2.0000
402-0000720M-02-00 Crystal 7.2MHz, HC49US,H=3.5mm 1.0000 PC 1.0000
402-0327680K-00-01 Crystal 32.768 KHz , D3x8mm 1.0000 PC 1.0000
402-1008000M-01-00 Crystal 8MHz, HC49US,H=3.5mm 1.0000 PC 1.0000
402-27000000-00-00 Crystal 27MHz, HC49US,Height=3.5mm 1.0000 PC 1.0000
403-0000455K-00-00 Ceramic Resonator 455KHz 1.0000 PC 1.0000
403-0000456K-00-00 Ceramic Resonator 456KHz , CSB456F11 1.0000 PC 1.0000
Page: 6
2007-8-25
8:11
EXPLODED BOM LISTING By: GONG
MYSTERY MMD-584U AM/FM OIRT VD+USB+MMC,
Ref.#:
Item Code Description Quantity Unit Qty W/Loss
404-00CF450A-00-00 Ceramic Filter 450KHz , CF450A , Midas 1.0000 PC 1.0000
404-SFE107MS-3A-00 Ceramic Filter 10.7MHz SFE10.7MS3-A 2.0000 PC 2.0000
410-00000DVD-04-00 TF7700DVD Servo Board DVD+USB+SD/MMC 1.0000 PC 1.0000
410-000RC005-01-00 Remote PCB, 74.5x43mm, T=1.2mm, FR4, 1.0000 PC 1.0000
410-TF7700DU-00-01 Main PCB,For TF7700DVD,4X30W ver1.1 1.0000 PC 1.0000
410-TF7700DU-01-00 PCB,MMC CARD Board, 94HB THK=1.2mm, 1.0000 PC 1.0000
410-TF780001-01-01 PCB,Panel,Board,CPU=RS8xx4/8x45 1.0000 PC 1.0000
410-TUNER008-20-00 PCB,Radio Board,Size=96x42mm,94HB 1.0000 PC 1.0000
412-SDDMF915-B0-00 SD/MMC Card Connector.Std Size,W/Lock, 1.0000 PC 1.0000
412-USB4FAPS-00-00 USB Socket.Straight Type,Std Size, 1.0000 PC 1.0000
416-0R200030-01-00 Wafer,3 Pin,Pitch 2.0mm Right Angled 1.0000 PC 1.0000
416-0S200030-01-00 Wafer,3 Pin,Pitch 2.0mm Straight 1.0000 PC 1.0000
416-0S200050-01-00 Wafer,5 Pin,Pitch 2.0mm Straight 1.0000 PC 1.0000
419-1R250036-00-00 Pin Header,36 pins,pitch 2.5mm 0.6500 PC 0.6500
419-1S160080-00-00 Soldering Pin,8 pins,Pitch=1.6mm, 0.5000 PC 0.5000
431-000DL30H-00-00 DVD Deck, Model: DL-30H, with Pick Up: 1.0000 PC 1.0000
440-0YBG2169-00-00 LCD,GA2169NVT,HTN,(B1),Size=83x23.5mm 1.0000 PC 1.0000
443-82508520-00-00 Rubber Contact(Sponge Type) L=82.5 H=8.5 1.0000 PC 1.0000
444-00SL3101-00-00 Rubber Ring(Black),OD=17,ID=15,H=5 1.0000 PC 1.0000
444-TF685001-01-00 Rubber Cover (USB), Black Si Rubber 1.0000 PC 1.0000
449-00000000-00-01 8x8x4 mm Spring Coil Sponge 1.0000 PC 1.0000
460-00CR2025-01-00 Battery, CR2025, 3.0V 30mAH, Packed in 1.0000 PC 1.0000
600-0RC00501-00-00 Cabinet ABS(Black),W/Spray Black & 1.0000 PC 1.0000
600-0RC00502-00-00 Battery Door, ABS Black ,W/Spray Black 1.0000 PC 1.0000
600-0SM68809-00-00 Panel Locker, ABS(Black), Wah Lee 1.0000 PC 1.0000
600-0SM68810-00-00 Panel Pusher, ABS(Black), WahLee 1.0000 PC 1.0000
600-SM688D01-00-00 Panel Base,ABS(Black),W/Spray Black, 1.0000 PC 1.0000
600-TF300046-00-00 Panel Case, PP(Black),Wah lee 1.0000 PC 1.0000
600-TF770019-00-00 LCD-Holder ,ABS(porcelain White) 1.0000 PC 1.0000
600-TF770020-00-00 LCD-Reflector ,SAN Clear 1.0000 PC 1.0000
600-TF770022-00-00 LED-Bracket ,SAN Clear 1.0000 PC 1.0000
600-TF770023-00-00 SD/CARD Indicator A ,SAN Clear 1.0000 PC 1.0000
600-TF770026-00-00 Trim Plate, ABS(Black),W/Spray S1 Black 1.0000 PC 1.0000
600-TF780001-01-00 Lens ,PMMA Clear,W/Silksc Black Color 1.0000 PC 1.0000
600-TF780002-MY-30 Handy Front,ABS(Black),W/Spray Dark Grey 1.0000 PC 1.0000
600-TF780003-00-00 Handy Back, ABS (Black)&W/Spray Black 1.0000 PC 1.0000
600-TF780005-00-00 Rel Button,ABS(Black),W/Spray Dark Grey 1.0000 PC 1.0000
600-TF780006-00-00 Vol Knob Ring(OUT),ABS Black,W/Sparey 1.0000 PC 1.0000
600-TF780007-01-00 Vol Knob,ABS(Black),W/Dark Chrome Plat 1.0000 PC 1.0000
600-TF780009-01-10 Cover(NO BT),ABS Black, W/Spray Black & 1.0000 PC 1.0000
600-TF780010-00-00 5F Button Ring(OUT),ABS(Black),W/Sparey 1.0000 PC 1.0000
600-TF780011-01-00 5F Button ,ABS(Black), W/Dark Chrome 1.0000 PC 1.0000
600-TF780012-00-00 5F Button Adapter ,ABS(Black), 1.0000 PC 1.0000
600-TF780013-00-10 Cover(USB),ABS(Black),W/Sparey Drak 1.0000 PC 1.0000
600-TF780015-00-00 LED Cover,ABS(Black), 2.0000 PC 2.0000
600-TF780017-01-00 Round Button,ABS(Clear),W/Sparey Dark 1.0000 PC 1.0000
600-TF780018-01-00 Pwr Button ,ABS(Clear),W/Spray S1 & 1.0000 PC 1.0000
Page: 7
2007-8-25
8:12
EXPLODED BOM LISTING By: GONG
PRODUCT: TF7800-MYA634-01-MU (Ver 46) Per 1 PC UPDATE AT 2007-6-16
10:42:49
MYSTERY MMD-584U AM/FM OIRT VD+USB+MMC,
Ref.#:
Item Code Description Quantity Unit Qty W/Loss
600-TF780019-00-20 Button Set A ,ABS(Clear),W/Sparey Dark 1.0000 PC 1.0000
600-TF780020-00-50 Button Set B ,ABS(Clear),W/Sparey Dark 1.0000 PC 1.0000
600-TF780021-00-00 Button Set C ,ABS(Clear),W/Sparey Dark 1.0000 PC 1.0000
600-TF780022-00-00 Vol Knob Ring(IN) ,SAN (Milk White) 1.0000 PC 1.0000
600-TF780023-00-00 5F Button Ring(IN) ,SAN (Milk White) 1.0000 PC 1.0000
600-TF780024-00-00 Pwr Button Reflector,SAN Clear 1.0000 PC 1.0000
600-TF780025-00-00 Main Reflector,SAN Clear 1.0000 PC 1.0000
600-TF780026-00-00 Sensor Cap, SAN Clear,W/Spray Blue 1.0000 PC 1.0000
650-00CD9011-00-00 Disc Felt Guide, 0.6t EGI, Kinetics 1.0000 PC 1.0000
650-0SM68809-00-00 Front Deck Bracket(KMC), 1mm EGI 1.0000 PC 1.0000
650-0SM68818-00-00 Lock Shaft, A3# Steel 1.0000 PC 1.0000
650-0SM68819-00-00 Lock Spring, D0.6 SUS304 1.0000 PC 1.0000
650-0SM68821-00-00 Panel Push Spring, Mn65, Wire Dia=0.35mm 1.0000 PC 1.0000
650-0SM68826-00-00 Half Sleeve,0.6mm EGI 1.0000 PC 1.0000
650-0SM88530-00-00 Unit Key,1mm EGI 2.0000 PC 2.0000
650-0SM88539-00-00 Bracket For L7808,1mm EGI 1.0000 PC 1.0000
650-CS880000-25-02 Mounting Plate(Short), EGI, Kinetics 1.0000 PC 1.0000
650-DLC28D01-00-00 Servo PCB Adaptor,T=1.0 EGI 1.0000 PC 1.0000
650-DLC28D02-00-00 Deck IC Heat Sink 1.0000 PC 1.0000
650-RM500001-01-00 Battery Plate(-VE), Nickel Plated Brass 1.0000 PC 1.0000
650-RM500002-01-00 Battery Plate(+VE), Nickel Plated Brass 1.0000 PC 1.0000
650-SM688A01-00-00 Left Chassis,1mm EGI 1.0000 PC 1.0000
650-SM688A02-00-00 Right Chassis,1mm EGI 1.0000 PC 1.0000
650-SM688A04-00-00 Top Cover,0.6mm EGI 1.0000 PC 1.0000
650-SM688A05-00-00 Bottom Cover,0.6mm EGI 1.0000 PC 1.0000
650-SM688A10-04-00 Rear Chassis, No CDC,1mm EGI 1.0000 PC 1.0000
650-SM688A15-00-00 Heat Sink For XM, No CDC,Al(Die-cast) 1.0000 PC 1.0000
650-SM688B03-10-00 Wire Clamper,0.6mmEGI 1.0000 PC 1.0000
650-SM688D01-00-00 Rear Deck Bracket,1mm EGI 1.0000 PC 1.0000
650-SM885A06-00-00 Bracket For Half Sleeve,1mm EGI 2.0000 PC 2.0000
650-SM885A07-00-00 IC Bracket,0.8mm EGI 1.0000 PC 1.0000
650-TF620002-00-00 Open Spring,WD=0.2,ID=D4.0,L=10,8 Turns 1.0000 PC 1.0000
650-TF780001-00-00 LCD-Bracket, EGI t=0.5mm,W/Spray Black 1.0000 PC 1.0000
650-TUN00801-00-00 Tuner Metal Case ,Kinetics 1.0000 PC 1.0000
660-EPH2006B-27-00 Taptite "S" Type, 2.0x6 Pan Head, Philip 5.0000 PC 5.0000
660-EPH2604B-27-00 Taptite `S`Type, 2.6x4 Pan Head, Philips 4.0000 PC 4.0000
660-EPH30043-21-00 Taptite `B`Type, 3x4 Pan Head, Philips, 3.0000 PC 3.0000
660-EPH30053-21-00 Taptite `B`Type, 3x5 Pan Head, Philips, 3.0000 PC 3.0000
660-EPH3005B-21-00 Taptite `S`Type, 3x5 Pan Head, Philips, 2.0000 PC 2.0000
660-EPH3006B-21-00 Taptite `S'Type, 3x6 Pan Head, Philips, 5.0000 PC 5.0000
660-EPH3010B-21-00 Taptite `S'Type, 3x10 Pan Head, Philips, 2.0000 PC 2.0000
660-MHD50120-01-00 Machine Screw,5x12+5x4 Hexagonal Head 1.0000 PC 1.0000
660-MKF26040-23-00 Machine Screw, 2.6x4 Flat Countersunk, 2.0000 PC 2.0000
660-MKF26050-24-00 Machine Screw, 2.6x5 Flat Countersunk, 4.0000 PC 4.0000
660-MPH30040-21-00 Machine Screw, 3x4 Pan Head, Philips, 1.0000 PC 1.0000
660-MPH30040-24-00 Machine Screw, 3x4 Pan Head, Philips, 2.0000 PC 2.0000
660-MPH30120-21-00 Machine Screw, 3x12 Pan Head, Philips, 2.0000 PC 2.0000
Page: 8
2007-8-25
8:12
EXPLODED BOM LISTING By: GONG
MYSTERY MMD-584U AM/FM OIRT VD+USB+MMC,
Ref.#:
Item Code Description Quantity Unit Qty W/Loss
660-TBH20103-24-00 Tapping `B`Type, 2x10 Binding Head, 5.0000 PC 5.0000
660-TKF17043-24-00 Tapping 'B' Type, 1.7x4 Flat Countersunk 4.0000 PC 4.0000
660-TPH30081-23-00 Tapping 'A' Type,3x8 Pan Head,Philips 1.0000 PC 1.0000
660-TPH40121-23-00 Tapping `A`Type, 4x12 Pan Head, Philips 1.0000 PC 1.0000
661-PW045090-08-00 Plain Washer, (M4)ID=4.5 OD=9 T=0.8 1.0000 PC 1.0000
661-PW055103-09-00 Plain Washer, (M5)ID=5.5 OD=10.3 T=0.9 1.0000 PC 1.0000
661-SWM05000-00-00 Spring Washer M5 1.0000 PC 1.0000
662-HNM50040-00-00 Hexagon Nut M5xP0.8x4t 1.0000 PC 1.0000
701-SM688A01-00-00 Fibre For Main PCB, t=0.4mm, 1.0000 PC 1.0000
703-00CD9001-00-00 CD Dustproof Felt, 0.5t Black Synthetic 1.0000 PC 1.0000
704-TF770001-00-00 LCD Plate ,PC Sheet , t=0.125mm(Clear) 1.0000 PC 1.0000
705-0RC00502-MY-00 RC Sheet 40 Key(PET),W/Silkscreen for 1.0000 PC 1.0000
706-00SMF217-01-00 Carton Sealing Label - Black Text on Red 0.4000 PC 0.4000
706-01500060-04-00 White Label, Size:15x5mm 5.0000 PC 5.0000
706-03500060-04-00 White Label, Size:35x6mm 6.0000 PC 6.0000
706-0CS88003-13-00 Wiring Label(B), for Line Out Left, 1.0000 PC 1.0000
706-0CS88003-14-00 Wiring Label(B), for Line Out Right, 1.0000 PC 1.0000
706-0CS88004-03-20 Made in P.R.C. Label, Size:118x18mm 0.4000 PC 0.4000
706-0CS88006-01-00 "QC Passed" Label 1.0000 PC 1.0000
706-CD001000-09-00 CD Warning Label "Class 1 Laser Product" 1.0000 PC 1.0000
706-TF780001-MY-30 Top Label(Jensen), AM/FM OIRT (DVD) 1.0000 PC 1.0000
751-0SM855CD-01-15 CD Mechanism Locker Warning Card -Komec/ 1.0000 PC 1.0000
752-TF7800MY-01-32 Instruction Manua, MYSTERY MMD-584U 1.0000 PC 1.0000
752-TF7800MY-02-31 Instruction Manua, MYSTERY MMD-584U 1.0000 PC 1.0000
754-MYTF7800-01-00 Warranty Card for MYSTERY MMD-584U 1.0000 PC 1.0000
756-TF7800MY-02-31 Gift Box, MYSTERY MMD-584U 1.0000 PC 1.0000
759-04020001-60-60 Polybag,Open Side=40xL=200xT=0.06mm 1.0000 PC 1.0000
759-10015004-40-30 Polybag, Open Side=100 xL=150 x T=0.04mm 1.0000 PC 1.0000
759-27032005-30-45 Polybag,Open Side=270 x L=320 x T=0.03mm 1.0000 PC 1.0000
761-SM688A01-00-00 Polyfoam Left (For SM688A), PS White, 1.0000 PC 1.0000
761-SM688A02-00-00 Polyfoam Right (For SM688A), PS White, 1.0000 PC 1.0000
763-CS108000-05-00 Carton for CS1080,49x24x30cm,5PCS/CTN 0.2000 PC 0.2000
850-04020080-11-00 Black Sponge L=40,W=20,H=8,W/Double 2.0000 PC 2.0000
850-04020160-11-00 Black Sponge, Size: L=40 W=20 H=16mm 1.0000 PC 1.0000
851-040150090-11-00 Foam Rubber(Black),L=40 W=15 H=9mm 1.0000 PC 1.0000
851-C010C004-25-00 Foam Rubber(Black),t=2.5 OD=10,ID=4mm 1.0000 PC 1.0000
852-00808030-10-00 Neop Tape, L=8 W=8 H=3mm W/Double Sided 3.0000 PC 3.0000
852-06504504-10-00 Neop Tape, L=6.5 W=4.5 H=4mm W/Double 1.0000 PC 1.0000
XXX-XXXXXXXX-XX-XX NIL 4.0000 PC 4.0000
Total Pages of Report: 8
-End of Report-
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
