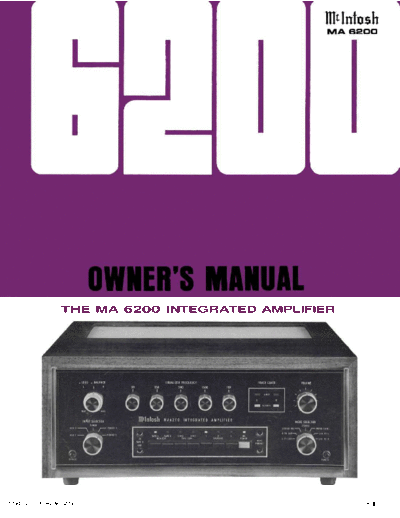

Image preview - the first page of the document

>> Download hfe_mcintosh_ma6200_en documenatation <<

Text preview - extract from the document

THE MA 6200 INTEGRATED AMPLIFIER

Reading Time: 40 Minutes Price: $2.00
VARIOUS REGULATORY AGENCIES REQUIRE THAT WE BRING THE FOLLOWING INFOR-
MATION TO YOUR ATTENTION. PLEASE READ IT CAREFULLY.

WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE.

The Mclntosh you have purchased is a Model MA
6200. It has a serial number located on the rear panel
of the chassis. Record that serial number here:

Serial Number

The model, serial number and purchase date are
important to you for any future service. Record the
purchase date here:

Purchase Date

Upon application, Mclntosh Laboratory provides a
Three-Year Service Contract. Your Mclntosh
authorized Service Agency can expedite repairs
when you provide the Service Contract with the in-
strument for repair. To assist, record your Service
Contract number here:

Service Contract Number
Your MA 6200 Integrated Amplifier
will give you many years of pleasant and
satisfactory performance. If you

Contents
have any questions, please contact:

CUSTOMER SERVICE
Mclntosh Laboratory Inc.
2 Chambers Street
Binghamton, New York 13903-9990 HOW TO I N S T A L L . . . 2
Phone: 607-723-3512 HOW TO CONNECT... 4
THE FRONT PANEL CONTROLS
AND HOW TO USE T H E M . . . 8
PERFORMANCE LIMITS . . .12
PERFORMANCE CHARTS . . .13,14
TECHNICAL DESCRIPTION .. .15
Take Advantage of 3 years BLOCK DIAGRAM...17
of Contract Service ...
Fill in the Application NOW.

MclNTOSH THREE YEAR SERVICE CONTRACT
An application for A THREE YEAR SERVICE CONTRACT is included with this manual.

The terms of the contract are: CONTRACT will be cancelled. Damage
by improper use or mishandling is not
covered by the SERVICE CONTRACT.
4. The SERVICE CONTRACT is issued to
1. Mclntosh will provide all parts, materials you as the original purchaser. To protect
and labor needed to return the measured you from misrepresentation, this con-
performance of the instrument to the tract cannot be transferred to a second
original performance limits. The SER- owner.
VICE CONTRACT does not cover any
shipping costs to and from the authoriz- 5. To receive the SERVICE CONTRACT,
ed service agency or the factory. your purchase must be made from a
Mclntosh franchised dealer.
2. Any Mclntosh authorized service agency
will repair Mclntosh instruments at nor- 6. Your completely filled in application for
mal service rates. To receive service SERVICE CONTRACT must be postmark-
under the terms of the SERVICE CON- ed within 30 days of the date of purchase
TRACT, the SERVICE CONTRACT CER- of the instrument.
TIFICATE must be presented when the
instrument is taken to the service agency. 7. To receive the SERVICE CONTRACT, all
information on the application must be
3. Always have service done by a Mclntosh filled in. The SERVICE CONTRACT will
authorized service agency. If the instru- be issued when the completely filled in
ment is modified or damaged as a result application is received by Mclntosh
of unauthorized repair, the SERVICE Laboratory Inc. in Binghamton, New York.
