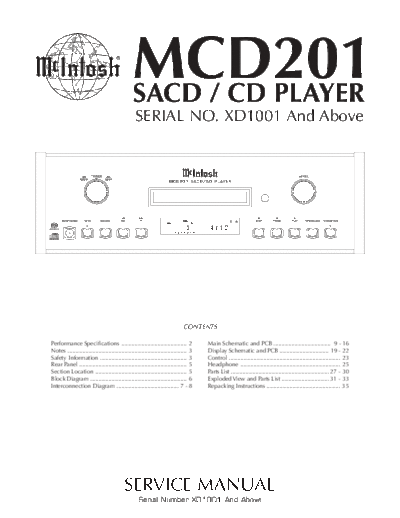

Image preview - the first page of the document
>> Download hfe_mcintosh_mcd201_service_xd1001_on documenatation <<
Text preview - extract from the document
SERIAL NO. XD1001 And Above
CONTENTS
Performance Specifications ........................................ 2 Main Schematic and PCB ................................... 9 - 16
Notes ......................................................................... 3 Display Schematic and PCB .............................. 19 - 22
Safety Information ..................................................... 3 Control .................................................................... 23
Rear Panel .................................................................. 5 Headphone ............................................................. 25
Section Location ........................................................ 5 Parts List ............................................................ 27 - 30
Block Diagram ........................................................... 6 Exploded View and Parts List ............................. 31 - 33
Interconnection Diagram ...................................... 7 - 8 Repacking Instructions ............................................. 35
SERVICE MANUAL
Serial Number XD1001 And Above
PERFORMANCE SPECIFICATIONS
2
MCD201
NOTES
1. The heavy notes on the schematic denote the primary 4. On PC board drawings, Square pad indicates:
signal path. a. Polarized Capacitors - Positive
b. Diodes - Cathode
2. Unless otherwise noted, all voltages indicated on the c. Others - Pin 1
schematics are measured under the following conditions:
a. AC input at 120 volts, 50/60Hz. 5. WARNING
b. All voltages are +/-10% with respect to ground. A Parts marked with the symbol have critical
high impedance (10 megaohm) voltmeter must be used. characteristics. Use only replacement parts recom-
mended by the manufacturer.
3. Unless otherwise specified:
a. Resistor values are in ohms. 6. Use McIntosh Remote Control Model HR056 with the
b. Capacitor values are microfarads (uF). MCD201.
c. Inductor values are in microhenries (uH).
SAFETY INFORMATION
CAUTION: Invisible Laser Radiation when open.
DO NOT stare into the beam or view
directly with optical instruments. Use of
controls or adjustments or performance
of procedures other than those speci
fied in the Owners Manual may result in
Hazardous Radiation Exposure.
Servicing of laser mechanism is to be
performed at the service facility at
McIntosh Laboratory Inc.
This product incorporates an embedded
Class 3R Laser (IEC60825-1).
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
VAROITUS! Laitteen kayttaminen muulla kuin
tassa kayttoohjeessa mainitulla
tavalla saattaa altistaa kayttajan
turvallisuusluokan 1 ylittavalle
nakymattomalle lasersateiiylle.
VARNING! Om apparaten anvands pa annat
satt an i denna bruksanvisning
specificerats, kan anvandaren
utsattas for osynbg laserstraining,
som overskrider gransen for
laserklass 1.
3
NOTES
4
MCD201
REAR PANEL
SECTION LOCATIONS
TOP VIEW WITH COVER REMOVED
5
BLOCK DIAGRAM
6
MCD201
INTERCONNECT
7 8
2 MAIN 750293 SCH 1 OF 3
POWER TABLE
REF. DES. GND NSV5
U12 PIN 7 14
U13 8 16
9 10
MCD201
2 MAIN 750293 SCH 2 OF 3
POWER TABLE
REF. DES. 11.5V -11.5V
U28 PIN 8 4
U29 PIN 8 4
U30 PIN 8 4
U31 PIN 8 4
U32 PIN 8 4
11 12
2 MAIN 750293 SCH 3 OF 3
POWER TABLE
REF. DES. 11.5V -11.5V
U33 PIN 8 4
U36 PIN 8 4
U37 PIN 8 4
U38 PIN 8 4
13 14
MCD201
2 MAIN PCB 750293
15 16
NOTES
17 18
MCD201
4 DISPLAY SCH 750294
19 20
4 DISPLAY PCB 750294
21 22
MCD201
5 CONTROL SCH and PCB 750295
23
NOTES
24
MCD201
6 HEADPHONE SCH and PCB 750296
25
PARTS LIST
2 MAIN PCB 750293
Ref No. Description Part No. Ref No. Description Part No.
C1 CAP MONO 1000PF 50V 10% NPO 061344 C61 CAP MONO 150PF 200V 5% 061349
C2 CAP MONO 1000PF 50V 10% NPO 061344 C62 CAP ELECT 47UF 35V 066446
C3 CAP MONO 1000PF 50V 10% NPO 061344 C63 CAP MONO .1UF 50V 20% Z5U 061346
C4 CAP MONO 1000PF 50V 10% NPO 061344 C64 CAP MONO .1UF 50V 20% Z5U 061346
C5 CAP MONO .1UF 50V 20% Z5U 061346 C65 CAP ELECT 10UF 16V 066580
C6 CAP ELECT 47UF 35V 066446 C66 CAP MONO .1UF 50V 20% Z5U 061346
C7 CAP MONO .1UF 50V 20% Z5U 061346 C67 CAP ELECT 10UF 50V 066445
C8 CAP MONO .1UF 50V 20% Z5U 061346 C68 CAP MPF 0.1UF 5% 63VDC 064325
C9 CAP MONO .01UF 50V 20% X7R 061345 C69 CAP ELECT 47UF 35V 066446
C10 CAP ELECT 47UF 35V 066446 C70 CAP ELECT 100UF 10V 5MM 066576
C11 CAP MONO 1000PF 50V 10% NPO 061344 C71 CAP MONO .1UF 50V 20% Z5U 061346
C12 CAP ELECT 100UF 25V 066573 C72 CAP ELECT 10UF 16V 066580
C13 CAP ELECT 100UF 25V 066573 C73 CAP ELECT 10UF 16V 066580
C24 CAP ELECT 1000UF 25V 066513 C74 CAP MONO .1UF 50V 20% Z5U 061346
C14 CAP MPF 1UF 5% 63VDC 064337 C75 CAP MONO 100PF 100V 10% NPO 061341
C15 CAP ELECT 10UF 50V 066445 C76 CAP ELECT 47UF 16V 066380
C16 CAP MONO .1UF 50V 20% Z5U 061346 C77 CAP MONO .1UF 50V 20% Z5U 061346
C17 CAP MONO 1000PF 50V 10% NPO 061344 C78 CAP ELECT 10UF 16V 066580
C18 CAP MONO .1UF 50V 20% Z5U 061346 C79 CAP MONO .1UF 50V 20% Z5U 061346
C19 CAP MPF 0.033UF 100V 10% 064427 C80 CAP MONO .1UF 50V 20% Z5U 061346
C20 CAP MONO .1UF 50V 20% Z5U 061346 C81 CAP MPF 0.0047UF 5% 63VDC 064308
C21 CAP ELECT 100UF 25V 066573 C82 CAP MPF 0.0047UF 5% 63VDC 064308
C22 CAP MONO .1UF 50V 20% Z5U 061346 C83 CAP MPF 0.0047UF 5% 63VDC 064308
C23 CAP MONO .1UF 50V 20% Z5U 061346 C84 CAP MPF 0.0047UF 5% 63VDC 064308
C25 CAP MONO .1UF 50V 20% Z5U 061346 C85 CAP MONO .1UF 50V 20% Z5U 061346
C26 CAP MONO 1000PF 50V 10% NPO 061344 C86 CAP MONO 330PF 061332
C27 CAP MPF 1UF 5% 63VDC 064337 C87 CAP MONO 330PF 061332
C28 CAP ELECT 220UF 50V 20% 066254 C88 CAP MONO 330PF 061332
C29 CAP MPF 0.033UF 100V 10% 064427 C89 CAP MONO 330PF 061332
C30 CAP MONO .1UF 50V 20% Z5U 061346 C90 CAP MPF 0.0033UF 5% 63VDC 064455
C31 CAP MONO 100PF 100V 10% NPO 061341 C91 CAP MPF 0.0033UF 5% 63VDC 064455
C32 CAP ELECT 47UF 35V 066446 C92 CAP MPF 0.0033UF 5% 63VDC 064455
C33 CAP ELECT 22000UF 16V 066579 C93 CAP MPF 0.0033UF 5% 63VDC 064455
C34 CAP ELECT 3300UF 35V 066509 C94 CAP MPF 0.0015UF 5% 63VDC 064302
C35 CAP ELECT 3300UF 35V 066509 C95 CAP MPF 0.0015UF 5% 63VDC 064302
C36 CAP ELECT 3300UF 35V 066509 C96 CAP MPF 0.0015UF 5% 63VDC 064302
C37 CAP MONO .1UF 50V 20% Z5U 061346 C97 CAP MPF 0.0015UF 5% 63VDC 064302
C38 CAP MONO .01UF 50V 20% X7R 061345 C98 CAP MONO .1UF 50V 20% Z5U 061346
C39 CAP MONO .1UF 50V 20% Z5U 061346 C99 CAP MONO .1UF 50V 20% Z5U 061346
C40 CAP MONO .1UF 50V 20% Z5U 061346 C100 CAP ELECT 10UF 50V 066445
C41 CAP MONO .1UF 50V 20% Z5U 061346 C101 CAP ELECT 10UF 50V 066445
C42 CAP MONO .1UF 50V 20% Z5U 061346 C102 CAP ELECT 47UF 35V 066446
C43 CAP MONO .1UF 50V 20% Z5U 061346 C103 CAP ELECT 47UF 35V 066446
C44 CAP MONO .1UF 50V 20% Z5U 061346 C104 CAP ELECT 47UF 35V 066446
C45 CAP ELECT 220UF 50V 20% 066254 C105 CAP ELECT 47UF 35V 066446
C46 CAP ELECT 47UF 35V 066446 C106 CAP ELECT 47UF 35V 066446
C47 CAP ELECT 470UF 16V 066508 C107 CAP ELECT 47UF 35V 066446
C48 CAP ELECT 470UF 16V 066508 C108 CAP MONO .1UF 50V 20% Z5U 061346
C49 CAP ELECT 470UF 16V 066508 C109 CAP MPF 0.0033UF 5% 63VDC 064455
C50 CAP ELECT 220UF 25V 066507 C110 CAP MPF 0.0033UF 5% 63VDC 064455
C51 CAP ELECT 220UF 25V 066507 C111 CAP MPF 0.0033UF 5% 63VDC 064455
C52 CAP ELECT 47UF 35V 066446 C112 CAP MPF 0.0033UF 5% 63VDC 064455
C53 CAP ELECT 220UF 25V 066507 C113 CAP ELECT 47UF 35V 066446
C54 CAP ELECT 220UF 25V 066507 C114 CAP ELECT 47UF 35V 066446
C55 CAP MONO .1UF 50V 20% Z5U 061346 C115 CAP MONO .1UF 50V 20% Z5U 061346
C56 CAP MONO .1UF 50V 20% Z5U 061346 C116 CAP ELECT 10UF 50V 066445
C57 CAP MONO .1UF 50V 20% Z5U 061346 C117 CAP ELECT 10UF 50V 066445
C58 CAP MONO .1UF 50V 20% Z5U 061346 C118 CAP ELECT 10UF 50V 066445
C59 CAP MONO .1UF 50V 20% Z5U 061346 C119 CAP MONO .1UF 50V 20% Z5U 061346
C60 CAP ELECT 10UF 16V 066580 C120 CAP MONO .1UF 50V 20% Z5U 061346
26
MCD201
PARTS LIST con't
MAIN PCB 750293 (cont'd)
Ref No. Description Part No. Ref No. Description Part No.
C121 CAP ELECT 47UF 35V 066446 (F5) HOLDER FUSE 5X20MM PCB MOUNT 178159
C122 CAP ELECT 47UF 35V 066446 FN1 FILTER EMI 180057
C123 CAP ELECT 47UF 35V 066446 FN2 FILTER EMI 180057
C124 CAP ELECT 47UF 35V 066446 WASHER SHLDR #10 BLK NYLN INS 104101
C125 CAP ELECT 47UF 35V 066446 HS1 HEATSINK TO-220 080021
C126 CAP ELECT 47UF 35V 066446 HS2 HEATSINK TO-218 080020
C127 CAP ELECT 47UF 35V 066446 HS3 HEATSINK TO-218 080020
C128 CAP ELECT 47UF 35V 066446 HS4 HEATSINK TO-220 080021
C129 CAP MONO .1UF 50V 20% Z5U 061346 HS5 HEATSINK TO-218 080020
C130 CAP MPF 0.1UF 5% 63VDC 064325 HS6 HEATSINK TO-218 080020
C131 CAP MPF 0.1UF 5% 63VDC 064325 J1 HEADER 1.25MM 14 PIN R-ANGLE 117889
C132 CAP MONO .1UF 50V 20% Z5U 061346 J2 CONN 23 PIN FFC 117906
C133 CAP MONO .1UF 50V 20% Z5U 061346 J3 BLADE FASTON W/FEET 117708
C134 CAP MONO .1UF 50V 20% Z5U 061346 J4 BLADE FASTON W/FEET 117708
C135 CAP MONO .1UF 50V 20% Z5U 061346 J5 CONN PCB MOUNT POWER RED 117719
C136 CAP MONO .1UF 50V 20% Z5U 061346 J6 CONN PCB MOUNT POWER RED 117719
C137 CAP MONO .1UF 50V 20% Z5U 061346 J7 CONN PCB MOUNT POWER RED 117719
C138 CAP MONO .1UF 50V 20% Z5U 061346 J8 CONN PCB MOUNT POWER RED 117719
C139 CAP MONO .1UF 50V 20% Z5U 061346 J9 HEADER 8 PIN MTA-156 117717
C140 CAP ELECT 47UF 35V 066446 J10 JACK HEADPHONE STEREO 1/8IN 117945
D1 DIODE SILICON 070174 J11 JACK HEADPHONE STEREO 1/8IN 117945
D2 DIODE SILICON 070174 J12 JACK HEADPHONE STEREO 1/8IN 117945
D3 DIODE SILICON 070174 J13 JACK HEADPHONE STEREO 1/8IN 117945
D4 DIODE SIL 400 PIV @ 1.5A 070031 J14 HEADER 2MM 7PIN R-ANGLE 117941
D5 DIODE SIL 400 PIV @ 1.5A 070031 J15 HEADER 2MM 20 PIN R-ANGLE 117943
D6 DIODE SIL 400 PIV @ 1.5A 070031 J16 HEADER 2MM 20 PIN R-ANGLE 117943
D7 DIODE SIL 400 PIV @ 1.5A 070031 J17 HEADER 2MM 12 PIN R-ANGLE 117944
D8 DIODE SILICON 070174 J18 RCA JACK ORANGE WITH GOLD 117798
D9 DIODE SILICON 070174 J19 HEADER 2MM 3 PIN R-ANGLE 117942
D10 DIODE SIL 400 PIV @ 1.5A 070031 J20 RECEPTACLE XLR MALE 117686
D11 DIODE SIL 400 PIV @ 1.5A 070031 J21 JACK RCA 1X2 WHT/RED 14MM 117788
D12 RECTIFIER SCHOTTKY 5A 100V 070171 J22 RECEPTACLE XLR MALE 117686
D13 RECTIFIER SCHOTTKY 5A 100V 070171 J24 RECEPTACLE XLR MALE 117686
D14 DIODE SIL 400 PIV @ 1.5A 070031 J25 JACK RCA 1X2 WHT/RED 14MM 117788
D15 DIODE SIL 400 PIV @ 1.5A 070031 J26 RECEPTACLE XLR MALE 117686
D16 RECTIFIER SCHOTTKY 5A 100V 070171 J27 CONN 4 PIN 117215
D17 RECTIFIER SCHOTTKY 5A 100V 070171 K1 RELAY REED FORM 1A 5V 500 OHMS 087050
D18 DIODE SIL 400 PIV @ 1.5A 070031 K2 RELAY 12VDC DPST 087059
D19 DIODE ZENER 6.2V 5% 500MW 070184 K3 RELAY 12VDC DPST 087059
D20 DIODE SIL 400 PIV @ 1.5A 070031 K4 RELAY REED FORM 1A 5V 500 OHMS 087050
D21 DIODE SILICON 070174 K5 RELAY REED FORM 1A 5V 500 OHMS 087050
D22 DIODE SILICON 070174 K6 RELAY REED FORM 1A 5V 500 OHMS 087050
D23 DIODE SILICON 070174 K7 RELAY REED FORM 1A 5V 500 OHMS 087050
D24 DIODE SILICON 070174 K8 RELAY REED FORM 1A 5V 500 OHMS 087050
D25 DIODE SILICON 070174 K9 RELAY REED FORM 1A 5V 500 OHMS 087050
D26 DIODE ZENER 30V 1/2W 5% 070161 K10 RELAY REED FORM 1A 5V 500 OHMS 087050
D27 DIODE SILICON 070174 K11 RELAY REED FORM 1A 5V 500 OHMS 087050
D28 DIODE SILICON 070174 K12 RELAY REED FORM 1A 5V 500 OHMS 087050
D29 DIODE SILICON 070174 K13 RELAY REED FORM 1A 5V 500 OHMS 087050
D30 DIODE SILICON 070174 K14 RELAY REED FORM 1A 5V 500 OHMS 087050
D31 DIODE SILICON 070174 K15 RELAY REED FORM 1A 5V 500 OHMS 087050
D32 DIODE SILICON 070174 K16 RELAY REED FORM 1A 5V 500 OHMS 087050
(F1) HOLDER FUSE 5X20MM PCB MOUNT 178159 K17 RELAY REED FORM 1A 5V 500 OHMS 087050
F2 FUSE 1A 250V SB 5X20 ULCSA IEC 089132 L1 BEADS FERRITE LEADED 076023
(F2) HOLDER FUSE 5X20MM PCB MOUNT 178159 L2 INDUCTOR 100UH POWER 122406
F3 FUSE 1A 250V SB 5X20 ULCSA IEC 089132 L3 INDUCTOR 100UH POWER 122406
(F3) HOLDER FUSE 5X20MM PCB MOUNT 178159 L4 BEADS FERRITE LEADED 076023
F4 FUSE 2A 250V SLO-BLO 5X20 IEC 089123 L5 BEADS FERRITE LEADED 076023
(F4) HOLDER FUSE 5X20MM PCB MOUNT 178159 L6 BEADS FERRITE LEADED 076023
F5 FUSE 2A 250V SLO-BLO 5X20 IEC 089123 SLEEVING #20 ID .034 077021
27
PARTS LIST con't
MAIN PCB 750293 (cont'd)
Ref No. Description Part No. Ref No. Description Part No.
L7 CHOKE 18UH 5%-10% 122394 R37 RES MF 2.21K 1% 1/4W 144584
L8 CHOKE 18UH 5%-10% 122394 R38 RES MF 47.5K 1% 1/4W 144526
L9 CHOKE 18UH 5%-10% 122394 R39 RES MF 475 OHM 1% 1/4W 144509
OPT1 TRANSMITTER FIBER OPTIC 058180 R40 RES MF 475 OHM 1% 1/4W 144509
Q1 TRANSISTOR PNP SILICON 132304 R42 RES MF 15 OHM 1% 1/2W 144555
Q2 TRANSISTOR PNP SILICON 132304 R43 RES MF 1.5K 1% 1/4W 144539
Q3 TRANSISTOR PNP 2SB892 132263 R44 RES MF 47.5K 1% 1/4W 144526
Q4 TRANSISTOR NPN SILICON 132317 R45 RES MF 475 OHM 1% 1/4W 144509
Q5 COUPLER OPTICAL SCHMITT OUTPUT 131030 R46 RES MF 3.32K 1% 1/4W 144518
Q6 TRANSISTOR PNP SILICON 132304 R47 RES MF 2.21K 1% 1/4W 144584
Q7 TRANSISTOR NPN 2A 50V 132302 R50 RES MF 475K 1% 1/4W 144604
Q8 TRANSISTOR PNP 2SB892 132263 R51 RES MF 10K 1% 1/4W 144504
Q9 TRANSISTOR NPN 2A 50V 132302 R52 RES MF 47.5K 1% 1/4W 144526
Q10 TRANSISTOR PNP 2SB892 132263 R53 RES MF 10K 1% 1/4W 144504
Q11 TRANSISTOR PNP SILICON 132304 R54 RES MF 1K 1% 1/4W 144513
R1 RES NETWORK 9 X 47K BUSSED 144673 R55 RES MF 22.1K 1% 1/4W 144564
R2 RES NETWORK 2 X 100 OHM ISO 144680 R56 RES MF 22.1K 1% 1/4W 144564
R3 RES NETWORK 2 X 100 OHM ISO 144680 R59 RES MF 1.5K 1% 1/4W 144539
R4 RES MF 100 OHM 1% 1/4W 144568 R62 RES MF 10K 1% 1/4W 144504
R5 RES NETWORK 2 X 100 OHM ISO 144680 R63 RES NETWORK 2 X 100 OHM ISO 144680
R6 RES NETWORK 2 X 100 OHM ISO 144680 R65 RES MF 47.5K 1% 1/4W 144526
R7 RES NETWORK 2 X 100 OHM ISO 144680 R66 RES NETWORK 9 X 47K BUSSED 144673
R8 RES MF 4.75K 1% 1/4W 144520 R67 RES MF 47.5K 1% 1/4W 144526
R9 RES CF 0 OHM 5% 1/4W 141554 R76 RES MF 47.5K 1% 1/4W 144526
R10 RES CF 0 OHM 5% 1/4W 141554 R77 RES MF 2.1K 1% 1/4W 144585
R13 RES MF 22.1 OHM 1% 1/4W 144554 R78 RES MF 475 OHM 1% 1/4W 144509
R14 RES MF 2.21 OHM 1% 1/4W 144607 R79 RES MF 1.5K 1% 1/4W 144539
R15 RES MF 475 OHM 1% 1/4W 144509 R80 RES MF 1.5K 1% 1/4W 144539
R16 RES NET 10K X 8 RES BUSSED 144675 R81 RES MF 1.5K 1% 1/4W 144539
R17 RES MF 10K 1% 1/4W 144504 R82 RES MF 1K 1% 1/4W 144513
R18 RES MF 1K 1% 1/4W 144513 R83 RES MF 1.5K 1% 1/4W 144539
R19 RES MF 56.2K 1% 1/4W 144618 R84 RES MF 2.67K 1% 1/4W 144534
R20 RES MF 10K 1% 1/4W 144504 R85 RES MF 100 OHM 1% 1/4W 144568
R21 RES MF 100 OHM 1% 1/4W 144568 R86 RES MF 2.67K 1% 1/4W 144534
R22 RES MF 100 OHM 1% 1/4W 144568 R87 RES MF 2.67K 1% 1/4W 144534
R23 RES MF 100 OHM 1% 1/4W 144568 R88 RES MF 100 OHM 1% 1/4W 144568
R24 RES MF 61.9K 1% 1/4W 144596 R89 RES MF 2.67K 1% 1/4W 144534
R25 RES MF 47.5K 1% 1/4W 144526 R90 RES MF 2.67K 1% 1/4W 144534
R26 RES MF 150K 1% 1/4W 144627 R91 RES MF 2.67K 1% 1/4W 144534
R27 RES MF 2.74K 1% 1/4W 144587 R92 RES MF 2.67K 1% 1/4W 144534
R28 RES MF 47.5K 1% 1/4W 144526 R93 RES MF 2.67K 1% 1/4W 144534
R33 RES MF 4.75M 1% 1/4W 144608 R94 RES MF 2.21K 1% 1/4W 144584
R41 RES MF 4.75M 1% 1/4W 144608 R95 RES MF 2.21K 1% 1/4W 144584
R48 RES MO 56.2 OHM 1% 1W 144695 R96 RES MF 2K 1% 1/4W 144517
R49 RES MF 47.5 OHM 1% 1/4W 144642 R97 RES MF 2K 1% 1/4W 144517
R57 RES MF 562 OHM 1% 1/4W 144622 R98 RES MF 2.21K 1% 1/4W 144584
R58 RES MF 47.5 OHM 1% 1/4W 144642 R99 RES MF 2.21K 1% 1/4W 144584
R60 RES MF 47.5 OHM 1% 1/4W 144642 R100 RES MF 2K 1% 1/4W 144517
R61 RES MF 47.5 OHM 1% 1/4W 144642 R101 RES MF 2K 1% 1/4W 144517
R64 RES NETWORK 2 X 100 OHM ISO 144680 R102 RES MF 1K 1% 1/4W 144513
R68 RES NETWORK 2 X 100 OHM ISO 144680 R103 RES MF 1K 1% 1/4W 144513
R69 RES NETWORK 2 X 100 OHM ISO 144680 R104 RES MF 1K 1% 1/4W 144513
R75 RES MF 332 OHM 1% 1/4W 144646 R105 RES MF 1K 1% 1/4W 144513
R74 RES MF 100 OHM 1% 1/4W 144568 R106 RES MF 5.62 OHM 1% 1/4W 144556
R29 RES MF 3.32K 1% 1/4W 144518 R107 RES MF 5.62 OHM 1% 1/4W 144556
R30 RES MF 3.32K 1% 1/4W 144518 R108 RES MF 47.5K 1% 1/4W 144526
R31 RES MF 3.32K 1% 1/4W 144518 R109 RES MF 47.5K 1% 1/4W 144526
R32 RES MF 3.32K 1% 1/4W 144518 R110 RES MF 47.5K 1% 1/4W 144526
R34 RES MF 100K 1% 1/4W 144528 R111 RES MF 47.5K 1% 1/4W 144526
R35 RES MF 1.5K 1% 1/4W 144539 R112 RES MF 47.5K 1% 1/4W 144526
R36 RES MF 3.32K 1% 1/4W 144518 R113 RES MF 47.5K 1% 1/4W 144526
28
MCD201
PARTS LIST con't
MAIN PCB 750293 (cont'd)
Ref No. Description Part No. Ref No. Description Part No.
R114 RES MF 221 OHM 1% 1/4W 144559 U1 QUAD 2 TO 1 LINE DATA SELECTOR 133476
R115 RES MF 221 OHM 1% 1/4W 144559 U2 PROGRAMMED VERSION OF 133495 133669
R116 RES MF 221 OHM 1% 1/4W 144559 (U2) IC SOCKET 28 PIN PLCC 178186
R117 RES MF 221 OHM 1% 1/4W 144559 U3 SINGLE 2-INPUT NAND GATE 133501
R118 RES MF 221 OHM 1% 1/4W 144559 U4 SINGLE 2-INPUT NAND GATE 133501
R119 RES MF 221 OHM 1% 1/4W 144559 U5 SINGLE 2 INPUT AND GATE 133502
R120 RES MF 47.5K 1% 1/4W 144526 U6 SINGLE 2 INPUT AND GATE 133552
R121 RES MF 47.5K 1% 1/4W 144526 U7 IC 3.3V LOW DROP REGULATOR 133464
R122 RES MF 47.5K 1% 1/4W 144526 U8 IC TIMER 133612
R123 RES MF 47.5K 1% 1/4W 144526 U9 SINGLE 2-INPUT OR GATE 133516
R124 RES MF 47.5K 1% 1/4W 144526 U10 IC REGULATOR 5V 133597
R125 RES MF 47.5K 1% 1/4W 144526 U11 SINGLE 2-INPUT OR GATE 133516
R126 RES MF 2K 1% 1/4W 144517 U12 IC AND 2 INPUT X 4 133577
R127 RES MF 2K 1% 1/4W 144517 U13 IC MONOSTB MULTIVIB X 2 133593
R128 RES MF 2K 1% 1/4W 144517 U18 IC 5V 1.5A REGULATOR LOW DROP 133610
R129 RES MF 2K 1% 1/4W 144517 U19 IC REGULATOR 3.3V LOW DROPOUT 133630
R130 RES MF 1K 1% 1/4W 144513 U20 IC 12V REGULATOR LOW DROP 133611
R131 RES MF 1K 1% 1/4W 144513 U21 IC REGULATOR 12V 133590
R132 RES MF 1K 1% 1/4W 144513 U22 IC REGULATOR -12V 133574
R133 RES MF 1K 1% 1/4W 144513 U22 INSULATOR ISOSTRATE TO 220 084133
R134 RES MF 100K 1% 1/4W 144528 U23 SINGLE 2 TO 1 DATA SELECTOR 133551
R135 RES MF 100K 1% 1/4W 144528 U24 D/A CONVERTER 192KHZ 133547
R136 RES MF 10K 1% 1/4W 144504 U25 SINGLE 2 INPUT AND GATE 133502
R137 RES MF 10K 1% 1/4W 144504 U26 SINGLE 2 INPUT AND GATE 133502
R138 RES MF 10K 1% 1/4W 144504 U27 SINGLE 2 INPUT AND GATE 133502
R139 RES MF 10K 1% 1/4W 144504 U28 IC DUAL OPERATIONAL AMPLIFIER 133578
R140 RES MF 10K 1% 1/4W 144504 U29 IC DUAL OPERATIONAL AMPLIFIER 133578
R141 RES MF 10K 1% 1/4W 144504 U30 IC DUAL OPERATIONAL AMPLIFIER 133578
R142 RES MF 47.5K 1% 1/4W 144526 U31 IC DUAL OPERATIONAL AMPLIFIER 133578
R143 RES MF 47.5K 1% 1/4W 144526 U32 IC DUAL OPERATIONAL AMPLIFIER 133578
R144 RES MF 47.5K 1% 1/4W 144526 U33 IC DUAL OPERATIONAL AMPLIFIER 133578
R145 RES MF 47.5K 1% 1/4W 144526 U34 STEREO VOL. CONTROL 133638
R146 RES MF 47.5K 1% 1/4W 144526 U35 IC DUAL OPERATIONAL AMPLIFIER 133578
R147 RES MF 47.5K 1% 1/4W 144526 U36 IC DUAL OPERATIONAL AMPLIFIER 133578
R148 RES MF 221 OHM 1% 1/4W 144559 U37 IC DUAL OPERATIONAL AMPLIFIER 133578
R149 RES MF 221 OHM 1% 1/4W 144559 U38 IC DUAL OPERATIONAL AMPLIFIER 133578
R150 RES MF 221 OHM 1% 1/4W 144559 Y1 RESONATOR CERAMIC 6.0MHZ W/CAP 180072
R151 RES MF 221 OHM 1% 1/4W 144559 SCR MS 4-40 X 1/4 PH PN BLK 400121
R152 RES MF 221 OHM 1% 1/4W 144559 NUT KEP 4-40 CLR 402001
R153 RES MF 221 OHM 1% 1/4W 144559 ASSY INSERTION PCB MAIN 702135
R154 RES MF 47.5K 1% 1/4W 144526 ASSEMBLY PCB MAIN SM PARTS 750317
R155 RES MF 47.5K 1% 1/4W 144526 PC BD MAIN 129691
R156 RES MF 47.5K 1% 1/4W 144526 PURCHASED LABOR SURFACE MOUNT 750317PL
R157 RES MF 47.5K 1% 1/4W 144526
R158 RES MF 47.5K 1% 1/4W 144526 4 DISPLAY PCB 750294
R159 RES MF 47.5K 1% 1/4W 144526 C1 CAP ELECT 47UF 16V 066380
R160 RES MF 10 OHM 1% 1/4W 144553 C2 CAP MONO .1UF 50V 20% Z5U 061346
R161 RES MF 10 OHM 1% 1/4W 144553 C3 CAP MONO .01UF 50V 20% X7R 061345
R162 RES MF 10 OHM 1% 1/4W 144553 C4 CAP MONO .01UF 50V 20% X7R 061345
R163 RES MF 10 OHM 1% 1/4W 144553 C5 CAP MONO .01UF 50V 20% X7R 061345
R164 RES MF 4.75K 1% 1/4W 144520 C6 CAP MONO .01UF 50V 20% X7R 061345
R165 RES MF 4.75K 1% 1/4W 144520 C7 CAP MONO .01UF 50V 20% X7R 061345
R166 RES MF 4.75K 1% 1/4W 144520 C8 CAP MONO .01UF 50V 20% X7R 061345
R167 RES MF 4.75K 1% 1/4W 144520 C9 CAP MONO .01UF 50V 20% X7R 061345
R168 RES MF 10 OHM 1% 1/4W 144553 C10 CAP MONO .01UF 50V 20% X7R 061345
R169 RES MF 10 OHM 1% 1/4W 144553 C11 CAP MONO .1UF 50V 20% Z5U 061346
R170 RES MF 10 OHM 1% 1/4W 144553 C12 CAP ELECT 10UF 50V LOW ESR 066437
R171 RES MF 10 OHM 1% 1/4W 144553 C13 CAP MONO .1UF 50V 20% Z5U 061346
R172 RES MF 100 OHM 1% 1/4W 144568 C14 CAP ELECT 47UF 16V 066380
R173 RES MF 100 OHM 1% 1/4W 144568 C16 CAP MONO 33PF 200V 5% NPO 061347
T1 TRANSFORMER DIGITAL INTERFACE 159351 C18 CAP ELECT 10UF 16V 066580
29
PARTS LIST con't
DISPLAY PCB 750294 (cont'd)
Ref No. Description Part No. Ref No. Description Part No.
DS1 LED SQUARE RED 058109 S8 SWITCH TACT 150058
DS2 LED GRN 5MM HI-INTENSITY 058165 S9 SWITCH TACT 150058
DS3 LED GRN 5MM HI-INTENSITY 058165 U1 DECIMAL TO BCD ENCODER 133454
DS4 LED SQUARE RED 058109 U3 DOT MATRIX VFD DRIVER 133642
DS5 DVD/CD PLAYER VF DISPLAY 058169 LED SPACER .220 LENGTH 163001
J1 CONN 23 PIN FFC 117906 ASSY INSERTION PCB DISPLAY 702134
J2 CONN 8 PIN FFC 117915
L1 CHOKE 18UH 5%-10% 122394
L2 BEADS FERRITE LEADED 076023
5 CONTROL PCB 750295
L3 BEADS FERRITE LEADED 076023
Ref No. Description Part No.
TAPE FOAM 3/16 THK 1 X 1 WHITE 094453
SPACER LED 112108 C2 CAP MONO .1UF 50V 20% Z5U 061346
MT1 SENSOR IR 38KHZ 121046 C3 CAP MONO .1UF 50V 20% Z5U 061346
PCB1 PC BD DISPLAY 129715 C4 CAP MONO .1UF 50V 20% Z5U 061346
R1 RES MF 2.21K 1% 1/4W 144584 DS1 LED GRN 5MM HI-INTENSITY 058165
R2 RES MF 100 OHM 1% 1/4W 144568 (DS1) SPACER LED 112108
R3 RES MF 2.21K 1% 1/4W 144584 DS2 LED GRN 5MM HI-INTENSITY 058165
R4 RES MF 100 OHM 1% 1/4W 144568 (DS2) SPACER LED 112108
R5 RES MF 2.21K 1% 1/4W 144584 DS3 LED GRN 5MM HI-INTENSITY 058165
R6 RES MF 332 OHM 1% 1/4W 144646 (DS3) SPACER LED 112108
R7 RES MF 2.21K 1% 1/4W 144584 J1 CONN 8 PIN FFC 117915
R8 RES NET 10K X 8 RES BUSSED 144675 PCB1 PC BD CONTROL 129716
R9 RES MF 10K 1% 1/4W 144504 R1 RES MF 100 OHM 1% 1/4W 144568
R10 RES MF 10K 1% 1/4W 144504 R2 RES MF 100 OHM 1% 1/4W 144568
R12 RES MF 10K 1% 1/4W 144504 R4 RES MF 100 OHM 1% 1/4W 144568
R13 RES MF 10K 1% 1/4W 144504 S2 SWITCH ROT ENCODER NO DETENT 146256
R14 RES MF 10K 1% 1/4W 144504 S1 ENCODER 11MM SELF-RETURN TYPE 146257
R15 RES MF 10 OHM 1% 1/4W 144553
S1 SWITCH TACT 150058
S2 SWITCH TACT 150058
S3 SWITCH TACT 150058 6 HEADPHONE PCB 750296
S4 SWITCH TACT 150058 C1 CAP MONO .1UF 50V 20% Z5U 061346
S5 SWITCH TACT 150058 J1 HEADPHONE JACK 1/4" 117881
S6 SWITCH TACT 150058 J2 CONN 4 PIN 117215
S7 SWITCH TACT 150058 PC BD HEADPHONE 129717
30
MCD201
ASSEMBLY VIEW
31
ASSEMBLY VIEW con't
32
MCD201
ASSEMBLY VIEW con't
33
ASSEMBLY Parts List
Ref # P/N Qty Description Ref # P/N Qty Description
1 005090 2 BRACKET EXTRUSION 41 400159 4 SCREW MACH 10-32X3/4 PH PN BLK
2 005582 1 FAB SUBPANEL 42 400250 15 SCREW MACH SEMS 6-32X1/4 PH PN
3 005666 1 FAB PANEL REAR 43 400300 2 SCREW MACH SEMS 6-32X1 PH PAN
4 005585 1 FAB SIDE LEFT 44 100378 1 SCR MACH 2-56X1/8 PH PAN BRASS
5 005586 1 FAB BRACKET LEFT 45 401054 18 SCREW TAPTT 6-32X1/4 PH PN BLK
6 005587 1 FAB SIDE RIGHT 46 401058 1 SCREW TAP 6-32X1/4 PHIL PAN
7 005588 1 FAB BRACKET RIGHT 47 401078 4 SCREW TAP 8-32X5/16 PH PN BLK
8 005589 1 FAB CD TRAY 48 401196 22 SCREW TAP SEMS 6-32X1/4 PH PAN
9 005590 1 FAB TRANSFORMER TRAY 49 101197 12 SCREW HI/LO 4-24X3/8 PH RD BLK
10 005591 1 FAB BOTTOM COVER 50 401222 1 SCREW TT SEMS 6-32X1/4 PH PAN
11 005592 1 FAB TOP COVER 51 401232 3 SCREW 6-32 X 1/4 PHIL FLAT
12 005686 1 FAB BRACKET HEADPHONE 52 401249 4 SCREW TAPTT M3X8MM PH PAN BLK
13 016534 1 GLASS MCD201 53 402001 4 NUT KEP 4-40 ZINC PLATE
14 017517 8 PUSHBUTTON ASSY 54 402003 1 NUT MACH 6-32 SELF-LOCK
15 017531 1 PUSHBUTTON ASSY RED 55 402045 4 NUT KEP 6-32 SPECIAL
16 017687 3 CLAMP CABLE 56 104017 2 WASHER FELT BLK 3/4X1/4X1/16
17 163026 3 LOGO PUSHBUTTON BACKLIGHT 57 404080 4 WASHER FLAT #10 CLEAR ZINC
18 163027 2 TITLE/PUSHBUTTON BACKLIGHT 58 104137 2 WASHER FIBR .125ID .312OD .062
19 017933 6 CIRCUIT BOARD SUPPORT 59 117946 1 RECEPTACLE INPUT & LINE FILTER
20 017937 4 FOOT 60 117889 1 MTA CONNECTOR 8PIN .156
21 017947 3 SUPPORT CIRCUIT BOARD 61 159334 1 TRANSFORMER R-CORE POWER
22 017994 1 BEZEL HEADPHONE JACK 1/4 IN 62 163002 4 SUPPORT CIRCUIT BOARD 1/2 IN
23 018611 2 ENDCAP 5IN 63 163005 1 MOLDING DOOR MCD201
24 018705 1 EXTRUSION TOP 64 166034 1 LABEL INTERNAL LASER WARNING
25 018706 1 EXTRUSION BOTTOM 65 171723 1 CABLE ASSY RECEPTACLE/GND WIRE
26 019056 2 SPRING 66 171724 1 CABLE ASSY CHASSIS GROUND
27 021164 1 BUSHING SWITCH FOR 14625600 67 171546 1 CABLE 8 COND FLAT FLEXIBLE
28 024036 4 FOOT PAD .062 69 171637 1 CABLE ASSY 3 CONDUCTOR 1-ROW
29 749637 1 ASSEMBLY KNOB 34 MTRC W/O IDX 70 171638 1 CABLE ASSY 7 CONDUCTOR 1-ROW
30 749695 1 ASSEMBLY KNOB 34 INDEX METRIC 71 171639 1 CABLE ASSY 6 CONDUCTOR 2-ROW
31 750293 1 ASSY PCB MAIN 72 171640 1 CABLE ASSY 16 CONDUCTOR 2-ROW
32 750294 1 ASSY PCB DISPLAY 73 171641 1 CABLE ASSY 18 CONDUCTOR 2-ROW
33 750295 1 ASSY PCB CONTROL 74 171642 1 CABLE ASSY 14 CONDUCTOR 1-ROW
34 750296 1 ASSY PCB HEADPHONE 75 171741 1 CABLE ASSY HEADPHONE
35 078031 2 GROMMET 76 171669 1 CABLE ASSY AC RECEPT WHT
36 078033 10 O-RING 77 171670 1 CABLE ASSY AC RECEPT BLK
37 094016 33 TAPE FOAM 1/4 X 1/8 IN 78 320231 1 SACD/CD MECHANISM ASSY
38 094360 16 TAPE FOAM 1/2 X 1/2 IN 79 401042 4 SCR TC 4-40X1/2 SLT FLLSTR YEL
39 098113 18 CORD DIAL .027 NATRL BRAID SLK 80 017781 1 BEZEL FRONT
40 400147 8 SCREW MACH 6-32 X 3/16 PHIL
34
MCD201
REPACKING INSTRUCTIONS
35
SERVICE MANUAL
SERIAL NO. XD1001 And Above
The continuous improvement of its products is the policy of McIntosh Laboratory Incorporated, who reserve the right to improve design without
notice. Because of the constant upgrading of McIntosh products' circuitry and components, the Company cannot insure, and does not warrant, the
accuracy of the within schematic material, which is intended for information only.
McINTOSH LABORATORY, INC., 2 CHAMBERS STREET, BINGHAMTON, NEW YORK 13903 Printed in U.S.A. Part Number 041104
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
