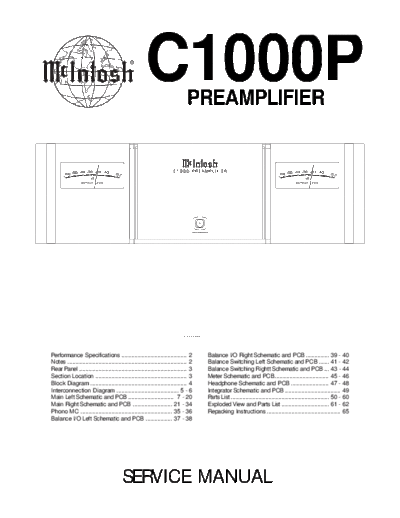

Image preview - the first page of the document
>> Download hfe_mcintosh_c1000p_service documenatation <<
Text preview - extract from the document
C1000P
PREAMPLIFIER
C1000P PREAMPLIFIER
````````
Performance Specifications ........................................ 2 Balance I/O Right Schematic and PCB .............. 39 - 40
Notes ......................................................................... 2 Balance Switching Left Schematic and PCB ...... 41 - 42
Rear Panel .................................................................. 3 Balance Switching Rightt Schematic and PCB ... 43 - 44
Section Location ........................................................ 3 Meter Schematic and PCB ................................. 45 - 46
Block Diagram ........................................................... 4 Headphone Schematic and PCB ....................... 47 - 48
Interconnection Diagram ...................................... 5 - 6 Integrator Schematic and PCB .................................. 49
Main Left Schematic and PCB ............................ 7 - 20 Parts List ............................................................ 50 - 60
Main Right Schematic and PCB ........................ 21 - 34 Exploded View and Parts List ............................. 61 - 62
Phono MC ........................................................ 35 - 36 Repacking Instructions ............................................. 65
Balance I/O Left Schematic and PCB ................ 37 - 38
SERVICE MANUAL
PERFORMANCE SPECIFICATIONS
Power Requirements C1000T:
100 Volts, 50/60Hz at 120 watts Width is 17-1/2 inches (44.45cm)
110 Volts, 50/60Hz at 120 watts Height is 6 inches (15.24cm) including feet
120 Volts, 50/60Hz at 120 watts Depth is 24 inches (61.0cm) including the Front Panel
220 Volts, 50/60Hz at 120 watts and Interconnect Cables1
230 Volts, 50/60Hz at 120 watts
240 Volts, 50/60Hz at 120 watts Weight
C1000C - 39.0 pounds (17.7 kg) net
Note: Refer to the rear panel of the C1000 Controller for the 61.4 pounds (27.9 kg) in shipping carton
correct voltage. C1000P - 33.0 pounds (15.0 kg) net
53.6 pounds (24.3 kg) in shipping carton
C1000T - 34.0 pounds (15.4 kg) net
54.6 pounds (24.8 kg) in shipping carton
General Specifications 1
Interconnect Cables are supplied with the C1000
Preamplifier and C1000 Tube Preamplifier. They are
Overall Dimensions
used to connect Preamplifier(s) to the C1000 Controller.
C1000C:
Width is 17-1/2 inches (44.45cm)
Height is 6 inches (15.24cm) including feet
Depth is 24 inches (61.0cm) including the Front Panel, Knobs
and Interconnect Cables1
C1000P:
Width is 17-1/2 inches (44.45cm)
Height is 6 inches (15.24cm) including feet
Depth is 24 inches (61.0cm) including the Front Panel and
Interconnect Cables1
NOTES
1. The heavy notes on the schematic denote the primary 4. On PC board drawings, Square pad indicates:
signal path. a. Polarized Capacitors - Positive
b. Diodes - Cathode
2. Unless otherwise noted, all voltages indicated on the c. Others - Pin 1
schematics are measured under the following conditions:
a. AC input at 120 volts, 50/60Hz. 5. WARNING
b. All voltages are +/-10% with respect to ground. A Parts marked with the symbol have critical
high impedance (10 megaohm) voltmeter must be used. characteristics. Use only replacement parts recom
mended by the manufacturer.
3. Unless otherwise specified:
a. Resistor values are in ohms. 6. Use McIntosh Remote Control Model HR052 with the
b. Capacitor values are microfarads (uF). MVP861.
c. Inductor values are in microhenries (uH).
2
C1000P
C1000P
PREAMPLIFIER
PREAMPLIFIER
REAR PANEL
SECTION LOCATIONS
TOP VIEW WITH COVER REMOVED
3
BLOCK DIAGRAM
4
C1000P
PREAMPLIFIER
INTERCONNECT
5 6
2 MAIN LEFT 129531 SH 1 OF 6
7 8
C1000P
PREAMPLIFIER
2 MAIN LEFT 129531 SH 2 OF 6
9 10
2 MAIN LEFT 129531 SH 3 OF 6
11 12
C1000P
PREAMPLIFIER
2 MAIN LEFT 129531 SH 4 OF 6
13 14
2 MAIN LEFT 129531 SH 5 OF 6
15 16
C1000P
PREAMPLIFIER
2 MAIN LEFT 129531 SH 6 OF 6
17 18
2 MAIN LEFT 129531 PCB 1
19 20
C1000P
PREAMPLIFIER
3 MAIN RIGHT 129535 SH 1 OF 6
21 22
3 MAIN RIGHT 129535 SH 2 OF 6
23 24
C1000P
PREAMPLIFIER
3 MAIN RIGHT 129535 SH 3 OF 6
25 26
3 MAIN RIGHT 129535 SH 4 OF 6
27 28
C1000P
PREAMPLIFIER
3 MAIN RIGHT 129535 SH 5 OF 6
29 30
3 MAIN RIGHT 129535 SH 6 OF 6
31 32
C1000P
PREAMPLIFIER
3 MAIN RIGHT 129535 PCB
33 34
4 PHONO MC 129537 SH and PCB
35 36
C1000P
PREAMPLIFIER
5 BALANCE I/O LEFT 129538 SH and PCB
37 38
6 BALANCE I/O RIGHT 129540 SH and PCB
39 40
C1000P
PREAMPLIFIER
7 BALANCE SWITCHING LEFT 129541 SH and PCB
41 42
8 BALANCE SWITCHING RIGHT 129560 SH and PCB
43 44
C1000P
PREAMPLIFIER
9 METER 129539 SH and PCB
45 46
10 HEADPHONE 129601 SH and PCB
47 48
C1000P
PREAMPLIFIER
11 INTEGRATOR 129614 SH and PCB
49
NOTES
50
C1000P
PREAMPLIFIER
PARTS LIST
Ref. No. Description Part No. C65 CAP ELECT 10UF 100VDC 066462
MAIN LEFT PCB 129536 C66 CAP ELECT 4.7UF 50V 066512
1 PCB Part Number 129536 C67 CAP MONO 22PF 200V 10% NPO 061298
2 LOGO C68 CAP ELECT 10UF 100VDC 066462
3 PCB 700 Number 700077 C69 CAP MONO .1UF 50V 20% 061305
C1 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C70 CAP ELECT 10UF 50V 066445
C2 CAP ELECT 47UF 35V 066446 C71 CAP ELECT 10UF 50V 066445
C3 CAP MONO 47PF 200V 10% NPO 061299 C72 CAP ELECT 47UF 35V 066446
C4 CAP MONO 47PF 200V 10% NPO 061299 C73 CAP MONO .1UF 50V 20% 061305
C5 CAP MONO 100PF 100V 10% NPO 061300 C74 CAP MONO 100PF 100V 10% NPO 061300
C6 CAP MONO 100PF 100V 10% NPO 061300 C75 CAP MONO 100PF 100V 10% NPO 061300
C7 CAP ELECT 10UF 100VDC 066462 C76 CAP MONO .1UF 50V 20% 061305
C8 CAP ELECT 10UF 100VDC 066462 C77 CAP MONO .1UF 50V 20% 061305
C9 CAP MONO .1uF 50V 20% Z5U 061305 C78 CAP MONO 22PF 200V 10% NPO 061298
C10 CAP MONO .1uF 50V 20% Z5U 061305 C79 CAP ELECT 10UF 50V 066445
C11 CAP MONO 220PF 200V 10% 061301 C80 CAP MONO .1UF 50V 20% 061305
C12 CAP ELECT 220UF 25V 066507 C81 CAP ELECT 10UF 50V 066445
C13 CAP MONO .1uF 50V 20% Z5U 061305 C82 CAP MONO .1UF 50V 20% 061305
C14 CAP MONO .1uF 50V 20% Z5U 061305 C83 CAP ELECT 10UF 50V 066445
C15 CAP POLYPROP 0.01UF 63V 1% 64444 C84 CAP MONO 22PF 200V 10% NPO 061298
C16 CAP POLYPROP 0.01UF 63V 1% 64444 C85 CAP ELECT 10UF 50V 066445
C17 CAP POLYPROP .033uF 63V 1% 64446 C86 CAP ELECT 10UF 50V 066445
C18 CAP POLYPROP .033uF 63V 1% 64446 C87 CAP ELECT 10UF 50V 066445
C19 CAP ELECT 470UF 16V 066508 C88 CAP ELECT 47UF 35V 066446
C20 CAP ELECT 470UF 16V 066508 C89 CAP MONO 100PF 100V 10% NPO 061300
C21 CAP MPF 0.0015UF 5% 63VDC 64302 C90 CAP MONO 100PF 100V 10% NPO 061300
C22 CAP MPF 0.0015UF 5% 63VDC 64302 C92 CAP MONO 220PF 100V 10% NPO 061301
C23 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C93 CAP MONO .1UF 50V 20% 061305
C24 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C95 CAP MONO 22PF 200V 10% 061298
C25 CAP MONO 47PF 200V 10% 061299 C97 CAP ELECT 100UF 25V 066447
C26 CAP ELECT 100UF 25V 066447 C98 CAP MONO 22PF 200V 10% 061298
C27 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C99 CAP ELECT 22UF 100V 066506
C28 CAP MONO 100PF 100V 10% 061300 C100 CAP ELECT 100UF 25V 066447
C29 CAP ELECT 220UF 25V 066507 C101 CAP MONO 22PF 200V 10% 061298
C30 CAP MONO 100PF 100V 10% 061300 C102 CAP ELECT 22UF 100V 066506
C31 CAP MONO 100PF 100V 10% 061300 C103 CAP MONO 1000PF 50V 10% 061303
C32 CAP MONO 390PF 200V 5% 61314 C104 CAP MONO 1000PF 50V 10% 061303
C33 CAP ELECT 10UF 50V 066445 C105 CAP MONO 1000PF 50V 10% 061303
C34 CAP ELECT 10UF 50V 066445 C106 CAP MONO 1000PF 50V 10% 061303
C35 CAP MONO .1UF 50V 20% 061305 C107 CAP ELECT 100UF 25V 066447
C36 CAP MONO 100PF 100V 10% 061300 C108 CAP MONO 22PF 200V 10% 061298
C37 CAP ELECT 47UF 35V 066446 C109 CAP ELECT 100UF 25V 066447
C38 CAP MONO .1UF 50V 20% 061305 C110 CAP MONO 22PF 200V 10% 061298
C39 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C111 CAP ELECT 22UF 100V 066506
C40 CAP MONO 100PF 100V 10% NPO 061300 C112 CAP ELECT 22UF 100V 066506
C41 CAP MONO 100PF 100V 10% NPO 061300 C113 CAP MONO 22PF 200V 10% NPO 061298
C42 CAP MONO 22PF 200V 10% NPO 061298 C114 CAP MONO 22PF 200V 10% 061298
C43 CAP MONO 22PF 200V 10% NPO 061298 C115 CAP MONO .1UF 50V 20% 061305
C44 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C116 CAP MONO .1UF 50V 20% 061305
C45 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C117 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
C46 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C118 CAP MONO .1UF 50V 20% 061305
C47 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C119 CAP MONO .1UF 50V 20% 061305
C48 CAP ELECT 10UF 100VDC 066462 C120 CAP MONO .1UF 50V 20% 061305
C49 CAP MONO 100PF 100V 10% 061300 C121 CAP MONO .1UF 50V 20% 061305
C50 CAP MONO .1UF 50V 20% 061305 C123 CAP ELECT 10UF 50V 066445
C51 CAP MONO .1UF 50V 20% 061305 C124 CAP ELECT 10UF 50V 066445
C52 CAP MONO 22PF 200V 10% NPO 061298 C128 CAP MONO 22PF 200V 10% NPO 061298
C53 CAP ELECT 4.7UF 50V 066512 C129 CAP MONO 100PF 100V 10% NPO 061300
C54 CAP MONO .1UF 50V 20% 061305 C130 CAP MONO 22PF 200V 10% NPO 061298
C55 CAP ELECT 47UF 35V 066446 C131 CAP MONO 22PF 200V 10% NPO 061298
C56 CAP ELECT 10UF 50V 066445 C132 CAP ELECT 10UF 100VDC 066462
C57 CAP ELECT 10UF 50V 066445 C133 CAP MONO 100PF 100V 10% NPO 061300
C58 CAP ELECT 10UF 50V 066445 C134 CAP MONO 22PF 200V 10% NPO 061298
C59 CAP MONO 100PF 100V 10% NPO 061300 C135 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
C60 CAP ELECT 10UF 50V 066445 C136 CAP MONO .1UF 50V 20% 061305
C61 CAP MONO 100PF 100V 10% NPO 061300 C138 CAP MONO 100PF 100V 10% NPO 061300
C62 CAP MONO 22PF 200V 10% NPO 061298 C139 CAP MONO .1UF 50V 20% 061305
C63 CAP MONO 100PF 100V 10% NPO 061300 C140 CAP MONO .1UF 50V 20% 061305
C64 CAP MONO .1UF 50V 20% 061305 C142 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
51
Ref. No. Description Part No. Q10 TRANSISTOR PNP POWER 132255
MAIN LEFT PCB 129536 (Cont'd) Q11 TRANSISTOR PNP POWER 132255
C143 CAP ELECT 10UF 100VDC 066462 Q12 TRANSISTOR PNP POWER 132255
C159 CAP MONO 22PF 200V 10% 061298 Q13 TRANSISTOR SI NPN 25V 132254
C160 CAP ELECT 10UF 50V 066445 Q14 TRANSISTOR PNP 132224
C162 CAP MONO .1UF 50V 20% 061305 Q15 TRANSISTOR PNP 132224
C163 CAP MONO .1UF 50V 20% 061305 Q16 TRANSISTOR PNP 132224
C168 CAP MONO 22PF 200V 10% 061298 Q17 TRANSISTOR PNP 132224
D1 DIODE SILICON 1N4148 070047 Q18 TRANSISTOR PNP 132224
D2 DIODE SILICON 1N4148 070047 Q19 TRANSISTOR N JFET 132222
D3 DIODE SILICON 1N4148 070047 Q20 TRANSISTOR N JFET 132222
D4 DIODE SILICON 1N4148 070047 Q21 TRANSISTOR N JFET 132222
D5 DIODE SILICON 1N4148 070047 Q22 TRANSISTOR N JFET 132222
D6 DIODE SILICON 1N4148 070047 Q23 TRANSISTOR NPN 132223
D7 DIODE SILICON 1N4148 070047 Q24 TRANSISTOR SI NPN 25V 132254
D8 DIODE SILICON 1N4148 070047 Q25 TRANSISTOR SI NPN 25V 132254
D9 DIODE SILICON 070047 Q26 TRANSISTOR SI NPN 25V 132254
D10 DIODE SILICON 070047 Q27 TRANSISTOR PNP POWER 132255
D11 DIODE SILICON 070047 Q28 TRANSISTOR NPN 132262
D13 DIODE SILICON 070047 Q29 TRANSISTOR NPN 132223
GP1 BRACKET PCB CARD MOUNTING 3611 Q30 TRANSISTOR PNP 132224
GP2 BRACKET PCB CARD MOUNTING 3611 Q31 TRANSISTOR PNP 132261
J1 JACK PHONO GOLD 117862 Q32 TRANSISTOR PNP POWER 132255
J2 JACK PHONO GOLD 117862 Q33 TRANSISTOR PNP POWER 132255
J3 JACK PHONO GOLD 117862 Q34 TRANSISTOR PNP POWER 132255
J4 JACK PHONO GOLD 117862 Q35 TRANSISTOR SI NPN 25V 132254
J5 JACK PHONO GOLD 117862 Q36 TRANSISTOR PNP 132224
J6 JACK PHONO GOLD 117862 Q37 TRANSISTOR NPN 132223
J7 JACK PHONO GOLD 117862 Q38 TRANSISTOR SI NPN 25V 132254
J8 CONN 12 PIN FFC 117720 Q39 TRANSISTOR SI NPN 25V 132254
J9 HEADER SHROUDED 2ROW 26PIN V 117870 Q40 TRANSISTOR PNP POWER 132255
J10 HEADER 2 PIN LATCHING 117766 Q41 TRANSISTOR SI NPN 25V 132254
J11 CONN 12 PIN FFC 117720 Q42 TRANSISTOR NPN 132262
J12 CONN 12 PIN FFC 117720 Q43 TRANSISTOR NPN 132223
J13 HEADER 2 PIN LATCHING 117766 Q44 TRANSISTOR PNP 132224
J14 CONN 12 PIN FFC 117720 Q45 TRANSISTOR PNP 132261
K1 RELAY REED FORM 1A 5V 500 OHMS 87050 Q46 TRANSISTOR NPN 132223
K2 RELAY REED FORM 1A 5V 500 OHMS 87050 Q47 TRANSISTOR PNP POWER 132255
K3 RELAY REED FORM 1A 5V 500 OHMS 87050 Q48 TRANSISTOR SI NPN 25V 132254
K4 RELAY REED FORM 1A 5V 500 OHMS 87050 Q49 TRANSISTOR PNP POWER 132255
K5 RELAY REED FORM 1C 5V 125 OHM 87056 Q50 TRANSISTOR PNP POWER 132255
K6 RELAY REED FORM 1A 5V 500 OHMS 87050 Q51 TRANSISTOR NPN 132223
K7 RELAY REED FORM 1A 5V 500 OHMS 87050 Q52 TRANSISTOR PNP 132224
K8 RELAY REED FORM 1A 5V 500 OHMS 87050 Q53 TRANSISTOR NPN 132223
K9 RELAY REED FORM 1A 5V 500 OHMS 87050 Q54 TRANSISTOR NPN 132223
K10 RELAY REED FORM 1A 5V 500 OHMS 87050 Q55 TRANSISTOR NPN 132223
K11 RELAY REED FORM 1A 5V 500 OHMS 87050 Q56 TRANSISTOR NPN 132223
K12 RELAY REED FORM 1A 5V 500 OHMS 87050 R1 RES MF 1K 1% 1/4W 144090
K13 RELAY REED FORM 1A 5V 500 OHMS 87050 R2 RES MF 1K 1% 1/4W 144090
K14 RELAY REED FORM 1A 5V 500 OHMS 87050 R3 RES MF 47.5K 1% 1/4W 144108
K15 RELAY REED FORM 1C 5V 125 OHM 87056 R4 RES MF 22.1K 1% 1/4W 144187
K16 RELAY REED FORM 1C 5V 125 OHM 87056 R5 RES MF 2.21 OHM 1/4W 1% 144378
K17 RELAY REED FORM 1C 5V 125 OHM 87056 R6 RES MF 2.21 OHM 1/4W 1% 144378
K18 RELAY REED FORM 1C 5V 125 OHM 87056 R7 RES MF 2.21 OHM 1/4W 1% 144378
K19 RELAY REED FORM 1A 5V 500 OHMS 87050 R8 RES MF 2.21 OHM 1/4W 1% 144378
K20 RELAY REED FORM 1A 5V 500 OHMS 87050 R9 RES MF 7.5K OHM 1/4W 0.5% 144376
K21 RELAY REED FORM 1A 5V 500 OHMS 87050 R10 RES MF 7.5K OHM 1/4W 0.5% 144376
K22 RELAY REED FORM 1A 5V 500 OHMS 87050 R11 RES MF 89.8K 1/4W 0.5% 144377
K23 RELAY REED FORM 1A 5V 500 OHMS 87050 R12 RES MF 89.8K 1/4W 0.5% 144377
K24 RELAY REED FORM 1A 5V 500 OHMS 87050 R13 RES MF 95.3 OHM 1% 1/4W 144220
K25 RELAY REED FORM 1A 5V 500 OHMS 87050 R14 RES MF 182 OHM 1% 1/4W 144273
MC1 50104 R15 RES MF 499 OHM 1% 1/4W 144087
Q1 TRANSISTOR NPN 132223 R16 RES MF 499 OHM 1% 1/4W 144087
Q2 TRANSISTOR SI NPN 25V 132254 R17 RES MF 100K 1% 1/4W 144113
Q3 TRANSISTOR SI NPN 25V 132254 R18 RES MF 10K 1% 1/4W 144053
Q4 TRANSISTOR SI NPN 25V 132254 R19 RES MF 100K 1% 1/4W 144113
Q5 TRANSISTOR PNP POWER 132255 R20 RES MF 10K 1% 1/4W 144053
Q6 TRANSISTOR NPN 132262 R21 RES MF 100K 1% 1/4W 144113
Q7 TRANSISTOR NPN 132223 R22 RES MF 100K 1% 1/4W 144113
Q8 TRANSISTOR PNP 132224 R23 RES MF 10K 1% 1/4W 144053
Q9 TRANSISTOR PNP 132261 R24 RES MF 10K 1% 1/4W 144053
52
C1000P
PREAMPLIFIER
PARTS LIST Cont'd
R106 RES FP 10 OHM 5% 1/4W 137025
R107 RES MF 5.36K .5% 1/4W 144399
R108 RES MF 3.79k .1% 144398
Ref. No. Description Part No. R109 RES MF 47.5K 1% 1/4W 144108
MAIN LEFT PCB 129536 (Cont'd) R110 RES MF 2.67K .5% 144397
R25 RES MF 1K 1% 1/4W 144090 R111 RES MF 1.91K .5% 1/4W 144395
R26 RES MF 1K 1% 1/4W 144090 R112 RES FP 10 OHM 5% 1/4W 137025
R27 RES MF 1K 1% 1/4W 144090 R113 RES MF 11K 1% 1/4W 144101
R28 RES MF 1K 1% 1/4W 144090 R114 RES MF 475K 1% 1/4W 144364
R29 RES MF 4.75K 1% 1/4W 144097 R115 RES MF 475K 1% 1/4W 144364
R30 RES MF 267K 1% 1/4W 144118 R116 RES MF 475K 1% 1/4W 144364
R31 RES MF 4.75K 1% 1/4W 144097 R117 RES MF 475K 1% 1/4W 144364
R32 RES MF 1.82K 1% 1/4W 144296 R118 RES MF 4.75K 1% 1/4W 144097
R33 RES MF 1.82K 1% 1/4W 144296 R119 RES MF 1M 1/4W 144269
R34 RES MF 2.21K 1% 1/4W 144298 R120 RES MF 1M 1/4W 144269
R35 RES MF 20K 1% 1/4W 144104 R121 RES MF 1M 1/4W 144269
R36 RES MF 267K 1% 1/4W 144118 R122 RES MF 1M 1/4W 144269
R37 RES MF 182 OHM 1% 1/4W 144273 R123 RES MF 11K 1% 1/4W 144101
R38 RES MF 22.1 OHM 1% 1/4W 144160 R124 RES MF 5.36K .5% 1/4W 144399
R39 RES MF 22.1 OHM 1% 1/4W 144160 R125 RES MF 3.79k .1% 144398
R40 RES MF 6.49K .5% 1/4W 144401 R126 RES MF 2.67K .5% 144397
R41 RES MF 20K 1% 1/4W 144104 R127 RES MF 1.91K .5% 1/4W 144395
R42 RES MET OX 430 OHM .5W 5% 137095 R128 RES MF 365 OHM 1/4W 144071
R43 RES MET OX 430 OHM .5W 5% 137095 R130 RES MF 1.5K 1% 1/4W 144128
R44 RES MF 22.1K 1% 1/4W 144187 R132 RES MF 10 OHM 1% 1/4W 144157
R50 RES MF 100K 1% 1/4W 144113 R133 RES MF 100K 1% 1/4W 144113
R51 RES MF 33.2K 1% 1/4W 144015 R134 RES MF 2.74K 1% 1/4W 144304
R52 RES MF 1K 1% 1/4W 144090 R135 RES MF 200K 1% 1/4W 144117
R53 RES MF 4.99K 1% 1/4W 144098 R136 RES MF 1.5K 1% 1/4W 144128
R54 RES MF 4.99K 1% 1/4W 144098 R137 RES MF 10 OHM 1% 1/4W 144157
R55 RES MF 2.21 OHM 1/4W 1% 144378 R138 RES MF 47.5 OHM 1% 1/4W 144442
R56 RES MF 2.21 OHM 1/4W 1% 144378 R139 RES MF 33.2K 1% 1/4W 144015
R59 RES MF 47.5K 1% 1/4W 144108 R140 RES MF 4.75K 1% 1/4W 144097
R60 RES MF 47.5K 1% 1/4W 144108 R141 RES MF 365 OHM 1/4W 144071
R61 RES MF 47.5K 1% 1/4W 144108 R142 RES MET OX 47 OHM .5W 5 137096
R62 RES MF 47.5K 1% 1/4W 144108 R144 RES MET OX 47 OHM .5W 5 137096
R63 RES MF 10 OHM 1% 1/4W 144157 R145 RES MF 4.75K 1% 1/4W 144097
R64 RES MF 10 OHM 1% 1/4W 144157 R146 RES MF 365 OHM 1/4W 144071
R65 RES MF 47.5K 1% 1/4W 144108 R147 RES MF 3.32K 1% 1/4W 144095
R66 RES MF 47.5K 1% 1/4W 144108 R148 RES MF 182 OHM 1% 1/4W 144273
R67 RES MF 2.21 OHM 1/4W 1% 144378 R149 RES MF 2.21K 1% 1/4W 144298
R69 RES MF 1K 1% 1/4W 144090 R150 RES MF 1.65K 1% 1/4W 144093
R70 RES MF 221 OHM 1% 1/4W 144172 R151 RES MF 22.1K 1% 1/4W 144187
R71 RES MF 33.2K 1% 1/4W 144015 R152 RES MF 22.1 OHM 1/4W 144160
R72 RES MF 681 OHM 1% 1/4W 144195 R153 RES MF 182 OHM 1% 1/4W 144273
R74 RES MF 267K 1% 1/4W 144118 R154 RES MF 3.32K 1% 1/4W 144095
R75 RES MF 2.21 OHM 1/4W 1% 144378 R155 RES MF 1.65K 1% 1/4W 144093
R76 RES MF 1.21K 1% 1/4W 144191 R156 RES MF 100K 1% 1/4W 144113
R77 RES MF 4.99K 1% 1/4W 144098 R157 RES MF 47.5 OHM 1% 1/4W 144442
R79 RES MF 1K 1% 1/4W 144090 R158 RES MF 22.1 OHM 1/4W 144160
R80 RES MF 681 OHM 1% 1/4W 144195 R159 RES MF 200K 1% 1/4W 144117
R81 RES MF 33.2K 1% 1/4W 144015 R160 RES MF 182 OHM 1% 1/4W 144273
R83 RES MF 1.21K 1% 1/4W 144191 R161 RES MF 2.21K 1% 1/4W 144298
R84 RES MF 267K 1% 1/4W 144118 R162 RES MF 47.5 OHM 1% 1/4W 144442
R86 RES MF 4.75K 1% 1/4W 144097 R163 RES MF 365 OHM 1/4W 144071
R87 RES MF 365 OHM 1/4W 144071 R165 RES MF 4.75K 1% 1/4W 144097
R88 RES MF 47.5K 1% 1/4W 144108 R166 RES MF 10K 1% 1/4W 144053
R90 RES MF 1.5K 1% 1/4W 144128 R167 RES MF 2.21 OHM 1/4W 1% 144378
R92 RES MF 100K 1% 1/4W 144113 R168 RES MF 2.21 OHM 1/4W 1% 144378
R93 RES MF 10 OHM 1% 1/4W 144157 R170 RES MF 100K 1% 1/4W 144113
R94 RES MF 2.74K 1% 1/4W 144304 R171 RES MF 4.75K 1% 1/4W 144097
R95 RES MF 200K 1% 1/4W 144117 R172 RES MF 267K 1% 1/4W 144118
R96 RES MF 1.5K 1% 1/4W 144128 R173 RES MF 182 OHM 1% 1/4W 144273
R97 RES MF 47.5 OHM 1% 1/4W 144442 R174 RES MF 4.75K 1% 1/4W 144097
R98 RES MF 10 OHM 1% 1/4W 144157 R175 RES MF 4.75K 1% 1/4W 144097
R99 RES MF 33.2K 1% 1/4W 144015 R176 RES MF 4.75K 1% 1/4W 144097
R100 RES MF 221K 1% 1/4W 144421 R177 RES MF 1K 1% 1/4W 144090
R101 RES MF 4.75K 1% 1/4W 144097 R178 RES MF 1K 1% 1/4W 144090
R102 RES MF 221K 1% 1/4W 144421 R179 RES MF 1K 1% 1/4W 144090
R103 RES MF 221K 1% 1/4W 144421 R180 RES MF 1K 1% 1/4W 144090
R104 RES MF 221K 1% 1/4W 144421 R181 RES MF 1K 1% 1/4W 144090
R105 RES MF 365 OHM 1/4W 144071 R182 RES MF 1K 1% 1/4W 144090
53
Ref. No. Description Part No. Ref. No. Description Part No.
MAIN LEFT PCB 129536 (Cont'd) MAIN RIGHT PCB 129535
R183 RES MF 4.75K 1% 1/4W 144097 1 PCB Part Number 129535
R184 RES MF 4.75K 1% 1/4W 144097 2 LOGO
R185 RES MF 2.21 OHM 1/4W 1% 144378 C1 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
R186 RES MF 267K 1% 1/4W 144118 C2 CAP ELECT 47UF 35V 066446
R187 RES MF 2.21K 1% 1/4W 144298 C3 CAP MONO 47PF 200V 10% NPO 061299
R188 RES MF 267K 1% 1/4W 144118 C4 CAP MONO 47PF 200V 10% NPO 061299
R189 RES MF 2.21K 1% 1/4W 144298 C5 CAP MONO 100PF 100V 10% NPO 061300
R190 RES MF 47.5 OHM 1% 1/4W 144442 C6 CAP MONO 100PF 100V 10% NPO 061300
R191 RES MF 22.1K 1/4W 144187 C7 CAP ELECT 10UF 100VDC 066462
R193 RES MF 2.21 OHM 1/4W 1% 144378 C8 CAP ELECT 10UF 100VDC 066462
R194 RES MF 2.21 OHM 1/4W 1% 144378 C9 CAP MONO .1uF 50V 20% Z5U 061305
R196 RES MF 2.21 OHM 1/4W 1% 144378 C10 CAP MONO .1uF 50V 20% Z5U 061305
R197 RES MF 10K 1% 1/4W 144053 C11 CAP MONO 220PF 200V 10% 061301
R198 RES MF 10K 1% 1/4W 144053 C12 CAP ELECT 220UF 25V 066507
R199 RES MF 4.99K 1% 1/4W 144098 C13 CAP MONO .1uF 50V 20% Z5U 061305
R200 RES MF 22.1K 1% 1/4W 144187 C14 CAP MONO .1uF 50V 20% Z5U 061305
R201 RES MF 2.21 OHM 1/4W 1% 144378 C15 CAP POLYPROP 0.01UF 63V 1% 64444
R202 RES MF 267K 1% 1/4W 144118 C16 CAP POLYPROP 0.01UF 63V 1% 64444
R205 RES MF 22.1K 1% 1/4W 144187 C17 CAP POLYPROP .033uF 63V 1% 64446
R206 RES MF 2.21 OHM 1% 1/4W 144378 C18 CAP POLYPROP .033uF 63V 1% 64446
R207 RES MF 4.99K 1% 1/4W 144098 C19 CAP ELECT 470UF 16V 066508
R208 RES MF 1K 1% 1/4W 144090 C20 CAP ELECT 470UF 16V 066508
R209 RES MF 267K 1% 1/4W 144118 C21 CAP MPF 0.0015UF 5% 63VDC 64302
R210 RES MF 1K 1% 1/4W 144090 C22 CAP MPF 0.0015UF 5% 63VDC 64302
R211 RES MF 1K 1% 1/4W 144090 C23 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
R212 RES MF 4.99K 1% 1/4W 144098 C24 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
R213 RES MF 4.99K 1% 1/4W 144098 C25 CAP MONO 47PF 200V 10% 061299
R214 RES MF 2.21 OHM 1/4W 1% 144378 C26 CAP ELECT 100UF 25V 066447
R215 RES MF 182 OHM 1% 1/4W 144273 C27 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
R216 RES MF 221 OHM 1% 1/4W 144172 C28 CAP MONO 100PF 100V 10% 061300
R217 RES MF 2.21 OHM 1% 1/4W 144378 C29 CAP ELECT 220UF 25V 066507
R218 RES MF 2.21K 1% 1/4W 144298 C30 CAP MONO 100PF 100V 10% 061300
R221 RES MF 221 OHM 1% 1/4W 144172 C31 CAP MONO 100PF 100V 10% 061300
R222 RES MF 6.49K .5% 1/4W 144401 C32 CAP MONO 390PF 200V 5% 61314
U1 IC OPERATIONAL AMP LOW NOISE 133067 C33 CAP ELECT 10UF 50V 066445
U2 IC OPERATIONAL AMP LOW NOISE 133067 C34 CAP ELECT 10UF 50V 066445
U3 IC OCTAL DARLNGTON TRANS ARRAY 133258(1) C35 CAP MONO .1UF 50V 20% 061305
178109(1) C36 CAP MONO 100PF 100V 10% 061300
U4 IC OCTAL DARLNGTON TRANS ARRAY 133258(1) C37 CAP ELECT 47UF 35V 066446
178109(1) C38 CAP MONO .1UF 50V 20% 061305
U5 IC OCTAL DARLNGTON TRANS ARRAY 133258(1) C39 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
178109(1) C40 CAP MONO 100PF 100V 10% NPO 061300
U6 IC OCTAL DARLNGTON TRANS ARRAY 133258(1) C41 CAP MONO 100PF 100V 10% NPO 061300
178109(1) C42 CAP MONO 22PF 200V 10% NPO 061298
U7 IC SHFT REG SER-PAR 133186 C43 CAP MONO 22PF 200V 10% NPO 061298
U8 IC SHFT REG SER-PAR 133186 C44 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
U9 IC SHFT REG SER-PAR 133186 C45 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
U10 IC SHFT REG SER-PAR 133186 C46 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
U11 IC OPERATIONAL AMP LOW NOISE 133067 C47 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
U12 IC OPERATIONAL AMP LOW NOISE 133067 C48 CAP ELECT 10UF 100VDC 066462
U13 IC OPERATIONAL AMP LOW NOISE 133067 C49 CAP MONO 100PF 100V 10% 061300
U14 IC OPERATIONAL AMP LOW NOISE 133067 C50 CAP MONO .1UF 50V 20% 061305
U15 IC STEREO DGTL VOLUME CONTROL 133331 C51 CAP MONO .1UF 50V 20% 061305
U16 IC OPERATIONAL AMP LOW NOISE 133067 C52 CAP MONO 22PF 200V 10% NPO 061298
U17 IC OPERATIONAL AMP LOW NOISE 133067 C53 CAP ELECT 4.7UF 50V 066512
U18 IC REGULATOR 5V 133250 C54 CAP MONO .1UF 50V 20% 061305
U19 IC -5V REGULATOR 133253 C55 CAP ELECT 47UF 35V 066446
U20 IC SHFT REG SER-PAR 133186 C56 CAP ELECT 10UF 50V 066445
U21 IC REGULATOR 5V 133250 C57 CAP ELECT 10UF 50V 066445
U22 IC SHFT REG SER-PAR 133186 C58 CAP ELECT 10UF 50V 066445
U23 IC -5V REGULATOR 133253 C59 CAP MONO 100PF 100V 10% NPO 061300
U24 IC OPERATIONAL AMP LOW NOISE 133067 C60 CAP ELECT 10UF 50V 066445
U27 IC OPERATIONAL AMP LOW NOISE 133067 C61 CAP MONO 100PF 100V 10% NPO 061300
U28 IC OPERATIONAL AMP LOW NOISE 133067 C62 CAP MONO 22PF 200V 10% NPO 061298
U29 IC OPERATIONAL AMP LOW NOISE 133067 C63 CAP MONO 100PF 100V 10% NPO 061300
U30 IC OPERATIONAL AMP LOW NOISE 133067 C64 CAP MONO .1UF 50V 20% 061305
U31 IC OPERATIONAL AMP LOW NOISE 133067 C65 CAP ELECT 10UF 100VDC 066462
C66 CAP ELECT 4.7UF 50V 066512
C67 CAP MONO 22PF 200V 10% NPO 061298
54
C1000P
PREAMPLIFIER
PARTS LIST Cont'd C159
C160
C162
CAP MONO 22PF 200V 10PO
CAP ELECT 10UF 50V
CAP MONO .1UF 50V 20%
061298
066445
061305
Ref. No. Description Part No. C163 CAP MONO .1UF 50V 20% 061305
MAIN RIGHT PCB 129535 (Cont'd) C168 CAP MONO 22PF 200V 10PO 061298
C68 CAP ELECT 10UF 100VDC 066462 D1 DIODE SILICON 1N4148 070047
C69 CAP MONO .1UF 50V 20% 061305 D2 DIODE SILICON 1N4148 070047
C70 CAP ELECT 10UF 50V 066445 D3 DIODE SILICON 1N4148 070047
C71 CAP ELECT 10UF 50V 066445 D4 DIODE SILICON 1N4148 070047
C72 CAP ELECT 47UF 35V 066446 D5 DIODE SILICON 1N4148 070047
C73 CAP MONO .1UF 50V 20% 061305 D6 DIODE SILICON 1N4148 070047
C74 CAP MONO 100PF 100V 10% NPO 061300 D7 DIODE SILICON 1N4148 070047
C75 CAP MONO 100PF 100V 10% NPO 061300 D8 DIODE SILICON 1N4148 070047
C76 CAP MONO .1UF 50V 20% 061305 D9 DIODE SILICON 070047
C77 CAP MONO .1UF 50V 20% 061305 D10 DIODE SILICON 070047
C78 CAP MONO 22PF 200V 10% NPO 061298 D11 DIODE SILICON 070047
C79 CAP ELECT 10UF 50V 066445 D13 DIODE SILICON 070047
C80 CAP MONO .1UF 50V 20% 061305 GP1 BRACKET PCB CARD MOUNTING 3611
C81 CAP ELECT 10UF 50V 066445 GP2 BRACKET PCB CARD MOUNTING 3611
C82 CAP MONO .1UF 50V 20% 061305 J1 JACK PHONO GOLD 117862
C83 CAP ELECT 10UF 50V 066445 J2 JACK PHONO GOLD 117862
C84 CAP MONO 22PF 200V 10% NPO 061298 J3 JACK PHONO GOLD 117862
C85 CAP ELECT 10UF 50V 066445 J4 JACK PHONO GOLD 117862
C86 CAP ELECT 10UF 50V 066445 J5 JACK PHONO GOLD 117862
C87 CAP ELECT 10UF 50V 066445 J6 JACK PHONO GOLD 117862
C88 CAP ELECT 47UF 35V 066446 J7 JACK PHONO GOLD 117862
C89 CAP MONO 100PF 100V 10% NPO 061300 J8 CONN 12 PIN FFC 117720
C90 CAP MONO 100PF 100V 10% NPO 061300 J9 HEADER SHROUDED 2ROW 26PIN V 117870
C92 CAP MONO 220PF 100V 10% NPO 061301 J10 HEADER 2 PIN LATCHING 117766
C93 CAP MONO .1UF 50V 20% 061305 J11 CONN 12 PIN FFC 117720
C95 CAP MONO 22PF 200V 10% 061298 J12 CONN 12 PIN FFC 117720
C96 CAP MONO 22PF 200V 10% 061298 J13 HEADER 2 PIN LATCHING 117766
C97 CAP ELECT 100UF 25V 066447 J14 CONN 12 PIN FFC 117720
C98 CAP MONO 22PF 200V 10% 061298 J15 HEADER 2 PIN LATCHING 117766
C99 CAP ELECT 22UF 100V 066506 K1 RELAY REED FORM 1A 5V 500 OHMS 87050
C100 CAP ELECT 100UF 25V 066447 K2 RELAY REED FORM 1A 5V 500 OHMS 87050
C102 CAP ELECT 22UF 100V 066506 K3 RELAY REED FORM 1A 5V 500 OHMS 87050
C103 CAP MONO 1000PF 50V 10% 061303 K4 RELAY REED FORM 1A 5V 500 OHMS 87050
C104 CAP MONO 1000PF 50V 10% 061303 K5 RELAY REED FORM 1C 5V 125 OHM 87056
C105 CAP MONO 1000PF 50V 10% 061303 K6 RELAY REED FORM 1A 5V 500 OHMS 87050
C106 CAP MONO 1000PF 50V 10% 061303 K7 RELAY REED FORM 1A 5V 500 OHMS 87050
C107 CAP ELECT 100UF 25V 066447 K8 RELAY REED FORM 1A 5V 500 OHMS 87050
C108 CAP MONO 22PF 200V 10% 061298 K9 RELAY REED FORM 1A 5V 500 OHMS 87050
C109 CAP ELECT 100UF 25V 066447 K10 RELAY REED FORM 1A 5V 500 OHMS 87050
C110 CAP MONO 22PF 200V 10% 061298 K11 RELAY REED FORM 1A 5V 500 OHMS 87050
C111 CAP ELECT 22UF 100V 066506 K12 RELAY REED FORM 1A 5V 500 OHMS 87050
C112 CAP ELECT 22UF 100V 066506 K13 RELAY REED FORM 1A 5V 500 OHMS 87050
C113 CAP MONO 22PF 200V 10% NPO 061298 K14 RELAY REED FORM 1A 5V 500 OHMS 87050
C114 CAP MONO 22PF 200V 10% 061298 K15 RELAY REED FORM 1C 5V 125 OHM 87056
C115 CAP MONO .1UF 50V 20% 061305 K16 RELAY REED FORM 1A 5V 500 OHMS 87050
C116 CAP MONO .1UF 50V 20% 061305 K17 RELAY REED FORM 1C 5V 125 OHM 87056
C117 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 K18 RELAY REED FORM 1A 5V 500 OHMS 87050
C118 CAP MONO .1UF 50V 20% 061305 K19 RELAY REED FORM 1A 5V 500 OHMS 87050
C119 CAP MONO .1UF 50V 20% 061305 K20 RELAY REED FORM 1A 5V 500 OHMS 87050
C120 CAP MONO .1UF 50V 20% 061305 K21 RELAY REED FORM 1A 5V 500 OHMS 87050
C121 CAP MONO .1UF 50V 20% 061305 K22 RELAY REED FORM 1A 5V 500 OHMS 87050
C123 CAP ELECT 10UF 50V 066445 K23 RELAY REED FORM 1A 5V 500 OHMS 87050
C124 CAP ELECT 10UF 50V 066445 K24 RELAY REED FORM 1A 5V 500 OHMS 87050
C128 CAP MONO 22PF 200V 10% NPO 061298 K25 RELAY REED FORM 1A 5V 500 OHMS 87050
C129 CAP MONO 100PF 100V 10% NPO 061300 MC1 50104
C130 CAP MONO 22PF 200V 10% NPO 061298 Q1 TRANSISTOR NPN 132223
C131 CAP MONO 22PF 200V 10% NPO 061298 Q2 TRANSISTOR SI NPN 25V 132254
C132 CAP ELECT 10UF 100VDC 066462 Q3 TRANSISTOR SI NPN 25V 132254
C133 CAP MONO 100PF 100V 10% NPO 061300 Q4 TRANSISTOR SI NPN 25V 132254
C134 CAP MONO 22PF 200V 10% NPO 061298 Q5 TRANSISTOR PNP POWER 132255
C135 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 Q6 TRANSISTOR NPN 132262
C136 CAP MONO .1UF 50V 20% 061305 Q7 TRANSISTOR NPN 132223
C138 CAP MONO 100PF 100V 10% NPO 061300 Q8 TRANSISTOR PNP 132224
C139 CAP MONO .1UF 50V 20% 061305 Q9 TRANSISTOR PNP 132261
C140 CAP MONO .1UF 50V 20% 061305 Q10 TRANSISTOR PNP POWER 132255
C142 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 Q11 TRANSISTOR PNP POWER 132255
C143 CAP ELECT 10UF 100VDC 066462 Q12 TRANSISTOR PNP POWER 132255
55
Ref. No. Description Part No. R26 RES MF 1K 1% 1/4W 144090
MAIN RIGHT PCB 129535 (Cont'd) R27 RES MF 1K 1% 1/4W 144090
Q13 TRANSISTOR SI NPN 25V 132254 R28 RES MF 1K 1% 1/4W 144090
Q14 TRANSISTOR PNP 132224 R29 RES MF 4.75K 1% 1/4W 144097
Q15 TRANSISTOR PNP 132224 R30 RES MF 267K 1% 1/4W 144118
Q16 TRANSISTOR PNP 132224 R31 RES MF 4.75K 1% 1/4W 144097
Q17 TRANSISTOR PNP 132224 R32 RES MF 4.75K 1% 1/4W 144097
Q18 TRANSISTOR PNP 132224 R33 RES MF 100 OHM 1% 1/4W 144196
Q19 TRANSISTOR N JFET 132222 R34 RES MF 1.82K 1% 1/4W 144296
Q20 TRANSISTOR N JFET 132222 R35 RES MF 1.82K 1% 1/4W 144296
Q21 TRANSISTOR N JFET 132222 R36 RES MF 267K 1% 1/4W 144118
Q22 TRANSISTOR N JFET 132222 R37 RES MF 182 OHM 1% 1/4W 144273
Q23 TRANSISTOR NPN 132223 R38 RES MF 22.1 OHM 1% 1/4W 144160
Q24 TRANSISTOR SI NPN 25V 132254 R39 RES MF 22.1 OHM 1% 1/4W 144160
Q25 TRANSISTOR SI NPN 25V 132254 R40 RES MF 2.21K 1% 1/4W 144298
Q26 TRANSISTOR SI NPN 25V 132254 R41 RES MF 20K 1% 1/4W 144104
Q27 TRANSISTOR PNP POWER 132255 R42 RES MF 6.49K .5% 1/4W 144401
Q28 TRANSISTOR NPN 132262 R43 RES MF 20K 1% 1/4W 144104
Q29 TRANSISTOR NPN 132223 R44 RES MF 22.1K 1% 1/4W 144187
Q30 TRANSISTOR PNP 132224 R45 RES MET OX 430 OHM .5W 5% 137095
Q31 TRANSISTOR PNP 132261 R46 RES MET OX 430 OHM .5W 5% 137095
Q32 TRANSISTOR PNP POWER 132255 R50 RES MF 100K 1% 1/4W 144113
Q33 TRANSISTOR PNP POWER 132255 R51 RES MF 33.2K 1% 1/4W 144015
Q34 TRANSISTOR PNP POWER 132255 R52 RES MF 1K 1% 1/4W 144090
Q35 TRANSISTOR SI NPN 25V 132254 R53 RES MF 4.99K 1% 1/4W 144098
Q36 TRANSISTOR PNP 132224 R54 RES MF 4.99K 1% 1/4W 144098
Q37 TRANSISTOR NPN 132223 R55 RES MF 2.21 OHM 1/4W 1% 144378
Q38 TRANSISTOR SI NPN 25V 132254 R56 RES MF 2.21 OHM 1/4W 1% 144378
Q39 TRANSISTOR SI NPN 25V 132254 R59 RES MF 47.5K 1% 1/4W 144108
Q40 TRANSISTOR PNP POWER 132255 R60 RES MF 47.5K 1% 1/4W 144108
Q41 TRANSISTOR SI NPN 25V 132254 R61 RES MF 47.5K 1% 1/4W 144108
Q42 TRANSISTOR NPN 132262 R62 RES MF 47.5K 1% 1/4W 144108
Q43 TRANSISTOR NPN 132223 R63 RES MF 10 OHM 1% 1/4W 144157
Q44 TRANSISTOR PNP 132224 R64 RES MF 10 OHM 1% 1/4W 144157
Q45 TRANSISTOR PNP 132261 R65 RES MF 47.5K 1% 1/4W 144108
Q46 TRANSISTOR NPN 132223 R66 RES MF 47.5K 1% 1/4W 144108
Q47 TRANSISTOR PNP POWER 132255 R67 RES MF 2.21 OHM 1/4W 1% 144378
Q48 TRANSISTOR SI NPN 25V 132254 R69 RES MF 1K 1% 1/4W 144090
Q49 TRANSISTOR PNP POWER 132255 R70 RES MF 221 OHM 1% 1/4W 144172
Q50 TRANSISTOR PNP POWER 132255 R71 RES MF 33.2K 1% 1/4W 144015
Q51 TRANSISTOR NPN 132223 R72 RES MF 681 OHM 1% 1/4W 144195
Q52 TRANSISTOR PNP 132224 R74 RES MF 267K 1% 1/4W 144118
Q53 TRANSISTOR NPN 132223 R75 RES MF 2.21 OHM 1/4W 1% 144378
Q54 TRANSISTOR NPN 132223 R76 RES MF 1.21K 1% 1/4W 144191
Q55 TRANSISTOR NPN 132223 R77 RES MF 4.99K 1% 1/4W 144098
Q56 TRANSISTOR NPN 132223 R79 RES MF 1K 1% 1/4W 144090
Q61 TRANSISTOR NPN 132223 R80 RES MF 681 OHM 1% 1/4W 144195
R1 RES MF 1K 1% 1/4W 144090 R81 RES MF 33.2K 1% 1/4W 144015
R2 RES MF 1K 1% 1/4W 144090 R83 RES MF 1.21K 1% 1/4W 144191
R3 RES MF 47.5K 1% 1/4W 144108 R84 RES MF 267K 1% 1/4W 144118
R4 RES MF 22.1K 1% 1/4W 144187 R86 RES MF 4.75K 1% 1/4W 144097
R5 RES MF 2.21 OHM 1/4W 1% 144378 R87 RES MF 365 OHM 1% 1/4W 144071
R6 RES MF 2.21 OHM 1/4W 1% 144378 R88 RES MF 47.5K 1% 1/4W 144108
R7 RES MF 2.21 OHM 1/4W 1% 144378 R90 RES MF 1.5K 1% 1/4W 144128
R8 RES MF 2.21 OHM 1/4W 1% 144378 R92 RES MF 100K 1% 1/4W 144113
R9 RES MF 7.5K OHM 1/4W 0.5% 144376 R93 RES MF 10 OHM 1% 1/4W 144157
R10 RES MF 7.5K OHM 1/4W 0.5% 144376 R94 RES MF 2.74K 1% 1/4W 144304
R11 RES MF 89.8K 1/4W 0.5% 144377 R95 RES MF 200K 1% 1/4W 144117
R12 RES MF 89.8K 1/4W 0.5% 144377 R96 RES MF 1.5K 1% 1/4W 144128
R13 RES MF 95.3 OHM 1% 1/4W 144220 R97 RES MF 47.5 OHM 1% 1/4W 144442
R14 RES MF 182 OHM 1% 1/4W 144273 R98 RES MF 10 OHM 1% 1/4W 144157
R15 RES MF 499 OHM 1% 1/4W 144087 R99 RES MF 33.2K 1% 1/4W 144015
R16 RES MF 499 OHM 1% 1/4W 144087 R100 RES MF 221K 1% 1/4W 144421
R17 RES MF 100K 1% 1/4W 144113 R101 RES MF 4.75K 1% 1/4W 144097
R18 RES MF 10K 1% 1/4W 144053 R102 RES MF 221K 1% 1/4W 144421
R19 RES MF 100K 1% 1/4W 144113 R103 RES MF 221K 1% 1/4W 144421
R20 RES MF 10K 1% 1/4W 144053 R104 RES MF 221K 1% 1/4W 144421
R21 RES MF 100K 1% 1/4W 144113 R105 RES MF 365 OHM 1% 1/4W 144071
R22 RES MF 100K 1% 1/4W 144113 R106 RES FP 10 OHM 5% 1/4W 137025
R23 RES MF 10K 1% 1/4W 144053 R107 RES MF 5.36K .5% 1/4W 144399
R24 RES MF 10K 1% 1/4W 144053 R108 RES MF 3.79k .1% 144398
R25 RES MF 1K 1% 1/4W 144090 R109 RES MF 47.5K 1% 1/4W 144108
56
C1000P
PREAMPLIFIER
PARTS LIST Cont'd R180
R181
R182
RES MF 1K 1% 1/4W
RES MF 1K 1% 1/4W
RES MF 1K 1% 1/4W
144090
144090
144090
Ref. No. Description Part No. R183 RES MF 4.75K 1% 1/4W 144097
MAIN RIGHT PCB 129535 (Cont'd) R184 RES MF 4.75K 1% 1/4W 144097
R110 RES MF 2.67K .5% 144397 R185 RES MF 2.21 OHM 1/4W 1% 144378
R111 RES MF 1.91K .5% 1/4W 144395 R186 RES MF 267K 1% 1/4W 144118
R112 RES FP 10 OHM 5% 1/4W 137025 R187 RES MF 2.21K 1% 1/4W 144298
R113 RES MF 11K 1% 1/4W 144101 R188 RES MF 267K 1% 1/4W 144118
R114 RES MF 475K 1% 1/4W 144364 R189 RES MF 2.21K 1% 1/4W 144298
R115 RES MF 475K 1% 1/4W 144364 R190 RES MF 47.5 OHM 1% 1/4W 144442
R116 RES MF 475K 1% 1/4W 144364 R191 RES MF 22.1K 1% 1/4W 144187
R117 RES MF 475K 1% 1/4W 144364 R193 RES MF 2.21 OHM 1/4W 1% 144378
R118 RES MF 4.75K 1% 1/4W 144097 R194 RES MF 2.21 OHM 1/4W 1% 144378
R119 RES MF 1M 1/4W 144269 R196 RES MF 2.21 OHM 1/4W 1% 144378
R120 RES MF 1M 1/4W 144269 R197 RES MF 10K 1% 1/4W 144053
R121 RES MF 1M 1/4W 144269 R198 RES MF 10K 1% 1/4W 144053
R122 RES MF 1M 1/4W 144269 R199 RES MF 4.99K 1% 1/4W 144098
R123 RES MF 11K 1% 1/4W 144101 R200 RES MF 22.1K 1% 1/4W 144187
R124 RES MF 5.36K .5% 1/4W 144399 R201 RES MF 2.21 OHM 1/4W 1% 144378
R125 RES MF 3.79k .1% 144398 R202 RES MF 267K 1% 1/4W 144118
R126 RES MF 2.67K .5% 144397 R205 RES MF 22.1K 1% 1/4W 144187
R127 RES MF 1.91K .5% 1/4W 144395 R206 RES MF 2.21 OHM 1/4W 1 144378
R128 RES MF 365 OHM 1% 1/4W 144071 R207 RES MF 4.99K 1% 1/4W 144098
R130 RES MF 1.5K 1% 1/4W 144128 R208 RES MF 1K 1% 1/4W 144090
R132 RES MF 10 OHM 1% 1/4W 144157 R209 RES MF 267K 1% 1/4W 144118
R133 RES MF 100K 1% 1/4W 144113 R210 RES MF 1K 1% 1/4W 144090
R134 RES MF 2.74K 1% 1/4W 144304 R211 RES MF 1K 1% 1/4W 144090
R135 RES MF 200K 1% 1/4W 144117 R212 RES MF 4.99K 1% 1/4W 144098
R136 RES MF 1.5K 1% 1/4W 144128 R213 RES MF 4.99K 1% 1/4W 144098
R137 RES MF 10 OHM 1% 1/4W 144157 R214 RES MF 2.21 OHM 1/4W 1% 144378
R138 RES MF 47.5 OHM 1% 1/4W 144442 R215 RES MF 182 OHM 1% 1/4W 144273
R139 RES MF 33.2K 1% 1/4W 144015 R216 RES MF 221 OHM 1% 1/4W 144172
R140 RES MF 4.75K 1% 1/4W 144097 R217 RES MF 2.21 OHM 1/4W 1 144378
R141 RES MF 365 OHM 1% 1/4W 144071 R218 RES MF 2.21K 1% 1/4W 144298
R142 RES MET OX 47 OHM .5W 5% 137096 R221 RES MF 221 OHM 1% 1/4W 144172
R144 RES MET OX 47 OHM .5W 5% 137096 R222 RES MF 6.49K .5% 1/4W 144401
R145 RES MF 4.75K 1% 1/4W 144097 U1 IC OPERATIONAL AMP LOW NOISE 133067
R146 RES MF 365 OHM 1% 1/4W 144071 U2 IC OPERATIONAL AMP LOW NOISE 133067
R147 RES MF 3.32K 1% 1/4W 144095 U3 IC OCTAL DARLNGTON TRANS ARRAY 133258(1)
R148 RES MF 182 OHM 1% 1/4W 144273 178109(1)
R149 RES MF 2.21K 1% 1/4W 144298 U4 IC OCTAL DARLNGTON TRANS ARRAY 133258(1)
R150 RES MF 1.65K 1% 1/4W 144093 178109(1)
R151 RES MF 22.1K 1% 1/4W 144187 U5 IC OCTAL DARLNGTON TRANS ARRAY 133258(1)
R152 RES MF 22.1 OHM 1% 1/4W 144160 178109(1)
R153 RES MF 182 OHM 1% 1/4W 144273 U6 IC OCTAL DARLNGTON TRANS ARRAY 133258(1)
R154 RES MF 3.32K 1% 1/4W 144095 178109(1)
R155 RES MF 1.65K 1% 1/4W 144093 U7 IC SHFT REG SER-PAR 133186
R156 RES MF 100K 1% 1/4W 144113 U8 IC SHFT REG SER-PAR 133186
R157 RES MF 47.5 OHM 1% 1/4W 144442 U9 IC SHFT REG SER-PAR 133186
R158 RES MF 22.1 OHM 1% 1/4W 144160 U10 IC SHFT REG SER-PAR 133186
R159 RES MF 200K 1% 1/4W 144117 U11 IC OPERATIONAL AMP LOW NOISE 133067
R160 RES MF 182 OHM 1% 1/4W 144273 U12 IC OPERATIONAL AMP LOW NOISE 133067
R161 RES MF 2.21K 1% 1/4W 144298 U13 IC OPERATIONAL AMP LOW NOISE 133067
R162 RES MF 47.5 OHM 1% 1/4W 144442 U14 IC OPERATIONAL AMP LOW NOISE 133067
R163 RES MF 365 OHM 1% 1/4W 144071 U15 IC STEREO DGTL VOLUME CONTROL 133331
R165 RES MF 4.75K 1% 1/4W 144097 U16 IC OPERATIONAL AMP LOW NOISE 133067
R166 RES MF 10K 1% 1/4W 144053 U17 IC OPERATIONAL AMP LOW NOISE 133067
R167 RES MF 2.21 OHM 1/4W 1% 144378 U18 IC REGULATOR 5V 133250
R168 RES MF 2.21 OHM 1/4W 1% 144378 U19 IC -5V REGULATOR 133253
R170 RES MF 100K 1% 1/4W 144113 U20 IC SHFT REG SER-PAR 133186
R171 RES MF 4.75K 1% 1/4W 144097 U21 IC REGULATOR 5V 133250
R172 RES MF 267K 1% 1/4W 144118 U22 IC SHFT REG SER-PAR 133186
R173 RES MF 182 OHM 1% 1/4W 144273 U23 IC -5V REGULATOR 133253
R174 RES MF 4.75K 1% 1/4W 144097 U24 IC OPERATIONAL AMP LOW NOISE 133067
R175 RES MF 4.75K 1% 1/4W 144097 U27 IC OPERATIONAL AMP LOW NOISE 133067
R176 RES MF 4.75K 1% 1/4W 144097 U28 IC OPERATIONAL AMP LOW NOISE 133067
R177 RES MF 1K 1% 1/4W 144090 U29 IC OPERATIONAL AMP LOW NOISE 133067
R178 RES MF 1K 1% 1/4W 144090 U30 IC OPERATIONAL AMP LOW NOISE 133067
R179 RES MF 1K 1% 1/4W 144090 U31 IC OPERATIONAL AMP LOW NOISE 133067
57
Ref. No. Description Part No. J4 RECEPTACLE XLR MALE 117669
PHONO MC PCB 129537 J5 XLR FEMALE OR MALE 117813 or
1 PCB Part Number 129537 117669
2 LOGO J6 TERMINAL STRIP 14 PIN .025 SQ 117647(1)
C1 CAP MONO 1000PF 50V 10% 061303 socket 117644(1)
C2 CAP MONO 1000PF 50V 10% 061303 J7 TERMINAL STRIP 14 PIN .025 SQ 117647(1)
C3 CAP ELECT 1000UF 10V 10X12.5 66309 socket 117644(1)
C4 CAP ELECT 1000UF 10V 10X12.5 66309 J8 RECEPTACLE XLR MALE 117669
C5 CAP MONO 1000PF 50V 10% 061303 J9 RECEPTACLE XLR MALE 117669
C6 CAP MONO 22PF 200V 10% NPO 061298 J10 RECEPTACLE XLR MALE 117669
C7 CAP ELECT 10UF 50V 066445 J11 CONN 12 PIN FFC 117720
C8 CAP MONO .1UF 50V 20% 061305 K1 RELAY REED FORM 1C 5V 125 OHM 87056
C9 CAP MONO .1UF 50V 20% 061305 K2 RELAY REED FORM 1A 5V 500 OHMS 87050
C10 CAP MONO 100PF 100V 10% 061300 K3 RELAY REED FORM 1A 5V 500 OHMS 87050
J1 6 PIN HEADER 117828 K4 RELAY REED FORM 1A 5V 500 OHMS 87050
J2 10 PIN HEADER 117829 K5 RELAY REED FORM 1A 5V 500 OHMS 87050
Q1 TRANSISTOR NPN 132257 K6 RELAY REED FORM 1A 5V 500 OHMS 87050
Q2 TRANSISTOR NPN 132257 K7 RELAY REED FORM 1A 5V 500 OHMS 87050
Q3 TRANSISTOR NPN 132257 K8 RELAY REED FORM 1A 5V 500 OHMS 87050
Q4 TRANSISTOR NPN 132257 K9 RELAY REED FORM 1A 5V 500 OHMS 87050
Q5 TRANSISTOR PNP SILICON 132172 K10 RELAY REED FORM 1A 5V 500 OHMS 87050
Q6 TRANSISTOR NPN SILICON 132171 K11 RELAY REED FORM 1A 5V 500 OHMS 87050
Q7 TRANSISTOR PNP SILICON 132172 K12 RELAY REED FORM 1A 5V 500 OHMS 87050
Q8 TRANSISTOR NPN SILICON 132171 K13 RELAY REED FORM 1A 5V 500 OHMS 87050
Q9 TRANSISTOR PNP SILICON 132172 R1 RES MF 267K 1% 1/4W 144118
Q10 TRANSISTOR NPN SILICON 132171 R2 RES MF 267K 1% 1/4W 144118
Q11 TRANSISTOR PNP SILICON 132172 R3 RES MF 267K 1% 1/4W 144118
Q12 TRANSISTOR NPN SILICON 132171 R4 RES MF 47.5 OHM 1% 1/4W 144442
Q13 TRANSISTOR PNP SILICON 132172 R5 RES MF 47.5 OHM 1% 1/4W 144442
Q14 TRANSISTOR NPN SILICON 132171 R6 RES MF 22.1K 1% 1/4W 144187
R1 RES MF 1K 1% 1/4W 144090 R7 RES MF 22.1K 1% 1/4W 144187
R2 RES MF 110 OHM 1% 1/4W 144489 R8 RES MF 267K 1% 1/4W 144118
R3 RES MF 1K 1% 1/4W 144090 R9 RES MF 267K 1% 1/4W 144118
R4 RES MF 4.75K 1% 1/4W 144097 R10 RES MF 267K 1% 1/4W 144118
R5 RES MF 4.75K 1% 1/4W 144097 R11 RES MF 221 OHM 1% 1/4W 144172
R6 RES MF 51.1 OHM 2% 1/4W 144134 R12 RES MF 221 OHM 1% 1/4W 144172
R7 RES MF 249 OHM 1% 1/4W 144228 R13 RES MF 221 OHM 1% 1/4W 144172
R8 RES MF 4.75K 1% 1/4W 144097 R14 RES MF 221 OHM 1% 1/4W 144172
R9 RES MF 4.75K 1% 1/4W 144097 R15 RES MF 221 OHM 1% 1/4W 144172
R10 RES MF 1.5K 1% 1/4W 144128 R16 RES MF 221 OHM 1% 1/4W 144172
R11 RES MF 22.1 OHM 1% 1/4W 144160 R17 RES MF 22.1K 1% 1/4W 144187
R12 RES MF 22.1 OHM 1% 1/4W 144160 R18 RES MF 22.1K 1% 1/4W 144187
R13 RES MF 1.5K 1% 1/4W 144128 R19 RES MF 22.1K 1% 1/4W 144187
R14 RES MF 475 OHM 1% 1/4W 144086 R20 RES MF 22.1K 1% 1/4W 144187
R15 RES MF 475 OHM 1% 1/4W 144086 R21 RES MF 22.1K 1% 1/4W 144187
R16 RES MF 2.21K 1% 1/4W 144298 R22 RES MF 22.1K 1% 1/4W 144187
R17 RES MF 2.21 OHM 1/4W 1% 144378
R18 RES MF 2.21 OHM 1/4W 1% 144378 Ref. No. Description Part No.
U1 IC OPERATIONAL AMP LOW NOISE 133067 BALANCE I/O RIGHT PCB 129540
1 PCB Part Number 129540
Ref. No. Description ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
