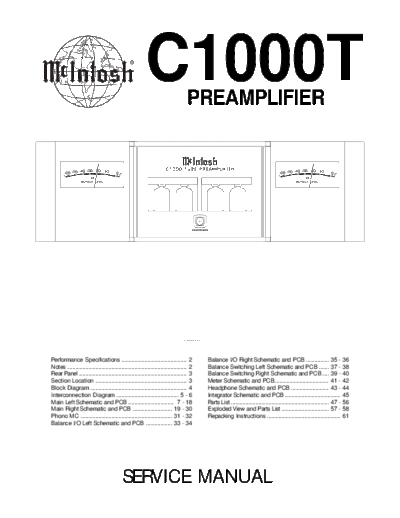

Image preview - the first page of the document
>> Download hfe_mcintosh_c1000t_service documenatation <<
Text preview - extract from the document
C1000T
PREAMPLIFIER
C1000T PREAMPLIFIER
````````
Performance Specifications ........................................ 2 Balance I/O Right Schematic and PCB .............. 35 - 36
Notes ......................................................................... 2 Balance Switching Left Schematic and PCB ...... 37 - 38
Rear Panel .................................................................. 3 Balance Switching Right Schematic and PCB .... 39 - 40
Section Location ........................................................ 3 Meter Schematic and PCB ................................. 41 - 42
Block Diagram ........................................................... 4 Headphone Schematic and PCB ....................... 43 - 44
Interconnection Diagram ...................................... 5 - 6 Integrator Schematic and PCB .................................. 45
Main Left Schematic and PCB ............................ 7 - 18 Parts List ............................................................ 47 - 56
Main Right Schematic and PCB ........................ 19 - 30 Exploded View and Parts List ............................. 57 - 58
Phono MC ........................................................ 31 - 32 Repacking Instructions ............................................. 61
Balance I/O Left Schematic and PCB ................ 33 - 34
SERVICE MANUAL
PERFORMANCE SPECIFICATIONS
Power Requirements C1000T:
100 Volts, 50/60Hz at 120 watts Width is 17-1/2 inches (44.45cm)
110 Volts, 50/60Hz at 120 watts Height is 6 inches (15.24cm) including feet
120 Volts, 50/60Hz at 120 watts Depth is 24 inches (61.0cm) including the Front Panel
220 Volts, 50/60Hz at 120 watts and Interconnect Cables1
230 Volts, 50/60Hz at 120 watts
240 Volts, 50/60Hz at 120 watts Weight
C1000C - 39.0 pounds (17.7 kg) net
Note: Refer to the rear panel of the C1000 Controller for the 61.4 pounds (27.9 kg) in shipping carton
correct voltage. C1000P - 33.0 pounds (15.0 kg) net
53.6 pounds (24.3 kg) in shipping carton
C1000T - 34.0 pounds (15.4 kg) net
54.6 pounds (24.8 kg) in shipping carton
General Specifications 1
Interconnect Cables are supplied with the C1000
Preamplifier and C1000 Tube Preamplifier. They are
Overall Dimensions
used to connect Preamplifier(s) to the C1000 Controller.
C1000C:
Width is 17-1/2 inches (44.45cm)
Height is 6 inches (15.24cm) including feet
Depth is 24 inches (61.0cm) including the Front Panel, Knobs
and Interconnect Cables1
C1000P:
Width is 17-1/2 inches (44.45cm)
Height is 6 inches (15.24cm) including feet
Depth is 24 inches (61.0cm) including the Front Panel and
Interconnect Cables1
NOTES
1. The heavy notes on the schematic denote the primary 4. On PC board drawings, Square pad indicates:
signal path. a. Polarized Capacitors - Positive
b. Diodes - Cathode
2. Unless otherwise noted, all voltages indicated on the c. Others - Pin 1
schematics are measured under the following conditions:
a. AC input at 120 volts, 50/60Hz. 5. WARNING
b. All voltages are +/-10% with respect to ground. A Parts marked with the symbol have critical
high impedance (10 megaohm) voltmeter must be used. characteristics. Use only replacement parts recom
mended by the manufacturer.
3. Unless otherwise specified:
a. Resistor values are in ohms. 6. Use McIntosh Remote Control Model HR052 with the
b. Capacitor values are microfarads (uF). MVP861.
c. Inductor values are in microhenries (uH).
2
C1000T
PREAMPLIFIER
REAR PANEL
SECTION LOCATIONS
TOP VIEW WITH COVER REMOVED
3
BLOCK DIAGRAM
4
C1000T
PREAMPLIFIER
INTERCONNECT
5 6
2 MAIN LEFT 129542 SH 1 OF 5
7 8
C1000T
PREAMPLIFIER
2 MAIN LEFT 129542 SH 2 OF 5
9 10
2 MAIN LEFT 129542 SH 3 OF 5
11 12
C1000T
PREAMPLIFIER
2 MAIN LEFT 129542 SH 4 OF 5
13 14
2 MAIN LEFT 129542 SH 5 OF 5
15 16
C1000T
PREAMPLIFIER
2 MAIN LEFT 129542 PCB 1
17 18
3 MAIN RIGHT 129544 SH 1 OF 5
19 20
C1000T
PREAMPLIFIER
3 MAIN RIGHT 129544 SH 2 OF 5
21 22
3 MAIN RIGHT 129544 SH 3 OF 5
23 24
C1000T
PREAMPLIFIER
3 MAIN RIGHT 129544 SH 4 OF 5
25 26
3 MAIN RIGHT 129544 SH 5 OF 5
27 28
C1000T
PREAMPLIFIER
3 MAIN RIGHT 129544 PCB
29 30
4 PHONO MC 129537 SH and PCB
31 32
C1000T
PREAMPLIFIER
5 BALANCE I/O LEFT 129538 SH and PCB
33 34
6 BALANCE I/O RIGHT 129540 SH and PCB
35 36
C1000T
PREAMPLIFIER
7 BALANCE SWITCHING LEFT 129541 SH and PCB
37 38
8 BALANCE SWITCHING RIGHT 129560 SH and PCB
39 40
C1000T
PREAMPLIFIER
9 METER 129539 SH and PCB
41 42
10 HEADPHONE 129601 SH and PCB
43 44
C1000T
PREAMPLIFIER
11 INTEGRATOR 129614 SH and PCB
45
NOTES
46
C1000T
PREAMPLIFIER
PARTS LIST C93
C94
C95
CAP MONO 100PF 100V 10%
CAP MONO 100PF 100V 10%
CAP MONO 100PF 100V 10%
061300
061300
061300
Ref. No. Description Part No. C96 CAP ELECT 10UF 50V 066445
MAIN LEFT PCB 129542 C97 CAP MONO 220PF 200V 10% 061301
1 PCB Part Number 129542 C98 CAP MONO 22PF 200V 10% 061298
2 LOGO C99 CAP MONO 22PF 200V 10% 061298
C1 CAP ELECT 220UF 25V 066507 C100 CAP ELECT 10UF 100VDC 066462
C2 CAP ELECT 47UF 35V 066446 C102 CAP MONO .1UF 50V 20% 061305
C3 CAP ELECT 220UF 25V 066507 C103 CAP MONO .1UF 50V 20% 061305
C4 CAP MONO 100PF 100V 10% 061300 C106 CAP ELECT 47UF 35V 066446
C5 CAP MONO 100PF 100V 10% 061300 C107 CAP ELECT 47UF 35V 066446
C6 CAP ELECT 4.7UF 50V 066512 C108 CAP ELECT 10UF 250V 66493
C7 CAP ELECT 10UF 50V 066445 C111 CAP MONO .1UF 50V 20% 061305
C8 CAP ELECT 10UF 50V 066445 C112 CAP ELECT 10UF 50V 066445
C16 CAP ELECT 47UF 35V 066446 C113 CAP MONO .1UF 50V 20% 061305
C23 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C114 CAP MPF 0.22UF 400VDC 64438
C24 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C115 CAP MPF 0.22UF 400VDC 64438
C25 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C116 CAP MONO .1UF 50V 20% 061305
C26 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C117 CAP ELECT 10UF 50V 066445
C32 CAP MONO .1UF 50V 20% 061305 C118 CAP MONO 100PF 100V 10% 061300
C33 CAP MONO .1UF 50V 20% 061305 C119 CAP MONO 100PF 100V 10% 061300
C34 CAP MONO .1UF 50V 20% 061305 C120 CAP MONO 22PF 200V 10% 061298
C35 CAP MONO .1UF 50V 20% 061305 C121 CAP MONO 22PF 200V 10% 061298
C37 CAP ELECT 4.7UF 50V 066512 C122 CAP POLY .047UF 10% 1000VDC 64434
C38 CAP MONO 220PF 200V 10% 061301 C123 CAP POLY .047UF 10% 1000VDC 64434
C39 CAP ELECT 10UF 50V 066445 C124 CAP ELECT 22UF 100V 066506
C40 CAP MONO 100PF 100V 10% 061300 C125 CAP MONO 22PF 200V 10% 061298
C41 CAP MONO 100PF 100V 10% 061300 C126 CAP MONO 22PF 200V 10% 061298
C42 CAP MONO 22PF 200V 10% 061298 C127 CAP ELECT 10UF 100VDC 066462
C43 CAP MONO 22PF 200V 10% 061298 C129 CAP MONO .1UF 50V 20% 061305
C44 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C130 CAP MONO .1UF 50V 20% 061305
C45 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C133 CAP MONO 220PF 200V 10% 061301
C46 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C134 CAP MONO .1UF 50V 20% 061305
C47 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C136 CAP MONO 1000PF 50V 10% 061303
C48 CAP ELECT 10UF 100VDC 066462 C137 CAP ELECT 220UF 25V 066507
C50 CAP MONO .1UF 50V 20% 061305 C138 CAP ELECT 220UF 25V 066507
C51 CAP MONO .1UF 50V 20% 061305 C139 CAP MONO 1000PF 50V 10% 061303
C54 CAP ELECT 10UF 50V 066445 C141 CAP MONO 1000PF 50V 10% 061303
C55 CAP ELECT 10UF 50V 066445 C143 CAP MONO 1000PF 50V 10% 061303
C56 CAP ELECT 10UF 50V 066445 C145 CAP MONO 22PF 200V 10% 061298
C57 CAP ELECT 10UF 50V 066445 C146 CAP MONO 22PF 200V 10% 061298
C58 CAP MONO 100PF 100V 10% 061300 C147 CAP ELECT 10UF 100VDC 066462
C59 CAP MONO 100PF 100V 10% 061300 C149 CAP MONO .1UF 50V 20% 061305
C60 CAP MONO 100PF 100V 10% 061300 C150 CAP MONO .1UF 50V 20% 061305
C61 CAP MONO 100PF 100V 10% 061300 C153 CAP ELECT 100UF 25V 066447
C62 CAP MONO 22PF 200V 10% 061298 C154 CAP ELECT 100UF 25V 066447
C63 CAP MONO 22PF 200V 10% 061298 C155 CAP MONO 22PF 200V 10% 061298
C65 CAP ELECT 10UF 100VDC 066462 C156 CAP ELECT 10UF 100VDC 066462
C66 CAP MONO .1UF 50V 20% 061305 C157 CAP MONO .1UF 50V 20% 061305
C69 CAP MONO .1UF 50V 20% 061305 C158 CAP MONO .1UF 50V 20% 061305
C70 CAP ELECT 10UF 50V 066445 C159 CAP MONO 22PF 200V 10% 061298
C71 CAP ELECT 10UF 50V 066445 C160 CAP ELECT 10UF 100VDC 066462
C72 CAP MONO .1UF 50V 20% 061305 C161 CAP ELECT 100UF 25V 066447
C73 CAP MONO .1UF 50V 20% 061305 C162 CAP MONO .1UF 50V 20% 061305
C76 CAP ELECT 10UF 100VDC 066462 C163 CAP MONO .1UF 50V 20% 061305
C78 CAP MONO 22PF 200V 10% 061298 C164 CAP MONO 22PF 200V 10% 061298
C79 CAP MONO 22PF 200V 10% 061298 C165 CAP MONO .1UF 50V 20% 061305
C80 CAP MONO 22PF 200V 10% 061298 C166 CAP MONO .1UF 50V 20% 061305
C81 CAP MONO 100PF 100V 10% 061300 C167 CAP ELECT 47UF 35V 066446
C82 CAP ELECT 10UF 100VDC 066462 C168 CAP MONO 22PF 200V 10% 061298
C83 CAP MONO .1UF 50V 20% 061305 C177 CAP MONO .1UF 50V 20% 061305
C84 CAP MONO .1UF 50V 20% 061305 D3 DIODE SILICON 070047
C85 CAP MONO 100PF 100V 10% 061300 D4 DIODE SILICON 070047
C86 CAP ELECT 10UF 50V 066445 D7 DIODE SILICON 070047
C87 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 D8 DIODE SILICON 070047
C88 CAP ELECT 10UF 50V 066445 D9 DIODE SILICON 070047
C89 CAP ELECT 10UF 50V 066445 D10 DIODE SILICON 070047
C90 CAP ELECT 10UF 50V 066445 DS1 LED GREEN 3MM HI-INTENSITY 58172
C91 CAP MONO .1UF 50V 20% 061305 DS2 LED GREEN 3MM HI-INTENSITY 58172
C92 CAP MONO 100PF 100V 10% 061300 GP1 BRACKET PCB CARD MOUNTING 3611
47
Ref. No. Description Part No. R9 RES MF 6.49K .5% 1/4W 144401
MAIN LEFT PCB 129542 (Cont'd) R10 RES MF 20K 1% 1/4W 144104
R11 RES MF 20K 1% 1/4W 144104
GP2 BRACKET PCB CARD MOUNTING 3611 R12 RES MF 22.1K 1% 1/4W 144187
J1 JACK PHONO GOLD 117862 R13 RES MF 22.1K 1% 1/4W 144187
J2 JACK PHONO GOLD 117862 R14 RES MET OX 430 OHM .5W 5% 137095
J3 JACK PHONO GOLD 117862 R15 RES MET OX 430 OHM .5W 5% 137095
J4 JACK PHONO GOLD 117862 R22 RES MF 267K 1% 1/4W 144118
J5 JACK PHONO GOLD 117862 R27 RES MF 267K 1% 1/4W 144118
J6 JACK PHONO GOLD 117862 R28 RES MF 267K 1% 1/4W 144118
J7 JACK PHONO GOLD 117862 R29 RES MF 182 OHM 1% 1/4W 144273
J8 CONN 12 PIN FFC 117720 R30 RES MF 182 OHM 1% 1/4W 144273
J9 HEADER SHROUDED 2ROW 26PIN V 117870 R31 RES MF 182 OHM 1% 1/4W 144273
J10 HEADER 2 PIN LATCHING 117766 R36 RES MF 100K 1% 1/4W 144113
J11 CONN 12 PIN FFC 117720 R37 RES MF 1K 1% 1/4W 144090
J12 CONN 12 PIN FFC 117720 R38 RES MF 1K 1% 1/4W 144090
J13 HEADER 2 PIN LATCHING 117766 R39 RES MF 1K 1% 1/4W 144090
J14 CONN 12 PIN FFC 117720 R40 RES MF 1K 1% 1/4W 144090
J15 CONN 12 PIN FFC 117720 R42 RES MF 1K 1% 1/4W 144090
J16 CONN 12 PIN FFC 117720 R43 RES MF 1K 1% 1/4W 144090
J17 CONN 12 PIN FFC 117720 R44 RES MF 4.75K 1% 1/4W 144097
J18 HEADER 2 PIN LATCHING 117766 R45 RES MF 4.75K 1% 1/4W 144097
K1 RELAY REED FORM 1A 5V 500 OHMS 87050 R46 RES MF 4.75K 1% 1/4W 144097
K2 RELAY REED FORM 1A 5V 500 OHMS 87050 R47 RES MF 4.75K 1% 1/4W 144097
K3 RELAY REED FORM 1A 5V 500 OHMS 87050 R48 RES MF 4.75K 1% 1/4W 144097
K4 RELAY REED FORM 1A 5V 500 OHMS 87050 R49 RES MF 4.75K 1% 1/4W 144097
K5 RELAY REED FORM 1C 5V 125 OHM 87056 R50 RES MF 100K 1% 1/4W 144113
K6 RELAY REED FORM 1A 5V 500 OHMS 87050 R51 RES MF 33.2K 1% 1/4W 144015
K7 RELAY REED FORM 1A 5V 500 OHMS 87050 R52 RES MF 1K 1% 1/4W 144090
K8 RELAY REED FORM 1A 5V 500 OHMS 87050 R53 RES MF 4.99K 1% 1/4W 144098
K9 RELAY REED FORM 1A 5V 500 OHMS 87050 R54 RES MF 4.99K 1% 1/4W 144098
K10 RELAY REED FORM 1A 5V 500 OHMS 87050 R55 RES MF 2.21 OHM 1% 1/4W 144378
K11 RELAY REED FORM 1A 5V 500 OHMS 87050 R56 RES MF 2.21 OHM 1% 1/4W 144378
K12 RELAY REED FORM 1A 5V 500 OHMS 87050 R59 RES MF 47.5K 1% 1/4W 144108
K13 RELAY REED FORM 1A 5V 500 OHMS 87050 R60 RES MF 47.5K 1% 1/4W 144108
K14 RELAY REED FORM 1A 5V 500 OHMS 87050 R61 RES MF 47.5K 1% 1/4W 144108
K15 RELAY REED FORM 1C 5V 125 OHM 87056 R62 RES MF 47.5K 1% 1/4W 144108
K16 RELAY REED FORM 1C 5V 125 OHM 87056 R63 RES MF 10 OHM 1% 1/4W 144157
K17 RELAY REED FORM 1C 5V 125 OHM 87056 R64 RES MF 10 OHM 1% 1/4W 144157
K18 RELAY REED FORM 1C 5V 125 OHM 87056 R65 RES MF 47.5K 1% 1/4W 144108
K19 RELAY REED FORM 1A 5V 500 OHMS 87050 R66 RES MF 47.5K 1% 1/4W 144108
K20 RELAY REED FORM 1A 5V 500 OHMS 87050 R67 RES MF 267K 1% 1/4W 144118
K21 RELAY REED FORM 1A 5V 500 OHMS 87050 R68 RES MF 267K 1% 1/4W 144118
K22 RELAY REED FORM 1A 5V 500 OHMS 87050 R69 RES MF 267K 1% 1/4W 144118
K23 RELAY REED FORM 1A 5V 500 OHMS 87050 R70 RES MF 2.21K 1% 1/4W 144298
K24 RELAY REED FORM 1A 5V 500 OHMS 87050 R71 RES MF 267K 1% 1/4W 144118
K25 RELAY REED FORM 1A 5V 500 OHMS 87050 R72 RES MF 1K 1% 1/4W 144090
MC1 50104 R73 RES MF 1K 1% 1/4W 144090
Q1 TRANSISTOR NPN 132223 R75 RES MF 2.21K 1% 1/4W 144298
Q2 TRANSISTOR NPN 132257 R79 RES MF 2.21 OHM 1% 1/4W 144378
Q3 TRANSISTOR NPN 132257 R80 RES MF 2.21 OHM 1% 1/4W 144378
Q4 TRANSISTOR PNP 132224 R81 RES MF 47.5 OHM 1% 1/4W 144442
Q5 TRANSISTOR PNP 132224 R82 RES MF 47.5 OHM 1% 1/4W 144442
Q6 TRANSISTOR N JFET 132222 R83 RES MF 22.1K 1% 1/4W 144187
Q7 TRANSISTOR PNP 132224 R84 RES MF 22.1K 1% 1/4W 144187
Q8 TRANSISTOR N JFET 132222 R85 RES MF 10K 1% 1/4W 144053
Q9 TRANSISTOR PNP 132224 R86 RES MF 10K 1% 1/4W 144053
Q10 TRANSISTOR N JFET 132222 R87 RES MF 2.21 OHM 1% 1/4W 144378
Q11 TRANSISTOR PNP 132224 R88 RES MF 2.21 OHM 1% 1/4W 144378
Q12 TRANSISTOR N JFET 132222 R91 RES MF 4.99K 1% 1/4W 144098
Q13 TRANSISTOR NPN 132223 R92 RES MF 4.99K 1% 1/4W 144098
Q14 TRANSISTOR NPN 132223 R93 RES MF 4.99K 1% 1/4W 144098
Q15 TRANSISTOR NPN 132223 R94 RES MF 2.21 OHM 1% 1/4W 144378
R1 RES MF 100 OHM 1% 1/4W 144196 R95 RES MF 2.21 OHM 1% 1/4W 144378
R2 RES MF 4.75K 1% 1/4W 144097 R96 RES MF 4.99K 1% 1/4W 144098
R3 RES MF 1K 1% 1/4W 144090 R97 RES MF 22.1K 1% 1/4W 144187
R4 RES MF 47.5 OHM 1% 1/4W 144442 R98 RES MF 1K 1% 1/4W 144090
R5 RES MF 47.5 OHM 1% 1/4W 144442 R99 RES MF 182 OHM 1% 1/4W 144273
R6 RES MF 1.82K 1% 1/4W 144296 R100 RES MF 221 OHM 1% 1/4W 144172
R7 RES MF 1.82K 1% 1/4W 144296 R101 RES MF 33.2K 1% 1/4W 144015
R8 RES MF 2.21K 1% 1/4W 144298 R102 RES MF 33.2K 1% 1/4W 144015
48
C1000T
PREAMPLIFIER
R179 RES MF 200K 1% 1/4W 144117
PARTS LIST Cont'd R180
R182
RES MF 2.67K .5% 1/4W
RES MF 1M 1/4W
144397
144269
Ref. No. Description Part No. R183 RES MF 475K 1% 1/4W 144364
MAIN LEFT PCB 129542 (Cont'd) R186 RES MF 1.91K .5% 1/4W 144395
R187 RES MF 1.91K .5% 1/4W 144395
R103 RES MF 1K 1% 1/4W 144090
R190 RES MF 2.21 OHM 1% 1/4W 144378
R104 RES MF 1K 1% 1/4W 144090
R191 RES MF 2.21 OHM 1% 1/4W 144378
R105 RES MF 1K 1% 1/4W 144090
R194 RES MF 6.49K .5% 1/4W 144401
R106 RES MF 8.25K 1% 1/4W 144153
R195 RES MF 6.49K .5% 1/4W 144401
R107 RES MF 4.75K 1% 1/4W 144097
R196 RES MF 3.32K 1% 1/4W 144095
R108 RES MF 4.75K 1% 1/4W 144097
R197 RES MF 3.32K 1% 1/4W 144095
R109 RES MF 2.21 OHM 1% 1/4W 144378
R198 RES MF 2.21 OHM 1% 1/4W 144378
R110 RES MF 2.21 OHM 1% 1/4W 144378
R199 RES MF 2.21 OHM 1% 1/4W 144378
R113 RES MF 1K 1% 1/4W 144090
R200 RES MF 1K 1% 1/4W 144090
R114 RES MF 1K 1% 1/4W 144090
R201 RES MF 2.21 OHM 1% 1/4W 144378
R115 RES MF 47.5K 1% 1/4W 144108
R202 RES MF 2.21 OHM 1% 1/4W 144378
R116 RES MF 681 OHM 1% 1/4W 144195
R203 RES MF 33.2K 1% 1/4W 144015
R117 RES MF 681 OHM 1% 1/4W 144195
R204 RES MF 221 OHM 1% 1/4W 144172
R118 RES MF 1.21K 1% 1/4W 144191
R205 RES MF 2.21 OHM 1% 1/4W 144378
R119 RES MF 1.21K 1% 1/4W 144191
R206 RES MF 2.21 OHM 1% 1/4W 144378
R120 RES MF 100K 1% 1/4W 144113
R207 RES MF 182 OHM 1% 1/4W 144273
R121 RES MF 267K 1% 1/4W 144118
R208 RES MF 182 OHM 1% 1/4W 144273
R122 RES MF 267K 1% 1/4W 144118
R210 RES MF 33.2K 1% 1/4W 144015
R123 RES MF 1K 1% 1/4W 144090
R211 RES MF 33.2K 1% 1/4W 144015
R124 RES MF 1K 1% 1/4W 144090
R212 RES MF 6.49K .5% 1/4W 144401
R125 RES MF 2.74K 1% 1/4W 144304
R213 RES MF 221 OHM 1% 1/4W 144172
R126 RES MF 2.74K 1% 1/4W 144304
R214 RES MF 2.21K 1% 1/4W 144298
R127 RES MF 221K 1% 1/4W 144421
R220 RES MF 1K 1% 1/4W 144090
R128 RES MF 221K 1% 1/4W 144421
RIAA1
R129 RES MF 2.21M 1/4W 144265
U1 IC STEREO DGTL VOLUME CONTROL 133331
R130 RES MF 2.21M 1/4W 144265
U2 IC SHFT REG SER-PAR 133186
R131 RES MF 11K 1% 1/4W 144101
U3 IC OCTAL DARLNGTON TRANS ARRAY 133258(1)
R132 RES MF 11K 1% 1/4W 144101
178109(1)
R133 RES MF 1.5K 1% 1/4W 144128
U4 IC OCTAL DARLNGTON TRANS ARRAY 133258(1)
R134 RES MF 1.5K 1% 1/4W 144128
178109(1)
R135 RES MF 150K 1% 1/4W 144419
U5 IC OCTAL DARLNGTON TRANS ARRAY 133258(1)
R136 RES MF 150K 1% 1/4W 144419
178109(1)
R137 RES MF 33.2K 1% 1/4W 144015
U6 IC OCTAL DARLNGTON TRANS ARRAY 133258(1)
R138 RES MF 100K 1% 1/4W 144113
178109(1)
R139 RES MF 100K 1% 1/4W 144113
U7 IC SHFT REG SER-PAR 133186
R140 RES MF 2.21 OHM 1% 1/4W 144378
U8 IC SHFT REG SER-PAR 133186
R141 RES MF 2.21 OHM 1% 1/4W 144378
U9 IC SHFT REG SER-PAR 133186
R144 RES MF 1K 1% 1/4W 144090
U10 IC SHFT REG SER-PAR 133186
R145 RES MF 1K 1% 1/4W 144090
U11 IC OPERATIONAL AMP LOW NOISE 133067
R146 RES MF 100 OHM 1% 1/4W 144196
U12 IC OPERATIONAL AMP LOW NOISE 133067
R147 RES MF 100 OHM 1% 1/4W 144196
U13 IC OPERATIONAL AMP LOW NOISE 133067
R148 RES MF 4.75K 1% 1/4W 144097
U14 IC OPERATIONAL AMP LOW NOISE 133067
R149 RES MF 4.75K 1% 1/4W 144097
U15 IC OPERATIONAL AMP LOW NOISE 133067
R150 RES MF 221K 1% 1/4W 144421
U16 IC OPERATIONAL AMP LOW NOISE 133067
R151 RES MF 10K 1% 1/4W 144053
U17 IC OPERATIONAL AMP LOW NOISE 133067
R152 RES MF 2.21K .5% 1/4W 144396
U18 IC OPERATIONAL AMP LOW NOISE 133067
R153 RES MF 200K 1% 1/4W 144117
U19 IC OPERATIONAL AMP LOW NOISE 133067
R154 RES MF 10K 1% 1/4W 144053
U20 IC REGULATOR 5V 133250
R155 RES MF 2.21K .5% 1/4W 144396
U21 IC -5V REGULATOR 133253
R156 RES MF 1M 1/4W 144269
U22 IC REGULATOR 5V 133250
R157 RES MF 475K 1% 1/4W 144364
U23 IC -5V REGULATOR 133253
R158 RES MF 10K 1% 1/4W 144053
U24 IC OPERATIONAL AMP LOW NOISE 133067
R160 RES MF 5.36K .5% 1/4W 144399
U25 IC OPERATIONAL AMP LOW NOISE 133067
R161 RES MF 5.36K .5% 1/4W 144399
U26 IC SHFT REG SER-PAR 133186
R162 RES MF 200K 1% 1/4W 144117
U27 IC OPERATIONAL AMP LOW NOISE 133067
R164 RES MF 1M 1/4W 144269
U28 IC OPERATIONAL AMP LOW NOISE 133067
R165 RES MF 475K 1% 1/4W 144364
U29 IC OPERATIONAL AMP LOW NOISE 133067
R168 RES MF 3.79k .1% 1/4W 144398
U30 IC OPERATIONAL AMP LOW NOISE 133067
R169 RES MF 3.79k .1% 1/4W 144398
U31 IC OPERATIONAL AMP LOW NOISE 133067
R170 RES MF 200K 1% 1/4W 144117
U32 IC OPERATIONAL AMP LOW NOISE 133067
R172 RES MF 100K 1% 1/4W 144113
V3 TUBE ELEC 12AX7A MCINTOSH 165065(1)
R173 RES MF 100K 1% 1/4W 144113
178170(1)
R174 RES MF 1M 1/4W 144269
V4 TUBE ELEC 12AX7A MCINTOSH 165065(1)
R175 RES MF 475K 1% 1/4W 144364
178170(1)
R178 RES MF 2.67K .5% 1/4W 144397
49
Ref. No. Description Part No. C96 CAP ELECT 10UF 50V 066445
MAIN LEFT PCB 129544 C97 CAP MONO 220PF 200V 10% 061301
1 PCB Part Number 129544 C98 CAP MONO 22PF 200V 10% 061298
2 LOGO C99 CAP MONO 22PF 200V 10% 061298
C1 CAP ELECT 220UF 25V 066507 C100 CAP ELECT 10UF 100VDC 066462
C2 CAP ELECT 47UF 35V 066446 C102 CAP MONO .1UF 50V 20% 061305
C3 CAP ELECT 220UF 25V 066507 C103 CAP MONO .1UF 50V 20% 061305
C4 CAP MONO 100PF 100V 10% 061300 C106 CAP ELECT 47UF 35V 066446
C5 CAP MONO 100PF 100V 10% 061300 C107 CAP ELECT 47UF 35V 066446
C6 CAP ELECT 4.7UF 50V 066512 C108 CAP ELECT 10UF 250V 66493
C7 CAP ELECT 10UF 50V 066445 C111 CAP MONO .1UF 50V 20% 061305
C8 CAP ELECT 10UF 50V 066445 C112 CAP ELECT 10UF 50V 066445
C16 CAP ELECT 47UF 35V 066446 C113 CAP MONO .1UF 50V 20% 061305
C23 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C114 CAP MPF 0.22UF 400VDC 64438
C24 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C115 CAP MPF 0.22UF 400VDC 64438
C25 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C116 CAP MONO .1UF 50V 20% 061305
C26 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C117 CAP ELECT 10UF 50V 066445
C32 CAP MONO .1UF 50V 20% 061305 C118 CAP MONO 100PF 100V 10% 061300
C33 CAP MONO .1UF 50V 20% 061305 C119 CAP MONO 100PF 100V 10% 061300
C34 CAP MONO .1UF 50V 20% 061305 C120 CAP MONO 22PF 200V 10% 061298
C35 CAP MONO .1UF 50V 20% 061305 C121 CAP MONO 22PF 200V 10% 061298
C37 CAP ELECT 4.7UF 50V 066512 C122 CAP POLY .047UF 10% 1000VDC 64434
C38 CAP MONO 220PF 200V 10% 061301 C123 CAP POLY .047UF 10% 1000VDC 64434
C39 CAP ELECT 10UF 50V 066445 C124 CAP ELECT 22UF 100V 066506
C40 CAP MONO 100PF 100V 10% 061300 C125 CAP MONO 22PF 200V 10% 061298
C41 CAP MONO 100PF 100V 10% 061300 C126 CAP MONO 22PF 200V 10% 061298
C42 CAP MONO 22PF 200V 10% 061298 C127 CAP ELECT 10UF 100VDC 066462
C43 CAP MONO 22PF 200V 10% 061298 C129 CAP MONO .1UF 50V 20% 061305
C44 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C130 CAP MONO .1UF 50V 20% 061305
C45 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C133 CAP MONO 220PF 200V 10% 061301
C46 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C134 CAP MONO .1UF 50V 20% 061305
C47 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C136 CAP MONO 1000PF 50V 10% 061303
C48 CAP ELECT 10UF 100VDC 066462 C137 CAP ELECT 220UF 25V 066507
C50 CAP MONO .1UF 50V 20% 061305 C138 CAP ELECT 220UF 25V 066507
C51 CAP MONO .1UF 50V 20% 061305 C139 CAP MONO 1000PF 50V 10% 061303
C54 CAP ELECT 10UF 50V 066445 C141 CAP MONO 1000PF 50V 10% 061303
C55 CAP ELECT 10UF 50V 066445 C143 CAP MONO 1000PF 50V 10% 061303
C56 CAP ELECT 10UF 50V 066445 C145 CAP MONO 22PF 200V 10% 061298
C57 CAP ELECT 10UF 50V 066445 C146 CAP MONO 22PF 200V 10% 061298
C58 CAP MONO 100PF 100V 10% 061300 C147 CAP ELECT 10UF 100VDC 066462
C59 CAP MONO 100PF 100V 10% 061300 C149 CAP MONO .1UF 50V 20% 061305
C60 CAP MONO 100PF 100V 10% 061300 C150 CAP MONO .1UF 50V 20% 061305
C61 CAP MONO 100PF 100V 10% 061300 C153 CAP ELECT 100UF 25V 066447
C62 CAP MONO 22PF 200V 10% 061298 C154 CAP ELECT 100UF 25V 066447
C63 CAP MONO 22PF 200V 10% 061298 C155 CAP MONO 22PF 200V 10% 061298
C65 CAP ELECT 10UF 100VDC 066462 C156 CAP ELECT 10UF 100VDC 066462
C66 CAP MONO .1UF 50V 20% 061305 C157 CAP MONO .1UF 50V 20% 061305
C69 CAP MONO .1UF 50V 20% 061305 C158 CAP MONO .1UF 50V 20% 061305
C70 CAP ELECT 10UF 50V 066445 C159 CAP MONO 22PF 200V 10% 061298
C71 CAP ELECT 10UF 50V 066445 C160 CAP ELECT 10UF 100VDC 066462
C72 CAP MONO .1UF 50V 20% 061305 C161 CAP ELECT 100UF 25V 066447
C73 CAP MONO .1UF 50V 20% 061305 C162 CAP MONO .1UF 50V 20% 061305
C76 CAP ELECT 10UF 100VDC 066462 C163 CAP MONO .1UF 50V 20% 061305
C78 CAP MONO 22PF 200V 10% 061298 C164 CAP MONO 22PF 200V 10% 061298
C79 CAP MONO 22PF 200V 10% 061298 C165 CAP MONO .1UF 50V 20% 061305
C80 CAP MONO 22PF 200V 10% 061298 C166 CAP MONO .1UF 50V 20% 061305
C81 CAP MONO 100PF 100V 10% 061300 C167 CAP ELECT 47UF 35V 066446
C82 CAP ELECT 10UF 100VDC 066462 C168 CAP MONO 22PF 200V 10% 061298
C83 CAP MONO .1UF 50V 20% 061305 C177 CAP MONO .1UF 50V 20% 061305
C84 CAP MONO .1UF 50V 20% 061305 D3 DIODE SILICON 070047
C85 CAP MONO 100PF 100V 10% 061300 D4 DIODE SILICON 070047
C86 CAP ELECT 10UF 50V 066445 D7 DIODE SILICON 070047
C87 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 D8 DIODE SILICON 070047
C88 CAP ELECT 10UF 50V 066445 D9 DIODE SILICON 070047
C89 CAP ELECT 10UF 50V 066445 D10 DIODE SILICON 070047
C90 CAP ELECT 10UF 50V 066445 DS1 LED GREEN 3MM HI-INTENSITY 58172
C91 CAP MONO .1UF 50V 20% 061305 DS2 LED GREEN 3MM HI-INTENSITY 58172
C92 CAP MONO 100PF 100V 10% 061300 GP1 BRACKET PCB CARD MOUNTING 3611
C93 CAP MONO 100PF 100V 10% 061300 GP2 BRACKET PCB CARD MOUNTING 3611
C94 CAP MONO 100PF 100V 10% 061300 J1 JACK PHONO GOLD 117862
C95 CAP MONO 100PF 100V 10% 061300 J2 JACK PHONO GOLD 117862
50
C1000T
PREAMPLIFIER
PARTS LIST Cont'd R8
R9
R10
RES MF 2.21K 1% 1/4W
RES MF 6.49K .5% 1/4W
RES MF 20K 1% 1/4W
144298
144401
144104
Ref. No. Description Part No. R11 RES MF 20K 1% 1/4W 144104
MAIN RIGHT PCB 129544 (Cont'd) R12 RES MF 22.1K 1% 1/4W 144187
J3 JACK PHONO GOLD 117862 R13 RES MF 22.1K 1% 1/4W 144187
J4 JACK PHONO GOLD 117862 R14 RES MET OX 430 OHM .5W 5% 137095
J5 JACK PHONO GOLD 117862 R15 RES MET OX 430 OHM .5W 5% 137095
J6 JACK PHONO GOLD 117862 R22 RES MF 267K 1% 1/4W 144118
J7 JACK PHONO GOLD 117862 R27 RES MF 267K 1% 1/4W 144118
J8 CONN 12 PIN FFC 117720 R28 RES MF 267K 1% 1/4W 144118
J9 HEADER SHROUDED 2ROW 26PIN V 117870 R29 RES MF 182 OHM 1% 1/4W 144273
J10 HEADER 2 PIN LATCHING 117766 R30 RES MF 182 OHM 1% 1/4W 144273
J11 CONN 12 PIN FFC 117720 R31 RES MF 182 OHM 1% 1/4W 144273
J12 CONN 12 PIN FFC 117720 R32 RES MF 4.75K 1% 1/4W 144097
J13 HEADER 2 PIN LATCHING 117766 R33 RES MF 100 OHM 1% 1/4W 144196
J14 CONN 12 PIN FFC 117720 R36 RES MF 100K 1% 1/4W 144113
J15 CONN 12 PIN FFC 117720 R37 RES MF 1K 1% 1/4W 144090
J16 CONN 12 PIN FFC 117720 R38 RES MF 1K 1% 1/4W 144090
J17 CONN 12 PIN FFC 117720 R39 RES MF 1K 1% 1/4W 144090
J18 HEADER 2 PIN LATCHING 117766 R40 RES MF 1K 1% 1/4W 144090
J19 HEADER 2 PIN LATCHING 117766 R42 RES MF 1K 1% 1/4W 144090
K1 RELAY REED FORM 1A 5V 500 OHMS 87050 R43 RES MF 1K 1% 1/4W 144090
K2 RELAY REED FORM 1A 5V 500 OHMS 87050 R44 RES MF 4.75K 1% 1/4W 144097
K3 RELAY REED FORM 1A 5V 500 OHMS 87050 R45 RES MF 4.75K 1% 1/4W 144097
K4 RELAY REED FORM 1A 5V 500 OHMS 87050 R46 RES MF 4.75K 1% 1/4W 144097
K5 RELAY REED FORM 1C 5V 125 OHM 87056 R47 RES MF 4.75K 1% 1/4W 144097
K6 RELAY REED FORM 1A 5V 500 OHMS 87050 R48 RES MF 4.75K 1% 1/4W 144097
K7 RELAY REED FORM 1A 5V 500 OHMS 87050 R49 RES MF 4.75K 1% 1/4W 144097
K8 RELAY REED FORM 1A 5V 500 OHMS 87050 R50 RES MF 100K 1% 1/4W 144113
K9 RELAY REED FORM 1A 5V 500 OHMS 87050 R51 RES MF 33.2K 1% 1/4W 144015
K10 RELAY REED FORM 1A 5V 500 OHMS 87050 R52 RES MF 1K 1% 1/4W 144090
K11 RELAY REED FORM 1A 5V 500 OHMS 87050 R53 RES MF 4.99K 1% 1/4W 144098
K12 RELAY REED FORM 1A 5V 500 OHMS 87050 R54 RES MF 4.99K 1% 1/4W 144098
K13 RELAY REED FORM 1A 5V 500 OHMS 87050 R55 RES MF 2.21 OHM 1% 1/4W 144378
K14 RELAY REED FORM 1A 5V 500 OHMS 87050 R56 RES MF 2.21 OHM 1% 1/4W 144378
K15 RELAY REED FORM 1C 5V 125 OHM 87056 R59 RES MF 47.5K 1% 1/4W 144108
K16 RELAY REED FORM 1A 5V 500 OHMS 87050 R60 RES MF 47.5K 1% 1/4W 144108
K17 RELAY REED FORM 1C 5V 125 OHM 87056 R61 RES MF 47.5K 1% 1/4W 144108
K18 RELAY REED FORM 1A 5V 500 OHMS 87050 R62 RES MF 47.5K 1% 1/4W 144108
K19 RELAY REED FORM 1A 5V 500 OHMS 87050 R63 RES MF 10 OHM 1% 1/4W 144157
K20 RELAY REED FORM 1A 5V 500 OHMS 87050 R64 RES MF 10 OHM 1% 1/4W 144157
K21 RELAY REED FORM 1A 5V 500 OHMS 87050 R65 RES MF 47.5K 1% 1/4W 144108
K22 RELAY REED FORM 1A 5V 500 OHMS 87050 R66 RES MF 47.5K 1% 1/4W 144108
K23 RELAY REED FORM 1A 5V 500 OHMS 87050 R67 RES MF 267K 1% 1/4W 144118
K24 RELAY REED FORM 1A 5V 500 OHMS 87050 R68 RES MF 267K 1% 1/4W 144118
K25 RELAY REED FORM 1A 5V 500 OHMS 87050 R69 RES MF 267K 1% 1/4W 144118
MC1 50104 R70 RES MF 2.21K 1% 1/4W 144298
Q1 TRANSISTOR NPN 132223 R71 RES MF 267K 1% 1/4W 144118
Q2 TRANSISTOR NPN 132257 R72 RES MF 1K 1% 1/4W 144090
Q3 TRANSISTOR NPN 132257 R73 RES MF 1K 1% 1/4W 144090
Q4 TRANSISTOR PNP 132224 R75 RES MF 2.21K 1% 1/4W 144298
Q5 TRANSISTOR PNP 132224 R79 RES MF 2.21 OHM 1% 1/4W 144378
Q6 TRANSISTOR N JFET 132222 R80 RES MF 2.21 OHM 1% 1/4W 144378
Q7 TRANSISTOR PNP 132224 R81 RES MF 47.5 OHM 1% 1/4W 144442
Q8 TRANSISTOR N JFET 132222 R82 RES MF 47.5 OHM 1% 1/4W 144442
Q9 TRANSISTOR PNP 132224 R83 RES MF 22.1K 1% 1/4W 144187
Q10 TRANSISTOR N JFET 132222 R84 RES MF 22.1K 1% 1/4W 144187
Q11 TRANSISTOR PNP 132224 R85 RES MF 10K 1% 1/4W 144053
Q12 TRANSISTOR N JFET 132222 R86 RES MF 10K 1% 1/4W 144053
Q13 TRANSISTOR NPN 132223 R87 RES MF 2.21 OHM 1% 1/4W 144378
Q14 TRANSISTOR NPN 132223 R88 RES MF 2.21 OHM 1% 1/4W 144378
Q15 TRANSISTOR NPN 132223 R91 RES MF 4.99K 1% 1/4W 144098
Q55 TRANSISTOR NPN 132223 R92 RES MF 4.99K 1% 1/4W 144098
R1 RES MF 100 OHM 1% 1/4W 144196 R93 RES MF 4.99K 1% 1/4W 144098
R2 RES MF 4.75K 1% 1/4W 144097 R94 RES MF 2.21 OHM 1% 1/4W 144378
R3 RES MF 1K 1% 1/4W 144090 R95 RES MF 2.21 OHM 1% 1/4W 144378
R4 RES MF 47.5 OHM 1% 1/4W 144442 R96 RES MF 4.99K 1% 1/4W 144098
R5 RES MF 47.5 OHM 1% 1/4W 144442 R97 RES MF 22.1K 1% 1/4W 144187
R6 RES MF 1.82K 1% 1/4W 144296 R98 RES MF 1K 1% 1/4W 144090
R7 RES MF 1.82K 1% 1/4W 144296 R99 RES MF 182 OHM 1% 1/4W 144273
51
Ref. No. Description Part No. R179 RES MF 200K 1% 1/4W 144117
MAIN RIGHT PCB 129544 (Cont'd) R180 RES MF 2.67K .5% 1/4W 144397
R100 RES MF 221 OHM 1% 1/4W 144172 R182 RES MF 1M 1/4W 144269
R101 RES MF 33.2K 1% 1/4W 144015 R183 RES MF 475K 1% 1/4W 144364
R102 RES MF 33.2K 1% 1/4W 144015 R186 RES MF 1.91K .5% 1/4W 144395
R103 RES MF 1K 1% 1/4W 144090 R187 RES MF 1.91K .5% 1/4W 144395
R104 RES MF 1K 1% 1/4W 144090 R190 RES MF 2.21 OHM 1% 1/4W 144378
R105 RES MF 1K 1% 1/4W 144090 R191 RES MF 2.21 OHM 1% 1/4W 144378
R106 RES MF 8.25K 1% 1/4W 144153 R194 RES MF 6.49K .5% 1/4W 144401
R107 RES MF 4.75K 1% 1/4W 144097 R195 RES MF 6.49K .5% 1/4W 144401
R108 RES MF 4.75K 1% 1/4W 144097 R196 RES MF 3.32K 1% 1/4W 144095
R109 RES MF 2.21 OHM 1% 1/4W 144378 R197 RES MF 3.32K 1% 1/4W 144095
R110 RES MF 2.21 OHM 1% 1/4W 144378 R198 RES MF 2.21 OHM 1% 1/4W 144378
R113 RES MF 1K 1% 1/4W 144090 R199 RES MF 2.21 OHM 1% 1/4W 144378
R114 RES MF 1K 1% 1/4W 144090 R200 RES MF 1K 1% 1/4W 144090
R115 RES MF 47.5K 1% 1/4W 144108 R201 RES MF 2.21 OHM 1% 1/4W 144378
R116 RES MF 681 OHM 1% 1/4W 144195 R202 RES MF 2.21 OHM 1% 1/4W 144378
R117 RES MF 681 OHM 1% 1/4W 144195 R203 RES MF 33.2K 1% 1/4W 144015
R118 RES MF 1.21K 1% 1/4W 144191 R204 RES MF 221 OHM 1% 1/4W 144172
R119 RES MF 1.21K 1% 1/4W 144191 R205 RES MF 2.21 OHM 1% 1/4W 144378
R120 RES MF 100K 1% 1/4W 144113 R206 RES MF 2.21 OHM 1% 1/4W 144378
R121 RES MF 267K 1% 1/4W 144118 R207 RES MF 182 OHM 1% 1/4W 144273
R122 RES MF 267K 1% 1/4W 144118 R208 RES MF 182 OHM 1% 1/4W 144273
R123 RES MF 1K 1% 1/4W 144090 R210 RES MF 33.2K 1% 1/4W 144015
R124 RES MF 1K 1% 1/4W 144090 R211 RES MF 33.2K 1% 1/4W 144015
R125 RES MF 2.74K 1% 1/4W 144304 R212 RES MF 6.49K .5% 1/4W 144401
R126 RES MF 2.74K 1% 1/4W 144304 R213 RES MF 221 OHM 1% 1/4W 144172
R127 RES MF 221K 1% 1/4W 144421 R214 RES MF 2.21K 1% 1/4W 144298
R128 RES MF 221K 1% 1/4W 144421 R220 RES MF 1K 1% 1/4W 144090
R129 RES MF 2.21M 1/4W 144265 RIAA1
R130 RES MF 2.21M 1/4W 144265 U1 IC STEREO DGTL VOLUME CONTROL 133331
R131 RES MF 11K 1% 1/4W 144101 U2 IC SHFT REG SER-PAR 133186
R132 RES MF 11K 1% 1/4W 144101 U3 IC OCTAL DARLNGTON TRANS ARRAY 133258(1)
R133 RES MF 1.5K 1% 1/4W 144128 178109(1)
R134 RES MF 1.5K 1% 1/4W 144128 U4 IC OCTAL DARLNGTON TRANS ARRAY 133258(1)
R135 RES MF 150K 1% 1/4W 144419 178109(1)
R136 RES MF 150K 1% 1/4W 144419 U5 IC OCTAL DARLNGTON TRANS ARRAY 133258(1)
R137 RES MF 33.2K 1% 1/4W 144015 178109(1)
R138 RES MF 100K 1% 1/4W 144113 U6 IC OCTAL DARLNGTON TRANS ARRAY 133258(1)
R139 RES MF 100K 1% 1/4W 144113 178109(1)
R140 RES MF 2.21 OHM 1% 1/4W 144378 U7 IC SHFT REG SER-PAR 133186
R141 RES MF 2.21 OHM 1% 1/4W 144378 U8 IC SHFT REG SER-PAR 133186
R144 RES MF 1K 1% 1/4W 144090 U9 IC SHFT REG SER-PAR 133186
R145 RES MF 1K 1% 1/4W 144090 U10 IC SHFT REG SER-PAR 133186
R146 RES MF 100 OHM 1% 1/4W 144196 U11 IC OPERATIONAL AMP LOW NOISE 133067
R147 RES MF 100 OHM 1% 1/4W 144196 U12 IC OPERATIONAL AMP LOW NOISE 133067
R148 RES MF 4.75K 1% 1/4W 144097 U13 IC OPERATIONAL AMP LOW NOISE 133067
R149 RES MF 4.75K 1% 1/4W 144097 U14 IC OPERATIONAL AMP LOW NOISE 133067
R150 RES MF 221K 1% 1/4W 144421 U15 IC OPERATIONAL AMP LOW NOISE 133067
R151 RES MF 10K 1% 1/4W 144053 U16 IC OPERATIONAL AMP LOW NOISE 133067
R152 RES MF 2.21K .5% 1/4W 144396 U17 IC OPERATIONAL AMP LOW NOISE 133067
R153 RES MF 200K 1% 1/4W 144117 U18 IC OPERATIONAL AMP LOW NOISE 133067
R154 RES MF 10K 1% 1/4W 144053 U19 IC OPERATIONAL AMP LOW NOISE 133067
R155 RES MF 2.21K .5% 1/4W 144396 U20 IC REGULATOR 5V 133250
R156 RES MF 1M 1/4W 144269 U21 IC -5V REGULATOR 133253
R157 RES MF 475K 1% 1/4W 144364 U22 IC REGULATOR 5V 133250
R160 RES MF 5.36K .5% 1/4W 144399 U23 IC -5V REGULATOR 133253
R161 RES MF 5.36K .5% 1/4W 144399 U24 IC OPERATIONAL AMP LOW NOISE 133067
R162 RES MF 200K 1% 1/4W 144117 U25 IC OPERATIONAL AMP LOW NOISE 133067
R164 RES MF 1M 1/4W 144269 U26 IC SHFT REG SER-PAR 133186
R165 RES MF 475K 1% 1/4W 144364 U27 IC OPERATIONAL AMP LOW NOISE 133067
R168 RES MF 3.79k .1% 1/4W 144398 U28 IC OPERATIONAL AMP LOW NOISE 133067
R169 RES MF 3.79k .1% 1/4W 144398 U29 IC OPERATIONAL AMP LOW NOISE 133067
R170 RES MF 200K 1% 1/4W 144117 U30 IC OPERATIONAL AMP LOW NOISE 133067
R172 RES MF 100K 1% 1/4W 144113 U31 IC OPERATIONAL AMP LOW NOISE 133067
R173 RES MF 100K 1% 1/4W 144113 U32 IC OPERATIONAL AMP LOW NOISE 133067
R174 RES MF 1M 1/4W 144269 V3 TUBE ELEC 12AX7A MCINTOSH 165065(1)
R175 RES MF 475K 1% 1/4W 144364 178170(1)
R178 RES MF 2.67K .5% 1/4W 144397 V4 TUBE ELEC 12AX7A MCINTOSH 165065(1)
178170(1)
52
C1000T
PREAMPLIFIER
PARTS LIST Cont'd
Ref. No. Description Part No.
D3
J1
J2
DIODE SILICON 1N4148
XLR FEMALE VERTICAL WITH LATCH
XLR FEMALE VERTICAL WITH LATCH
070047
117813
117813
J3 XLR FEMALE VERTICAL WITH LATCH 117813
PHONO MC PCB 129537
J4 RECEPTACLE XLR MALE 117669
1 PCB Part Number 129537 J5 XLR FEMALE OR MALE 117813 or
2 LOGO 117669
C1 CAP MONO 1000PF 50V 10% 061303 J6 TERMINAL STRIP 14 PIN .025 SQ 117647(1)
C2 CAP MONO 1000PF 50V 10% 061303 SOCKET 117644(1)
C3 CAP ELECT 1000UF 10V 10X12.5 66309 J7 TERMINAL STRIP 14 PIN .025 SQ 117647(1)
C4 CAP ELECT 1000UF 10V 10X12.5 66309 SOCKET 117644(1)
C5 CAP MONO 1000PF 50V 10% 061303 J8 RECEPTACLE XLR MALE 117669
C6 CAP MONO 22PF 200V 10% NPO 061298 J9 RECEPTACLE XLR MALE 117669
C7 CAP ELECT 10UF 50V 066445 J10 RECEPTACLE XLR MALE 117669
C8 CAP MONO .1UF 50V 20% 061305 J11 CONN 12 PIN FFC 117720
C9 CAP MONO .1UF 50V 20% 061305 K1 RELAY REED FORM 1C 5V 125 OHM 87056
C10 CAP MONO 100PF 100V 10% 061300 K2 RELAY REED FORM 1A 5V 500 OHMS 87050
J1 6 PIN HEADER 117828 K3 RELAY REED FORM 1A 5V 500 OHMS 87050
J2 10 PIN HEADER 117829 K4 RELAY REED FORM 1A 5V 500 OHMS 87050
Q1 TRANSISTOR NPN 132257 K5 RELAY REED FORM 1A 5V 500 OHMS 87050
Q2 TRANSISTOR NPN 132257 K6 RELAY REED FORM 1A 5V 500 OHMS 87050
Q3 TRANSISTOR NPN 132257 K7 RELAY REED FORM 1A 5V 500 OHMS 87050
Q4 TRANSISTOR NPN 132257 K8 RELAY REED FORM 1A 5V 500 OHMS 87050
Q5 TRANSISTOR PNP SILICON 132172 K9 RELAY REED FORM 1A 5V 500 OHMS 87050
Q6 TRANSISTOR NPN SILICON 132171 K10 RELAY REED FORM 1A 5V 500 OHMS 87050
Q7 TRANSISTOR PNP SILICON 132172 K11 RELAY REED FORM 1A 5V 500 OHMS 87050
Q8 TRANSISTOR NPN SILICON 132171 K12 RELAY REED FORM 1A 5V 500 OHMS 87050
Q9 TRANSISTOR PNP SILICON 132172 K13 RELAY REED FORM 1A 5V 500 OHMS 87050
Q10 TRANSISTOR NPN SILICON 132171 R1 RES MF 267K 1% 1/4W 144118
Q11 TRANSISTOR PNP SILICON 132172 R2 RES MF 267K 1% 1/4W 144118
Q12 TRANSISTOR NPN SILICON 132171 R3 RES MF 267K 1% 1/4W 144118
Q13 TRANSISTOR PNP SILICON 132172 R4 RES MF 47.5 OHM 1% 1/4W 144442
Q14 TRANSISTOR NPN SILICON 132171 R5 RES MF 47.5 OHM 1% 1/4W 144442
R1 RES MF 1K 1% 1/4W 144090 R6 RES MF 22.1K 1% 1/4W 144187
R2 RES MF 110 OHM 1% 1/4W 144489 R7 RES MF 22.1K 1% 1/4W 144187
R3 RES MF 1K 1% 1/4W 144090 R8 RES MF 267K 1% 1/4W 144118
R4 RES MF 4.75K 1% 1/4W 144097 R9 RES MF 267K 1% 1/4W 144118
R5 RES MF 4.75K 1% 1/4W 144097 R10 RES MF 267K 1% 1/4W 144118
R6 RES MF 51.1 OHM 2% 1/4W 144134 R11 RES MF 221 OHM 1% 1/4W 144172
R7 RES MF 249 OHM 1% 1/4W 144228 R12 RES MF 221 OHM 1% 1/4W 144172
R8 RES MF 4.75K 1% 1/4W 144097 R13 RES MF 221 OHM 1% 1/4W 144172
R9 RES MF 4.75K 1% 1/4W 144097 R14 RES MF 221 OHM 1% 1/4W 144172
R10 RES MF 1.5K 1% 1/4W 144128 R15 RES MF 221 OHM 1% 1/4W 144172
R11 RES MF 22.1 OHM 1% 1/4W 144160 R16 RES MF 221 OHM 1% 1/4W 144172
R12 RES MF 22.1 OHM 1% 1/4W 144160 R17 RES MF 22.1K 1% 1/4W 144187
R13 RES MF 1.5K 1% 1/4W 144128 R18 RES MF 22.1K 1% 1/4W 144187
R14 RES MF 475 OHM 1% 1/4W 144086 R19 RES MF 22.1K 1% 1/4W 144187
R15 RES MF 475 OHM 1% 1/4W 144086 R20 RES MF 22.1K 1% 1/4W 144187
R16 RES MF 2.21K 1% 1/4W 144298 R21 RES MF 22.1K 1% 1/4W 144187
R17 RES MF 2.21 OHM 1/4W 1% 144378 R22 RES MF 22.1K 1% 1/4W 144187
R18 RES MF 2.21 OHM 1/4W 1% 144378
U1 IC OPERATIONAL AMP LOW NOISE 133067 Ref. No. Description Part No.
BALANCE I/O RIGHT PCB 129540
1 PCB Part Number 129540
Ref. No. Description Part No. 2 LOGO
BALANCE I/O LEFT PCB 129538 C1 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
1 PCB Part Number 129538 C2 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
2 LOGO C3 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
C1 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C4 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
C2 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C5 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
C3 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C6 CAP ELECT 10UF 16V 4X5 CASE T&R 066555
C4 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C7 CAP ELECT 47UF 16V 6.3X5 CASE 066380
C5 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C8 CAP ELECT 47UF 16V 6.3X5 CASE 066380
C6 CAP ELECT 10UF 16V 4X5 CASE T&R 066555 C9 CAP ELECT 47UF 16V 6.3X5 CASE 066380
C7 CAP ELECT 47UF 16V 6.3X5 CASE 066380 C10 CAP ELECT 47UF 16V 6.3X5 CASE 066380
C8 CAP ELECT 47UF 16V 6.3X5 CASE 066380 C11 CAP ELECT 47UF 16V 6.3X5 CASE 066380
C9 CAP ELECT 47UF 16V 6.3X5 CASE 066380 C12 CAP ELECT 47UF 16V 6.3X5 CASE 066380
C10 CAP ELECT 47UF 16V 6.3X5 CASE 066380 D1 DIODE SILICON 1N4148 070047
C11 CAP ELECT 47UF 16V 6.3X5 CASE 066380 D2 DIODE SILICON 1N4148 070047
C12 CAP ELECT 47UF 16V 6.3X5 CASE 066380 D3 DIODE SILICON 1N4148 070047
D1 DIODE SILICON 1N4148 070047 J1 XLR FEMALE VERTICAL WITH LATCH 117813
D2 DIODE SILICON 1N4148 070047 J2 XLR FEMALE VERTICAL WITH LATCH 117813
53
Ref. No. Description Part No. C24 CAP MONO .1uF 50V 20% Z5U 061305
BALANCE I/O RIGHT PCB 129540 (Cont'd) C25 CAP ELECT 10UF 100VDC 066462
J3 XLR FEMALE VERTICAL WITH LATCH 117813 C27 CAP MONO 22PF 200V 10% NPO 061298
J4 RECEPTACLE XLR MALE 117669 C30 CAP MONO 100PF 100V 10% NPO 061300
J5 XLR FEMALE OR MALE 117813 or C31 CAP MONO .1uF 50V 20% Z5U 061305
117669 C32 CAP MONO .1uF 50V 20% Z5U 061305
J6 TERMINAL STRIP 14 PIN .025 SQ 117647(1) C35 CAP ELECT 10UF 100VDC ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
