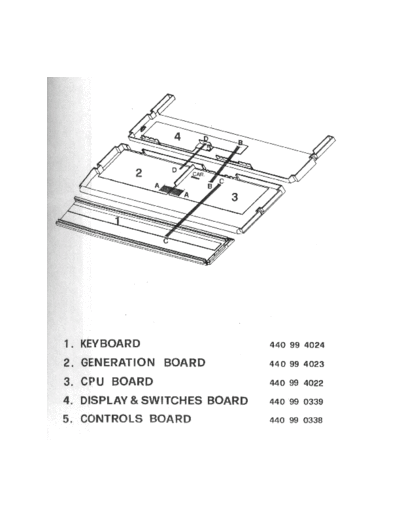

SIEL DK80


P.C. 440.99.4022
CPU BOARD

IC.1    -   6N138
IC.2    -   7404
IC.3    -   4016
IC.4    -   TL 084
IC.5    -   DAC 831
IC.6    -   TMS 7000
IC.7    -   6112LP-4
IC.8    -   74HC00
IC.9    -   2564-35
IC.10   -   68B50
IC.11   -   2532-30
IC.12   -   74HC138
IC.13   -   74HC377
IC.14   -   74HC377
IC.15   -   74HC373
IC.16   -   4016
IC.17   -   74HC32
            LM 337
            LM 317
            LM 317



P.C. 440.99.4023
GENERATION BOARD

IC.1    -   TL 084
IC.2    -   TL 084
IC.3    -   4016
IC.4    -   SSM 2045
IC.5    -   TL 082
IC.6    -   M 112
IC.7    -   M 112
IC.8    -   SSM 2045
IC.9    -   TDA 1022
IC.10   -   LM 393
IC.11   -   TL 082
IC.12   -   4070
IC.13   -   TL 082
IC.14   -   MM 5437N
IC.15   -   TL 082
IC.16   -   TL 084
IC.17   -   TL 084
IC.16   -   TL 082
IC.19   -   4051
IC.20   -   TL 084
IC.21   -   TL 084
IC.22   -   4051
IC.23   -   TL 084
IC.24   -   TL 084
IC.25   -   4051
IC.26   -   SSM 2031
IC.27   -   TL 082
IC.26   -   SSM 2031




 file:///D|/siel/dk-80%20Schematics/DK80%20Parts%20list.txt (1 of 2) [22-2-2005 23:08:53]
 file:///D|/siel/dk-80%20Schematics/DK80%20Parts%20list.txt


P.C. 440.99.4024
KEYBOARD

IC.1 - 74HC154



P.C. 440.99.0339
DISPLAY & SWITCHES BOARD

IC.1 - M5451
IC.2 - 4011
IC.3 - BDX 33
Display man 4810 A



P.C, 440.99.0340
RAM PACK

6116 P4



P.C. 440.99.0342
ROM PACK

2532-25



NOTES:


- ALL condensers without specification are 47n ceramic condensers
- All resistors are 1/4 W.
- All resistors whose symbol is marked wih an oblique stroke are
  1% precision resistors.
- Upward arrows on CPU BOARD indicate a +5 voltage.
- Upward arrows on GENERATION BOARD indicate +12 voltage. UNLESS
  OTHERWISE INDICATED.




 file:///D|/siel/dk-80%20Schematics/DK80%20Parts%20list.txt (2 of 2) [22-2-2005 23:08:53]
