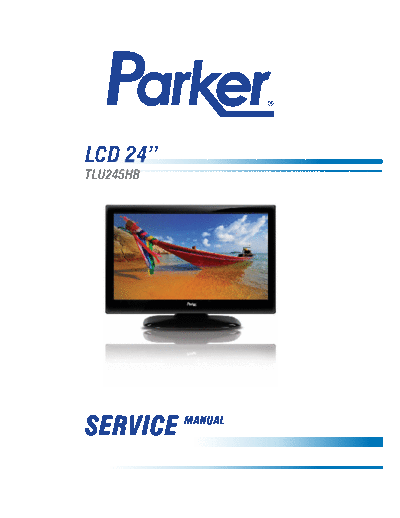

Image preview - the first page of the document
>> Download parker_tlu245hb_sm documenatation <<
Text preview - extract from the document
LCD 24"
TLU245HB
Caution
CAUTION
CA UTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CA UT ION : T O RE DUCE TH E RIS K OF
CA U T ION ELECTR ICA L SHOCK, DO NOT RE MOVE
COVER (OR BACK). NO USER SERVICEABLE
RISK OF ELECTRIC
SHOCK DO NOT OPEN. PAR TS INS IDE . RE FE R SER VIC ING TO
QUALIFIE D SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated dangerous voltage within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
TLU245HB 1
Caution
Important Safety Instructions
CAUTION:
Read all of these instructions. Sa ve these instructions for later use . Follo w all W arnings and
Instructions marked on the audio equipment.
1. Read Instructions-All the safety and operating instructionsshouldbe read before the productis operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
For Your Personal Safety
1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
TLU245HB 2.
Caution
Protection And Location Of Your Set
11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set ina built-in enclosure, unless proper ventilation is provided.
Protection And Location Of Your Set
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
ANTENNA
LEAD- IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
ELECTRIC SERVICE (NEC SECTION810-21)
EQUIPMENT
GROUND CLAMPS
POWER SERVICE GROUNDING
NEC-NATIONAL ELECTRICAL CODE ELECTRODE SYSTEM
(NEC ART 250. PART H)
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system installer s attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
TLU245HB 3
Factory Menu
1. Factory Menu
2.1 Accessing way:
a. In the first place, press Menu button of remote control,
then select Contrast item of Picture submenu. Finally, press
9, 7, 3, 5 consecutively.
b. When the FAC HOTKEY item of Factory Menu is enabled
(ON), press Go Back button of remote control.
1.2 Factory Menu
Factory Menu
Name Default Description Status
FAC OFF Factory Menu shortcut button switch OK
HOTKEY
The item must be disabled (OFF) after production
WARM OFF OFF: Normal mode. Display black screen when no signal. Turn to OK
UP automatically standby mode if keep the signal unavailable over
15 minutes.
ON: Aging mode. Display snow dot when no signal. The set will not
turn to standby even if the unavailability of signal
ADC >> ADC calibration ( see details below) OK
WHITE >> )woleb sliated ees ( tnemtsujdA ecnalaB etihW OK
BALANCE
SHOP DO It is crucial that the function is executed after production aim to clear OK
information of production process, ensure user cannot access to
Factory Menu after execute the item.
NVM RESET DO Restore default value except WB and ADC data. OK
TLU245HB 4
Factory Menu
SET FAC CH DO Preset the channel table of factory. After choosing the item, press
of remote control, prompt " wait" will appear. Please wait until the
appearance of " OK" .
POWER ON LAST/STB ON: the set will power on after switching on power. OK
STB: the set will remain standby status after switching on power.
Last: the set will turn to the status in which it lies when last switching
off.
If without requirement from certain customer,
by default, the value should be Last for
MS19C-AP and STB for MS19C-LA.
USB .woleb sliated ees esaelP .erawtfos edargpU Ok
UPDATE
FAC CH SEL Select the factory where the chassis is produced. This item correlates OK
with SET FAC CH. When certain factory is chosen, the channel table of
the factory will be preset after execution of SET FAC CH.
SW OFF 202U rof erawtfos fo noitamrofni noisreV OK
VERSION
SW DATE Release date and time of software for U202 OK
PRODUCT Product model OK
SIACP locotorp lortnoc etomer trop laireS OK
VERSION
TLU245HB 5
Factory Menu
1.3 ADC c a lib ra tion m enu
ADC Menu
Press the button in remote control to select certain item and
to change the value of ADC data or start ADC calibration.
Notes:
1. Only YPBPR and PC source should be calibrated.
ADC Ca lib ra tion m enu
Name Default Description Status
SOURCE Select the source you intend to ADC Calibrate. OK
Only YPBPR and PC are available.
AUTO DO Select and execute the item, ADC Calibration starts. It indicates OK
TUNE a successful calibration if prompt " OK" is displayed.
Otherwise, It is a failing calibration (" NG" displayed).
R OFFSET 127 Offset of R channel ( cannot be changed after auto calibration) OK
G OFFSET 127 Offset of G channel ( cannot be changed after auto calibration) OK
B OFFSET 127 Offset of B channel ( cannot be changed after auto calibration) OK
R GAIN 128 Gain of R channel ( cannot be changed after auto calibration) OK
G GAIN 128 Gain of G channel ( cannot be changed after auto calibration) OK
B GAIN 128 Gain of B channel ( cannot be changed after auto calibration) OK
TLU245HB 6
Factory Menu
1.4 White Ba la nc e Ad justm ent m enu
White Balance menu
Press the button in remote control to select certain item and
to adjust White Balance
White Balance Adjustment m enu
Name Default Description Status
SOURCE Select the source you intend to apply WB adjustment. OK
Only HDMI1, AV1, YPBPR, PC and should be adjusted.
COLOR NORMAL Select color temperature you intend to adjust Three groups of OK
TEMP color temperature: Normal, Warm, Cool are available for each
source.
R GAIN 128 Gain of R channel ( cannot be changed after auto calibration) OK
G GAIN 128 Gain of G channel ( cannot be changed after auto calibration) OK
B GAIN 128 Gain of B channel ( cannot be changed after auto calibration) OK
R OFFSET 128 Offset of R channel ( cannot be changed after auto calibration) OK
G OFFSET 128 Offset of G channel ( cannot be changed after auto calibration) OK
B OFFSET 128 Offset of B channel ( cannot be changed after auto calibration) OK
TLU245HB 7
Tuner I2C BUS Earphone L/R
Note: If use inner demodulation,this part NC.
Z101 AMP L/R U602 U603 P604:47-EAR005-XX0
X101 V_IF
TUNER SAWF (Picture) 13-RC4558-DRB 13-TDA151-7AB(19~22")
CN&AP 07-380FI5-NA9G CN&AP: 45-SAWK62-74D U101
TLU245HB
LA 07-457FF5-NA2G LA: 45-SAWF39-530
IF demodulator I2S BUS U601
13-STA559-BWB(24~37") AUDIO AMP
13-STA335-BWB(40~52") 8R/8W
X102 13-TDA988-5TBS
Q103
SAWF (Sound) S_IF
IF AMP
11-SC3779-DBX CN&AP: 45-SAWK93-52M
SPDIF OUTPUT
LA: 45-SAWF93-700
VIDEO OUTPUT
P505:47-RCA276-XX0G
TV V
TV SIF
MONO
S_IF
V_IF
VIDEO OUTPUT V/ L/R
PC INPUT R/G/B/HS/VS AUDIO OUTPUT U501 P504:47-RCA275-XX0G
13-RC4558-DRB
P403:47-VGA019-XX0 LCD Panel
YPBPR INPUT Video
P501:47-RCA255-XX0G Y2 LVDS Odd Signal 12V or 5V
Y3
AU SW0 U502
Audio SW MUX L/R
AU SW1 LVDS Even Signal LVDS_SEL
13-EF4052-BTB
Y0 Y1 U201
2. Chassis Block Diagram
AV1 INPUT Video
Main chipset U205
P503:47-RCA286-XX0G
24V
DDR SDRAM
DIM
AV2 INPUT Video
BL_ON
13-W9412G-61B
P502:47-RCA249-XX2G U202
SPI BUS FLASH MEMORY
HDMI 1 INPUT
CN&AP 13-W25X32-VSB
P402:47-HDI008-XS1 LA 13-W25Q16-00B
HDMI 2 INPUT
I2C BUS
P401:47-HDI008-XS1
USB INPUT
P404:47-USB002-XX0
U204 U203
EEPROM HDCP KEY
13-M24C64-W6B 13-M24C04-MNB
LED
WP_EEP
RESET
RXD/TXD
IR_SYNC
STB_CTL
HDMI_DET
AU SW0/SW1
KEY1/KEY2
BL_PWM
AMP-MUTE
PW_ON/OFF
PANEL_ON/OFF
3V3STB/1V26/+3.3V
Power Supply Block Diagram
3V3STB 5VSTB/DC 5V 3V3STB
Power Board DC 24V DC 12V
Module
D803 D817
U803 U807 U808 5VAIN +5V U801 +3_3VSTB U811
5VSTB/DC 5V +12V 1V26
DC/DC DC/DC MOSFET LDO LDO
PWL3235-01 13-MP1593-C2B D804 D808 13-AZ1084-33B D814
13-RT8110-00B 12-13N03L-0BX 13-AZ1117-DAB
AC 24/12V-SW U805 1V26
IPB: DC/DC Q808
Q810 U102 +5V_IF For tuner & IF 3V3STB
IPL1922L 13-MP1482-DSB
LDO demodulator
IPL22C DC 12V Note: If use U811,this part NC.
13-AS1117-50B
LPL24C U810 +3.3V
IPL42A-01 LDO
DC 24V +12V_AMP U603:13-TDA151-7AB(19~22") 13-LD1117-DTB STB_CTL
PW_ON/OFF
U601:13-STA559-BWB(24~37")
+24V_AMP U804 +2_6V
U601:13-STA335-BWB(40~52") LDO For DDR
For Audio Amplifier Power 13-AS1117-25B
Block Diagram
8
L128
TUNER PART 12UH
AGC D101 R101
T LL4148 0R R160
TAGC TV_CVBS 150R TV_VOUT
3
1
RF_AGC R108
R102 R103 150R
C102 12K 0R(NC) +12V 4M5
NC
AGC SCL-TU C101
4U7
R161
1 T T T 0.1U
2
AGC (NC) X104
Z101
SDA-TU AS R112
3 C108 C109 R109 L103
AS 2U2 0.01U 6K8 0.82UH 680R
4 SCL-TU R104 0R
SCL RF_SCL C138 R111 R113
SDA-TU
TLU245HB
5 DGND 0.01U 1K2 0R
R105 0R RF_SDA
SDA DGND
DGND DGND
6 C103 100P BP L102 C110
NC R110 C
T L101 1UH(0R) 0.01U 56R
C104 100P B Q103
7 BP DGND 600R
BP SC3779
5V-IF
9 BT E
BT
R106 22K 33V
C107 R114 R115
11 IF C105 C106 1K Only for LA chassis
IF 100U
T 0.1U 1U 16V 20R X102 SAW-K9352M
BT
IN
GND
OUT1
OUT2
DGND
IN/GND
IF DGND
T DGND DGND
5 4 3 2 1 R119
R116 C111 0R
0R 0.01U SIFP
DGND L104
L119 R117
3. PCB Diagram
R107 1UH
1UH 0R NC
56R (NC) R118 R120
(NC)
0R 0R
SIFM
DGND 5V-IF
DGND
R123
22K
oscillate frequency is about 440Khz R121 R122
0R 0R
(NC) (NC)
5V-IF C121 R124
0.1U 22K
R154 L105 5V-IF
10R 1000UH X101 SAW-K6274D
C112
IN
GND
DGND DGND
OUT1
OUT2
10U C113
IN/GND
16V 0.1U C114 R155 C116 R125
0.47U 100K 4700P ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
