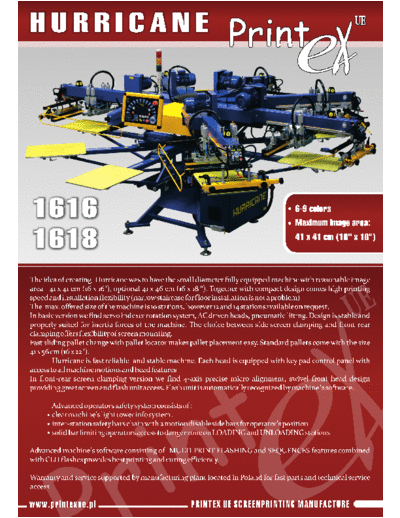

Image preview - the first page of the document



>> Download HURRICANE documenatation <<

Text preview - extract from the document

HURRICANE




 1616                                                                                           6-9 colors
                                                                                                Maximum image area:

 1618                                                                                           41 x 41 cm (16" x 16")



The idea of creating Hurricane was to have the small diameter fully equipped machine with reasonable image
area - 41 x 41 cm (16 x 16"), optional 41 x 46 cm (16 x 18 "). Together with compact design comes high printing
speed and installation flexibility (narrow staircase for floor installation is not a problem)
The max. offered size of the machine is 10 stations, however 12 and 14 stations available on request.
In basic version we find servo indexer rotation system, AC driven heads, pneumatic lifting. Design is stable and
properly suited for inertia forces of the machine. The choice between side screen clamping and front-rear
clamping offers flexibility of screen mounting.
Fast sliding pallet change with pallet locator makes pallet placement easy. Standard pallets come with the size
41 x 56 cm (16 x 22").
         Hurricane is fast reliable and stable machine. Each head is equipped with key pad control panel with
access to all machine motions and head features
In front-rear screen clamping version we find 4-axis precise micro alignment, swivel front head design
providing great screen and flash unit access. Flash unit is automatically recognized by machine 's software.

          Advanced operators safety system consists of :
          clear machine's light tower info system .
          inter-station safety bars chain with 2 motion disable side bars for operator's position
          solid bar limiting operators access to danger zone on LOADING and UNLOADING stations

Advanced machine's software consisting of MULTI PRINT FLASHING and SEQUENCES features combined
with CLH flashes provides best printing and curing efficiency.

Warranty and service supported by manufacturing plant located in Poland for fast parts and technical service
access.

w w w. p r i n t e x u e . p l                       P R I N T E X U E S C R E E N P R I N T I N G M A N U FA C T U R E
HURRICANE
STANDARD FEATURES
Rotation
       Precision servo drive (parametrized for different pallet weight for smooth rotation), both direction drive
       (CW and CCW)
       servo driven indexing in combine with MULTIPRINT FLASHING saves extra color
Lifting
       single lifting cylinder with central off-contact mechanism
Print head
       consist of keypad panel with control over all head and machine motion movements
       AC driven carriage travel with frequency converter for speed and torque control
       both sides print length adjustment, carriage hand manipulation fault proof
Advanced programming functions
       Software is constantly proved also according to printers suggestions (We gladly listen to Your comments,
       help us create better screen printing tool!)
Screen Locks
       pneumatic screen locks controlled from keypad, additional manual clamps for pressure off screen
       position save
Registration
       upper division tolerance (directly responsible for print registration quality) in range of +/-0,01 mm, for
       average printing point on pallet means deviation of +/- 0,02 mm. Those numbers are meanness for
       textile, also enables other material and surface printing
       front micro-alignment (3 axis) and rear (1 axis)
       fast print alignment with floor light pallet
Squeegee and flood bar
       independently squeegee and flood print setting
       squeegee air pressure regulator with glass gauge
       too-less squeegee and flood bar angle adjustment
Warranty and service
       2 year warranty
       service agreement on special conditions
Options
       pneumatic squeegee and flood bars locks
       special upper wheel design to fit 80 cm (30 " doors)




PRINTEX UE s.c., 17-100 Bielsk Podlaski, ul. Rejonowa 4, tel.: +48 85 730 16 80
