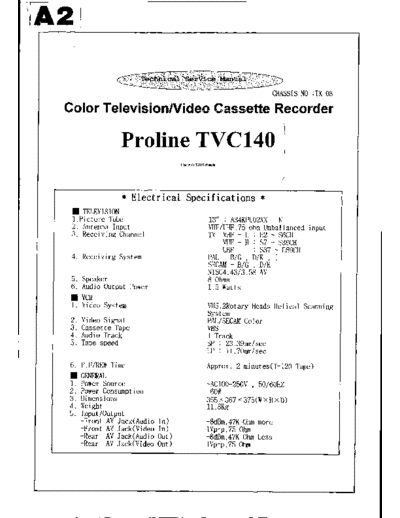

Image preview - the first page of the document
proline__tvc140


>> Download proline__tvc140 documenatation <<

Text preview - extract from the document
Date Issued: 10/10/02                                                  Bulletin No.2




Brown Goods         Technical Tip                       Issued To CSM? Yes               No
TV/VCR Combi        Proline                             Model No.:    TVC140

Symptom:          Dead.




Cause:            C505 exploded, R503 burnt. LOPTx faulty.




Cure:             Replace C505 (2.2uF/50V), R503 (10K/0.25W), T502 (LOPTx).




Additional        Part nos:
Information:      CAP*CE2M2F50V (C505)
                  HRS*RQ10K (R503)
                  ANAMKLF6174Z6030B (LOPTx)



                  Information supplied by: Alan Shaw, 321




                                   Quality Assurance Department
                              Tel. 0113 2311808    Fax. 0113 2015114
                                                                           Page 1 of 1
