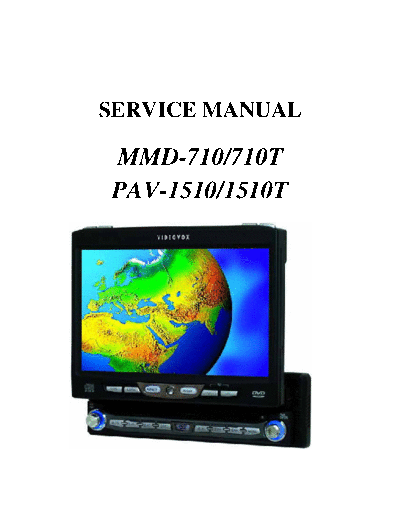

Image preview - the first page of the document
>> Download Prology MDD-710T documenatation <<
Text preview - extract from the document
SERVICE MANUAL
MMD-710/710T
PAV-1510/1510T
Contents
1. Cover
2. Features
3. Block Diagram (Main)
4. Block Diagram (Monitor)
5. Unit Wiring Diagram
6. Schematic Diagram (Main)
7. Schematic Diagram (Monitor)
8. Schematic Diagram (TV BOX)
9. IC & TR Voltage Chart (Main PCB)
10. IC & TR Voltage Chart (Monitor PCB)
11. Exploded View & Part's List
12. Exploded View & Part's List (Tilt Loader)
13. Exploded View & Part's List (DVD Deck)
14. Circuit Board Diagram (Main)
15. Part's List / Main PCB Ass'y
16. Circuit Board Diagram (Monitor)
17. Part's List / Monitor PCB Ass'y
18. Circuit Board Diagram (Front)
19. Part's List / Front PCB Ass'y
20. Circuit Board Diagram (Tuner)
21. Part's List / Tuner PCB Ass'y
22. Part's List (Tilt Loader) Motor PCB Ass'y
23. Part's List (DVD Deck) MPEG PCB Ass'y
24. Part's List / Packing
25. Product Specification
2. Features
o Motorized 7" Digital TFT Screen
o AM/FM Stereo Tuner
o TV Tuner with Diversity Antenna Input
o DVD-R/RW, CD-R/RW Compatible
o Video Select (V Sel.) Rear Zone Output
o ESP - Electronic Shock Protection for DVD, MP3 and CDDA
o OSD - On Touching Screen Display
o Joystick Menu Navigation
o AV1 and AV2 Inputs for System Expansion
o Auto Dimmer Illumination
2
DISPLAY INTERFACE
I2C
I
PWM
INTO
YOUT
CDS
LCDIF
CSYNC
DVD YC
RESET
CMUTE
TV CVBS
CENTER
NAV RGB
AUX2 CVBS
AUX1 CVBS
" TFT LCD
RGB [TX18D11VM1CAA]
I2C
4
RESET
CDS TILT MECHA
SENSOR CONTROL
ENABLE
CCFL
4. Block Diagram (Monitor)
[MP1015]
TFT KEY LED
LCD
LCD BACK LIGHT
LCD KEY LE
D
KEY
5. Unit Wiring Diagram
2
10A
15
13
14
16
Blue
3
17
18
Black
Front
Yellow
FILTER & 4
12 FUSE BOX +
Gray
Rear Black
5
Orange
19
1
Pink
6
TO HEAD UNIT-
Red
7
Antenna Included
White/Black (-) Gray/Black (-)
8
9
White (+) Gray (+)
TY
DIVERSI
OPTIONAL
ANT
Green/Black (-) Violet/Black (-) 1 2 3 4
10 11
Green (+) Violet (+)
5
6. Schematic Diagram (Main)
6 7
7. Schematic Diagram (Monitor)
8 9
12. Exploded View & Part's List (Tilt Loader)
20 21
13. Exploded View & Part's List (DVD Deck)
24 25
26
14. Circuit Board Diagram (Main)
TOP VIEW
27 28
14. Circuit Board Diagram (Main)
BOTTOM VIEW
29 30
16. Circuit Board Diagram (Monitor)
TOP VIEW
40 41
16. Circuit Board Diagram (Monitor)
BOTTOM VIEW
42 43
18. Circuit Board Diagram (Front)
TOP VIEW
BOTTOM VIEW
49
25. Specifications
DVD Player Frequency response: 10Hz-20kHz
Channel separation @ 1kHz: >65dB
D/A converter: 24 Bit
FM Tuner Tuning range: 87.5MHz-108MHz
Usable sensitivity: 8.5dBf
50dB quieting sensitivity: 10dBf
Stereo separation @ 1kHz: 40dB
Frequency response: 30Hz-13kHz
AM Tuner Tuning range: 522kHz-1620kHz
Usable sensitivity: 22uV
Frequency response: 30Hz-2.2kHz
Monitor Panel size: 7" (177.8 mm) diagonal measurement
View angle (up/down/left/right): 45/60/65/6
5
Resolution: 800 x R.G.B x 480
2
Brightness (cd/m ): 400
Contrast ratio: 200:1
Elements: 1,152,000
General Operating voltage:11-16 VDC, negative ground
Speaker output impedance: 4~8 ohms
Line output voltage: 2 Volts
Line output impedance: 200 ohms
Chassis dimensions: 7" x 7" x 2"
(178 x 178 x 51 mm)
Design and specifications subject to change without notice.
CEA-2006 Power Standard Specifications
(reference: 14.4VDC +/- 0.2V, 20Hz~20kHz)
Power Output: 18 Watts RMS x 4 channels at 4 ohms and 1% THD+N
Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms)
61
