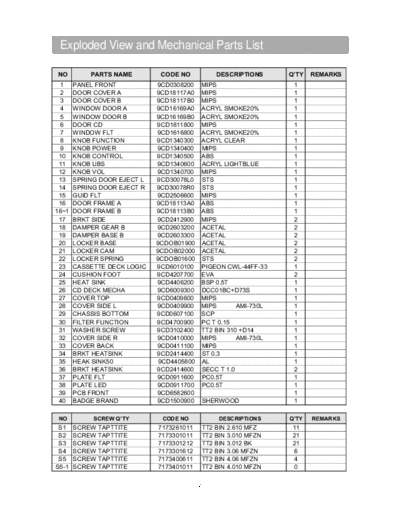

Image preview - the first page of the document
>> Download RNA510,RNA520scheme documenatation <<
Text preview - extract from the document
Exploded View and Mechanical Parts List
NO PARTS NAME CODE NO DESCRIPTIONS Q'TY REMARKS
1 PANEL FRONT 9CD0308200 MIPS 1
2 DOOR COVER A 9CD18117A0 MIPS 1
3 DOOR COVER B 9CD18117B0 MIPS 1
4 WINDOW DOOR A 9CD16169A0 ACRYL SMOKE20% 1
5 WINDOW DOOR B 9CD16169B0 ACRYL SMOKE20% 1
6 DOOR CD 9CD1811800 MIPS 1
7 WINDOW FLT 9CD1616800 ACRYL SMOKE20% 1
8 KNOB FUNCTION 9CD1340300 ACRYL CLEAR 1
9 KNOB POWER 9CD1340400 MIPS 1
10 KNOB CONTROL 9CD1340500 ABS 1
11 KNOB UBS 9CD1340600 ACRYL LIGHTBLUE 1
12 KNOB VOL 9CD1340700 MIPS 1
13 SPRING DOOR EJECT L 9CD30078L0 STS 1
14 SPRING DOOR EJECT R 9CD30078R0 STS 1
15 GUID FLT 9CD2506600 MIPS 1
16 DOOR FRAME A 9CD18113A0 ABS 1
16~1 DOOR FRAME B 9CD18113B0 ABS 1
17 BRKT SIDE 9CD2412900 MIPS 2
18 DAMPER GEAR B 9CD2603200 ACETAL 2
19 DAMPER BASE B 9CD2603300 ACETAL 2
20 LOCKER BASE 9CDOB01900 ACETAL 2
21 LOCKER CAM 9CDOB02000 ACETAL 2
22 LOCKER SPRING 9CDOB01600 STS 2
23 CASSETTE DECK LOGIC 9CD6010100 PIGEON CWL-44FF-33 1
24 CUSHION FOOT 9CD4207700 EVA 2
25 HEAT SINK 9CD4406200 BSP 0.5T 1
26 CD DECK MECHA 9CD6009300 DCC01BC+D73S 1
27 COVER TOP 9CD0409600 MIPS 1
28 COVER SIDE L 9CD0409900 MIPS AMI-730L 1
29 CHASSIS BOTTOM 9CD0607100 SCP 1
30 FILTER FUNCTION 9CD4700900 PC T 0.15 1
31 WASHER SCREW 9CD3102400 TT2 BIN 310 +D14 1
32 COVER SIDE R 9CD0410000 MIPS AMI-730L 1
33 COVER BACK 9CD0411100 MIPS 1
34 BRKT HEATSINK 9CD2414400 ST 0.3 1
35 HEAK SINK50 9CD4405800 AL 1
36 BRKT HEATSINK 9CD2414600 SECC T 1.0 2
37 PLATE FLT 9CD0911600 PC0.5T 1
38 PLATE LED 9CD0911700 PC0.5T 1
39 PCB FRONT 9CD6582600 1
40 BADGE BRAND 9CD1500900 SHERWOOD 1
NO SCREW Q'TY CODE NO DESCRIPTIONS Q'TY REMARKS
S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.610 MFZ 11
S2 SCREW TAPTTITE 7173301011 TT2 BIN 3.010 MFZN 21
S3 SCREW TAPTTITE 7173301212 TT2 BIN 3.012 BK 21
S4 SCREW TAPTTITE 7173301612 TT2 BIN 3.06 MFZN 6
S5 SCREW TAPTTITE 7173400611 TT2 BIN 4.06 MFZN 4
S5-1 SCREW TAPTTITE 7173401011 TT2 BIN 4.010 MFZN 0
6
Wiring Diagram
Model : XW-212/212R
7
Wiring Diagram
Model : XW-214/214R, 215/215R
8
Block Diagram
Model : XW-212/212R
9
Block Diagram
Model : XW-214/214R, 215/215R
10
Schematic Diagram
Model : XW-214/214R, 215/215R
Ass'y Name : TUNER / TAPE / AMP / POWER
4 12 11 7 8 10 9 15
VSS2 VSS3
8th switched
capacitor TEST
anti filter
aliasimg comparator
PLL 57KHz PLL BIPHASE Differential
RDS/ARI 1187.5Hz DECODER DECODER
3
2
R/DATA
QUAL
R/CLK
4
1 CLOCK
V REF
ANALOG
VSS1 VDD1
2 1 16 3 6 5 14 13
ALC
AM/FM
IF
S-CURVE BUFF
304KHz 19K 19K 0
VSS
XOUT
PD1
IFIN
AMIN
VDD
FMIN
NC
SD
IF REQ
AM/FM
ST/MO
XIN
LW
DO
NC
DA
CK
FM
CE
50W(30W) RW MAIN
11
Schematic Diagram
Model : XW-212/212R
Ass'y Name : AMP / POWER
12
Schematic Diagram
Model : XW-212/212R
Ass'y Name : TUNER
Name Pin No. 1 2 3 4 5 6 7 8 9 10 11 12
Vtg(V) 2.1 4.8 2.1 2.1 GND #1 #2 2.9 4.8 #3 3.5 3.8
IC201 Pin No. 13 14 15 16 17 18 19 20 21 22 23 24
Vtg(V) 1.8 1.8 2.1 2.1 2.1 2.1 #4 #5 2.1 2.1 4.8 3.5
#1 : SD ON(0V) #3 : NORMAL(V=< 0.5V ) #4 : FM(0V), AM(1.5V)
OTHERWISE(5V) MUTE(1.4V==3.5V)
OTHERWISE(5V)
Name Pin No. 1 2 3 4 5 6 7 8 9 10 11
Vtg(V) 2.5 N.C 0 0 0 VCC #1 #2 #3 #4 0
IC202 Pin No. 12 13 14 15 16 17 18 19 20 21 22
Vtg(V) 0 VCC N.C #5 #6 VCC 1 1 #7 GND 2.5
#1 : FM(3.7), AM(0) #2 : ON TUNING OPERATION(VCC)
#3 : FM(3.7), AM(0) #4 : FM(0), AM(12)
AM/FM #5 : FM(0), AM(2.4) #6 : FM(2.4), AM(0)
IF #7 : VT
MAIN GND 2 S-CURVE BUFF
10
1 304KHz 19K 19K 0
FTZ OPTION
1 4 7 10 12 Name Q001 Q003 Q104 IC205 REMARK
13
2 5 8 13 E(1) 0 12 0 12
14
11 14 Vtg(V) C(2) 0 12 0 GND BASIC : FM
3 6 9
3 B(3) 0 0 12 5
6 5 4 9 8 7 11 12
CC214 CC215 JW204 JW205 L201 L202 R214 R215
FTZ X X X X O O O O
CE O O O O X X X X
TOKO CC104 : 12pF
L101 R217 R218 R219 R220 JW213 CC203 R221 CF002
KWANGSUNG CC104 : 15pF
TOKO : RBW07VB-K5024 FTZ JW JW X X O 560pF 56K MJ-A
KWANGSUNG : KSNT-213M-1 CE O O O O X 820pF 56K MS3-A
RDS OPTION
21 20 19 12 2 17
VSS VT VT-IN FM/AM IF N.C VDD
AM/FM 7
IF REQ 8
14 N.C
DO 6
15 AM OSC 1/2 CL 5
CB
11 MUTE I/F DI 4
CE 3
13
16 FM OSC
FM 10
9 ST/MO X-IN 1
18 PD
X-OUT 22
13
Schematic Diagram
Model : XW-212/212R
Ass'y Name : TAPE
14
Schematic Diagram
Model : XW-212/212R
Ass'y Name : CD
15
Schematic Diagram
Model : XW-214/214R, 215/215R
Ass'y Name : CD
16
Schematic Diagram
Model : XW-212/212R, XW-214/214R, 215/215R
Ass'y Name : FRONT
