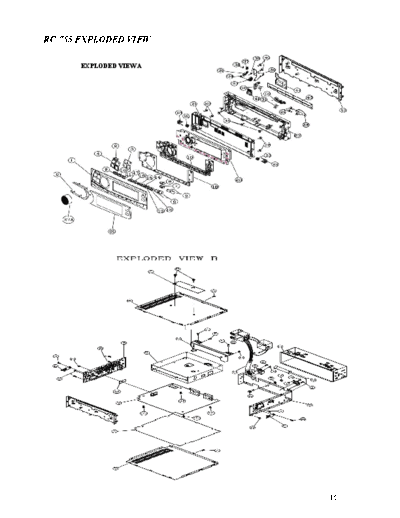

RC-755 EXPLODED VIEW
EXPLODED VIEW A
1/2
EXPLODED VIEW LIST
NO PARTS NAME Q'TY NO PARTS NAME Q'TY
0 ART PLATE 1 31 SPRING LOCKER 3
01 WINDOW(RCD-103 )MP3/ID3 1 32 LOCKER 1
1 FRONT PANEL- Ent (MP3/ID3) 1 33 Damper Gear 1
2 OPEN KNOB 1 34 SCREW MACHINE 1
BND KNOB ARM: 1 35 LEVER OPEN 1
SEL KNOB ARM: 1 36 E-RING 1
3
DN KNOB ARM: 1 37 GEAR IDLER 1
UP KNOB ARM: 1 38 SPRING EJECT 1
BND KNOB 1 39 BRACKET LOCK -L 1
SEL KNOB 1 29/40 SCREW MACHINE 4
4
TU DN KNOB 1 41 BUTTON-EJECT CDP 1
TU UP KNOB 1 42 DISC SLOT 1
AS.PS KNOB ARM : 1 43 CHASSIS FRONT -CD 1
5
POW KNOB ARM : 1 44 Detachable PCB(Single) 1
AS.PS KNOB 1 45 SCREW MACHINE 3
6
POW KNOB 1 50 CHASSIS MAIN 1
10 TA KNOB - 8 1 51 SCREW HEXAGON 1
9 AF KNOB- 9 1 52 WASHER SPRING 2
11 PTY KNOB- 7 1 53 NUT HEX 2
8 DISP KNOB- 0 1 57 HEAT SINK (hi power) 1
7 MOD KNOB 1 58 SCREW MACHINE 2
12 6 KNOB 1 56 MAIN PCB 1
13 5 KNOB 1 63 SCREW TAPTITE 12
14 4 KNOB 1 77/79 SCREW TAPTITE 4
15 3 KNOB 1 59B HOLDER IC 1
16 2 KNOB 4 59 SCREW MACHINE 2
17 1 KNOB 1 65 CONNETOR 1
18 CUSHION BUTTON 1 64 TUBE 1
19 MAIN REFLECTOR 1 66 BRACKET CONNECTOR 1
20 FRONT PCB 1 68 ANT Jack 1
21 BACK PANEL 1 69 BRKT ANT 1
22 GUIDE PUSH(R) 1 60 SPRING LOCK PLATE L 1
23 BRACKET LOCK -L 1 54 SPRING LOCK PLATE R 1
24 GUIDE PUSH(L) 1 62 SCREW TAPTITE 2
25 BRACKET LOCK-R 1 71 KOMEC Mecha 1
26 SCREW TAPTITE 4 76 COVER BOTTOM (cdp) 1
27A VOL KNOB 1 78 COVER TOP 1
27 TRIM BASE CDP( RESET) 1 80 HALF SLEEVE 1
28 BRACKET LOCK-R 1 81 SCREW CARD NAME 1
30 LEVER SW 1 82 FOR SCREW CARD 2
