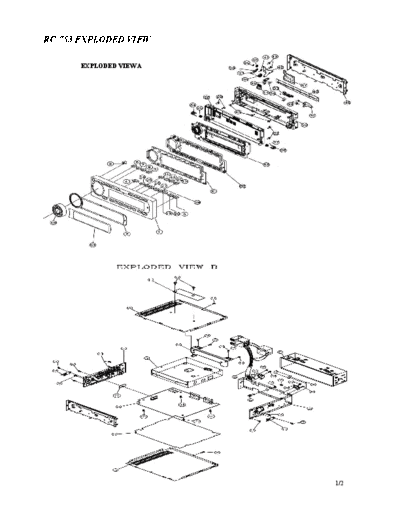

RC-753 EXPLODED VIEW

      EXPLODED VIEW A




                        1/2
EXPLODED VIEW LIST

NO         PARTS NAME    Q'TY   NO               PARTS NAME    Q'TY

1    FRONT PANEL          1      41   SPRING EJECT              1

2    DECORATION           1      42   BRACKET LOCK -L           1

3    OPEN KNOB            1     32/43 SCREW MACHINE             4

4    PWR KNOB             1      44   BUTTON-EJECT CDP          1

5    S.UP KNOB            1      45   SCREW MACHINE             3

6    SEL shift KNOB       1      46   CHASSIS FRONT -CD         1

7    MOD KNOB             1      47   Detachable PCB(Single)    1

8    AS.PS KNOB           1      48   DISC SLOT                 1

9    BND/L KNOB           1      49   TUN KNOB                  1

10 PTY 7 KNOB             1      54   WINDOW                    1

11 TA 8 KNOB              1      50   CHASSIS MAIN              1

12 AF 9 KNOB              1      51   SCREW HEXAGON             1

13 DISP 0 KNOB            1      52   WASHER SPRING             2

14 1 KNOB                 1      53   NUT HEX                   2

15 2 KNOB                 1      57   HEAT SINK (hi power)      1

16 3 KNOB                 1      58   SCREW MACHINE             2

17 4 KNOB                 1      56   MAIN PCB                  1

18 5 KNOB                 1      63   SCREW TAPTITE             12

19 6 KNOB                 1     77/79 SCREW TAPTITE             4

20 S.DN KNOB              1     59B   HOLDER IC                 1

21 MAIN REFLECTOR         1      59   SCREW MACHINE             2

22 CUSHION BUTTON         1      65    CONNETOR                 1

23 FRONT PCB              1      64   TUBE                      1

24 GUIDE PUSH(L)          1      66   BRACKET CONNECTOR         1

25 SPRING GUIDE PUSH L    1      68   ANT Jack                  1

26 GUIDE PUSH(R)          1      69   BRKT ANT                  1

27 SPRING GUIDE PUSH R    1      60   SPRING LOCK PLATE L       1

28 BACK PANEL             1      54   SPRING LOCK PLATE R       1

29 SCREW TAPTITE          1      62   SCREW TAPTITE             2

30 TRIM BASE CDP          1      71   KOMEC Mecha               1

31 BRACKET LOCK-R         1      72   BRACKET DECK CD           1

33 LEVER SW               1      73   SCREW MACHINE             4

34 SPRING LOCKER          1      75   FIBER                     1

35 LOCKER                 1      76   COVER BOTTOM (cdp)        1

36 Damper Gear            1      78   COVER TOP                 1

37 SCREW MACHINE          1      80   HALF SLEEVE               1

38 LEVER OPEN             1      81   SCREW CARD NAME           1

39 E-RING                 1      82   FOR SCREW CARD            2
40 GEAR IDLER             1




                                                                      2/2
