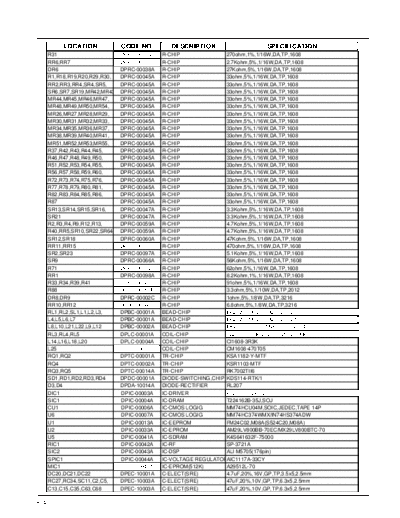

Image preview - the first page of the document
>> Download 8-04v documenatation <<
Text preview - extract from the document
LOCATION CODE NO. DESCRIPTION SPECIFICATION
R31 DPRC-00096A R-CHIP 270ohm,1%,1/16W,DA,TP,1608
RR6,RR7 DPRC-00037A R-CHIP 2.7Kohm,5%,1/16W,DA,TP,1608
DR6 DPRC-00038A R-CHIP 27Kohm,5%,1/16W,DA,TP,1608
R1,R18,R19,R20,R29,R30, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
RR2,RR3,RR4,SR4,SR5, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
SR6,SR7,SR19,MR42,MR43, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
MR44,MR45,MR46,MR47, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
MR48,MR49,MR50,MR54, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
MR26,MR27,MR28,MR29, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
MR30,MR31,MR32,MR33, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
MR34,MR35,MR36,MR37, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
MR38,MR39,MR40,MR41, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
MR51,MR52,MR53,MR55, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
R37,R42,R43,R44,R45, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
R46,R47,R48,R49,R50, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
R51,R52,R53,R54,R55, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
R56,R57,R58,R59,R60, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
R72,R73,R74,R75,R76, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
R77,R78,R79,R80,R81, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
R82,R83,R84,R85,R86, DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
R87 DPRC-00045A R-CHIP 33ohm,5%,1/16W,DA,TP,1608
SR13,SR14,SR15,SR16, DPRC-00047A R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608
SR21 DPRC-00047A R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608
R2,R3,R4,R9,R12,R13, DPRC-00059A R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
R40,RR5,SR10,SR22,SR64 DPRC-00059A R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
SR12,SR18 DPRC-00060A R-CHIP 47Kohm,5%,1/16W,DA,TP,1608
RR11,RR15 DPRC-00058A R-CHIP 470ohm,5%,1/16W,DA,TP,1608
SR2,SR23 DPRC-00097A R-CHIP 5.1Kohm,5%,1/16W,DA,TP,1608
SR9 DPRC-00066A R-CHIP 56Kohm,5%,1/16W,DA,TP,1608
R71 DPRC-00102A R-CHIP 62ohm,5%,1/16W,DA,TP,1608
RR1 DPRC-00098A R-CHIP 8.2Kohm,1%,1/16W,DA,TP,1608
R33,R34,R39,R41 DPRC-00083A R-CHIP 91ohm,5%,1/16W,DA,TP,1608
R88 DPRC-00092B R-CHIP 3.3ohm,5%,1/10W,DA,TP,2012
DR8,DR9 DPRC-00002C R-CHIP 1ohm,5%,1/8W,DA,TP,3216
RR10,RR12 DPRC-00088C R-CHIP 6.8ohm,5%,1/8W,DA,TP,3216
RL1,RL2,SL1,L1,L2,L3, DPBC-00001A BEAD-CHIP BK2125HM121/CM2012V-121T08
L4,L5,L6,L7 DPBC-00001A BEAD-CHIP BK2125HM121/CM2012V-121T08
L8,L10,L21,L22,L9,L12 DPBC-00002A BEAD-CHIP BK2125HS102/CM2012H-102T04
RL3,RL4,RL5 DPLC-00001A COIL-CHIP LB2016T100K(2125)/CI2012-100K
L14,L16,L18,L20 DPLC-00004A COIL-CHIP CI1608-3R3K
L25 DPLC-00007A COIL-CHIP CM1608-470T05
RQ1,RQ2 DPTC-00001A TR-CHIP KSA1182-Y-MTF
RQ4 DPTC-00002A TR-CHIP KSR1103-MTF
RQ3,RQ5 DPTC-00014A TR-CHIP RK7002TII6
SD1,RD1,RD2,RD3,RD4 DPDC-00001A DIODE-SWITCHING,CHIP KDS114-RTK/1
D3,D4 DPDA-10014A DIODE-RECTIFIER RL207
DIC1 DPIC-00003A IC-DRIVER KA3017/FAN8727
SIC1 DPIC-00004A IC-DRAM T224162B-35J,SOJ
CU1 DPIC-00006A IC-CMOS LOGIG MM74HCU04M,SOIC,JEDEC,TAPE 14P
U6 DPIC-00007A IC-CMOS LOGIG MM74HC374WMX/IN74HS374ADW
U1 DPIC-00013A IC-EEPROM FM24C02,M08A(S524C20,M08A)
U2 DPIC-00033A IC-EPROM AM29LV800BB-70EC/MX29LV800BTC-70
U5 DPIC-00041A IC-SDRAM K4S641632F-75000
RIC1 DPIC-00042A IC-RF SP-3721A
SIC2 DPIC-00043A IC-DSP ALI M5705(176pin)
SPIC1 DPIC-00044A IC-VOLTAGE REGULATORAIC1117A-33CY
MIC1 DPIC-00047A IC-EPROM(512K) A29512L-70
DC20,DC21,DC22 DPEC-10001A C-ELECT(SRE) 4.7uF,20%,16V,GP,TP,3.5x5,2.5mm
RC27,RC34,SC11,C2,C5, DPEC-10003A C-ELECT(SRE) 47uF,20%,10V,GP,TP,6.3x5,2.5mm
C13,C15,C35,C63,C68 DPEC-10003A C-ELECT(SRE) 47uF,20%,10V,GP,TP,6.3x5,2.5mm
