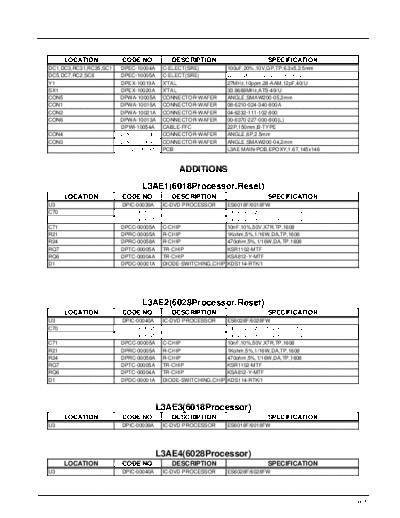

Image preview - the first page of the document
>> Download 8-05v documenatation <<
Text preview - extract from the document
LOCATION CODE NO. DESCRIPTION SPECIFICATION
DC1,DC3,RC31,RC35,SC1 DPEC-10004A C-ELECT(SRE) 100uF,20%,10V,GP,TP,6.3x5,2.5mm
DC5,DC7,RC2,SC8 DPEC-10005A C-ELECT(SRE) 220uF,20%,6.3V,GP,TP,6.3x5,2.5mm
Y1 DPEX-10019A X'TAL 27MHz,10ppm,28-AAM,12pF,40/U
SX1 DPEX-10020A X'TAL 33.8688MHz,ATS-49/U
CON5 DPWA-10005A CONNECTOR-WAFER ANGLE,SMAW200-05,2mm
CON1 DPWA-10015A CONNECTOR-WAFER 08-6210-024-340-800A
CON2 DPWA-10021A CONNECTOR-WAFER 04-6232-111-102-800
CON6 DPWA-10013A CONNECTOR-WAFER 00-8370-227-000-800(L)
DPWI-10054A CABLE-FFC 22P,150mm,B-TYPE
CON4 DPWA-10034A CONNECTOR-WAFER ANGLE,6P,2.5mm
CON3 DPWA-10004A CONNECTOR-WAFER ANGLE,SMAW200-04,2mm
DPPB-10019A PCB L3AE MAIN-PCB,EPOXY,1.6T,145x146
ADDITIONS
L3AE1(6018Processor,Reset)
LOCATION CODE NO. DESCRIPTION SPECIFICATION
U3 DPIC-00039A IC-DVD PROCESSOR ES6018F/6018FW
C70 DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
C72 DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
C71 DPCC-00005A C-CHIP 10nF,10%,50V,X7R,TP,1608
R21 DPRC-00005A R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R24 DPRC-00058A R-CHIP 470ohm,5%,1/16W,DA,TP,1608
RQ7 DPTC-00005A TR-CHIP KSR1102-MTF
RQ6 DPTC-00004A TR-CHIP KSA812-Y-MTF
D1 DPDC-00001A DIODE-SWITCHING,CHIP KDS114-RTK/1
L3AE2(6028Processor,Reset)
LOCATION CODE NO. DESCRIPTION SPECIFICATION
U3 DPIC-00040A IC-DVD PROCESSOR ES6028F/6028FW
C70 DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
C72 DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
C71 DPCC-00005A C-CHIP 10nF,10%,50V,X7R,TP,1608
R21 DPRC-00005A R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R24 DPRC-00058A R-CHIP 470ohm,5%,1/16W,DA,TP,1608
RQ7 DPTC-00005A TR-CHIP KSR1102-MTF
RQ6 DPTC-00004A TR-CHIP KSA812-Y-MTF
D1 DPDC-00001A DIODE-SWITCHING,CHIP KDS114-RTK/1
L3AE3(6018Processor)
LOCATION CODE NO. DESCRIPTION SPECIFICATION
U3 DPIC-00039A IC-DVD PROCESSOR ES6018F/6018FW
L3AE4(6028Processor)
LOCATION CODE NO. DESCRIPTION SPECIFICATION
U3 DPIC-00040A IC-DVD PROCESSOR ES6028F/6028FW
8-5
