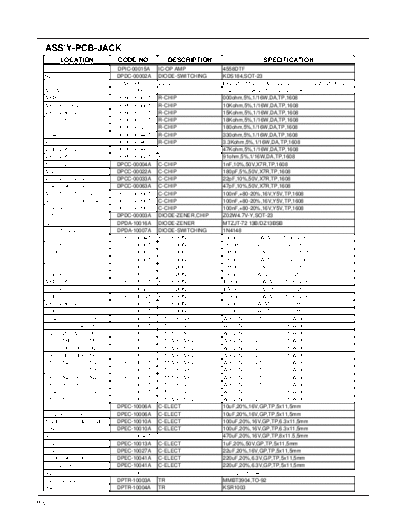

Image preview - the first page of the document
>> Download 8-06v documenatation <<
Text preview - extract from the document
ASS'Y-PCB-JACK
LOCATION CODE NO. DESCRIPTION SPECIFICATION
AIC3 DPIC-00015A IC-OP AMP 4558DTF
ND1 DPDC-00002A DIODE-SWITCHING KDS184,SOT-23
JL1 DPBC-00001A BEAD-CHIP BK2125HM121/CM2012V-121T08/ECFB201209G121T
AL2,AL3,AL5 DPLC-00001A COIL-CHIP LB2016T100K(2125)/CI2012-100K
AR46 DPRC-00001A R-CHIP 000ohm,5%,1/16W,DA,TP,1608
AR1,AR7,AR55 DPRC-00006A R-CHIP 10Kohm,5%,1/16W,DA,TP,1608
VR58,VR61,VR70 DPRC-00018A R-CHIP 15Kohm,5%,1/16W,DA,TP,1608
AR3,AR9 DPRC-00023A R-CHIP 18Kohm,5%,1/16W,DA,TP,1608
VR71 DPRC-00021A R-CHIP 180ohm,5%,1/16W,DA,TP,1608
JR34 DPRC-00046A R-CHIP 330ohm,5%,1/16W,DA,TP,1608
9 DPRC-00047A R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608
VR41,VR57,VR73 DPRC-00060A R-CHIP 47Kohm,5%,1/16W,DA,TP,1608
VR37,VR56 DPRC-00083A R-CHIP 91ohm,5%,1/16W,DA,TP,1608
AC1,AC4 DPCC-00004A C-CHIP 1nF,10%,50V,X7R,TP,1608
AC2,AC5 DPCC-00022A C-CHIP 180pF,5%,50V,X7R,TP,1608
VC56,VC57,VC58,VC59 DPCC-00033A C-CHIP 22pF,10%,50V,X7R,TP,1608
VC40,VC47,VC55 DPCC-00063A C-CHIP 47pF,10%,50V,X7R,TP,1608
AC25,AC26,AC27,AC28, DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
AC30,AC33,AC36,AC40 DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
AC47,JC13 DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
JD1 DPDC-00003A DIODE-ZENER,CHIP Z02W4.7V-Y,SOT-23
JD6 DPDA-10016A DIODE-ZENER MTZJT-72 13B/DZ13BSB
JD2,JD3,JD4 DPDA-10007A DIODE-SWITCHING 1N4148
JR2 DPRA-10004A R-CARBON 100ohm,5%,1/8W,AA,TP,1.8x3.2mm
AR6,AR12 DPRA-10005A R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR54 DPRA-10006A R-CARBON 10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR32,JR33 DPRA-10030A R-CARBON 220ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR1 DPRA-10032A R-CARBON 22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR4,AR10 DPRA-10003A R-CARBON 10ohm,5%,1/8W,AA,TP,1.8x3.2mm
AR45,AR51 DPRA-10057A R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR5,AR11,JR3 DPRA-10058A R-CARBON 47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR38 DPRA-10064A R-CARBON 5.6Kohm,5%,1/8W,AA,TP,1.8x3.2mm
VR62,VR63,VR72 DPRA-10072A R-CARBON 75ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR35 DPRA-10082A R-CARBON 91ohm,5%,1/8W,AA,TP,1.8x3.2mm
JP14,JP15,JP16,JP19, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP21,JP22,JP24,JP26, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP27JP28,JP29,JP30, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP31,JP34,JP35,JP36, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP37,JP38,JP40,JP42, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP43,JP47,JP49,JP50, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP51,JP52,JP53,JP54, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP55,JP57,JP58,JP59, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP60,JP62,JP63,JP64, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP65,JP67,JP68,JP71, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP74,JP75,JP78,JP79, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP80,JP81 DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
1 DPEC-10006A C-ELECT 10uF,20%,16V,GP,TP,5x11,5mm
AC32,JC51,JC50 DPEC-10006A C-ELECT 10uF,20%,16V,GP,TP,5x11,5mm
AC24,AC37,AC43,AC44 DPEC-10010A C-ELECT 100uF,20%,16V,GP,TP,6.3x11,5mm
JC63 DPEC-10010A C-ELECT 100uF,20%,16V,GP,TP,6.3x11,5mm
AC23 DPEC-10048A C-ELECT 470uF,20%,16V,GP,TP,8x11.5,5mm
JC52 DPEC-10013A C-ELECT 1uF,20%,50V,GP,TP,5x11,5mm
JC62 DPEC-10027A C-ELECT 22uF,20%,16V,GP,TP,5x11,5mm
VC34,VC48,VC49,VC50, DPEC-10041A C-ELECT 220uF,20%,6.3V,GP,TP,5x11,5mm
VC51,VC54 DPEC-10041A C-ELECT 220uF,20%,6.3V,GP,TP,5x11,5mm
AQ1,AQ2 DPTC-00017A TR-CHIP DTC323TKT146
VQ7,VQ8,VQ10 DPTR-10003A TR MMBT3904,TO-92
JQ20 DPTR-10004A TR KSR1003
8-6
