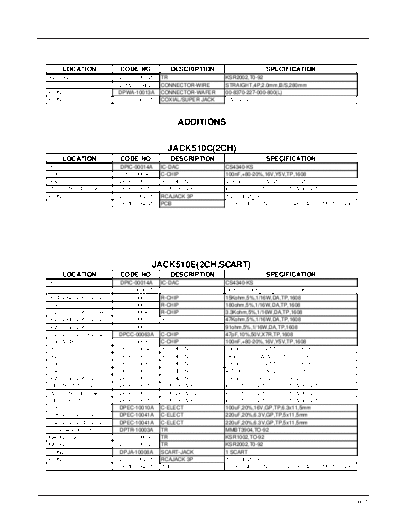

Image preview - the first page of the document
>> Download 8-07v documenatation <<
Text preview - extract from the document
LOCATION CODE NO. DESCRIPTION SPECIFICATION
AQ11,JQ3 DPTR-10010A TR KSR2002,T0-92
J1 DPWI-10046A CONNECTOR-WIRE STRAIGHT,4P,2.0mm,B/S,280mm
JCON1 DPWA-10013A CONNECTOR-WAFER 00-8370-227-000-800(L)
JCON6 DPJA-10018A COXIAL/SUPER JACK DASW-02
ADDITIONS
JACK510C(2CH)
LOCATION CODE NO. DESCRIPTION SPECIFICATION
AIC1 DPIC-00014A IC-DAC CS4340-KS
AC38 DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
AR45 DPRA-10057A R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JP20,JP39,JP45,JP46 DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JCON3 DPJA-10021A RCAJACK 3P AV3-8.4-41,59mm
DPPB-10023A PCB JACK-PCB,PHENOL,1.6T,124X104mm(DM-51xC,52xC)
JACK510E(2CH,SCART)
LOCATION CODE NO. DESCRIPTION SPECIFICATION
AIC1 DPIC-00014A IC-DAC CS4340-KS
AL1 DPLC-00001A COIL-CHIP LB2016T100K(2125)/CI2012-100K
VR24,VR42,VR52,VR65 DPRC-00018A R-CHIP 15Kohm,5%,1/16W,DA,TP,1608
VR66 DPRC-00021A R-CHIP 180ohm,5%,1/16W,DA,TP,1608
VR23,VR39,VR50,VR64 DPRC-00047A R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608
VR27,VR43,VR53,VR68 DPRC-00060A R-CHIP 47Kohm,5%,1/16W,DA,TP,1608
VR25,VR40,VR51 DPRC-00083A R-CHIP 91ohm,5%,1/16W,DA,TP,1608
VC27,VC35,VC39,VC52 DPCC-00063A C-CHIP 47pF,10%,50V,X7R,TP,1608
AC38,AC46 DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
JR7 DPRA-10004A R-CARBON 100ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR4,JR5 DPRA-10005A R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR36,JR37 DPRA-10030A R-CARBON 220ohm,5%,1/8W,AA,TP,1.8x3.2mm
AR45 DPRA-10057A R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2mm
VR26,VR45,VR55,VR67 DPRA-10072A R-CARBON 75ohm,5%,1/8W,AA,TP,1.8x3.2mm
JP4,JP9,JP11,JP12,JP13 DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP20,JP39,JP45,JP46, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP48,JP56,JP69,JP70 DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
AC39 DPEC-10010A C-ELECT 100uF,20%,16V,GP,TP,6.3x11,5mm
VC26,VC31,VC33,VC37, DPEC-10041A C-ELECT 220uF,20%,6.3V,GP,TP,5x11,5mm
VC41,VC43,VC45,VC53 DPEC-10041A C-ELECT 220uF,20%,6.3V,GP,TP,5x11,5mm
VQ1,VQ4,VQ6,VQ9 DPTR-10003A TR MMBT3904,TO-92
JQ4,JQ5,JQ8 DPTR-10009A TR KSR1002,TO-92
JQ6,JQ7 DPTR-10010A TR KSR2002,T0-92
JCON2 DPJA-10008A SCART-JACK 1 SCART
JCON3 DPJA-10021A RCAJACK 3P AV3-8.4-41,59mm
DPPB-10022A PCB JACK-PCB,PHENOL,1.6T,201X104mm(DM-51xE,52xE)
8-7
