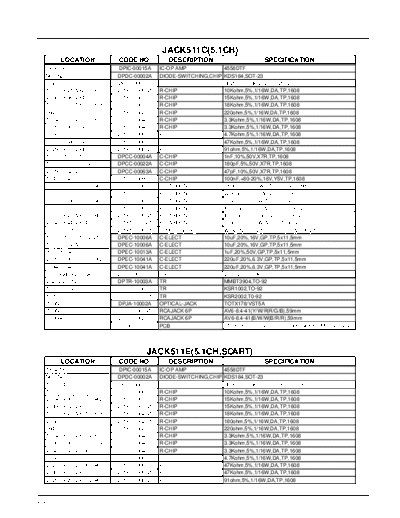

Image preview - the first page of the document
>> Download 8-08v documenatation <<
Text preview - extract from the document
JACK511C(5.1CH)
LOCATION CODE NO. DESCRIPTION SPECIFICATION
AIC4,AIC5 DPIC-00015A IC-OP AMP 4558DTF
ND2,ND3 DPDC-00002A DIODE-SWITCHING,CHIP KDS184,SOT-23
AL4 DPLC-00001A COIL-CHIP LB2016T100K(2125)/CI2012-100K
AR13,AR21,AR29,AR37 DPRC-00006A R-CHIP 10Kohm,5%,1/16W,DA,TP,1608
VR30,VR36,VR49 DPRC-00018A R-CHIP 15Kohm,5%,1/16W,DA,TP,1608
AR15,AR23,AR31,AR39 DPRC-00023A R-CHIP 18Kohm,5%,1/16W,DA,TP,1608
JR40 DPRC-00031A R-CHIP 220ohm,5%,1/16W,DA,TP,1608
AR14,AR22,VR28,AR30, DPRC-00047A R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608
VR35,AR38,VR48 DPRC-00047A R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608
AR56 DPRC-00059A R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
VR31,VR34,VR47 DPRC-00060A R-CHIP 47Kohm,5%,1/16W,DA,TP,1608
VR29,VR33,VR46 DPRC-00083A R-CHIP 91ohm,5%,1/16W,DA,TP,1608
AC7,AC11,AC15,AC19 DPCC-00004A C-CHIP 1nF,10%,50V,X7R,TP,1608
AC8,AC12,AC16,AC20 DPCC-00022A C-CHIP 180pF,5%,50V,X7R,TP,1608
VC29,VC32,VC38 DPCC-00063A C-CHIP 47pF,10%,50V,X7R,TP,1608
AC41,AC42,JC12 DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
AR19,AR27,AR35,AR43 DPRA-10005A R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR30,JR31 DPRA-10030A R-CARBON 220ohm,5%,1/8W,AA,TP,1.8x3.2mm
AR16,AR24,AR32,AR40 DPRA-10003A R-CARBON 10ohm,5%,1/8W,AA,TP,1.8x3.2mm
AR61 DPRA-10057A R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR17,AR25,AR33,AR41 DPRA-10058A R-CARBON 47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
VR32,VR44,VR54 DPRA-10072A R-CARBON 75ohm,5%,1/8W,AA,TP,1.8x3.2mm
JP1,JP2,JP3 DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
AC9,AC13,AC17,AC21, DPEC-10006A C-ELECT 10uF,20%,16V,GP,TP,5x11,5mm
AC10,AC14,AC18,AC22 DPEC-10006A C-ELECT 10uF,20%,16V,GP,TP,5x11,5mm
JC53,JC54 DPEC-10013A C-ELECT 1uF,20%,50V,GP,TP,5x11,5mm
VC28,VC30,VC36,VC42, DPEC-10041A C-ELECT 220uF,20%,6.3V,GP,TP,5x11,5mm
VC44,VC46 DPEC-10041A C-ELECT 220uF,20%,6.3V,GP,TP,5x11,5mm
AQ3,AQ4,AQ5,AQ6 DPTC-00017A TR-CHIP DTC323TKT146
VQ2,VQ3,VQ5, DPTR-10003A TR MMBT3904,TO-92
AQ12,AQ14 DPTR-10009A TR KSR1002,TO-92
AQ13,AQ15 DPTR-10010A TR KSR2002,T0-92
JCON7 DPJA-10002A OPTICAL-JACK TOTX178/VST5A
JCON3 DPJA-10019A RCAJACK 6P AV6-8.4-41(Y/W/R|R/G/B),59mm
JCON4 DPJA-10020A RCAJACK 6P AV6-8.4-41(B/W/W|B/R/R),59mm
DPPB-10023A PCB JACK-PCB,PHENOL,1.6T,124X104mm(DM-51xC,52xC)
JACK511E(5.1CH,SCART)
LOCATION CODE NO. DESCRIPTION SPECIFICATION
AIC4,AIC5 DPIC-00015A IC-OP AMP 4558DTF
ND2,ND3 DPDC-00002A DIODE-SWITCHING,CHIP KDS184,SOT-23
AL1,AL4 DPLC-00001A COIL-CHIP LB2016T100K(2125)/CI2012-100K
AR13,AR21,AR29,AR37 DPRC-00006A R-CHIP 10Kohm,5%,1/16W,DA,TP,1608
VR24,VR30,VR36,VR42, DPRC-00018A R-CHIP 15Kohm,5%,1/16W,DA,TP,1608
VR49,VR52,VR65 DPRC-00018A R-CHIP 15Kohm,5%,1/16W,DA,TP,1608
AR15,AR23,AR31,AR39 DPRC-00023A R-CHIP 18Kohm,5%,1/16W,DA,TP,1608
VR66 DPRC-00021A R-CHIP 180ohm,5%,1/16W,DA,TP,1608
JR40 DPRC-00031A R-CHIP 220ohm,5%,1/16W,DA,TP,1608
AR14,AR22,VR23,VR28, DPRC-00047A R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608
AR30,VR35,AR38,VR39 DPRC-00047A R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608
VR48,VR50,VR64 DPRC-00047A R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608
AR56 DPRC-00059A R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608
VR27,VR31,VR34,VR43, DPRC-00060A R-CHIP 47Kohm,5%,1/16W,DA,TP,1608
VR47,VR53,VR68 DPRC-00060A R-CHIP 47Kohm,5%,1/16W,DA,TP,1608
VR25,VR29,VR33,VR40, DPRC-00083A R-CHIP 91ohm,5%,1/16W,DA,TP,1608
8-8
