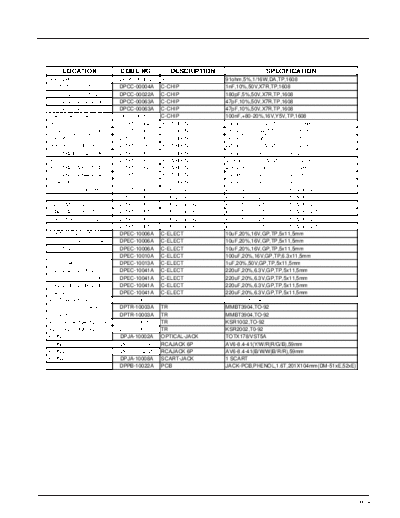

Image preview - the first page of the document
>> Download 8-09v documenatation <<
Text preview - extract from the document
LOCATION CODE NO. DESCRIPTION SPECIFICATION
VR46,VR51 DPRC-00083A R-CHIP 91ohm,5%,1/16W,DA,TP,1608
AC7,AC11,AC15,AC19 DPCC-00004A C-CHIP 1nF,10%,50V,X7R,TP,1608
AC8,AC12,AC16,AC20 DPCC-00022A C-CHIP 180pF,5%,50V,X7R,TP,1608
VC27,VC29,VC32,VC35, DPCC-00063A C-CHIP 47pF,10%,50V,X7R,TP,1608
VC38,VC39,VC52 DPCC-00063A C-CHIP 47pF,10%,50V,X7R,TP,1608
AC41,AC42,,AC46,JC12 DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
JR7 DPRA-10004A R-CARBON 100ohm,5%,1/8W,AA,TP,1.8x3.2mm
AR19,AR27,AR35,AR43, DPRA-10005A R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR4,JR5 DPRA-10005A R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR30,JR31,JR36,JR37 DPRA-10030A R-CARBON 220ohm,5%,1/8W,AA,TP,1.8x3.2mm
AR16,AR24,AR32,AR40 DPRA-10003A R-CARBON 10ohm,5%,1/8W,AA,TP,1.8x3.2mm
AR61 DPRA-10057A R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR17,AR25,AR33,AR41 DPRA-10058A R-CARBON 47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
VR26,VR32,VR44,VR45, DPRA-10072A R-CARBON 75ohm,5%,1/8W,AA,TP,1.8x3.2mm
VR54,VR55,VR67 DPRA-10072A R-CARBON 75ohm,5%,1/8W,AA,TP,1.8x3.2mm
JP1,JP2,JP3,JP4,JP9, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP11,JP13,JP17,JP18, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP23,JP25,JP32,JP33, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP44,JP48,JP56,JP61, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP66,JP69,JP70,JP72, DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
JP73 DPRA-10001A JUMPER WIRE WIRE-NO SHEATH CU; SPCW,300V,1/0.5
AC9,AC13,AC17,AC21 DPEC-10006A C-ELECT 10uF,20%,16V,GP,TP,5x11,5mm
AC37,AC39,AC10,AC14, DPEC-10006A C-ELECT 10uF,20%,16V,GP,TP,5x11,5mm
AC18,AC22 DPEC-10006A C-ELECT 10uF,20%,16V,GP,TP,5x11,5mm
AC39 DPEC-10010A C-ELECT 100uF,20%,16V,GP,TP,6.3x11,5mm
JC53,JC54 DPEC-10013A C-ELECT 1uF,20%,50V,GP,TP,5x11,5mm
VC26,VC28,VC30,VC31, DPEC-10041A C-ELECT 220uF,20%,6.3V,GP,TP,5x11,5mm
VC33,VC36,VC37,VC41, DPEC-10041A C-ELECT 220uF,20%,6.3V,GP,TP,5x11,5mm
VC42,VC43,VC44,VC45, DPEC-10041A C-ELECT 220uF,20%,6.3V,GP,TP,5x11,5mm
VC46,VC53, DPEC-10041A C-ELECT 220uF,20%,6.3V,GP,TP,5x11,5mm
AQ3,AQ4,AQ5,AQ6 DPTC-00017A TR-CHIP DTC323TKT146
VQ1,VQ2,VQ3,VQ4,VQ5, DPTR-10003A TR MMBT3904,TO-92
VQ6,VQ9, DPTR-10003A TR MMBT3904,TO-92
AQ12,AQ14,JQ4,JQ5,JQ8 DPTR-10009A TR KSR1002,TO-92
AQ13,AQ15,JQ6,JQ7 DPTR-10010A TR KSR2002,T0-92
JCON7 DPJA-10002A OPTICAL-JACK TOTX178/VST5A
JCON3 DPJA-10019A RCAJACK 6P AV6-8.4-41(Y/W/R|R/G/B),59mm
JCON4 DPJA-10020A RCAJACK 6P AV6-8.4-41(B/W/W|B/R/R),59mm
JCON2 DPJA-10008A SCART-JACK 1 SCART
DPPB-10022A PCB JACK-PCB,PHENOL,1.6T,201X104mm(DM-51xE,52xE)
8-9
