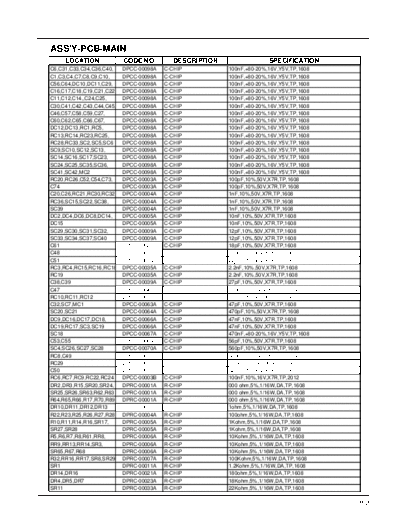

Image preview - the first page of the document
>> Download 8-03v documenatation <<
Text preview - extract from the document
ASS'Y-PCB-MAIN
LOCATION CODE NO. DESCRIPTION SPECIFICATION
C6,C31,C33,C34,C36,C40, DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
C1,C3,C4,C7,C8,C9,C10, DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
C56,C64,DC10,DC11,C29, DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
C16,C17,C18,C19,C21,C22 DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
C11,C12,C14,,C24,C25, DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
C30,C41,C42,C43,C44,C45, DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
C46,C57,C58,C59,C27, DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
C60,C62,C65,C66,C67, DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
DC12,DC13,RC1,RC5, DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
RC13,RC14,RC23,RC25, DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
RC28,RC33,SC2,SC5,SC6 DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
SC9,SC10,SC12,SC13, DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
SC14,SC16,SC17,SC23, DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
SC24,SC25,SC35,SC36, DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
SC41,SC42,MC2 DPCC-00098A C-CHIP 100nF,+80-20%,16V,Y5V,TP,1608
RC20,RC26,C52,C54,C73, DPCC-00003A C-CHIP 100pF,10%,50V,X7R,TP,1608
C74 DPCC-00003A C-CHIP 100pF,10%,50V,X7R,TP,1608
C20,C26,RC21,RC30,RC32, DPCC-00004A C-CHIP 1nF,10%,50V,X7R,TP,1608
RC36,SC15,SC22,SC38, DPCC-00004A C-CHIP 1nF,10%,50V,X7R,TP,1608
SC39 DPCC-00004A C-CHIP 1nF,10%,50V,X7R,TP,1608
DC2,DC4,DC6,DC8,DC14, DPCC-00005A C-CHIP 10nF,10%,50V,X7R,TP,1608
DC15 DPCC-00005A C-CHIP 10nF,10%,50V,X7R,TP,1608
SC29,SC30,SC31,SC32, DPCC-00009A C-CHIP 12pF,10%,50V,X7R,TP,1608
SC33,SC34,SC37,SC40 DPCC-00009A C-CHIP 12pF,10%,50V,X7R,TP,1608
C61 DPCC-00021A C-CHIP 18pF,10%,50V,X7R,TP,1608
C48 DPCC-00022A C-CHIP 180pF,5%,50V,X7R,TP,1608
C51 DPCC-00033A C-CHIP 22pF,10%,50V,X7R,TP,1608
RC3,RC4,RC15,RC16,RC18, DPCC-00035A C-CHIP 2.2nF,10%,50V,X7R,TP,1608
RC19 DPCC-00035A C-CHIP 2.2nF,10%,50V,X7R,TP,1608
C38,C39 DPCC-00039A C-CHIP 27pF,10%,50V,X7R,TP,1608
C47 DPCC-00040A C-CHIP 270pF,10%,50V,X7R,TP,1608
RC10,RC11,RC12 DPCC-00051A C-CHIP 33pF,10%,50V,X7R,TP,1608
C32,SC7,MC1 DPCC-00063A C-CHIP 47pF,10%,50V,X7R,TP,1608
SC20,SC21 DPCC-00064A C-CHIP 470pF,10%,50V,X7R,TP,1608
DC9,DC16,DC17,DC18, DPCC-00066A C-CHIP 47nF,10%,50V,X7R,TP,1608
DC19,RC17,SC3,SC19 DPCC-00066A C-CHIP 47nF,10%,50V,X7R,TP,1608
SC18 DPCC-00067A C-CHIP 470nF,+80-20%,16V,Y5V,TP,1608
C53,C55 DPCC-00069A C-CHIP 56pF,10%,50V,X7R,TP,1608
SC4,SC26,SC27,SC28 DPCC-00070A C-CHIP 560pF,10%,50V,X7R,TP,1608
RC8,C49 DPCC-00076A C-CHIP 680pF,10%,50V,X7R,TP,1608
RC29 DPCC-00077A C-CHIP 6.8nF,10%,50V,X7R,TP,1608
C50 DPCC-00087A C-CHIP 82pF,10%,50V,X7R,TP,1608
RC6,RC7,RC9,RC22,RC24 DPCC-00003B C-CHIP 100nF,10%,16V,X7R,TP,2012
DR2,DR3,R15,SR20,SR24, DPRC-00001A R-CHIP 000 ohm,5%,1/16W,DA,TP,1608
SR25,SR26,SR63,R62,R63 DPRC-00001A R-CHIP 000 ohm,5%,1/16W,DA,TP,1608
R64,R65,R66,R17,R70,R89 DPRC-00001A R-CHIP 000 ohm,5%,1/16W,DA,TP,1608
DR10,DR11,DR12,DR13 DPRC-00002A R-CHIP 1ohm,5%,1/16W,DA,TP,1608
R22,R23,R25,R26,R27,R28 DPRC-00004A R-CHIP 100ohm,5%,1/16W,DA,TP,1608
R10,R11,R14,R16,SR17, DPRC-00005A R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
SR27,SR28 DPRC-00005A R-CHIP 1Kohm,5%,1/16W,DA,TP,1608
R5,R6,R7,R8,R61,RR8, DPRC-00006A R-CHIP 10Kohm,5%,1/16W,DA,TP,1608
RR9,RR13,RR14,SR3, DPRC-00006A R-CHIP 10Kohm,5%,1/16W,DA,TP,1608
SR65,R67,R68 DPRC-00006A R-CHIP 10Kohm,5%,1/16W,DA,TP,1608
R32,RR16,RR17,SR8,SR29 DPRC-00007A R-CHIP 100Kohm,5%,1/16W,DA,TP,1608
SR1 DPRC-00011A R-CHIP 1.2Kohm,5%,1/16W,DA,TP,1608
DR14,DR16 DPRC-00021A R-CHIP 180ohm,5%,1/16W,DA,TP,1608
DR4,DR5,DR7 DPRC-00023A R-CHIP 18Kohm,5%,1/16W,DA,TP,1608
SR11 DPRC-00033A R-CHIP 22Kohm,5%,1/16W,DA,TP,1608
8-3
