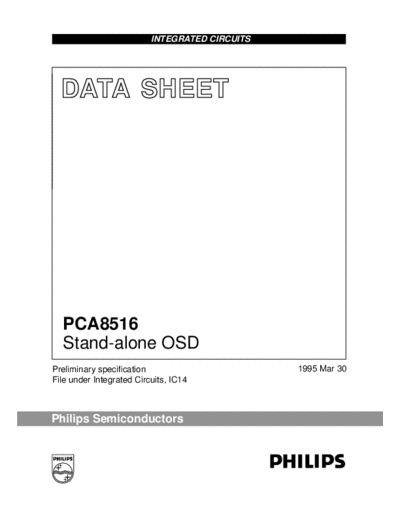

Image preview - the first page of the document



>> Download PCA8516P documenatation <<

Text preview - extract from the document

                          INTEGRATED CIRCUITS




  DATA SHEET




  PCA8516
  Stand-alone OSD
Preliminary specification                       1995 Mar 30
File under Integrated Circuits, IC14



Philips Semiconductors
Philips Semiconductors                                                               Preliminary specification


     Stand-alone OSD                                                                         PCA8516

CONTENTS                                                    14     DEFAULT VALUES AFTER
                                                                   POWER-ON-RESET
1        FEATURES
                                                            15     LIMITING VALUES
2        GENERAL DESCRIPTION
                                                            16     DC CHARACTERISTICS
3        ORDERING INFORMATION
                                                            17     AC CHARACTERISTICS
4        BLOCK DIAGRAM
                                                            18     PACKAGE OUTLINES
5        PINNING INFORMATION
                                                            19     SOLDERING
5.1      Pinning
                                                            19.1   Introduction
5.2      Pin description
                                                            19.2   DIP
6        SERIAL I/O                                         19.3   SO
6.1      I2C-bus serial interface                           20     DEFINITIONS
6.2      High-speed serial interface (HIO)
                                                            21     LIFE SUPPORT APPLICATIONS
7        CHARACTER FONTS
                                                            22     PURCHASE OF PHILIPS I2C COMPONENTS
7.1      Character font address map
7.2      Character font ROM
8        DISPLAY RAM ORGANIZATION
8.1      Description of display RAM codes
8.2      Loading character data into display RAM
8.3      Writing character data to display RAM
9        COMMANDS
9.1      Command 0
9.2      Command 1
9.3      Command 2
9.4      Command 3
9.5      Command 4
9.6      Command 5
9.7      Command 6
9.8      Command 7
9.9      Command 8
9.10     Command 9
9.11     Command A
9.12     Commands B, C and D
9.13     Command E
9.14     Command F
9.15     Command G
10       MISCELLANEOUS
10.1     Space and Carriage Return Codes in different
         Background/Shadowing modes
10.2     Combination of character font cells
11       OSD CLOCK
12       OSD CLOCK SELECTION FOR DIFFERENT
         TV STANDARDS
12.1     OSD frequency
12.2     Maximum number of characters per row
12.3     Maximum number of rows per frame
13       OUTPUT PORTS
13.1     Mask options

1995 Mar 30                                             2
Philips Semiconductors                                                                             Preliminary specification


    Stand-alone OSD                                                                                       PCA8516

1   FEATURES
