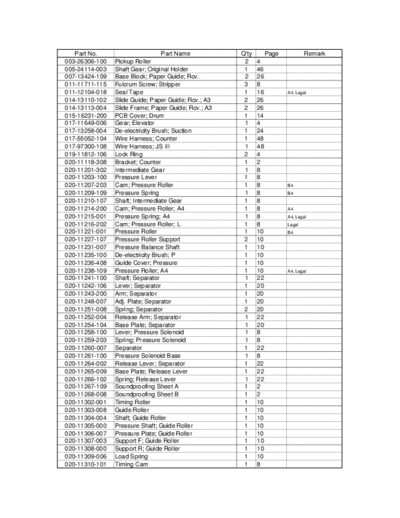

Image preview - the first page of the document
>> Download cr-pl-4 documenatation <<
Text preview - extract from the document
Part No. Part Name Q'ty Page Remark
003-26306-100 Pickup Roller 2 4
005-24114-003 Shaft Gear; Original Holder 1 46
007-13424-109 Base Block; Paper Guide; Rcv. 2 26
011-11711-115 Fulcrum Screw; Stripper 3 8
011-12104-018 Seal Tape 1 16 A4, Legal
014-13110-102 Slide Guide; Paper Guide; Rcv.; A3 2 26
014-13113-004 Slide Frame; Paper Guide; Rcv.; A3 2 26
015-16231-200 PCB Cover; Drum 1 14
017-11649-006 Gear; Elevator 1 4
017-13258-004 De-electricity Brush; Suction 1 24
017-55052-104 Wire Harness; Counter 1 48
017-97300-108 Wire Harness; JS III 1 48
019-11812-106 Lock Ring 2 4
020-11118-308 Bracket; Counter 1 2
020-11201-302 Intermediate Gear 1 8
020-11203-100 Pressure Lever 1 8
020-11207-203 Cam; Pressure Roller 1 8 B4
020-11209-109 Pressure Spring 1 8 B4
020-11210-107 Shaft; Intermediate Gear 1 8
020-11214-200 Cam; Pressure Roller; A4 1 8 A4
020-11215-001 Pressure Spring; A4 1 8 A4, Legal
020-11216-202 Cam; Pressure Roller; L 1 8 Legal
020-11221-001 Pressure Roller 1 10 B4
020-11227-107 Pressure Roller Support 2 10
020-11231-007 Pressure Balance Shaft 1 10
020-11235-100 De-electricity Brush; P 1 10
020-11236-408 Guide Cover; Pressure 1 10
020-11238-109 Pressure Roller; A4 1 10 A4, Legal
020-11241-100 Shaft; Separator 1 22
020-11242-106 Lever; Separator 1 20
020-11243-200 Arm; Separator 1 20
020-11248-007 Adj. Plate; Separator 1 20
020-11251-008 Spring; Separator 2 20
020-11252-004 Release Arm; Separator 1 22
020-11254-104 Base Plate; Separator 1 20
020-11258-100 Lever; Pressure Solenoid 1 8
020-11259-203 Spring; Pressure Solenoid 1 8
020-11260-007 Separator 1 22
020-11261-100 Pressure Solenoid Base 1 8
020-11264-002 Release Lever; Separator 1 22
020-11265-009 Base Plate; Release Lever 1 22
020-11266-102 Spring; Release Lever 1 22
020-11267-109 Soundproofing Sheet A 1 2
020-11268-008 Soundproofing Sheet B 1 2
020-11302-001 Timing Roller 1 10
020-11303-008 Guide Roller 1 10
020-11304-004 Shaft; Guide Roller 1 10
020-11305-000 Pressure Shaft; Guide Roller 1 10
020-11306-007 Pressure Plate; Guide Roller 1 10
020-11307-003 Support F; Guide Roller 1 10
020-11308-000 Support R; Guide Roller 1 10
020-11309-006 Load Spring 1 10
020-11310-101 Timing Cam 1 8
Part No. Part Name Q'ty Page Remark
020-11311-205 Sector Gear 1 8
020-11312-104 Pin; Sector Gear 1 8
020-11314-107 Timing Link Plate 1 8
020-11315-200 Main Cam 1 8
020-11316-100 Print Positioning Lever 1 8
020-11319-303 Print Positioning Adj. Plate 1 8
020-11323-203 Print Positioning Base Ass'y 1 8
020-11326-008 Print Positioning Cam 1 8
020-11329-007 Spring; Guide Roller 1 8
020-11330-102 Spring; Sector Gear 1 8
020-11332-300 Timing Lever 1 8
020-11501-306 Paper-Feed Tray 1 6
020-11502-108 Support Plate F; P.-F.-T. 1 6
020-11513-002 Lever; P.-F.-T. 2 6
020-11514-106 Link Plate A; P.-F.-T. 2 6
020-11515-102 Link Plate B; P.-F.-T. 2 6
020-11516-001 Link Plate Shaft; P.-F.-T. 2 6
020-11520-009 L. O. Sheet 1 6
020-11521-102 Support Plate R; P.-F.-T. 1 6
020-11525-205 Side Guide F; P.-F.-T. 1 6
020-11526-201 Side Guide R; P.-F.-T. 1 6
020-11527-100 Feed Tray Cover 1 6
020-11605-608 Side Frame F; Elevator 1 4
020-11606-604 Side Frame R; Elevator 1 4
020-11613-007 Bracket; Upper Limit Sensor 1 4
020-11619-102 Spring; Elevator 2 4
020-11628-004 Guide Plate; Elevator 2 4
020-11707-109 Housing; Stripper 1 10
020-11708-008 Spring; Stripper 1 10
020-11709-004 Housing Bracket; Stripper 1 10
020-11711-009 Stripper Pad 1 10 Hardness 70
020-11712-102 Base Plate; Stripper 1 10
020-11721-004 Stripper Pad; Black 1 10 Hardness 90
020-11734-009 Adj. Plate; Stripper 1 10
020-11741-102 Paper Sensor Cover (Upper) 1 10
020-11751-000 Paper Sensor Cover 1 10
020-11752-406 Guide Plate Ass'y 1 10
020-11753-100 Pad; 12x12x12 1 10
020-11806-000 Shaft; Scraper 1 4
020-11811-100 Spring B; P.-F. Pressure Adj. 1 4
020-11812-000 Spring A; P.-F. Pressure Adj. 1 4
020-11813-006 Arm; P.-F. Pressure Adj. 1 4
020-11814-100 P.-F. Pressure Adj. Lever 1 4
020-11816-005 Support; Pickup Roller Shaft 1 4
020-11817-206 Shaft; Pickup Roller 1 4
020-11818-008 Holder Plate; Scraper 1 4
020-11830-008 Bracket; P.-F. Pressure Adj. 1 4
020-12104-408 Ink Blocking Sheet; B4 1 16 B4
020-12105-200 Ink Blocking Sheet; A4 1 16 A4, Legal
020-12111-102 Drum Body Support F 1 16
020-12112-109 Drum Body Support R 1 16
020-12113-008 Bearing Cap 1 16
020-12115-205 Main Gear; Drum 1 16
Part No. Part Name Q'ty Page Remark
020-12116-104 Compensator 1 16
020-12117-003 Drum Lock Plate 1 16
020-12119-006 Main Gear; Squeegee 1 16
020-12121-302 Screen Ass'y 1 16
020-12125-308 Screen Hanger Plate 1 16
020-12126-002 Screw; Screen Hanger 4 16
020-12127-203 Spring; Screen 2 16
020-12128-005 Light Absorber Strip 1 16
020-12129-052 Drum Body 1 16 B4
020-12130-069 Drum Body; A4 1 16 A4
020-12131-065 Drum Body; L 1 16 Legal
020-12201-101 Clamp Plate Base 1 16
020-12201-207 Fan Base; Separation 1 22
020-12205-204 Clamp Magnet 1 16
020-12213-100 Clamp Base C 1 16
020-12214-106 Master Projection Plate Ass'y 1 16
020-12215-102 Damper C 2 16
020-12220-106 Clamp Plate 2 1 16
020-12375-100 Filter 1 12
020-12416-000 Rear Frame; Drum 1 12
020-12418-003 Bracket; Drawer Connector 1 12
020-12420-202 Guide Pin 2 12
020-12421-004 Reinforce Plate; Drum Front Frame 1 12
020-12422-000 Drum Hook (R) 1 12
020-12423-007 Drum Hook (L) 1 12
020-12433-002 Bracket; Locking Plate; Drum 1 12
020-12434-009 Shaft; Locking Plate; Drum 1 12
020-12435-005 Spring; 6.95 2 12
020-12438-209 Locking Plate; Drum 1 12
020-12441-200 Drum Shaft Clamper 2 16
020-12447-100 Shaft; Drum Grip 1 12
020-12449-006 Sleeve 32 1 16
020-12454-000 Spring; 6.5: Locking Plate; Drum 1 12
020-12502-209 Shaft Joint; Drum 2 14
020-12503-000 Main Frame; Drum 1 14
020-12504-309 Support Shaft; Drum 1 14
020-12508-002 Stopper; Ink Distributor 1 14
020-12509-106 Front Plate; Squeegee 1 14
020-12510-104 Rear Plate; Squeegee 1 14
020-12512-000 Metal Fix Plate 2 14
020-12513-006 Metal F; Drive Shaft 1 14
020-12514-100 Metal R; Drive Shaft 1 14
020-12515-408 Side Frame F; Squeegee 1 14
020-12518-300 Side Frame R; Squeegee 1 14
020-12521-300 Squeegee Roller 1 14
020-12522-102 Doctor Roller 1 14
020-12531-306 Drive Shaft; Squeegee 1 14
020-12534-100 Block F; Squeegee 1 14
020-12535-107 Block R; Squeegee 1 14
020-12536-200 Ink Blocking Plate (Front) 1 14
020-12537-207 Ink Blocking Plate (Back) 1 14
020-12538-009 Adj. Plate; Doctor 1 14
020-12540-003 Bracket; Drum PCB 1 14
Part No. Part Name Q'ty Page Remark
020-12544-009 Adj. Boss; Squeegee 2 14
020-12545-102 Adj. Boss Set Plate; Squeegee 2 14
020-12549-000 Adj. Plate (Rear); Doctor 1 14
020-12611-202 Rail; Drum 2 18
020-12615-003 Drum Holder R 1 18
020-12622-107 Bracket; A Pos. Sensor 1 8
020-12625-009 Support Plate; Drum Safety SW 1 8
020-12631-106 Drum Catch 2 18
020-12635-004 Connector Bracket; Drum 1 42
020-12638-003 Holder Set Plate 1 2
020-12701-104 Cam Housing; Clamp 1 20
020-12706-106 Open Arm; Clamp 1 20
020-12707-102 Master Release Arm; Clamp 1 20
020-12708-001 Shaft; Clamp Arm 1 20
020-12711-002 Set Plate; Clamp Cam 1 20
020-12713-102 Spring; Clamp Arm 2 20
020-12722-004 Encoder Disc; Clamp 1 20
020-12723-000 Bracket; Clamp Sensor 1 20
020-12724-007 Gear Housing; Clamp 1 20
020-12725-003 Bracket; Clamp Motor 1 20
020-12727-103 Clamp Cam 1 20
020-13101-208 Cover Plate; Suction 1 24
020-13106-200 Base Frame; Suction 1 24
020-13107-001 Suction Box 1 24
020-13108-105 Belt Pulley; Suction 2 24
020-13109-004 Face Cover; Suction 1 24
020-13110-100 Idle Shaft; Suction 1 24
020-13111-203 Drive Shaft; Suction 1 24
020-13114-105 Fixing Pin 2 2
020-13116-205 P.-E. Pulley; Suction 2 24
020-13118-100 Under Stopper; Suction 1 24
020-13302-106 Nozzle (Upper); Separation 1 22
020-13303-005 Nozzle (Lower); Separation 1 22
020-13401-104 Stopper; P.-Rcv.-T. 1 2
020-13402-100 Lock Plate (F); P.-Rcv.-T. 2 2
020-13403-107 Lock Plate (R); P.-Rcv.-T. 1 2
020-13404-103 Slide Guide (F); P.-Rcv.-T. 1 2
020-13405-100 Slide Guide (R); P.-Rcv.-T. 1 2
020-13406-203 Guide Plate (F); P.-Rcv.-T. 1 26
020-13407-200 Guide Plate (R); P.-Rcv.-T. 1 26
020-13411-100 Link Plate; P.-Rcv.-T. 1 26
020-13412-300 Receiving Tray Plate 1 26
020-13413-200 Back Stop; P.-Rcv.-T. 1 26
020-13414-109 Paper Guide; P.-Rcv.-T. 2 26
020-13415-105 Slide Rail 1 26
020-13418-104 Damper; Back Stop; P.-Rcv.-T. 1 26
020-13419-100 Damper Sheet; P.-Rcv.-T. 1 26
020-13450-008 Bracket; JS III 1 48
020-14001-509 Main Frame; M.-Rmv. 1 40
020-14004-001 Bracket; Comressing Motor 1 40
020-14010-001 Pulley Shaft; M.-Rmv. 1 40 B4
020-14011-202 Stay A; M.-Rmv. 1 40
020-14012-101 Stay B; M.-Rmv. 1 40
Part No. Part Name Q'ty Page Remark
020-14016-000 Vertical Transport Roller (Up) 1 40 B4
020-14017-200 Shaft; Compressing Plate 1 40
020-14018-207 Compressing Plate; M.-Rmv. 1 40
020-14021-003 Bracket; Compressing Sensor 1 40
020-14022-107 Lift Spring F; M.-Rmv. 1 38
020-14023-103 Lift Spring R; M.-Rmv. 1 38
020-14024-207 Compressing Spring F; M.-Rmv. 1 40
020-14025-203 Compressing Spring R; M.-Rmv. 1 40
020-14026-200 Actuator Disc; M.-Rmv. 1 40
020-14027-001 Shaft; M.-Rmv. Lever 1 40
020-14028-008 Hook Spring; M.-Rmv. 1 40
020-14029-004 Hook F; M.-Rmv. 1 40
020-14030-002 Hook R; M.-Rmv. 1 40
020-14031-009 Bracket; Compressing Sensor 1 40
020-14038-208 Transfer Pulley B (Upper); M.-Rmv. 1 40
020-14040-202 Transfer Pulley A (Upper); M.-Rmv. 1 40
020-14044-208 Transfer Pulley C (Upper); M.-Rmv. 1 40
020-14048-408 Gear Cover F; M.-Rmv. 1 40
020-14051-301 Gear Cover R; M.-Rmv. 1 40
020-14054-300 Side Frame F; M.-Rmv. 1 38
020-14058-306 Side Frame R; M.-Rmv. 1 38
020-14060-203 Lift Arm; M.-Rmv. 2 38
020-14065-000 Protection Plate R; M.-Rmv. 1 40
020-14101-201 Disposal Box 1 38
020-14108-206 Stay (Lower); M.-Rmv. 1 38
020-14112-009 Spring; V.-Transport Roller 4 38
020-14113-102 Holder; V-Transport Roller 1 38 B4
020-14114-206 Bracket F; V.-T.-Roller 1 38
020-14115-202 Bracket R; V.-T.-Roller 1 38
020-14116-004 Vertical Transport Roller (Down) 1 38 B4
020-14124-104 Lever; Disposal Box 1 38
020-14125-100 Bracket; Box Lever 1 38
020-14126-000 Shaft; Box Lever 1 38
020-14127-006 Spring; Box Lever 1 38
020-14131-208 Transfer Pulley A (Lower); M.-Rmv. 1 38
020-14135-203 Transfer Pulley C (Lower); M.-Rmv. 1 38
020-14137-206 Transfer Pulley B (Lower); M.-Rmv. 1 38
020-14140-002 Master Removal Hook 2 2 38
020-14201-001 Pulley Shaft; M.-Rmv.; A4 1 40 A4, Legal
020-14202-008 Vertical Transport Roller (Up); A4 1 40 A4, Legal
020-14203-101 Holder; V-Transport Roller;A4 1 38 A4, Legal
020-14204-000 Vertical Transport Roller (Down); A4 1 38 A4, Legal
020-14308-000 Frame Bracket F 1 2
020-14309-007 Frame Bracket R 1 2
020-14316-208 Bracket F; Safety SW 1 38
020-14319-304 Bracket R; Safety SW 1 38
020-14321-201 Lever; Safety SW 2 38
020-14322-003 Set Plate; Safety SW 3 8,38
020-14323-000 Spring F; Safty SW 1 38
020-14324-103 Actuator; Safety SW 2 38
020-14325-002 Spring R; Safety SW 1 38
020-14506-309 Bracket; Master Removal Sensor 1 40
020-14702-205 Base Cover; M.-Rmv. 1 38
Part No. Part Name Q'ty Page Remark
020-14934-300 Gear 35 1 40
020-15101-400 Side Frame F; M.-M. 1 34
020-15107-505 Side Frame R; M.-M. 1 34
020-15117-004 Master Guide Plate; B4 1 32 B4
020-15121-001 Bracket; Master End Sensor 1 32
020-15123-004 Intermediate Gear 1 32
020-15124-000 Write Roller; B4 1 32 B4
020-15128-308 Stocker Guide Plate (Upper) 1 34
020-15129-207 Stocker Guide Plate (Lower) 1 34
020-15131-406 Load Guide Plate 1 32
020-15133-204 Load Guide Plate (Lower) 1 34
020-15134-006 Load Roller (Lower) 1 34
020-15135-207 Shaft; Stocker Guide 1 34
020-15136-106 Spring; Load Guide 2 32
020-15148-007 Load Roller (Upper) 1 34
020-15164-002 Stay Shaft; M.-M. 1 34
020-15192-006 Lock Lever; Master Guide 1 32
020-15195-005 Spring; Lock Lever 1 32
020-15196-206 Bracket; Solenoid 1 32
020-15201-102 Sector Gear 1 34
020-15202-206 Bracket; Cutter 1 36 B4
020-15203-300 Bracket Stay; Sensor 1 34
020-15204-306 Bottom Stay; M.-M. 1 34
020-15205-000 Master Stopper; M.-M. 1 34
020-15208-000 Bracket; Sensor 1 34
020-15209-006 Support Plate; Load Roller 1 34
020-15213-003 Bracket; M.-M. 2 2
020-15216-207 Holder R; Master Roll 1 32
020-15217-106 Pressure Plate; Flange 2 28
020-15218-102 Sensor Cover 1 32
020-15219-109 Flange R; Master Roll 1 32
020-15221-006 Master Guide Plate;A4 1 32 A4, Legal
020-15222-002 Write Roller; A4 1 32 A4, Legal
020-15223-106 Bracket; Cutter; A4 1 36 A4, Legal
020-15226-105 Bracket; Flange Pressure Plate 2 28
020-15227-101 Holder F; Master Roll 1 32
020-15228-108 Flange F; Master Roll 1 32
020-15230-307 Load Guide Plate (Upper) 1 34
020-15232-300 Cutter Guide (Lower) 1 36
020-15233-403 Cutter Guide (Upper) 1 36
020-15237-000 Damper A 2 34
020-15239-207 Damper B 2 34
020-15240-302 Sub. Bottom Stay; M.-M. 1 34
020-15245-100 Cutter Rubber 2 36
020-15246-009 Mylar Sheet; Load Roller 1 34
020-15247-102 Guide Cover; M.-M. 1 32
020-15248-001 Mylar Sheet; Write Roller 1 36
020-15252-009 De-electricity Brush; L 2 32,34
020-15255-008 Sheet; Pressure Plate; Flange 2 28
020-15501-408 Upper Frame; ADF 1 30
020-15508-100 Bracket; Stripper Pad Ass'y 1 30
020-15510-008 Shading Sheet 1 30
020-15515-204 Hook Plate; ADF 1 30
Part No. Part Name Q'ty Page Remark
020-15516-103 Exit Roller (Upper); ADF 2 30
020-15517-002 Plate Spring C; Exit Roller 1 30
020-15518-602 Original Guide Base Plate 1 30
020-15523-100 Stripper Roller; ADF 1 30
020-15524-106 Side Frame (F); Scanner 1 28
020-15530-009 Side Frame (R); Scanner 1 28
020-15537-003 Gear Holder; Scanner 1 28
020-15541-000 Friction Spring 1 28
020-15545-006 Gear Stopper 1 30
020-15553-203 Exit Roller; Scanner 1 28
020-15554-102 Hook Plate; Scanner 1 28
020-15555-001 Spring; Hook Plate 1 28
020-15556-300 Cover Plate A; Scanner 1 28
020-15557-209 Cover Plate B; Scanner 1 28
020-15567-000 Support Stay; TPH 1 28
020-15568-200 Pressure Stay; TPH 1 28
020-15569-002 Pressure Plate; TPH 2 28
020-15576-009 Shaft; Exit Roller 2 30
020-15577-307 Plate Spring; Stripper Pressure; ADF 1 30
020-15578-001 Roller; Stripper Pressure; ADF 2 30
020-15580-006 Metal; ADF Stripper Roller 1 30
020-15591-105 Guide Bracket; Wire Harness 1 28
020-15702-101 Slide Rack; Original Holder 2 46
020-15703-108 Cover Stay; Scanner 1 28
020-15707-006 Spring A; TPH Pressure 1 30
020-15711-003 Lift Arm (F); Master Holder 1 32
020-15713-200 Lift Base (F); Master Holder 1 32
020-15714-207 Lift Spring (F); Master Holder 1 32
020-15716-005 Lift Arm (R); Master Holder 1 32
020-15718-202 Lift Base (R); Master Holder 1 32
020-15719-209 Lift Spring (R); Master Holder 1 32
020-15721-300 Bracket; Sensor 1 28
020-15722-102 Plate Spring S; Exit Roller 2 30
020-15724-008 Rack Cover 1 46
020-15725-004 Mylar Sheet; Original Feed 2 30
020-15726-108 Arm; Original Pickup 1 30
020-15727-104 Bracket; Original Pickup 1 30
020-15731-101 Spring A; Original Pickup 1 30
020-15732-108 Spring B; Original Pickup 1 30
020-15733-104 Drive Plate; Original Pickup 1 30
020-15737-100 Link Plate; Original Feed 1 28
020-15742-200 Link Base Plate; Original Feed 1 28
020-15745-102 Base Pad; Original Feed 1 30
020-15746-206 Shaft; Original Stopper 1 30
020-15750-203 Original Stopper; ADF 1 30
020-15751-200 Spring; Original Stopper 1 30
020-15753-105 Pickup Roller; ADF 1 30
020-15757-100 Set Plate; Original Pickup 1 30
020-15758-107 Lock Plate; TPH 2 28
020-15759-103 Stripper Pad Ass'y; ADF 1 30
020-15762-007 Mylar Sheet; Original Pickup 1 30
020-15763-003 Mylar Sheet; Original Stripper 1 30
020-15764-204 Exit Guide; Original Feed 1 30
Part No. Part Name Q'ty Page Remark
020-15766-002 Spring C; TPH Pressure 2 28
020-17113-200 Bracket B; Carrying Grasp 3 2
020-17116-005 Bracket; Front Cover 1 2
020-17117-206 Bracket A; Carrying Grasp 1 2,42
020-17211-202 Bracket; Main PCB 1 42
020-17214-104 Bracket (Lower); Main PCB 1 2
020-17217-006 Fulcrum Bracket (Upper) 2 2
020-17218-002 Bracket; Power SW 1 42
020-17219-009 Bracket; Wire Harness 1 42
020-17221-100 Cover Plate; Wire Harness 1 2
020-17250-003 Bracket; Option PCB 1 42
020-17251-000 Bracket; Card Counter 1 48
020-17252-006 Option PCB Cover 1 42
020-22401-001 Front Frame; Drum II 1 12
020-22404-000 Grip; Drum II 1 12
020-22405-007 Side Block II 2 12
020-22407-000 Ink Suction Nozzle; f19 1 12
020-22408-006 Junction Nozzle II 1 12
020-22409-002 Bracket; Inking Nozzle 1 12
020-22412-003 Cartridge Set SW Plate 1 12
020-22413-000 Cartridge Holder 1 12
020-22414-006 Cartridge Set SW Cover 1 12
020-22415-002 Inking Hose f12 II 1 12
020-22416-009 Inking Hose f10 II 1 12
020-22417-005 Center Nozzle II 1 12
020-22418-001 Bracket; Drum Set SW II 1 12
020-22421-002 Base Plate; Cartridge Stopper 1 12
020-22422-009 Arm; Cartridge Stopper 1 12
020-22425-008 Link Plate; Cartridge Stopper 1 12
020-22428-007 Pin A; Cartridge Stopper 2 12
020-22429-003 Pin B; Cartridge Stopper 1 12
020-22430-001 Fulcrum Shaft; Lever Link 1 12
020-22431-008 Spring; Cartridge Stopper 1 12
020-22432-004 Drum Inserting Block Pin 1 12
020-22433-000 Pin; Drum Inserting Block Pin 1 12
020-22434-007 Spring; Drum Inserting Block Pin 1 12
020-22435-100 Connecting Bracket; Set Lever 1 12
020-22438-002 Link Plate A 1 12
020-22439-009 Link Plate B 1 12
020-22441-003 Link Plate C 1 12
020-22445-009 Releasing Spring; Inserting Block Pin 1 12
020-22446-005 Spring; Set Lever 1 12
020-22448-008 Cartridge Set Lever 1 12
020-22451-106 Drum Cover II 1 12
020-22452-005 Arm Cover; Cartridge Stopper 1 12
020-22453-001 Roller; Link Plate C 1 12
020-22454-105 Side Frame; Drum II 1 12
020-22459-000 Ink Guard Sheet 1 12
020-22480-009 Slider A 1 12
020-22481-005 Slider B 1 12
020-22484-004 Slider C 1 12
020-22485-000 Plate Spring; Slider A 1 12
020-22486-104 Holder Table; Ink Cartridge 1 12
Part No. Part Name Q'ty Page Remark
020-22601-108 Drum Holder II 1 18
020-24035-002 * Lever; M.-Rmv. II 1 40
020-24701-002 Upper Cover II 1 46
020-24703-005 Original Stopper II 1 46
020-25191-008 Cover; M.-M. Unit II 1 46
020-25583-003 Cover; ADF II 1 30
020-25584-000 Original Tray II 1 46
020-25590-000 ADF Cover II 1 46
020-25700-000 Original Side Guide (F) II 1 46
020-25701-006 Original Side Guide (R) II 1 46
020-27101-006 Front Cover; CR 1 46
020-27102-002 Back Cover II 1 46
020-27111-109 Bracket; Keyboard (L) 1 2
020-27112-008 Bracket; Keyboard (R) 1 2
020-27114-000 Carrying Grasp 4 2
020-27117-107 Drum Inserting Stopper 1 46
020-27302-001 Panel Frame II 1 44
020-27303-008 Sub-Panel Cover A 1 44
020-27304-004 Sub-Panel Cover B 1 44
020-27307-003 Reinforcement Plate; Panel 1 44
020-27308-000 Holder Ball 1 44
020-27309-006 Ball Support Spring 1 44
020-27313-003 Panel Frame Ass'y; 1630 Pic. 44 1630 EP, UP, C
020-27314-000 Main Panel Sheet; 1630 Pic. 1 44 1630 EP, UP, C, 1610 EP
020-27315-006 Sub-Panel Sheet; 1630 Pic. 1 44 1630 EP, UP, C
020-27316-002 Panel Frame Ass'y; 1630 44 1630 AW, AN, EN
020-27317-009 Main Panel Sheet; 1630 1 44 1630 AW, AN, EN, 1610 AW
020-27318-005 Sub-Panel Sheet; 1630 1 44 1630 AW, AN, EN
020-27319-001 Panel Frame Ass'y; 1600 Pic. 44 1600 C
020-27320-000 Main Panel Sheet; 1600 Pic. 1 44 1600 C
020-27321-006 Sub-Panel Sheet; 1600 Pic. 1 44 1600 C
020-27322-002 Panel Frame Ass'y; 1610 US 44 1610 UI
020-27323-009 Main Panel Sheet; 1610 US 1 44 1610 UI
020-27324-005 Sub-Panel Sheet; 1610 US 1 44 1610 UI
020-27325-001 Panel Frame Ass'y; 1610 Pic. 44 1610 EP
020-27326-008 Sub-Panel Sheet; 1610 Pic. 1 44 1630 EP, UP, C
020-27327-004 Panel Frame Ass'y; 1610 44 1610 AW
020-27328-000 Sub-Panel Sheet; 1610 1 44 1610 AW, AS
020-27329-007 Panel Frame Ass'y; 1620 Pic. 44 1620 C
020-27330-005 Main Panel Sheet; 1620 Pic. 1 44 1620 C
020-27331-001 Sub-Panel Sheet; 1620 Pic. 1 44 1620 C
020-51002-108 Power Supply PCB; S-100 1 42 100V
020-51006-308 Power Supply PCB; H-200 1 42 200V
020-51010-208 Option PCB 1 42
020-51012-308 Inlet PCB II 1 42
020-51013-304 Inlet PCB III 1 42
020-51020-009 Main PCB 1 42
020-51021-005 Panel PCB II 1 44
020-51022-001 Cartridge Set SW PCB 1 12
020-55001-009 Wire Harness; Image Scanner 1 28
020-55005-004 Wire Harneess; I/F 1 48
020-55018-203 Wire Harness; M.-Rmv. 1 40
020-55019-005 Wire Harness; Suction 1 24
Part No. Part Name Q'ty Page Remark
020-55023-304 Wire Harness; Safety SW 1 42
020-55024-009 Wire Harness; Separation 1 22
020-55025-501 Wire Harness; ADF 1 30
1630AW, C, AN, EN,
020-55030-203 Wire Harness; Main-Power 1 42 1610AW, UI, AN, 1600C, 1620C
020-55032-400 Wire Harness; Write Pulse Motor 1 34
020-55033-601 Wire Harness; M.-M.-Main 1 42
020-55034-306 Wire Harness; CN4 1 42
020-55035-400 Wire Harness; P.-F. II 1 4,6
020-55036-406 Wire Harness; CN10 1 42
020-55037-100 Wire Harness; CN5 1 42
020-55038-107 Wire Harness J; Drum 1 42
020-55039-103 Wire Harness I; M.-SW 1 34
020-55040-101 Wire Harness II; M.-SW 1 38
020-55041-108 Wire Harness; Drum Safety SW 1 8
020-55042-104 Wire Harness IV; M.-SW 2 34,38
020-55045-308 Wire Harness J; Sensor 1 34
020-55046-002 Wire Harness; P.-F.-T. 1 6
020-55047-106 Wire Harness; Drum PCB 1 14
020-55051-103 Wire Harness; TPH-Power 1 30
020-55056-105 Wire Harness; Main-Power II 1 42 1630EP, UP, 1610EP
020-55060-005 Wire Harness; TPH Signal III 1 30
020-55062-105 Wire Harness; Drum II 1 12
020-60004-008 Drum PCB 1 14
020-60006-108 Master Sensor III 1 38
020-60008-003 Original IN Sensor 1 30
020-60013-104 Paper Sensor 1 10
020-60014-259 Safety SW; M.-M. 34
020-60015-255 Safety SW; M.-Rmv. 38
020-60016-251 Drum Safety SW 8
020-60017-258 Cover Set SW; M.-Rmv. 38
020-60020-259 Set SW; M.-M. 34
020-60021-000 Master Removal Sensor 1 40
020-60022-006 Original Det. Sensor 1 30
020-65000-205 Pulse Motor 2 28,34
020-65001-007 Fan 2 22,24
020-65002-003 Solenoid 2 8,32
020-65003-000 Clamp Motor 1 20
020-65004-308 Vertical Transport Motor; M.-Rmv. 1 40
020-65005-304 Compressing Motor; M.-Rmv. 1 40
020-65006-009 P.-E. Motor; Suction 1 24
020-65009-008 P.-F. Clutch 1 4
020-65010-006 LD Clutch 1 32
020-65011-002 Original Feed Solenoid 1 28
020-65012-106 Inking Motor 1 12
020-65013-005 Counter 1 44
020-65014-001 Pulse Motor; N 1 8
020-70002-607 Image Scanner; A4 1 28 A4, Legal
020-70003-506 Image Scanner; B4 1 28 B4
020-75000-009 Edging; EO-10N 1 42
020-75001-005 Damper D 2 42
020-80020- System ROM; CRS 1 42
020-91310-409 Unit/ Main Motor 1 8
020-91610-003 Elevator Motor 1 4
Part No. Part Name Q'ty Page Remark
020-92070-002 Unit/ Ink Pump II 1 12
020-94100-057 Unit/ Master Removal; B4 II 38,40 B4
020-94200-051 Unit/ Master Removal; A4 II 38,40 A4, Legal
020-95010-108 Unit/ Cutter 1 36
020-97012-507 Power Cord Ass'y 100V 42 100V
020-97013-503 Power Cord Ass'y 200V 42 200V
020-97015-000 Wire Harness J Ass'y; Drum 42
020-97026-052 Unit/ Operation Panel; 1630 Pic. 44 1630 EP, UP, C
020-97027-059 Unit/ Operation Panel; 1630 44 1630 AW, AN, EN
020-97028-055 Unit/ Operation Panel; 1600 Pic. 44 1600 C
020-97029-051 Unit/ Operation Panel; 1610 US 44 1610 UI
020-97030-050 Unit/ Operation Panel; 1610 Pic. 44 1610 EP
020-97031-056 Unit/ Operation Panel; 1610 44 1610 AW, AS
020-97032-052 Unit/ Operation Panel; 1620 Pic. 1620 C
020-98001-053 Shaft; Elevator 1 4
020-98002-050 Pressure Roller Shaft 1 10
020-98003-056 Unit / Clamp 20
020-98004-052 T-TPH Ass'y; B4 30 B4
020-98005-059 T-TPH Ass'y; A4 CR 30 A4, Legal
020-98009-259 Unit / Squeegee 14
020-98010-052 Unit/ Clamp Plate 16
020-98011-059 Ink Distributor 1 14
443-02001-003 Micro-SW; AM50031C331 1 34
443-02004-002 Micro SW; AM50039C331F1SW 2 38
443-02011-009 Micro-SW; AM50031C431 2 8,34
443-30005-006 Sensor; GP1A71A 8 4,8,20,32,34,40
443-32001-008 Sensor S; GP2A20L 2 6,34
443-32002-004 Sensor S; GP2A22K 1 22
443-32004-007 Sensor S; GP1A71M1 2 12,28
443-36000-006 Sensor R; RPI-811N 2 8,20
485-00001-804 Fuse 8A 125V 5.2 ULTSC 1 42
485-00002-401 Fuse 10A 125V 5.2 ULTSC 1 42
485-00003-203 Fuse 3.15A 250V 5.2 SET 3 42
485-00003-408 Fuse 3.15A 125V ULTSC 3 42
485-00003-505 Fuse 1A 125V ULTSC 2 42
485-01421-009 Fuse 1A 250V 5.2 ET 2 42
485-02320-001 Fuse 4A 250V 5.2 SET 1 42
485-02520-000 Fuse 6.3A 250V 5.2 ET 1 42
488-90027-000 Ground Wire; TPH 1 30
505-00050-800 KGPS-8PF PCB Spacer 1 42
550-20118-104 Seal; TPH 1 28
550-21014-000 Master Stopper Seal; M.-M. 1 34
550-21169-004 Seal; Master Disposal 1 38
550-21170-002 Seal; Master Disposal; Pic. 1 38
550-21172-005 Seal; P.-Feed Pressure 1 38
550-21173-001 Seal; P.-Feed Pressure; Pic. 1 38
550-21175-101 Seal; Setting Master 1 32
550-21176-108 Seal; Setting Master, Pic. 1 32
550-21277-001 Seal; Stripper Pressure 1 10
550-21623-007 Seal; Setting Cartridge; Pic. 1 12
550-21626-006 Emblem; CR1630 EP 1 46
550-21627-002 Emblem; CR1630 UP 1 46
550-21628-009 Emblem; CR1630 AW 1 46
Part No. Part Name Q'ty Page Remark
550-21629-005 Emblem; CR1630 AN 1 46
550-21630-003 Emblem; CR1630 EN 1 46
550-21631-000 Emblem; CR1630 C 1 46
550-21632-006 Emblem; CR1600 C 1 46
550-21633-002 Emblem; CR1610 UI 1 46
550-21634-009 Emblem; CR1610 EP 1 46
550-21635-005 Emblem; CR1610 AW 1 46
550-21636-001 Emblem; CR1610 AS 1 46
550-21675-007 Emblem; CR1620 C 1 46
550-21670-005 Seal; Drum Inserting Caution 1 12
600-20061-009 Bearing; 608ZZ 4 8,10
600-50057-006 Bearing; FLAW678ZZA 2 24
607-07001-006 Metal; S8x12x19 2 32
607-11001-002 Metal; F4x6x2.2; 8x1 2 30
607-13000-003 Metal; F6x10 / 9x4; 12x1.5 13 10,28,30,34,38,40
607-13000-020 Metal; F6x10/ 9x4; 12x5 1 20
607-15000-000 Metal; F8x13/12x5; 16x2 13 4,20,22,32,34,40
607-16001-000 Metal; F10x15/14x6; 18x2 8 4,10
607-16002-007 Metal; F10x14 / 12.8x12; 18x2 2 10
607-17050-005 Metal; F14x20 / 17x6; 24x2 2 10
610-00007-101 HG Damper; 2G50-C50 1 34
611-92800-004 Pulley; P28S2M60 (STS) 1 28
611-93500-004 Pulley; P35S2M80 (STS) 1 24
612-00200-003 Gear; m0.5x24x6 1 30
612-03104-005 Gear; m1.25x14x6 1 40
612-03105-001 Gear; m1.25x14x3 1 38
612-10200-109 Gear; m0.5x24x4 1 30
612-10201-105 Gear; m0.5x20x4 1 30
612-11100-000 Gear; m0.8x19x6 1 28
612-11101-007 Gear; m0.8x18x11 2 34
612-11102-003 Gear; m0.8x18x5 1 14
612-11200-005 Gear; m0.8x29x8.5 1 4
612-11201-001 Gear; m0.8x24x5.2 1 30
612-11202-008 Gear; m0.8x28x9 2 28,34
612-11300-000 Gear; m0.8x34x8.5 2 4
612-11400-101 Gear; m0.8x42x6 1 32
612-11401-000 Gear; m0.8x45x5 1 14
612-12302-006 Gear; m1x34x5 1 40
612-12303-002 Gear; m1x30x5 1 14
612-12304-009 Gear; OWC; m1x30x5 1 14
612-12305-005 Gear; m1x34x14 1 20
612-12306-001 Gear; m1x32x4 1 12
612-16200-003 Gear; m2x23x6 1 8
612-80400-105 Gear; m0.5x40 + m1x16 2 20,40
612-80700-001 Gear; m0.5x75 + m0.8x14 2 8,28
612-81200-002 Gear; m0.8x28 + m0.8x15 1 28
612-81201-009 Gear; m0.8x26 + m1x13 1 12
612-82300-000 Gear; m1x36 + m1x16 2 20
612-82301-007 Gear; m1x34 + m1x16 2 40
612-82500-000 Gear; m1x50 + m1x16 2 40
612-82501-006 Gear; m1x50 + m1x24 1 40
612-82700-009 Gear; m1x74 + m2x30 1 8
613-12100-001 Gear; m0.8x21 + 15S2M 1 28
Part No. Part Name Q'ty Page Remark
621-01162-007 Belt; 20-S2M-116 1 24
621-01864-001 Belt; 40-S2M-186 1 28
621-02664-006 Belt; 40-S2M-266 1 32
628-21520-008 Transfer Belt; 2x152 12 38,40
629-93810-202 Transfer Belt; 14x0.65x381 2 24
635-10714-000 Screw; 7x1.1; M4x4.4 1 10
635-17423-000 Stepped Screw; 4x2.2; M3x4 1 28
635-17433-006 Step Screw; 4x3; M3x6 1 36
635-17523-005 Stepped Screw; 5x2; M3x3 5 12
635-17613-004 Stepped Screw; 6x1.8; M3x4 3 22,32
635-17634-001 Stepped Screw; 6x3; M4x4 2 14
635-17824-005 Stepped Screw; 8x2.3; M4x4.4 4 4,10
638-90000-012 Washer; 18x10.4x0.4 1 10
638-90804-103 Washer; 8.5x16x0.4 4 8
640-60030-004 O Ring; P3-1.9 2 14
640-60050-005 O Ring; P5-1.9 1 28
640-60100-126 O Ring; P10A-2.4 2 12,14
640-60150-000 O Ring; P15-2.4 1 12
640-60180-006 O Ring; P18-2.4 2 14
640-61550-001 O Ring; P155-2.4 2 16
660-01002-008 Rubber Foot TK-3215 4 2
660-05000-018 Magnet Catch SM50P 1 2
665-02021-304 Clamp DKN-13 2 42
665-02025-504 Wire Saddle; WS-4W 1 42
665-02025-601 Wire Saddle; LWS-2N 1 42
665-02032-004 Clamp; YMC-15-0 8 34
665-02038-002 Edging Saddle; ESD-2 2 28
665-02039-009 Edging Saddle; ESD-17L 2 28,42
665-02043-006 Wire Saddle; LWS-1316 4 42
665-02903-005 Power Band T14 2 12
665-02906-004 Hose Band 2 12
665-04016-006 Snap Bushing; SB-1000-12 1 34
665-04032-001 Edging; EO-12N 1 42
665-04037-003 Free Bushing; NJ-23 2 28
X-530 Pin; 2x14 2 4
The order for the above (X-530) numbered
parts are available only by quantities of tens.
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
