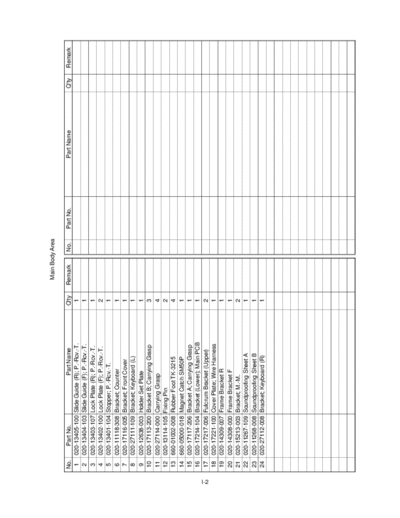

Image preview - the first page of the document
>> Download cr-pl-3 documenatation <<
Text preview - extract from the document
Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-13405-100 Slide Guide (R); P.-Rcv.-T. 1
2 020-13404-103 Slide Guide (F); P.-Rcv.-T. 1
3 020-13403-107 Lock Plate (R); P.-Rcv.-T. 1
4 020-13402-100 Lock Plate (F); P.-Rcv.-T. 2
5 020-13401-104 Stopper; P.-Rcv.-T. 1
6 020-11118-308 Bracket; Counter 1
7 020-17116-005 Bracket; Front Cover 1
8 020-27111-109 Bracket; Keyboard (L) 1
9 020-12638-003 Holder Set Plate 1
10 020-17113-200 Bracket B; Carrying Grasp 3
11 020-27114-000 Carrying Grasp 4
12 020-13114-105 Fixing Pin 2
13 660-01002-008 Rubber Foot TK-3215 4
14 660-05000-018 Magnet Catch SM50P 1
15 020-17117-206 Bracket A; Carrying Grasp 1
16 020-17214-104 Bracket (Lower); Main PCB 1
I-2
17 020-17217-006 Fulcrum Bracket (Upper) 2
18 020-17221-100 Cover Plate; Wire Harness 1
19 020-14309-007 Frame Bracket R 1
20 020-14308-000 Frame Bracket F 1
21 020-15213-003 Bracket; M.-M. 2
22 020-11267-109 Soundproofing Sheet A 1
23 020-11268-008 Soundproofing Sheet B 1
24 020-27112-008 Bracket; Keyboard (R) 1
Elevator-Scraper Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-98001-053 Shaft; Elevator 1
2 607-15000-000 Metal; F8x13/12x5; 16x2 2
3 020-11613-007 Bracket; Upper Limit Sensor 1
4 443-30005-006 Sensor; GP1A71A 2
5 020-11830-008 Bracket; P.-F. Pressure Adj. 1
6 020-11813-006 Arm; P.-F. Pressure Adj. 1
7 020-11814-100 P.-F. Pressure Adj. Lever 1
8 020-11812-000 Spring A; P.-F. Pressure Adj. 1
9 020-11811-100 Spring B; P.-F. Pressure Adj. 1
10 635-17824-005 Stepped Screw; f8x2.3; M4x4.4 2
11 003-26306-100 Pickup Roller 2
12 019-11812-106 Lock Ring 2
13 607-16001-000 Metal; F10x15/14x6; 18x2 6
14 020-11816-005 Support; Pickup Roller Shaft 1
15 020-11818-008 Holder Plate; Scraper 1
16 612-11200-005 Gear; m0.8x29x8.5 1
I-4
17 020-11817-206 Shaft; Pickup Roller 1
18 Pin; f2x14 2 Ref. Pg. II-13
19 020-11806-000 Shaft; Scraper 1
20 612-11300-000 Gear; m0.8x34x8.5 2
21 020-11619-102 Spring; Elevator 2
22 020-11605-608 Side Frame F; Elevator 1
23 020-11606-604 Side Frame R; Elevator 1
24 020-11628-004 Guide Plate; Elevator 2
25 020-65009-008 P.-F. Clutch 1
26 017-11649-006 Gear; Elevator 1
27 020-91610-003 Elevator Motor 1
28 020-55035-400 Wire Harness; P.-F. II 1
Paper-Feed Tray
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-11501-306 Paper-Feed Tray 1
2 020-11526-201 Side Guide R; P.-F.-T. 1
3 020-11525-205 Side Guide F; P.-F.-T. 1
4 020-11514-106 Link Plate A; P.-F.-T. 2
5 020-11513-002 Lever; P.-F.-T. 2
6 020-11515-102 Link Plate B; P.-F.-T. 2
7 020-11516-001 Link Plate Shaft; P.-F.-T. 2
8 020-11520-009 L. O. Sheet 1
9 443-32001-008 Sensor S; GP2A20L 1
10 020-55046-002 Wire Harness; P.-F.-T. 1
11 020-11521-102 Support Plate R; P.-F.-T. 1
12 020-11502-108 Support Plate F; P.-F.-T. 1
13 020-11527-100 Feed Tray Cover 1
14 020-55035-400 Wire Harness; P.-F. II 1
I-6
Drive Mechanism Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-11201-302 Intermediate Gear 1 33 020-12625-009 Support Plate; Drum Safety SW 1
2 020-11207-203 Cam; Pressure Roller 1 B4 34 020-60016-251 Drum Safety SW
2 020-11214-200 Cam; Pressure Roller; A4 1 A4 443-02011-009 * Micro-SW; AM50031C431 1
2 020-11216-202 Cam; Pressure Roller; L 1 Legal 020-55041-108 * Wire Harness; Drum Safety SW 1
3 020-91310-409 Unit/ Main Motor 1 35 638-90804-103 Washer; 8.5x16x0.4 4
4 020-11315-200 * Main Cam 1
5 020-11332-300 Timing Lever 1
6 020-11329-007 Spring; Guide Roller 1
7 600-20061-009 Bearing; 608ZZ 2
8 020-11323-203 Print Positioning Base Ass'y 1
9 612-80700-001 Gear; m0.5x75 + m0.8x14 1
10 020-11326-008 Print Positioning Cam 1
11 020-11319-303 Print Positioning Adj. Plate 1
12 011-11711-115 Fulcrum Screw; Stripper 3
13 443-30005-006 Sensor; GP1A71A 1
14 020-65014-001 Pulse Motor; N 1
I-8
15 020-11316-100 Print Positioning Lever 1
16 020-11314-107 Timing Link Plate 1
17 020-11312-104 Pin; Sector Gear 1
18 020-11330-102 Spring; Sector Gear 1
19 020-11311-205 Sector Gear 1
20 612-82700-009 Gear; m1x74 + m2x30 1
21 612-16200-003 Gear; m2x23x6 1
22 020-11310-101 Timing Cam 1
23 020-11210-107 Shaft; Intermediate Gear 1
24 020-11203-100 Pressure Lever 1
25 020-11209-109 Pressure Spring 1 B4
25 020-11215-001 Pressure Spring; A4 1 A4, Legal
26 020-11261-100 Pressure Solenoid Base 1
27 020-65002-003 Solenoid 1
28 020-11258-100 Lever; Pressure Solenoid 1
29 020-11259-203 Spring; Pressure Solenoid 1
30 020-12622-107 Bracket; A Pos. Sensor 1
31 443-36000-006 Sensor R; RPI-811N 1
32 020-14322-003 Set Plate; Safety SW 1
Roller System Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-11236-408 Guide Cover; Pressure 1 34 020-11753-100 Pad; 12x12x12 1
2 020-11235-100 De-electricity Brush; P 1
3 020-98002-050 Pressure Roller Shaft 1
4 020-11227-107 Pressure Roller Support 2
5 020-11231-007 Pressure Balance Shaft 1
6 635-17824-005 Stepped Screw; 8x2.3; M4x4.4 2
7 020-11221-001 Pressure Roller 1 B4
7 020-11238-109 Pressure Roller; A4 1 A4, Legal
8 600-20061-009 Bearing; 608ZZ 2
9 607-17050-005 Metal; F14x20 / 17x6; 24x2 2
10 020-11303-008 Guide Roller 1
11 020-11305-000 Pressure Shaft; Guide Roller 1
12 020-11308-000 Support R; Guide Roller 1
13 020-11306-007 Pressure Plate; Guide Roller 1
14 020-11307-003 Support F; Guide Roller 1
15 607-13000-003 Metal; F6x10 / 9x4; 12x1.5 2
I-10
16 020-11304-004 Shaft; Guide Roller 1
17 020-11302-001 Timing Roller 1
18 607-16002-007 Metal; F10x14 / 12.8x12; 18x2 2
19 020-11309-006 Load Spring 1
20 638-90000-012 Washer; 18x10.4x0.4 1
21 607-16001-000 Metal; F10x15 / 14x6; 18x2 2
22 020-11752-406 Guide Plate Ass'y 1
23 020-11734-009 Adj. Plate; Stripper 1
24 020-11707-109 Housing; Stripper 1
25 020-11708-008 Spring; Stripper 1
26 020-11712-102 Base Plate; Stripper 1
27 020-11711-009 Stripper Pad 1 Hardness 70
27 020-11721-004 Stripper Pad; Black 1 Hardness 90
28 020-60013-104 Paper Sensor 1
29 020-11751-000 Paper Sensor Cover 1
30 020-11741-102 Paper Sensor Cover (Upper) 1
31 020-11709-004 Housing Bracket; Stripper 1
32 635-10714-000 Screw; 7x1.1; M4x4.4 1
33 550-21277-001 Seal; Stripper Pressure 1
Drum-Ink Pump Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-22451-106 Drum Cover II 1 36 020-22434-007 Spring; Drum Inserting Block Pin 1
2 020-22413-000 Cartridge Holder 1 37 020-22445-009 Releasing Spring; Inserting Block Pin 1
3 020-22414-006 Cartridge Set SW Cover 1 38 020-22441-003 Link Plate C 1
4 550-21623-007 Seal; Setting Cartridge; Pic. 1 39 020-22453-001 Roller; Link Plate C 1
5 550-21670-005 Seal; Drum Inserting Caution 1 40 020-22438-002 Link Plate A 1
6 020-22412-003 Cartridge Set SW Plate 1 41 020-22439-009 Link Plate B 1
7 020-51022-001 Cartridge Set SW PCB 1 42 020-22446-005 Spring; Set Lever 1
8 020-22418-001 Bracket; Drum Set SW II 1 43 020-22448-008 Cartridge Set Lever 1
9 443-32004-007 Sensor S; GP1A71M1 1 44 020-22421-002 Base Plate; Cartridge Stopper 1
10 020-12420-202 Guide Pin 2 45 020-22435-100 Connecting Bracket; Set Lever 1
11 020-22405-007 Side Block II 2 46 020-22430-001 Fulcrum Shaft; Lever Link 1
12 020-22401-001 Front Frame; Drum II 1 47 020-22429-003 Pin B; Cartridge Stopper 1
13 020-12416-000 Rear Frame; Drum 1 48 020-22422-009 Arm; Cartridge Stopper 1
14 020-12418-003 Bracket; Drawer Connector 1 49 020-22431-008 Spring; Cartridge Stopper 1
15 020-22454-105 Side Frame; Drum II 1 50 020-22425-008 Link Plate; Cartridge Stopper 1
16 020-55062-105 Wire Harness; Drum II 1 51 020-22428-007 Pin A; Cartridge Stopper 2
I-12
17 020-12433-002 Bracket; Locking Plate; Drum 1 52 020-22452-005 Arm Cover; Cartridge Stopper 1
18 020-12434-009 Shaft; Locking Plate; Drum 1 53 640-60150-000 O Ring; P15-2.4 1
19 020-12438-209 Locking Plate; Drum 1 54 020-22459-000 Ink Guard Sheet 1
20 020-12454-000 Spring; 6.5: Locking Plate; Drum 1 55 020-22407-000 Ink Suction Nozzle; f19 1
21 020-12421-004 Reinforce Plate; Drum Front Frame 1 56 020-12375-100 Filter 1
22 020-12447-100 Shaft; Drum Grip 1 57 020-22408-006 Junction Nozzle II 1
23 020-22404-000 Grip; Drum II 1 58 665-02906-004 Hose Band 2
24 020-12422-000 Drum Hook (R) 1 59 020-22415-002 Inking Hose f12 II 1
25 020-12423-007 Drum Hook (L) 1 60 020-22416-009 Inking Hose f10 II 1
26 020-12435-005 Spring; 6.95 2 61 665-02903-005 Power Band T14 2
27 020-22486-104 Holder Table; Ink Cartridge 1 62 020-22417-005 Center Nozzle II 1
28 020-22480-009 Slider A 1 63 640-60100-126 O Ring; P10A-2.4 1
29 020-22485-000 Plate Spring; Slider A 1 020-92070-002 Unit/ Ink Pump II 1
30 020-22481-005 Slider B 1 64 * Ink Pump 1
31 020-22484-004 Slider C 1 65 020-65012-106 * Inking Motor 1
32 020-22409-002 Bracket; Inking Nozzle 1 66 612-81201-009 * Gear; m0.8x26 + m1x13 1
33 635-17523-005 Stepped Screw; 5x2; M3x3 5 67 612-12306-001 * Gear; m1x32x4 1
34 020-22432-004 Drum Inserting Block Pin 1
35 020-22433-000 Pin; Drum Inserting Block Pin 1
Drum-Squeegee Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
020-98009-259 Unit / Squeegee 35 020-55047-106 * Wire Harness; Drum PCB 1
1 020-12503-000 * Main Frame; Drum 1
2 020-12509-106 * Front Plate; Squeegee 1
3 020-12510-104 * Rear Plate; Squeegee 1
4 020-12544-009 * Adj. Boss; Squeegee 2
5 020-12545-102 * Adj. Boss Set Plate; Squeegee 2
6 020-98011-059 * Ink Distributor 1
7 020-12508-002 ** Stopper; Ink Distributor 1
8 640-60100-126 ** O Ring; P10A-2.4 1
9 020-12502-209 * Shaft Joint; Drum 2
10 020-12504-309 * Support Shaft; Drum 1
11 020-12536-200 * Ink Blocking Plate (Front) 1
12 020-12537-207 * Ink Blocking Plate (Back) 1
13 612-12303-002 * Gear; m1x30x5 1
14 020-12515-408 * Side Frame F; Squeegee 1
15 020-12518-300 * Side Frame R; Squeegee 1
I-14
16 635-17634-001 * Stepped Screw; f6x3; M4x4 2
17 020-12521-300 * Squeegee Roller 1
18 020-12531-306 * Drive Shaft; Squeegee 1
19 020-12522-102 * Doctor Roller 1
20 020-12534-100 * Block F; Squeegee 1
21 020-12535-107 * Block R; Squeegee 1
22 640-60030-004 * O Ring; P3-1.9 2
23 020-12513-006 * Metal F; Drive Shaft 1
24 020-12514-100 * Metal R; Drive Shaft 1
25 020-12512-000 * Metal Fix Plate 2
26 640-60180-006 * O Ring; P18-2.4 2
27 020-12538-009 * Adj. Plate; Doctor 1
28 020-12549-000 * Adj. Plate (Rear); Doctor 1
29 612-12304-009 * Gear; OWC; m1x30x5 1
30 612-11102-003 * Gear; m0.8x18x5 1
31 612-11401-000 * Gear; m0.8x45x5 1
32 020-12540-003 * Bracket; Drum PCB 1
33 015-16231-200 * PCB Cover; Drum 1
34 020-60004-008 * Drum PCB 1
Drum-Screen Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
020-98010-052 Unit/ Clamp Plate
1 020-12214-106 * Master Projection Plate Ass'y 1
2 020-12205-204 * Clamp Magnet 1
3 020-12201-101 * Clamp Plate Base 1
4 020-12220-106 * Clamp Plate 2 1
5 020-12215-102 * Damper C 2
6 020-12213-100 * Clamp Base C 1
7 020-12126-002 Screw; Screen Hanger 4
8 020-12119-006 Main Gear; Squeegee 1
9 640-61550-001 O Ring; P155-2.4 2
10 020-12112-109 Drum Body Support R 1
11 020-12116-104 Compensator 1
12 020-12115-205 Main Gear; Drum 1
13 020-12441-200 Drum Shaft Clamper 2
14 020-12111-102 Drum Body Support F 1
15 020-12117-003 Drum Lock Plate 1
I-16
16 020-12113-008 Bearing Cap 1
17 020-12449-006 Sleeve 32 1
18 020-12121-302 Screen Ass'y 1
19 020-12128-005 * Light Absorber Strip 1
20 020-12129-052 Drum Body 1 B4
20 020-12130-069 Drum Body; A4 1 A4
20 020-12131-065 Drum Body; L 1 Legal
21 020-12104-408 Ink Blocking Sheet; B4 1 B4
21 020-12105-200 Ink Blocking Sheet; A4 1 A4, Legal
22 020-12127-203 Spring; Screen 2
23 020-12125-308 Screen Hanger Plate 1
24 011-12104-018 Seal Tape 1 A4, Legal
Drum Rail Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-22601-108 Drum Holder II 1
2 020-12611-202 Rail; Drum 2
3 020-12615-003 Drum Holder R 1
4 020-12631-106 Drum Catch 2
I-18
Clamp Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-11243-200 Arm; Separator 1
2 020-11254-104 Base Plate; Separator 1
3 020-11248-007 Adj. Plate; Separator 1
4 020-11242-106 Lever; Separator 1
5 020-11251-008 Spring; Separator 2
020-98003-056 Unit / Clamp
6 020-65003-000 * Clamp Motor 1
7 612-80400-105 * Gear; m0.5x40 + m1x16 1
8 020-12725-003 * Bracket; Clamp Motor 1
9 020-12724-007 * Gear Housing; Clamp 1
10 020-12701-104 * Cam Housing; Clamp 1
11 020-12708-001 * Shaft; Clamp Arm 1
12 020-12707-102 * Master Release Arm; Clamp 1
13 020-12706-106 * Open Arm; Clamp 1
14 020-12713-102 * Spring; Clamp Arm 2
15 443-36000-006 * Sensor R; RPI-811N 1
I-20
16 612-82300-000 * Gear; m1x36 + m1x16 2
17 612-12305-005 * Gear; m1x34x14 1
18 607-15000-000 * Metal; F8x13/ 12x5; 16x2 1
19 020-12727-103 * Clamp Cam 1
20 020-12722-004 * Encoder Disc; Clamp 1
21 443-30005-006 * Sensor; GP1A71A 1
22 020-12723-000 * Bracket; Clamp Sensor 1
23 020-12711-002 * Set Plate; Clamp Cam 1
24 607-13000-020 * Metal; F6x10/ 9x4; 12x5 1
Separator Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-65001-007 Fan 1
2 020-13303-005 Nozzle (Lower); Separation 1
3 020-13302-106 Nozzle (Upper); Separation 1
4 020-55024-009 Wire Harness; Separation 1
5 443-32002-004 Sensor S; GP2A22K 1
6 020-12201-207 Fan Base; Separation 1
7 020-11241-100 Shaft; Separator 1
8 020-11260-007 Separator 1
9 020-11252-004 Release Arm; Separator 1
10 607-15000-000 Metal; F8x13/ 12x5; 16x2 2
11 020-11265-009 Base Plate; Release Lever 1
12 020-11264-002 Release Lever; Separator 1
13 020-11266-102 Spring; Release Lever 1
14 635-17613-004 Stepped Screw; f6x1.8; M3x4 1
I-22
Suction Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-13109-004 Face Cover; Suction 1
2 020-13106-200 Base Frame; Suction 1
3 020-13107-001 Suction Box 1
4 020-13108-105 Belt Pulley; Suction 2
5 020-13111-203 Drive Shaft; Suction 1
6 020-65006-009 P.-E. Motor; Suction 1
7 600-50057-006 Bearing; FLAW678ZZA 2
8 611-93500-004 Pulley; P35S2M80 (STS) 1
9 621-01162-007 Belt; 20-S2M-116 1
10 020-65001-007 Fan 1
11 020-55019-005 Wire Harness; Suction 1
12 020-13101-208 Cover Plate; Suction 1
13 020-13118-100 Under Stopper; Suction 1
14 017-13258-004 De-electricity Brush; Suction 1
15 020-13110-100 Idle Shaft; Suction 1
16 020-13116-205 P.-E. Pulley; Suction 2
I-24
17 629-93810-202 Transfer Belt; 14x0.65x381 2
Paper Receiving Tray
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-13413-200 Back Stop; P.-Rcv.-T. 1
2 020-13412-300 Receiving Tray Plate 1
3 020-13407-200 Guide Plate (R); P.-Rcv.-T. 1
4 020-13406-203 Guide Plate (F); P.-Rcv.-T. 1
5 020-13411-100 Link Plate; P.-Rcv.-T. 1
6 020-13414-109 Paper Guide; P.-Rcv.-T. 2
7 007-13424-109 Base Block; Paper Guide; Rcv. 2
8 014-13110-102 Slide Guide; Paper Guide; Rcv.; A3 2
9 014-13113-004 Slide Frame; Paper Guide; Rcv.; A3 2
10 020-13415-105 Slide Rail 1
11 020-13418-104 Damper; Back Stop; P.-Rcv.-T. 1
12 020-13419-100 Damper Sheet; P.-Rcv.-T. 1
I-26
Scanner Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-70003-506 Image Scanner; B4 1 B4 35 020-65011-002 Original Feed Solenoid 1
1 020-70002-607 Image Scanner; A4 1 A4, Legal 36 020-15737-100 Link Plate; Original Feed 1
2 020-55001-009 Wire Harness; Image Scanner 1 37 020-15742-200 Link Base Plate; Original Feed 1
3 640-60050-005 O Ring; P5-1.9 1 38 635-17423-000 Stepped Screw; f4x2.2; M3x4 1
4 020-15556-300 Cover Plate A; Scanner 1 39 020-15226-105 Bracket; Flange Pressure Plate 2
5 020-15553-203 Exit Roller; Scanner 1 40 020-15217-106 Pressure Plate; Flange 2
6 020-15567-000 Support Stay; TPH 1 41 020-15255-008 Sheet; Pressure Plate; Flange 2
7 665-02038-002 Edging Saddle; ESD-2 2
8 665-04037-003 Free Bushing; NJ-23 2
9 020-15569-002 Pressure Plate; TPH 2
10 020-15568-200 Pressure Stay; TPH 1
11 020-15766-002 Spring C; TPH Pressure 2
12 665-02039-009 Edging Saddle; ESD-17L 1
13 020-15758-107 Lock Plate; TPH 2
14 550-20118-104 Seal; TPH 1
15 020-65000-205 Pulse Motor 1
I-28
16 020-15557-209 Cover Plate B; Scanner 1
17 020-15555-001 Spring; Hook Plate 1
18 020-15554-102 Hook Plate; Scanner 1
19 020-15703-108 Cover Stay; Scanner 1
20 020-15530-009 Side Frame (R); Scanner 1
21 612-80700-001 Gear; m0.5x75 + m0.8x14 1
22 020-15537-003 Gear Holder; Scanner 1
23 020-15541-000 Friction Spring 1
24 612-11100-000 Gear; m0.8x19x6 1
25 612-11202-008 Gear; m0.8x28x9 1
26 612-81200-002 Gear; m0.8x28 + m0.8x15 1
27 613-12100-001 Gear; m0.8x21 + 15S2M 1
28 621-01864-001 Belt; 40-S2M-186 1
29 611-92800-004 Pulley; P28S2M60 (STS) 1
30 607-13000-003 Metal; F6x10/ 9x4; 12x1.5 2
31 020-15591-105 Guide Bracket; Wire Harness 1
32 020-15524-106 Side Frame (F); Scanner 1
33 443-32004-007 Sensor S; GP1A71M1 1
34 020-15721-300 Bracket; Sensor 1
ADF Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-25583-003 Cover; ADF II 1 36 020-15750-203 Original Stopper; ADF 1
2 020-15516-103 Exit Roller (Upper); ADF 2 37 020-15751-200 Spring; Original Stopper 1
3 020-15576-009 Shaft; Exit Roller 2 38 020-15746-206 Shaft; Original Stopper 1
4 020-15722-102 Plate Spring S; Exit Roller 2 39 020-55025-501 Wire Harness; ADF 1
5 020-15517-002 Plate Spring C; Exit Roller 1 40 020-98004-052 T-TPH Ass'y; B4 B4
6 020-15725-004 Mylar Sheet; Original Feed 2 41 635-17523-005 * Stepped Screw; f5x2; M3x3 2
7 020-15501-408 Upper Frame; ADF 1 40 020-98005-059 T-TPH Ass'y; A4 CR A4, Legal
8 020-15763-003 Mylar Sheet; Original Stripper 1 41 635-17523-005 * Stepped Screw; f5x2; M3x3 2
9 020-15510-008 Shading Sheet 1 42 488-90027-000 Ground Wire; TPH 1
10 020-15515-204 Hook Plate; ADF 1 43 020-55051-103 Wire Harness; TPH-Power 1
11 020-15707-006 Spring A; TPH Pressure 1 44 020-55060-005 Wire Harness; TPH Signal III 1
12 020-15578-001 Roller; Stripper Pressure; ADF 2 45 020-15764-204 Exit Guide; Original Feed 1
13 020-15577-307 Plate Spring; Stripper Pressure; ADF 1 46 020-15745-102 Base Pad; Original Feed 1
14 020-15759-103 Stripper Pad Ass'y; ADF 1
15 020-15508-100 Bracket; Stripper Pad Ass'y 1
16 020-15727-104 Bracket; Original Pickup 1
I-30
17 020-15732-108 Spring B; Original Pickup 1
18 020-15733-104 Drive Plate; Original Pickup 1
19 020-15757-100 Set Plate; Original Pickup 1
20 020-15726-108 Arm; Original Pickup 1
21 020-15731-101 Spring A; Original Pickup 1
22 020-15518-602 Original Guide Base Plate 1
23 020-60022-006 Original Det. Sensor 1
24 020-15762-007 Mylar Sheet; Original Pickup 1
25 612-11201-001 Gear; m0.8x24x5.2 1
26 020-15545-006 Gear Stopper 1
27 020-60008-003 Original IN Sensor 1
28 607-11001-002 Metal; F4x6x2.2; 8x1 2
29 020-15753-105 Pickup Roller; ADF 1
30 612-10201-105 Gear; m0.5x20x4 1
31 612-10200-109 Gear; m0.5x24x4 1
32 020-15580-006 Metal; ADF Stripper Roller 1
33 020-15523-100 Stripper Roller; ADF 1
34 612-00200-003 Gear; m0.5x24x6 1
35 607-13000-003 Metal; F6x10/ 9x4; 12x1.5 1
Master Making Area (1)
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-15131-406 Load Guide Plate 1
2 635-17613-004 Stepped Screw; f6x1.8; M3x4 2
3 020-15124-000 Write Roller; B4 1 B4
3 020-15222-002 Write Roller; A4 1 A4, Legal
4 607-07001-006 Metal; S8x12x19 2
5 607-15000-000 Metal; F8x13/ 12x5; 16x2 2
6 612-11400-101 Gear; m0.8x42x6 1
7 020-15117-004 Master Guide Plate; B4 1 B4
7 020-15221-006 Master Guide Plate;A4 1 A4, Legal
8 020-15218-102 Sensor Cover 1
9 020-15247-102 Guide Cover; M.-M. 1
10 020-15252-009 De-electricity Brush; L 1
11 020-15136-106 Spring; Load Guide 2
12 020-15196-206 Bracket; Solenoid 1
13 020-65002-003 Solenoid 1
14 020-15192-006 Lock Lever; Master Guide 1
I-32
15 020-15195-005 Spring; Lock Lever 1
16 020-65010-006 LD Clutch 1
17 621-02664-006 Belt; 40-S2M-266 1
18 020-15123-004 Intermediate Gear 1
19 020-15711-003 Lift Arm (F); Master Holder 1
20 020-15714-207 Lift Spring (F); Master Holder 1
21 020-15713-200 Lift Base (F); Master Holder 1
22 020-15227-101 Holder F; Master Roll 1
23 020-15216-207 Holder R; Master Roll 1
24 020-15718-202 Lift Base (R); Master Holder 1
25 020-15719-209 Lift Spring (R); Master Holder 1
26 020-15716-005 Lift Arm (R); Master Holder 1
27 443-30005-006 Sensor; GP1A71A 1
28 020-15121-001 Bracket; Master End Sensor 1
29 020-15228-108 Flange F; Master Roll 1
30 020-15219-109 Flange R; Master Roll 1
31 550-21175-101 Seal; Setting Master 1
31 550-21176-108 Seal; Setting Master, Pic. 1
Master Making Area (2)
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-15134-006 Load Roller (Lower) 1 34 020-60014-259 Safety SW; M.-M.
2 020-15209-006 Support Plate; Load Roller 1 020-55039-103 * Wire Harness I; M.-SW 1
3 607-15000-000 Metal; F8x13/ 12x5; 16x2 4 443-02011-009 * Micro-SW; AM50031C431 1
4 020-15135-207 Shaft; Stocker Guide 1 35 020-15252-009 De-electricity Brush; L 1
5 020-15128-308 Stocker Guide Plate (Upper) 1 36 020-15246-009 Mylar Sheet; Load Roller 1
6 020-15129-207 Stocker Guide Plate (Lower) 1
7 550-21014-000 Master Stopper Seal; M.-M. 1
8 020-15164-002 Stay Shaft; M.-M. 1
9 020-15230-307 Load Guide Plate (Upper) 1
10 020-15133-204 Load Guide Plate (Lower) 1
11 020-15148-007 Load Roller (Upper) 1
12 020-15239-207 Damper B 2
13 020-15203-300 Bracket Stay; Sensor 1
14 020-15205-000 Master Stopper; M.-M. 1
15 020-15208-000 Bracket; Sensor 1
16 443-32001-008 Sensor S; GP2A20L 1
I-34
17 443-30005-006 Sensor; GP1A71A 1
18 020-55045-308 Wire Harness J; Sensor 1
19 020-15240-302 Sub. Bottom Stay; M.-M. 1
20 020-15204-306 Bottom Stay; M.-M. 1
21 665-02032-004 Clamp; YMC-15-0 8
22 020-55032-400 Wire Harness; Write Pulse Motor 1
23 020-65000-205 Pulse Motor 1
24 020-15101-400 Side Frame F; M.-M. 1
25 607-13000-003 Metal; F6x10/ 9x4; 12x1.5 2
26 665-04016-006 Snap Bushing; SB-1000-12 1
27 020-15237-000 Damper A 2
28 020-60020-259 Set SW; M.-M.
443-02001-003 * Micro-SW; AM50031C331 1
020-55042-104 * Wire Harness IV; M.-SW 1
29 020-15107-505 Side Frame R; M.-M. 1
30 020-15201-102 Sector Gear 1
31 612-11101-007 Gear; m0.8x18x11 2
32 612-11202-008 Gear; m0.8x28x9 1
33 610-00007-101 HG Damper; 2G50-C50 1
Cutter Unit
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-15202-206 Bracket; Cutter 1 B4
1 020-15223-106 Bracket; Cutter; A4 1 A4, Legal
2 020-15232-300 Cutter Guide (Lower) 1
3 020-15233-403 Cutter Guide (Upper) 1
4 020-95010-108 Unit/ Cutter 1
5 020-15245-100 Cutter Rubber 2
6 635-17433-006 Step Screw; 4x3; M3x6 1
7 020-15248-001 Mylar Sheet; Write Roller 1
I-36
Master Removal Area (1)
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-14702-205 Base Cover; M.-Rmv. 1 31 020-60015-255 Safety SW; M.-Rmv.
2 020-14101-201 Disposal Box 1 020-55040-101 * Wire Harness II; M.-SW 1
3 020-14125-100 Bracket; Box Lever 1 443-02004-002 * Micro SW; AM50039C331F1SW 1
4 020-14126-000 Shaft; Box Lever 1 32 020-60017-258 Cover Set SW; M.-Rmv.
5 020-14124-104 Lever; Disposal Box 1 020-55042-104 * Wire Harness IV; M.-SW 1
6 020-14127-006 Spring; Box Lever 1 443-02004-002 * Micro SW; AM50039C331F1SW 1
020-94100-057 Unit/ Master Removal; B4 II B4 33 020-14323-000 Spring F; Safty SW 1
020-94200-051 Unit/ Master Removal; A4 II A4, Legal 34 020-14316-208 Bracket F; Safety SW 1
* Master Removal Area (2) 35 550-21169-004 Seal; Master Disposal 1
7 020-14116-004 * Vertical Transport Roller (Down) 1 B4 35 550-21170-002 Seal; Master Disposal; Pic. 1
7 020-14204-000 * Vertical Transport Roller (Down); A4 1 A4, Legal 36 550-21172-005 Seal; P.-Feed Pressure 1
8 020-14114-206 * Bracket F; V.-T.-Roller 1 36 550-21173-001 Seal; P.-Feed Pressure; Pic. 1
9 020-14115-202 * Bracket R; V.-T.-Roller 1
10 607-13000-003 * Metal; F6x10/ 9x4; 12x1.5 2
11 612-03105-001 * Gear; m1.25x14x3 1
12 020-14135-203 * Transfer Pulley C (Lower); M.-Rmv. 1
I-38
13 020-14137-206 * Transfer Pulley B (Lower); M.-Rmv. 1
14 020-14131-208 * Transfer Pulley A (Lower); M.-Rmv. 1
15 628-21520-008 * Transfer Belt; f2x152 4
16 020-14022-107 * Lift Spring F; M.-Rmv. 1
17 020-14023-103 * Lift Spring R; M.-Rmv. 1
18 020-14054-300 * Side Frame F; M.-Rmv. 1
19 020-14058-306 * Side Frame R; M.-Rmv. 1
20 020-14113-102 * Holder; V-Transport Roller 1 B4
20 020-14203-101 * Holder; V-Transport Roller;A4 1 A4, Legal
21 020-60006-108 * Master Sensor III 1
22 020-14112-009 * Spring; V.-Transport Roller 4
23 020-14108-206 * Stay (Lower); M.-Rmv. 1
24 020-14140-002 * Master Removal Hook 2 2
25 020-14060-203 * Lift Arm; M.-Rmv. 2
26 020-14319-304 Bracket R; Safety SW 1
27 020-14325-002 Spring R; Safety SW 1
28 020-14322-003 Set Plate; Safety SW 2
29 020-14321-201 Lever; Safety SW 2
30 020-14324-103 Actuator; Safety SW 2
Master Removal Area (2)
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
020-94100-057 Unit/ Master Removal; B4 II B4 33 020-14044-208 * Transfer Pulley C (Upper); M.-Rmv. 1
020-94200-051 Unit/ Master Removal; A4 II A4, Legal 34 020-14038-208 * Transfer Pulley B (Upper); M.-Rmv. 1
* Master Removal Area (1) 35 020-14040-202 * Transfer Pulley A (Upper); M.-Rmv. 1
1 020-14001-509 * Main Frame; M.-Rmv. 1 36 020-14016-000 * Vertical Transport Roller (Up) 1 B4
2 020-14011-202 * Stay A; M.-Rmv. 1 36 020-14202-008 * Vertical Transport Roller (Up); A4 1 A4, Legal
3 607-13000-003 * Metal; F6x10/ 9x4; 12x1.5 4 37 020-14010-001 * Pulley Shaft; M.-Rmv. 1 B4
4 612-82301-007 * Gear; m1x34 + m1x16 2 37 020-14201-001 * Pulley Shaft; M.-Rmv.; A4 1 A4, Legal
5 612-12302-006 * Gear; m1x34x5 1 38 020-14506-309 * Bracket; Master Removal Sensor 1
6 020-14048-408 * Gear Cover F; M.-Rmv. 1 39 020-60021-000 * Master Removal Sensor 1
7 020-14031-009 * Bracket; Compressing Sensor 1 40 020-14065-000 * Protection Plate R; M.-Rmv. 1
8 443-30005-006 * Sensor; GP1A71A 1 41 020-14004-001 Bracket; Comressing Motor 1
9 020-14029-004 * Hook F; M.-Rmv. 1
10 020-14026-200 * Actuator Disc; M.-Rmv. 1
11 607-15000-000 * Metal; F8x13/ 12x5; 16x2 2
12 020-65004-308 * Vertical Transport Motor; M.-Rmv. 1
13 020-65005-304 * Compressing Motor; M.-Rmv. 1
I-40
14 612-80400-105 * Gear; m0.5x40 + m1x16 1
15 612-03104-005 * Gear; m1.25x14x6 1
16 612-82500-000 * Gear; m1x50 + m1x16 2
17 612-82501-006 * Gear; m1x50 + m1x24 1
18 020-14051-301 * Gear Cover R; M.-Rmv. 1
19 020-14934-300 * Gear 35 1
20 020-14030-002 * Hook R; M.-Rmv. 1
21 020-14028-008 * Hook Spring; M.-Rmv. 1
22 020-14018-207 * Compressing Plate; M.-Rmv. 1
23 020-55018-203 * Wire Harness; M.-Rmv. 1
24 443-30005-006 * Sensor; GP1A71A 1
25 020-14025-203 * Compressing Spring R; M.-Rmv. 1
26 020-14024-207 * Compressing Spring F; M.-Rmv. 1
27 020-14017-200 * Shaft; Compressing Plate 1
28 020-14021-003 * Bracket; Compressing Sensor 1
29 020-14027-001 * Shaft; M.-Rmv. Lever 1
30 020-14012-101 * Stay B; M.-Rmv. 1
31 020-24035-002 * Lever; M.-Rmv. II 1
32 628-21520-008 * Transfer Belt; f2x152 8
Electrical Component Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-51002-108 Power Supply PCB; S-100 1 100V
1 020-51006-308 Power Supply PCB; H-200 1 200V (For Power Supply PCB; S-100) 100V
2 020-17218-002 Bracket; Power SW 1 485-00002-401 Fuse 10A 125V 5.2 ULTSC 1
3 020-97012-507 Power Cord Ass'y 100V 100V 485-00001-804 Fuse 8A 125V 5.2 ULTSC 1
020-17117-206 * Bracket A; Carrying Grasp 1 485-00003-408 Fuse 3.15A 125V ULTSC 3
020-51012-308 * Inlet PCB II 1 485-00003-505 Fuse 1A 125V ULTSC 2
3 020-97013-503 Power Cord Ass'y 200V 200V
020-17117-206 * Bracket A; Carrying Grasp 1 (For Power Supply PCB; H-200) 200V
020-51013-304 * Inlet PCB III 1 485-02320-001 Fuse 4A 250V 5.2 SET 1
4 020-17211-202 Bracket; Main PCB 1 485-02520-000 Fuse 6.3A 250V 5.2 ET 1
5 020-51020-009 Main PCB II 1 485-00003-203 Fuse 3.15A 250V 5.2 SET 3
6 665-02025-504 Wire Saddle; WS-4W 1 485-01421-009 Fuse 1A 250V 5.2 ET 2
7 020-55033-601 Wire Harness; M.-M.-Main 1
8 020-80020-*** System ROM; CRS 1
9 020-55036-406 Wire Harness; CN10 1 1630AW, C, AN, EN,
10 020-55030-203 Wire Harness; Main-Power 1 1610AW, UI, AN, 1600C,
I-42
1620C
10 020-55056-105 Wire Harness; Main-Power II 1 1630EP, UP, 1610EP
11 020-55037-100 Wire Harness; CN5 1
12 020-55034-306 Wire Harness; CN4 1
13 020-55023-304 Wire Harness; Safety SW 1
14 020-17219-009 Bracket; Wire Harness 1
15 665-04032-001 Edging; EO-12N 1
16 020-97015-000 Wire Harness J Ass'y; Drum
020-12635-004 * Connector Bracket; Drum 1
020-55038-107 * Wire Harness J; Drum 1
17 665-02043-006 Wire Saddle; LWS-1316 4
18 665-02039-009 Edging Saddle; ESD-17L 1
19 020-17250-003 Bracket; Option PCB 1
20 020-51010-208 Option PCB 1
21 020-17252-006 Option PCB Cover 1
22 665-02025-601 Wire Saddle; LWS-2N 1
23 020-75001-005 Damper D 2
24 665-02021-304 Clamp DKN-13 2
25 020-75000-009 Edging; EO-10N 1
26 505-00050-800 KGPS-8PF PCB Spacer 1
Operation Panel Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
020-97026-052 Unit/ Operation Panel; 1630 Pic. 1630 EP, UP, C 020-27322-002 * Panel Frame Ass'y; 1610 US 1610 UI
020-97027-059 Unit/ Operation Panel; 1630 1630 AW, AN, EN 7 020-27302-001 ** Panel Frame II 1
020-97028-055 Unit/ Operation Panel; 1600 Pic. 1600 C 8 020-27323-009 ** Main Panel Sheet; 1610 US 1 1610 UI
020-97032-052 Unit/ Operation Panel; 1620 Pic. 1620 C 9 020-27324-005 ** Sub-Panel Sheet; 1610 US 1 1610 UI
020-97029-051 Unit/ Operation Panel; 1610 US 1610 UI
020-97030-050 Unit/ Operation Panel; 1610 Pic. 1610 EP 020-27325-001 * Panel Frame Ass'y; 1610 Pic. 1610 EP
020-97031-056 Unit/ Operation Panel; 1610 1610 AW, AS 7 020-27302-001 ** Panel Frame II 1
1630 EP, UP, C,
1 020-27303-008 * Sub-Panel Cover A 1 8 020-27314-000 ** Main Panel Sheet; 1630 Pic. 1 1610 EP
2 020-27304-004 * Sub-Panel Cover B 1 9 020-27326-008 ** Sub-Panel Sheet; 1610 Pic. 1 1630 EP, UP, C
3 020-51021-005 * Panel PCB II 1
4 020-27307-003 * Reinforcement Plate; Panel 1 020-27327-004 * Panel Frame Ass'y; 1610 1610 AW
5 020-27308-000 * Holder Ball 1 7 020-27302-001 ** Panel Frame II 1
1630 AW, AN, EN,
6 020-27309-006 * Ball Support Spring 1 8 020-27317-009 ** Main Panel Sheet; 1630 1 1610 AW, AS
9 020-27328-000 ** Sub-Panel Sheet; 1610 1 1610 AW, AS
020-27313-003 * Panel Frame Ass'y; 1630 Pic. 1630 EP, UP, C
7 020-27302-001 ** Panel Frame II 1 10 020-65013-005 Counter 1
I-44
1630 EP, UP, C,
8 020-27314-000 ** Main Panel Sheet; 1630 Pic. 1 1610 EP
9 020-27315-006 ** Sub-Panel Sheet; 1630 Pic. 1 1630 EP, UP, C
020-27316-002 * Panel Frame Ass'y; 1630 1630 AW, AN, EN
7 020-27302-001 ** Panel Frame II 1
1630 AW, AN, EN,
8 020-27317-009 ** Main Panel Sheet; 1630 1 1610 AW, AS
9 020-27318-005 ** Sub-Panel Sheet; 1630 1 1630 AW, AN, EN
020-27319-001 * Panel Frame Ass'y; 1600 Pic. 1600 C
7 020-27302-001 ** Panel Frame II 1
8 020-27320-000 ** Main Panel Sheet; 1600 Pic. 1 1600 C
9 020-27321-006 ** Sub-Panel Sheet; 1600 Pic. 1 1600 C
020-27329-007 * Panel Frame Ass'y; 1620 Pic. 1620 C
7 020-27302-001 ** Panel Frame II 1
8 020-27330-005 ** Main Panel Sheet; 1620 Pic. 1 1620 C
9 020-27331-001 ** Sub-Panel Sheet; 1620 Pic. 1 1620 C
Exterior Cover Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-25590-000 ADF Cover II 1
2 020-25701-006 Original Side Guide (R) II 1
3 020-25700-000 Original Side Guide (F) II 1
4 020-15702-101 Slide Rack; Original Holder 2
5 020-15724-008 Rack Cover 1
6 005-24114-003 Shaft Gear; Original Holder 1
7 020-25584-000 Original Tray II 1
8 020-27101-006 Front Cover; CR 1
9 020-24701-002 Upper Cover II 1
10 020-24703-005 Original Stopper II 1
11 020-27102-002 Back Cover II 1
12 020-25191-008 Cover; M.-M. Unit II 1
13 550-21626-006 Emblem; CR1630 EP 1
550-21627-002 Emblem; CR1630 UP 1
550-21628-009 Emblem; CR1630 AW 1
550-21629-005 Emblem; CR1630 AN 1
I-46
550-21630-003 Emblem; CR1630 EN 1
550-21631-000 Emblem; CR1630 C 1
550-21632-006 Emblem; CR1600 C 1
550-21675-007 Emblem; CR1620 C 1
550-21633-002 Emblem; CR1610 UI 1
550-21634-009 Emblem; CR1610 EP 1
550-21635-005 Emblem; CR1610 AW 1
550-21636-001 Emblem; CR1610 AS 1
14 020-27117-107 Drum Inserting Stopper 1
Connection Parts To Options
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 020-55005-004 Wire Harneess; I/F 1
2 017-55052-104 Wire Harness; Counter 1
3 020-17251-000 Bracket; Card Counter 1
4 017-97300-108 Wire Harness; JS III 1
5 020-13450-008 Bracket; JS III 1
I-48
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
