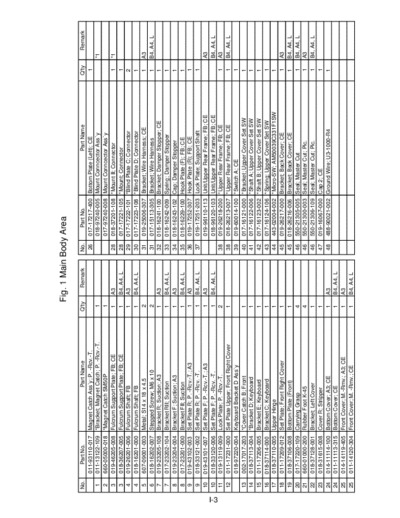

Image preview - the first page of the document
>> Download FR_parts02 documenatation <<
Text preview - extract from the document
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
011-93110-017 Magnet Catch Ass`y; P. -Rcv.-T. 26 017-17217-400 Bottom Plate (Left); CE 1
1 011-13122-109 *Bracket; Magnet Catch; P. -Rcv.-T. 1 018-97240-005 Mount Conncector Ass`y *1
2 660-05000-018 *Magnet Catch SM50P 1 017-97240-008 Mount Conncector Ass`y
3 019-46205-008 Fulcrum Support Plate; FB; CE 1 A3 28 018-37201-108 *Mount II; Connector 1 *1
3 018-36207-005 Fulcrum Support Plate; FB; CE 1 B4, A4, L 28 017-17221-105 *Mount; Connector 1
4 019-26201-006 Fulcrum Shaft; FB 1 A3 29 017-17222-101 *Blind Plate C; Connector 2
4 018-16201-000 Fulcrum Shaft; FB 1 B4, A4, L 30 017-17223-108 *Blind Plate D; Connector 1
5 607-09001-003 Metal; S14 x 18 x 4.5 2 31 019-25006-307 Bracket; Wire Harness; CE 1 A3
6 018-16202-007 Stepped Screw; M6 x 10 2 31 017-15113-305 Bracket; Wire Harness 1 B4, A4, L
7 019-23205-108 Bracket R; Suction; A3 1 A3 32 018-16241-100 Bracket; Damper Stopper; CE 1
7 017-23202-104 Bracket RII; Suction 1 B4, A4, L 33 018-16242-009 Spring; Damper Stopper 1
8 019-23204-004 Bracket F; Suction; A3 1 A3 34 018-16243-102 Cap; Damper Stopper 1
8 017-23201-000 Bracket FII; Suction 1 B4, A4, L 35 018-16229-100 Hook Plate (F); FB; CE 1
9 019-43102-003 Set Plate R; P. -Rcv.-T.; A3 1 A3 36 019-17252-307 Hook Plate (R); FB; CE 1
9 018-33121-002 Set Plate R; P. -Rcv. -T. 1 B4, A4, L 37 019-17251-203 Lock Plate; Support Shaft 1
10 019-43101-007 Set Plate F; P. -Rcv.-T.; A3 1 A3 019-96110-113 Unit/Upper Rear Frame; FB; CE A3
I-3
10 018-33120-006 Set Plate F; P. -Rcv. -T. 1 B4, A4, L 018-96120-103 Unit/Upper Rear Frame; FB; CE B4, A4, L
11 019-13119-009 Lock Plate; P. -Rcv.-T. 2 38 019-26218-200 *Upper Rear Frame; FB; CE 1 A3
12 011-17231-000 Set Plate Upper; Front Right Cover 1 38 018-26213-007 *Upper Rear Frame; FB; CE 1 B4, A4, L
018-97220-004 Keyboard Bracket D Ass`y 39 019-60014-100 *Switch A; CE 1
13 002-17017-203 *Cover Catch B; Front 1 40 017-16121-000 *Bracket; Upper Cover Set SW 1
14 018-37113-004 *Bracket D; Keyboard 1 41 017-16122-006 *Shaft A; Upper Cover Set SW 1
15 011-17206-005 Bracket E; Keyboard 1 42 017-16123-002 *Shaft B; Upper Cover Set SW 1
16 018-37114-000 Bracket C; Keyboard 1 43 017-16124-106 *Spring; Upper Cover Set SW 1
17 018-37110-005 Upper Hinge 1 44 443-02004-002 *Micro-SW; AM50039C331F1SW 1
18 011-17209-012 Set Plate; Front Right Cover 1 45 019-26217-000 Bracket; Back Cover; CE 1 A3
19 018-37106-008 Bottom Plate (Front) 1 45 018-26216-006 Bracket; Back Cover; CE 1 B4, A4, L
20 017-17220-109 Carrying Grasp 4 46 550-21305-005 Seal; Master Cut 1 B4, A4, L
21 660-01000-200 Rubber Foot K-45 4 46 550-21300-003 Seal; Master Cut; Pic. 1 A3
22 018-37128-001 Bracket; Left Cover 1 46 550-21306-109 Seal; Master Cut; Pic. 1 B4, A4, L
23 018-31615-008 Cover R; Stripper 1 47 019-16067-000 Cap 2; CE 1
24 014-11114-100 Bottom Cover; A3; CE 1 A3 48 488-90021-002 Ground Wire; U3-1000-R4 1
24 011-11113-315 Bottom Cover; CE 1 B4, A4, L
25 014-14119-405 Front Cover; M.-Rmv.; A3; CE 1 A3
25 011-14120-304 Front Cover; M. -Rmv.; CE 1 B4, A4, L
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
49 481-30007-000 Ground Finger 2
50 019-11501-305 Bracket; Ground Finger 2
017-93110-100 Magnet Catch Ass'fy D; P. -Rcv.-T.; CE
51 017-23405-307 *Bracket D; Magnet Catch; P. -Rcv.-T.; CE 1
52 660-05000-018 *Magnet Catch SM50P 1
*1 All FR3950- models only
I-4
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
019-91811-458 Scraper Ass'fy; CE A3 25 018-31621-105 Scraper Cover 1 B4, A4, L
017-91813-405 Scraper Ass'fy; CE B4, A4, L 25 019-41611-008 Scraper Cover;A3 1 A3
1 019-21805-205 *Shaft; Pickup Roller 1 A3 26 635-17613-004 Stepped Screw; M3 x 4 2
1 017-11811-300 *Shaft; Pickup Roller 1 B4, A4, L 019-91830-002 P.-F. Pressure Adj. Lever Ass`y
2 *Pin; 2 x 14 2 Ref.Pg.II-36 27 017-11805-008 *Bracket; P.-F. Pressure Adj. Lever 1
3 011-11522-002 *Paper Guide Roller 2 28 011-11810-105 *P.-F. Pressure Adj. Lever 1
4 000-06123-007 *Stopper; Paper Guide Roller 2 29 011-11815-000 *Spring: P.-F. Pressure Adj. Lever 1
5 611-42100-001 *Pulley; P21-3M060 (HTD) 1 30 017-11808-007 *Hook; P.-F. Pressure Adj. 1
6 620-31776-002 *Belt; 177-3M-6 1 31 019-11811-100 *Spring B; P.-F. Pressure Adj. 1
019-11810-103 *Pickup Roller Ass'fy 2 32 660-05000-301 *Magnet Catch; SM-41 1
7 006-11332-009 **Core; Pickup Roller 1 33 017-60025-000 *Micro-SW Ass`y 3 1
8 019-11806-106 **Rubber Roller; Pickup 1 34 017-11640-009 Bracket; Elevator Spring 1
9 019-11812-106 *Lock Ring 3 35 019-21602-002 Spring; Elevator 2 A3
10 019-11801-104 *Holder Plate; Scraper; CE 1 35 017-11641-005 Spring; Elevator 2 B4, A4, L
11 607-16000-802 *Metal; 10 x 18/16 x 5; 22 x 1.5 2 36 002-11719-303 Rack; Elevator 2
12 017-11818-002 *Scraper Collar 1 37 017-11602-301 Link Plate; Elevator 1
I-7
13 017-11812-004 *Shaft; Scraper 1 38 002-11717-009 Collar; Elevator 2
14 638-90000-012 *Washer; 18 x 10.4 x 0.4 1 39 607-16000-403 Metal; 10 x 15/14 x 5.5; 20 x 2.5 1
15 611-42600-004 *Pulley; P26-3M060 (HTD) 1 40 019-11814-206 Bracket; Upper Limit Sensor 1
16 019-11803-000 *Upper Arm; Scraper 1 41 017-60007-001 Upper Limit Sensor 1
17 019-11804-006 *Spring; Scraper 1 42 019-91600-007 Shaft; Elevator 1 A3
18 635-17613-004 *Stepped Screw; M3 x 4 1 42 017-91610-008 Shaft; Elevator 1 B4, A4, L
7 006-11332-009 Core; Pickup Roller 1 43 443-31003-007 Sensor; OJ-620331 1
8 019-11806-106 Rubber Roller; Pickup 1 44 017-11648-000 Bracket; Lower Limit Sensor 1
9 019-11812-106 Lock Ring 1 45 017-11649-006 Gear; Elevator 1
019-91800-200 Feed Tray Safety SW Ass'fy; A3; CE A3 46 017-91620-003 Unit/Elevator Motor 1
017-91805-100 Feed Tray Safety SW Ass'fy II; CE B4, A4, L 47 607-15000-000 Metal; 8 x 13/12 x 5; 16 x 2 1
19 019-41801-109 *Cover; Pickup Roller; CE 1 A3 48 607-12001-006 Metal; 5 x 10/9 x 4; 12 x 1.5 1
19 017-31801-106 *Cover; Pickup Roller; CE 1 B4, A4, L 49 550-20687-001 Seal; P.-Feed Pressure 1
20 017-11819-009 *Spring F; Safety SW 1 49 550-20688-008 Seal; P.-Feed Pressure; Pic. 1
21 019-21802-206 *Bracket; Feed Tray Safety SW; CE 1 A3
21 018-31622-004 *Bracket; Feed Tray Safety SW 1 B4, A4, L
22 443-02000-708 *Micro-SW; AM50630A331 2
23 019-55032-000 *Wire Harness; Feed Tray Safety SW 1
24 017-11820-007 *Spring B; Safety SW 1
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
017-91510-216 Unit/Paper-Feed Tray II; CE 33 017-31530-102 *Feed Board II;US 1 U.S.A.
017-91512-219 Unit/Paper-Feed Tray II; US U.S.A. 34 019-11502-000 Connector Cover 1
1 011-11510-209 *Side Guide L; P. -F. -T. 1 35 Pin; 2 x 10 1 Ref.Pg.II-36
2 011-11509-200 *Side Guide R; P. -F. -T. 1 36 550-21292-108 Seal; Paper Side Guide 1
3 019-11524-100 *Slide Sheet; P. -F. -T. 4 36 550-21505-004 Seal; Paper Side Guide; Ch 1 China
4 017-41501-100 *Paper Feed Tray; CE 1 26 Not Available. For domestic models only
5 011-11516-002 *L. O. Sheet 1
6 017-11512-205 *Slide Rack; P. -F. -T.; CE 1
7 017-21507-200 *Slide Rack F; P. -F. -T.; CE 1
8 011-11513-003 *Collar; Slide Rack; P. -F. -T 2
9 019-11522-108 *Link Plate; Side Guide; P. -F. -T. 2
10 638-90616-005 *Washer; 6.1 x 12 x 1.6 2
11 011-11514-000 *Gear; Slide Rack; P. -F. -T. 1
12 014-11533-006 *Spring; Slide Rack 1
13 011-11524-005 *Adj. Dial 1
14 011-11503-008 *Shaft B; P. -F. -T. 1
I-9
15 017-11513-406 *Actuater Plate; P. -F. -T.; CE 1
16 017-31503-008 *Bracket; P. -F. -T.; CE 1
17 607-15006-009 *Metal; 8x16x5; 18x1.1 2
18 550-20590-105 *Seal; P. -F. -T. 1
18 550-21121-001 *Seal; P. -F. -T.; US 1 U.S.A.
19 443-30002-007 *Sensor K; PS-R11LB 1
20 019-55016-307 *Wire Harness II; P. -F. -T. 1
21 017-11518-505 *Bracket; Size VR; P. -F. -T.; CE 1
22 017-11516-103 *Size Gear; P. -F. -T. 1
23 443-02000-708 *Micro-SW; AM50630A331 1
24 488-90026-004 *Ground Wire; P. -F. -T. 1
25 011-11529-309 *Feed Board Cover 1
27 017-11519-102 *Lead SW Cover; P. -F. -T.; CE 1
28 443-32001-008 *Sensor S; GP2A20L 1
29 019-11521-209 *Support Plate L; Feed Board; CE 1
30 019-11520-202 *Support Plate R; Feed Board; CE 1
31 011-11502-109 *Shaft A; P. -F. -T. 1
32 011-11523-106 *Adj. Nut; P. -F. -T. 1
33 017-31517-106 *Feed Board II; CE 1
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
019-91510-008 Unit/Paper-Feed Tray; A3; CE 33 019-41728-002 *Cover R; P.-F.-T. 1
019-91511-004 Unit/Paper-Feed Tray; A3; US; CE U.S.A. 34 019-41729-009 *Shaft; Cover; P.-F.-T. 2
1 011-11510-209 *Side Guide L; P. -F. -T. 1 35 019-41730-007 *Spring; Cover; P.-F.-T. 2
2 011-11509-200 *Side Guide R; P. -F. -T. 1 36 019-55108-007 *Wire Harness ;P.-F.-T. 1
3 019-11524-100 *Slide Sheet; P. -F. -T. 4 38 443-02017-007 **Mcro-SW; AM50610C431F1 2
4 019-41701-007 *Paper Feed Tray; CE 1 37 019-65022-003 *Pulse Motor 1
4 019-41702-003 *Paper Feed Tray; US; CE 1 U.S.A. 39 443-31003-007 *Sensor; OJ-620331 1
5 011-11516-002 *L.O. Sheet 1 40 019-41708-001 *Stopper; P.-F.-T. 1
6 019-21513-107 *Slide Rack; P. -F. -T.; CE 1 41 612-12307-008 *Gear;m1x35x9 1
7 019-21512-100 *Slide Rack F; P. -F. -T.; CE 1 42 612-80601-003 *Gear;m0.5x63+m0.8x14 1
8 011-11513-003 *Collar; Slide Rack; P. -F. -T. 2 43 612-81300-007 *Gear;m0.8x36+m0.8x14 1
9 019-11522-108 *Link Plate; Side Guide; P. -F. -T. 2 44 612-81400-001 *Gear;m0.8x49+m1x14 1
10 638-90616-005 *Washer; 6.1 x 12 x 1.6 2 45 019-11502-000 Connector Cover 1
11 011-11514-000 *Gear; Slide Rack; P. -F. -T. 1 46 Pin; 2 x 10 1 Ref.Pg.II-36
12 014-11533-006 *Spring; Slide Rack 1 47 550-21292-108 Seal; Paper Side Guide 1
13 019-41726-000 *Rack; Drive; P.-F.-T. 1 47 550-21505-004 Seal; Paper Side Guide; Ch 1 China
I-11
14 019-21501-001 *Shaft B; P. -F. -T. 2 48 Not Available. For domestic models only
15 019-41732-000 *Actuater Plate; P. -F. -T.; CE 1
16 019-41711-002 *Bracket; P. -F. -T.; CE 1
17 443-32001-008 *Sensor S; GP2A20L 1
18 019-55109-003 *Wire Harness II;P.-F.-T. 1
19 019-41731-003 *Bracket; Size VR; P. -F. -T.; CE 1
20 017-11516-103 *Size Gear; P. -F. -T. 1
21 443-02000-708 *Micro-SW; AM50630A331 1
22 443-30002-007 *Sensor K; PS-R11LB 1
23 014-11529-203 *Feed Board Cover 1
24 017-11519-102 *Lead SW Cover; P. -F. -T.; CE 1
25 019-11521-209 *Support Plate L; Feed Board; CE 1
26 019-11520-202 *Support Plate R; Feed Board; CE 1
27 019-41519-004 *Feed Board; CE 1
28 019-41707-005 *Cover; Wire Harness; P.-F.-T. 1
29 019-41712-009 *Bracket; Drive ; P.-F.-T. 1
30 019-41717-000 *Gear Cover 1
31 019-41720-001 *Bracket; Motor; P.-F.-T. 1
32 019-41727-006 *Cover F; P.-F.-T. 1
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
019-91211-000 Unit/Main Motor; T 019-91225-001 Main Shaft Ass`y 1 B4, L
1 019-91212-007 *Main Motor Ass`y; T 1 27 019-91228-000 *Main Pulley; Main Shaft 1
011-60027-106 **Photoelectron Disc. 1 28 017-11237-000 *Cam; Pressure Roller; B4 1
017-60031-000 **Encoder Sensor 1 30 006-11216-106 Bearing House A; Main Shaft 1
2 002-11220-015 *Cam; Guide Roller 1 31 017-11209-405 Face Plate; Main Shaft 1
3 011-11240-309 *Cam; Timing Roller 1 32 017-11202-001 Bracket B; Sensor 2
019-91220-107 Unit/Drive; CE 019-91231-001 P Disc Ass`y
4 019-11213-008 *Base Plate; P. -F. Clutch 1 33 019-11238-000 *Range Adj. Plate; P Disc 1
5 019-65021-104 *P. -F. Clutch 1 34 019-11235-001 *P Disc 1
6 019-11220-209 *Bracket; P. -F. Clutch; CE 1 35 019-11224-000 Face Plate; Pressure Shaft 1
7 600-08242-006 *Bearing; 628ZZ 6 36 018-31201-009 Pressure Sensor Disc; B4 1
8 600-20061-009 *Bearing; 608ZZ 1 37 620-97506-006 Belt; 750-3GT-6 1
9 011-11208-103 *Base Shaft Plate; Slide Plate 1 017-91230-302 Pressure Link Ass`y
10 019-11201-000 *Idler Pulley 4 38 019-11247-000 *Pressure Link II; Bottom 1
11 002-11227-001 *Spacer; Slide Plate 6 39 017-11214-000 *Pressure Link; Top 1
12 019-11209-000 *Slide Plate (Base) 1 40 017-11226-008 *Spring B; Pressure Link 1
13 002-11225-009 *Support Block; Slide Plate 2 41 017-11217-009 *Link Boss B 1
I-13
14 006-11224-109 *Slide Plate (Front) 1 42 017-11224-005 *Link Spacer 1
15 011-11231-008 *Shaft Block; Slide Plate 1 43 607-15002-003 *Metal; 8 x 12 x 5; 16 x 2 2
16 011-11230-001 *Shaft; Slide Plate 1 44 017-11216-002 *Link Boss A 1
17 638-90616-005 *Washer; 6.1 x 12 x 1.6 1 45 638-90804-006 *Washer; 8 x 15 x 0.4 1
18 607-13000-003 *Metal; 6 x 10/9 x 4; 12 x 1.5 2 46 607-71420-004 *Washer; 14X20X0.8 1
19 011-11220-006 *Shaft Base Block; Slide Plate 1 47 019-11245-007 *Gear; Pressure Adj. Screw 1
20 011-11232-004 *Gear; Slide Plate 1 48 019-11250-000 *Pressure Adj. Screw 1
21 011-11227-000 *Reinforce Plate; Slide Plate 1 49 019-11251-007 *Spring; Pressure Link 1
22 620-78309-003 *Belt; 830-5GT-11 1 50 017-11223-009 *Linking Plate; Drive Base 1
23 002-11291-109 *Sector Gear 1 51 017-11234-108 *Spring; Linking Plate 1
24 011-11296-002 Spring; Sector Gear 1 52 019-11226-002 *Hook Lever 1
25 017-11201-200 Bracket A; Sensor 1 53 019-11231-103 *Shaft; Hook Lever 1
26 443-31003-007 Sensor; OJ-620331 3 54 019-11230-000 *Spring; Hook Lever 1
019-91226-008 Main Shaft Ass`y;A4 1 A4 55 011-11289-006 *Bracket; Hook Lever Spring 1
27 019-91228-000 *Main Pulley; Main Shaft 1 56 011-11280-106 *Pressure Hook 1
28 017-11238-006 *Cam; Pressure Roller; B4 1 57 019-65012-008 *Pressure Solenoid 1
29 019-11256-009 Ring; Main Shaft 1 58 019-11225-006 Resting Position Plate; Pressure Lever 1
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
017-91206-100 Pressure Det. Ass`y
59 019-11252-003 *Bracket A II; Pressure Control 1
60 019-11253-000 *Bracket B II; Pressure Control 1
61 443-30005-006 *Sensor; GP1A71A 1
62 607-11001-002 *Metal; 4 x 6 x 2.2; 8 x 1 1
63 019-11240-102 Pressure Lever 1
64 019-11223-003 Spring ; Pressure Link 1
65 019-13610-209 Bracket; Tension Pulley 1
66 011-11254-202 Tension Pulley 1
67 017-11208-000 Base Shaft Plate; Pressure 1
68 011-11234-201 Main Bracket; Face Plate 2
69 435-00025-000 Core; SFC-6 1
70 019-18051-100 Guide; Motor Wire Harness; CE 1
71 019-11222-007 Cover; Paper Feed Clutch; CE 1
I-14
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
019-91211-000 Unit/Main Motor; T 31 017-11209-405 Face Plate; Main Shaft 1
1 019-91212-007 *Main Motor Ass'fy; T 1 35 019-11224-000 Face Plate; Pressure Shaft 1
011-60027-106 **Photoelectron Disc. 1 37 620-97506-006 Belt; 750-3GT-6 1
017-60031-000 **Encoder Sensor 1 019-91232-008 Pressure Link Ass`y
2 002-11220-015 *Cam; Guide Roller 1 38 019-11247-000 *Pressure Link II; Bottom 1
3 011-11240-309 *Cam; Timing Roller 1 39 017-11214-000 *Pressure Link; Top 1
019-91220-107 Unit/Drive; CE 40 019-21202-004 *Spring C; Pressure Link 1
4 019-11213-008 *Base Plate; P. -F. Clutch 1 41 017-11217-009 *Link Boss B 1
5 019-65021-104 *P. -F. Clutch 1 42 017-11224-005 *Link Spacer 1
6 019-11220-209 *Bracket; P. -F. Clutch; CE 1 43 607-15002-003 *Metal; 8 x 12 x 5; 16 x 2 2
7 600-08242-006 *Bearing; 628ZZ 6 44 017-11216-002 *Link Boss A 1
8 600-20061-009 *Bearing; 608ZZ 1 45 638-90804-006 *Washer; 8 x 15 x 0.4 1
9 011-11208-103 *Base Shaft Plate; Slide Plate 1 46 607-71420-004 *Washer; 14X20X0.8 1
10 019-11201-000 *Idler Pulley 4 47 019-11245-007 *Gear; Pressure Adj. Screw 1
11 002-11227-001 *Spacer; Slide Plate 6 48 019-11250-000 *Pressure Adj. Screw 1
12 019-11209-000 *Slide Plate (Base) 1 49 019-11251-007 *Spring; Pressure Link 1
I-17
13 002-11225-009 *Support Block; Slide Plate 2 50 017-11223-009 *Linking Plate; Drive Base 1
14 006-11224-109 *Slide Plate (Front) 1 51 017-11234-108 *Spring; Linking Plate 1
15 011-11231-008 *Shaft Block; Slide Plate 1 52 019-41226-007 *Hook Lever 1
16 011-11230-001 *Shaft; Slide Plate 1 53 019-41231-000 *Shaft; Hook Lever 1
17 638-90616-005 *Washer; 6.1 x 12 x 1.6 1 54 019-11230-000 *Spring; Hook Lever 1
18 607-13000-003 *Metal; F6 x 10/9 x 4; 12 x 1.5 2 55 019-41234-000 *Stopper; Pressure Hook 1
19 011-11220-006 *Shaft Base Block; Slide Plate 1 56 011-11280-106 *Pressure Hook 1
20 011-11232-004 *Gear; Slide Plate 1 57 019-65012-008 *Pressure Solenoid 1
21 011-11227-000 *Reinforce Plate; Slide Plate 1 58 019-41237-009 *Stopper; Cushion 1
22 620-78309-003 *Belt; 830-5GT-11 1 59 019-11225-006 Resting Position Plate; Pressure Lever 1
23 002-11291-109 *Sector Gear 1
24 011-11296-002 Spring; Sector Gear 1 017-91206-100 Pressure Det. Ass`y
25 017-11201-200 Bracket A; Sensor 1 60 019-11252-003 *Bracket A II; Pressure Control 1
26 443-31003-007 Sensor; OJ-620331 1 61 019-11253-000 *Bracket B II; Pressure Control 1
019-91227-004 Main Shaft Ass'fy;A3 1 62 443-30005-006 *Sensor; GP1A71A 1
27 019-91228-000 *Main Pulley; Main Shaft 1 63 607-11001-002 *Metal; 4 x 6 x 2.2; 8 x 1 1
28 019-21201-105 *Cam; Pressure Roller; A3 1
29 019-11256-009 Ring; Main Shaft 1
30 006-11216-106 Bearing House A; Main Shaft 1
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
64 019-11240-102 Pressure Lever 1
65 019-11223-003 Spring ; Pressure Link 1
66 019-13610-209 Bracket; Tension Pulley 1
67 011-11254-202 Tension Pulley 1
68 017-11208-000 Base Shaft Plate; Pressure 1
69 011-11234-201 Main Bracket; Face Plate 2
70 435-00025-000 Core; SFC-6 1
71 019-18051-100 Guide; Motor Wire Harness; CE 1
72 019-11222-007 Cover; Paper Feed Clutch; CE 1
I-18
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 011-91420-019 Pressure Roller Ass`y; B4 1 B4 28 017-60003-200 *Paper Sensor 1
1 011-91421-007 Pressure Roller Ass`y; A4 1 A4,L 29 **Junction Connector; 6P 1 Ref.Pg.II-36
011-91410-315 Pressure Shaft Ass`y; B4 B4 30 018-31603-000 *Guide Plate (Lower) 1
011-91411-109 Pressure Shaft Ass`y; A4 A4,L 31 017-55039-205 *Wire Harness; Guide Plate; 49 1
2 011-91412-008 *Pressure Shaft 1 018-91701-108 *Unit/Stripper
3 002-11405-007 *Center Shaft; Pressure 1 32 018-31607-005 **Bracket; Stripper Unit (Dial) 1
4 011-11403-305 *Pressure Roller Support 1 33 019-11739-000 **Adj. Dial;Stripper 2
5 006-11312-008 *Support Collar; R3 2 34 019-11750-100 **Worm Gear Box;Stripper (Dial) 1
6 002-11402-008 *Adjuster; Press. -Roll. Support 2 35 019-11760-106 **Cam Plate; Stripper (Dial) 1
7 002-11404-108 *Roller Holder; Pressure 4 36 019-11741-101 **Bracket; Stripper Shaft (Dial) 1
8 011-11409-206 *Guide Cover; Pressure; B4 1 B4 37 019-11748-009 **Bracket; Stripper Base (Dial) 1
8 017-11401-004 *Guide Cover; Pressure; A4 1 A4,L 38 635-17624-006 **Stepped Screw; 6x2.2; M4x2.5 1
9 011-11404-301 *De-electricity Brush; B4 2 B4 39 019-60020-002 **Micro SW Ass`y 4 (Stack) 1
9 011-41404-101 *De-electricity Brush; A4 1 A4,L 40 019-11756-001 **Spring; Stack Paper Feed SW 1
011-91320-103 Guide Roller Ass`y 41 019-11755-005 **Bracket II; Stack Paper Feed SW 1
10 011-11301-103 *Guide Roller 1 42 019-11740-202 **Spring Stopper; Stripper (Dial) 1
I-21
11 006-11306-008 *Gear A; Guide Roller 1 43 019-11738-003 **Spring; Stripper (Dial) 1
12 002-11412-003 *Shaft Catch; Guide Roller 1 44 019-11749-200 **Actuator Plate II; Stack P.-F.SW 1
13 002-11210-109 *Load Spring; Guide Roller 1 45 635-17523-005 **Stepped Screw; 5x2; M3x3 1
14 006-11304-005 *Guide Shaft 1 46 019-11742-108 **Housing; Stripper (Dial) 1
15 006-11305-109 *One-Way Spring 1 47 019-11737-104 **Shaft; Stripper (Dial) 1
16 006-11303-009 *Gear; Guide Roller 1 51 018-31609-008 **Fixing Block 2
17 600-50059-017 Bearing; FLW688ZZ 1 52 018-31614-001 **Ground Spring; Roller System 2
017-91310-209 Timing Roller Ass`y 53 019-11763-008 **Collar; Stripper 1
18 006-11301-502 *Timing Roller 1 54 019-55015-009 *Wire Harness J; Guide Plate 1
19 607-13000-402 *Metal; 6 x 10/9 x 6; 12 x 1.5 2 55 011-11713-002 L Plate; Guide Plate 2
20 006-11307-004 *Gear B; Timing Roller 1 56 607-17000-105 Metal; 12 x 18 x 10; 24 x 2.5 2
21 017-11302-103 *Bracket; Timing Roller 1 48 019-11734-202 Cover (STND); Stripper Sheet 1
22 017-11301-107 *Shaft; Timing Roller 1 49 019-11733-109 Base; Stripper Sheet 1
23 607-15000-000 Metal; 8 x 13/12 x 5; 16 x 2 2 50 019-11731-009 Stripper Sheet (SHRT); 80 1
24 000-01327-100 Adj. Plate; Guide Roller; CE 1 019-91740-003 Unit/Stripper Pad; 70
25 000-01328-107 Adj. Eccentric; Guide Roller; CE 1 57 019-11832-000 *Cover F;Stripper Pad 1
018-91700-101 Unit/Guide Plate 58 019-11831-100 *Base F;Stripper Pad 1
26 017-21716-003 *Guide Plate (Upper) 1 59 019-11833-006 *Stripper Pad;70 1
27 019-11702-203 *Sheet; Guide Plate 1 59 019-11834-002 *Stripper Pad; U 1
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
1 014-91420-002 Pressure Roller Ass`y; A3 1 018-91701-108 *Unit/Stripper
014-91410-309 Pressure Shaft Ass`y; A3; CE 32 018-31607-005 **Bracket; Stripper Unit (Dial) 1
2 014-91412-000 *Pressure Shaft; A3 1 33 019-11739-000 **Adj. Dial; Stripper 2
3 002-11405-007 *Center Shaft; Pressure 1 34 019-11750-100 **Worm Gear Box; Stripper (Dial) 1
4 014-11406-209 *Pressure Roller Support; A3; CE 1 35 019-11760-106 **Cam Plate; Stripper (Dial) 1
5 014-11410-001 *Support Collar; A3 2 36 019-11741-101 **Bracket; Stripper Shaft (Dial) 1
6 002-11402-008 *Adjuster; Press.-Roll. Support 2 37 019-11748-009 **Bracket; Stripper Base (Dial) 1
7 002-11404-108 *Roller Holder; Pressure 4 38 635-17624-006 **Stepped Screw; 6x2.2; M4x2.5 1
8 014-11404-206 *Guide Cover; Pressure; A3 1 39 019-60020-002 **Micro SW Ass`y 4 (Stack) 1
9 014-11405-008 *De-electricity Brush; A3 1 40 019-11756-001 **Spring; Stack Paper Feed SW 1
014-91320-008 Guide Roller Ass`y; A3 41 019-11755-005 **Bracket II; Stack Paper Feed SW 1
10 014-11301-202 *Guide Roller; A3 1 42 019-11740-202 **Spring Stopper; Stripper (Dial) 1
11 006-11306-008 *Gear A; Guide Roller 1 43 019-11738-003 **Spring; Stripper (Dial) 1
12 002-11412-003 *Shaft Catch; Guide Roller 1 44 019-11749-200 **Actuator Plate II; Stack P.-F. SW 1
13 002-11210-109 *Load Spring; Guide Roller 2 45 635-17523-005 **Stepped Screw; 5x2; M3x3 1
14 006-11304-005 *Guide Shaft 1 46 019-11742-108 **Housing; Stripper (Dial) 1
I-23
15 006-11305-109 *One-Way Spring 1 47 019-11737-104 **Shaft; Stripper (Dial) 1
16 006-11303-009 *Gear; Guide Roller 1 51 018-31609-008 **Fixing Block 2
17 600-50059-017 Bearing; FLW688ZZ 1 52 018-31614-001 **Ground Spring; Roller System 2
019-91310-009 Timing Roller Ass`y; A3 53 019-11763-008 **Collar; Stripper 1
18 014-11303-108 *Timing Roller; A3 1 54 019-55107-000 *Wire Harness J; Guide Plate 1
19 607-13000-402 *Metal; 6 x 10/9 x 6; 12 x 1.5 2 55 011-11713-002 L Plate; Guide Plate 2
20 006-11307-004 *Gear B; Timing Roller 1 56 607-17000-105 Metal; 12 x 18 x 10; 24 x 2.5 2
21 019-21302-009 *Bracket; Timing Roller 1 57 019-41604-001 Bracket;Guide Plate 1
22 019-21301-002 *Shaft; Timing Roller 1 48 019-11734-202 Cover (STND); Stripper Sheet 1
23 607-15000-000 Metal; 8 x 13/12 x 5; 16 x 2 2 49 019-11733-109 Base; Stripper Sheet 1
24 000-01327-100 Adj. Plate; Guide Roller; CE 1 50 019-11731-009 Stripper Sheet (SHRT); 80 1
25 000-01328-107 Adj. Eccentric; Guide Roller; CE 1 019-91740-003 Unit/Stripper Pad; 70
019-91730-105 Unit/Guide Plate; A3 58 019-11832-000 *Cover F;Stripper Pad 1
26 019-21716-008 *Guide Plate (Upper) 1 59 019-11831-100 *Base F;Stripper Pad 1
27 019-11702-203 *Sheet; Guide Plate 1 60 019-11833-006 *Stripper Pad;70 1
28 017-60003-200 *Paper Sensor 1 60 019-11834-002 *Stripper Pad; U 1
29 **Junction Connector; 6P 1 Ref.Pg.II-36
30 019-41601-002 *Guide Plate (Lower) 1
31 017-55039-205 *Wire Harness; Guide Plate; 49 1
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
017-92231-000 Unit/Squeegee III; OW 27 607-10000-010 *Metal; 3 x 5 x 3; 8 x 1.4 1
019-92200-002 Unit/Squeegee; A3 A3 28 002-12229-105 *Tensioner; Squeegee 1
1 017-12101-900 *Squeegee Stay; OW 1 29 002-12233-005 *Spring; Tensioner; Squeegee 1
1 014-12201-104 *Squeegee Stay; A3 1 A3 30 011-12221-006 *Fulcrum; Tensioner; Squeegee 1
2 000-02254-514 *Ink Blocking Plate (Front) 1 31 017-12122-001 *Shaft Support; Squeegee 1
3 002-12219-002 *Adj. Boss; Ink Blocking 2 31 011-12241-007 *Shaft Support II; Squeegee 1 A3
4 019-12206-005 *Adj. Plate (Front); Squeegee 1 017-12124-403 *Ass`y; Shaft Joint 1
5 014-12227-103 *Reverse Rotation Stopper AII 1 011-12206-406 *Ass`y; Shaft Joint 1 A3
6 640-60080-010 *O Ring; P8-1.9 2 32 **Pulley; Main Shaft 1
7 601-10192-005 *Bearing; 6800ZZ 2 33 **Shaft Joint 1
8 000-02211-017 *Spring; Squeegee Gap 2 34 **Bearing Holder A; Squeegee 1
9 002-12234-001 *Spring; Adj. Plate (Front) 2 35 **Bearing; 6202ZZ 1
10 002-12213-101 *Sector Adjustor; Squeegee 1 36 002-12210-005 *Adj. Collar B; Squeegee 1
11 002-12240-001 *Shaft Catch; Drive; Squeegee 1 37 620-21209-002 *Squeegee Belt; B120M x L-9.5 1
12 002-12209-007 *Adj. Collar A; Squeegee 1 38 011-12222-401 Bracket R; Drum Cover F 1
13 017-12105-204 *Side Frame; Squeegee; OW 1 39 011-12223-408 Bracket L; Drum Cover F 1
I-25
13 011-12211-302 *Side Frame; Squeegee 1 A3 40 011-12213-100 Drum Cover F (Upper) 1
14 640-60140-004 *O Ring; P14-2.4 2 41 011-12224-005 Drum Cover F (Lower) 1
15 017-12111-506 *Squeegee Roller; OW 1 017-92300-002 Unit/Drum Frame
15 014-12221-504 *Squeegee Roller; A3 1 A3 42 000-01169-114 *Support Roller; Drum 3
16 017-12114-203 *Doctor Roller II; OW 1 43 002-12410-004 *Adj. Plate; Support Roller 1
16 014-12226-000 *Doctor Roller II; A3 1 A3 44 002-12409-103 *Support Shaft; Support Roller 2
17 017-12121-005 *Drive Shaft; Squeegee; OW 1 45 017-12201-700 *Frame; Drum 1
17 014-12252-000 *Drive Shaft; Squeegee; A3 1 A3 46 019-12315-009 *Shaft; Locking Plate II; Drum 1
18 017-12123-008 *Adj. Shaft; Squeegee; OW 1 47 019-12307-006 *Spring; Locking Plate; Drum 1
18 014-12251-004 *Adj. Shaft; Squeegee; A3 1 A3 48 019-12314-002 *Locking Plate II; Drum 1
19 019-12207-001 *Adj. Plate (Back); Squeegee 1 49 017-12228-004 *Drum Lever 1
20 000-02255-510 *Ink Blocking Plate (Back) 1 50 002-12407-003 *Boss A; Drum Lever 2
21 017-12115-005 *Reverse Rotation Stopper B 1 51 002-12418-102 *Spacer; Drum Lever 2
21 019-22206-003 *Reverse Rotation Stopper B 1 A3 52 014-12295-001 Lever; Bottle Stopper 1
22 638-90000-020 *Washer; 18 x 10.2 x 0.2 3 53 014-12297-004 Spring; Stopper Lever 1
23 011-12205-000 *Pulley; Squeegee Roller 1 54 018-32306-009 Bracket; Stopper Lever 1
24 019-12208-008 *Spacer; 18 x 10 x 1.8 2 55 017-12213-007 Inner Cover; Drum 1
25 640-70030-100 *V Ring; VRY2.7 x 3.5 x 4.1 1 56 017-22301-001 Bracket II; Drum Control PCB2 1
26 002-12238-104 *Axis; Drive Shaft; Squeegee 1 57 018-51018-006 Drum Control PCB2 1
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
58 017-55028-203 Wire Harness; Drum (R) 1 86 550-21743-002 Seal; Ink (Black); CH 1
59 017-55029-102 Wire Harness; Drum (L) 1 87 018-55029-100 Wire Harness; Bottle SW 1
60 019-55010-104 Wire Harness; Drum Inner 1
018-92200-005 Unit/Ink Pump
019-92420-002 Unit/Ink Pump A3
61 002-12303-305 *Bracket; Inking Motor 1
62 002-12304-107 *Piston Inking Pump 1
63 640-60140-004 *O Ring; P14-2.4 1
64 640-60220-016 *O Ring; P22-2.4 1
65 000-07119-100 *Coil Spring; Inking Pump 1
66 011-12151-008 *Valve; Inking Pump 2
67 018-32201-002 *Inking Pump Body 19 1
67 019-42201-008 *Inking Pump Body 19; A3 1 A3
68 011-12147-205 *Coil Spring; Inking Pump; RC 1
69 640-60100-100 *O Ring; P10A-2.4 1
70 011-12153-000 *Ink Distributor II 1
I-26
70 014-12213-005 *Ink Distributor; A3 1 A3
71 017-65016-700 *Inking Motor 1
72 002-12307-203 *Linking Disc; Inking Pump 1
73 002-12308-005 *Linking Plate; Inking Pump 1
74 002-12309-001 *Collar; Inking Pump 2
75 002-12310-107 *Collar Holder; Inking Pump 2
76 017-60020-407 Drum PCB 1
484-00000-800 *Pilot Lamp 1
77 017-12215-107 PCB Cover; Drum 1
78 018-32205-008 PCB Guard 1
79 018-32202-009 Bracket; Bottle SW 1
80 018-51019-002 Bottle SW PCB 1
014-12216-209 Bottle Guide II Ass'y A3
81 011-12208-107 *Bottle Guide (Over) 1
82 014-12217-108 *Bottle Guide II (Base) 1
84 019-12302-101 Drum Cover (Upper) 1
85 019-12303-108 Drum Cover (Lower) 1
86 550-21736-006 Seal; Ink (Black);Pic. 1
86 550-21742-006 Seal; Ink (Black) 1
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
017-92231-000 Unit/Squeegee III; OW 27 607-10000-010 *Metal; 3 x 5 x 3; 8 x 1.4 1
019-92200-002 Unit/Squeegee; A3 A3 28 002-12229-105 *Tensioner; Squeegee 1
1 017-12101-900 *Squeegee Stay; OW 1 29 002-12233-005 *Spring; Tensioner; Squeegee 1
1 014-12201-104 *Squeegee Stay; A3 1 A3 30 011-12221-006 *Fulcrum; Tensioner; Squeegee 1
2 000-02254-514 *Ink Blocking Plate (Front) 1 31 017-12122-001 *Shaft Support; Squeegee 1
3 002-12219-002 *Adj. Boss; Ink Blocking 2 31 011-12241-007 *Shaft Support II; Squeegee 1 A3
4 019-12206-005 *Adj. Plate (Front); Squeegee 1 017-12124-403 *Ass`y; Shaft Joint 1
5 014-12227-103 *Reverse Rotation Stopper AII 1 011-12206-406 *Ass`y; Shaft Joint 1 A3
6 640-60080-010 *O Ring; P8-1.9 2 32 **Pulley; Main Shaft 1
7 601-10192-005 *Bearing; 6800ZZ 2 33 **Shaft Joint 1
8 000-02211-017 *Spring; Squeegee Gap 2 34 **Bearing Holder A; Squeegee 1
9 002-12234-001 *Spring; Adj. Plate (Front) 2 35 **Bearing; 6202ZZ 1
10 002-12213-101 *Sector Adjustor; Squeegee 1 36 002-12210-005 *Adj. Collar B; Squeegee 1
11 002-12240-001 *Shaft Catch; Drive; Squeegee 1 37 620-21209-002 *Squeegee Belt; B120M x L-9.5 1
12 002-12209-007 *Adj. Collar A; Squeegee 1 38 011-12222-401 Bracket R; Drum Cover F 1
13 017-12105-204 *Side Frame; Squeegee; OW 1 39 011-12223-408 Bracket L; Drum Cover F 1
I-29
13 011-12211-302 *Side Frame; Squeegee 1 A3 40 011-12213-100 Drum Cover F (Upper) 1
14 640-60140-004 *O Ring; P14-2.4 2 41 011-12220-204 Drum Cover F (Lower) 1
15 017-12111-506 *Squeegee Roller; OW 1 017-92300-002 Unit/Drum Frame
15 014-12221-504 *Squeegee Roller; A3 1 A3 42 000-01169-114 *Support Roller; Drum 3
16 017-12114-203 *Doctor Roller II; OW 1 43 002-12410-004 *Adj. Plate; Support Roller 1
16 014-12226-000 *Doctor Roller II; A3 1 A3 44 002-12409-103 *Support Shaft; Support Roller 2
17 017-12121-005 *Drive Shaft; Squeegee; OW 1 45 017-12201-700 *Frame; Drum 1
17 014-12252-000 *Drive Shaft; Squeegee; A3 1 A3 46 019-12315-009 *Shaft; Locking Plate II; Drum 1
18 017-12123-008 *Adj. Shaft; Squeegee; OW 1 47 019-12307-006 *Spring; Locking Plate; Drum 1
18 014-12251-004 *Adj. Shaft; Squeegee; A3 1 A3 48 019-12314-002 *Locking Plate II; Drum 1
19 019-12207-001 *Adj. Plate (Back); Squeegee 1 49 017-12228-004 *Drum Lever 1
20 000-02255-510 *Ink Blocking Plate (Back) 1 50 002-12407-003 *Boss A; Drum Lever 2
21 017-12115-005 *Reverse Rotation Stopper B 1 51 002-12418-102 *Spacer; Drum Lever 2
21 019-22206-003 *Reverse Rotation Stopper B 1 A3 52 014-12295-001 Lever; Bottle Stopper 1
22 638-90000-020 *Washer; 18 x 10.2 x 0.2 3 53 014-12297-004 Spring; Stopper Lever 1
23 011-12205-000 *Pulley; Squeegee Roller 1 54 017-12211-004 Bracket; Stopper Lever 1
24 019-12208-008 *Spacer; 18 x 10 x 1.8 2 55 017-12213-007 Inner Cover; Drum 1
25 640-70030-100 *V Ring; VRY2.7 x 3.5 x 4.1 1 56 017-22301-001 Bracket II; Drum Control PCB2 1
26 002-12238-104 *Axis; Drive Shaft; Squeegee 1 57 019-51005-106 Drum Control PCB2 1
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
58 017-55028-203 Wire Harness; Drum (R) 1 87 019-12303-108 Drum Cover (Lower) 1
59 017-55029-102 Wire Harness; Drum (L) 1 88 017-60020-407 Drum PCB 1
60 019-55010-104 Wire Harness; Drum Inner 1 484-00000-800 *Pilot Lamp 1
014-12216-209 Bottle Guide II Ass`y A3 89 017-12215-107 PCB Cover; Drum 1
61 011-12208-107 *Bottle Guide (Over) 1 90 550-21293-104 Color Seal Set
62 014-12217-108 *Bottle Guide II (Base) 1 *Seal; Ink (Blue) 1
017-92220-009 Unit/Ink Pump *Seal; Ink (Red) 1
019-92220-003 Unit/Ink Pump; A3 A3 *Seal; Ink (Yellow) 1
63 002-12303-305 *Bracket; Inking Motor 1 *Seal; Ink (Brown) 1
64 002-12304-107 *Piston Inking Pump 1 *Seal; Ink (Green) 1
65 640-60140-004 *O Ring; P14-2.4 1 *Seal; Ink (Marine Red) 1
66 640-60220-016 *O Ring; P22-2.4 1 *Seal; Ink (Bright Red) 1
67 000-07119-100 *Coil Spring; Inking Pump 1 *Seal; Ink (Purple) 1
68 011-12151-008 *Valve; Inking Pump 2 *Seal; Ink (Federal Blue) 1
69 011-12201-200 *Inking Pump Body 1 *Seal; Ink (Medium Blue) 1
69 014-12211-002 *Inking Pump Body; A3 1 A3 *Seal; Ink (Grey) 1
70 011-12147-205 *Coil Spring; Inking Pump; RC 1 *Seal; Ink (Light Grey) 1
I-30
71 640-60100-100 *O Ring; P10A-2.4 1 *Seal; Ink (Teal) 1
72 011-12153-000 *Ink Distributor II 1 *Seal; Ink (Burgundy) 1
72 014-12213-005 *Ink Distributor; A3 1 A3 *Seal; Ink (Fluorescent Pink) 1
73 017-65016-700 *Inking Motor 1 *Seal; Ink (Fluorescent Orange) 1
74 002-12307-203 *Linking Disc; Inking Pump 1
75 002-12308-005 *Linking Plate; Inking Pump 1
76 002-12309-001 *Collar; Inking Pump 2
77 002-12310-107 *Collar Holder; Inking Pump 2
80 017-22206-106 Bracket; Bottle SW 1
80 019-22203-306 Bracket; Bottle SW 1 A3
81 019-12211-009 Spring; Bottle SW 1
81 019-32201-204 Spring; Bottle SW; A3 1 A3
019-92231-102 Bottle Set SW Ass`y
82 019-32203-401 *Holder; Bottle SW 1
83 019-60010-309 *Bottle Set SW 1
84 019-12210-002 *Set Plate; Bottle SW 1
85 011-12218-102 Boss; Bottle Set SW 1
86 019-12302-101 Drum Cover (Upper) 1
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
017-92119-006 Unit/Drum Screen; B4 25 011-12131-007 *Hanger Plate 2
017-92118-000 Unit/Drum Screen; A4 26 017-12205-101 Position A Plate 1
017-92117-003 Unit/Drum Screen; US L 27 019-12214-008 Position C2 Plate 1
017-92123-100 *Drum Body Ass'fy; B4 1 28 019-12215-004 Position C1 Plate 1
017-92122-007 *Drum Body Ass'fy; A4 1 29 011-12116-202 Drum Cover R 1
017-92121-000 *Drum Body Ass'fy; US 1 L
1 017-12008-004 **Drum Body E; OW 1 B4
1 017-12004-009 **Drum Body (E);A4 1 A4 * Seal Tape and Ink Blocking Sheet are combined only on B4 models.
1 017-12006-001 **Drum Body (E);100 US 1 L
2 011-12139-008 **Drum Seal 2
3 017-12011-005 **Drum Body Support (Left); OW 1
4 017-12001-204 **Drum Body Support (Right) 1
5 011-12104-000 *Seal Tape 1 A4,L
6 011-12142-106 *Ink Blocking Sheet; A4 1 A4
6 011-12140-006 *Ink Blocking Sheet; B4 1 L
017-12014-004 *Ink Blocking Sheet; B4 1 *B4
I-33
7 011-12120-200 *Clamp Plate Base 1
8 011-12130-000 *Clamp Magnet B 1
9 002-12110-205 *Clamp Magnet A; B4 1
10 011-12132-801 *Sheet; Clamp Plate 1
11 002-12134-104 *Sticker Sheet; Drum 1
12 017-22108-007 *Clamp Plate Ass`y 1
13 011-12129-100 *Clamp Sub-Plate 1
14 011-12134-006 *Sheet; Drum; B4 2
15 011-12114-005 *Shaft; Clamp Plate 1
16 011-12124-108 *Compensator 1
17 011-12141-100 *Screw; Spring Hanger 2
011-92106-008 *Ass'fy; Angular Magnet Plate
18 011-12154-104 **Plate II; Angular Magnet 1
19 660-05500-606 **Magnet TDK REC 22 D5 x 2.2 1
20 011-12155-208 *Screw; Angular Magnet 1
21 011-12105-200 *Screen A 1
22 011-12107-106 *Screen B 1
23 017-22107-108 *Light Absorber Strip; B4 1
24 011-12136-009 *Spring; Screen 2
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
019-92105-000 Unit/Drum Screen; A3
019-92110-003 *Drum Body Ass`y; A3 1
1 014-12101-002 **Drum Body; A3 1
2 011-12139-008 **Drum Seal 2
3 014-12103-102 **Drum Body Support (Left); A3 1
4 019-22101-201 **Drum Body Support (Right); A3 1
5 014-12114-007 *Seal Tape; A3 1
6 014-12116-301 *Ink Blocking Sheet; A3 1
7 019-22108-206 *Clamp Plate Base 1
8 011-12130-000 *Clamp Magnet B 1
9 019-22111-002 *Clamp Magnet A; A3 1
10 014-12121-607 *Sheet; Clamp Plate; A3 1
11 019-32417-606 *Clamp Plate Ass`y; II 1
12 014-12115-003 *Clamp Sub-Plate 1
13 011-12114-005 *Shaft; Clamp Plate 1
14 011-12124-108 *Compensator 1
I-35
011-92106-008 *Ass`y; Angular Magnet Plate
15 011-12154-104 **Plate II; Angular Magnet 1
16 660-05500-100 **Magnet TDK REC 18 D5 x 2 1
17 011-12155-208 *Screw; Angular Magnet 1
18 019-22102-208 *Screen Ass`y; A3 1
19 019-22113-102 *Anti-Wrinkle Strip; Drum 1
20 019-22112-106 *Light Absorber Strip; A3 1
21 019-22107-102 *Spring; Screen 2
26 019-22106-106 *Screen Hanger(Lower) 1
22 011-12116-202 Drum Cover R 1
23 017-12205-101 Position A Plate 1
24 019-12214-008 Position C2 Plate 1
25 019-12215-004 Position C1 Plate 1
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
014-92351-004 Unit/Drum Lock
1 014-12311-007 *Shaft; Lock 1
2 014-12322-106 *Lock Hook; Drum Lock 1
3 014-12324-109 *Bracket; Drum Lock 1
4 019-65014-000 *Lock Solenoid 1
5 014-12326-004 *Spring; Lock 1
6 011-12311-005 Drum Catch (L) 1
7 011-12306-117 Rail; Drum 2 B4, A4, L
7 014-12301-109 Rail; Drum; A3 2 A3
8 019-12301-008 Rail B; Drum 1
9 014-12310-108 Rail Bracket; Drum 1
018-92130-007 Drum Holder Ass`y
10 018-32311-002 *Drum Holder 1
11 019-12304-007 *Guide Block; Drum Holder 1
12 017-12605-100 *Lever Base; Drum Holder 1
13 017-12604-103 *Lever; Drum Holder 1
14 017-12606-009 *Shaft; Drum Holder 1
I-37
15 017-12607-005 *Spring; Drum Holder 1
16 550-21737-002 Seal; Drum Holder; Pic. 1
16 550-21744-009 Seal; Drum Holder 1
16 550-21745-005 Seal; Drum Holder; CH 1
019-92320-008 Drum Set SW Ass`y
17 019-12308-002 *Drum Catch (R) II 1
18 443-00120-609 *Micro-SW; E21-91N 1
19 019-55028-100 Wire Harness; CN15 1
20 019-12223-104 Bracket A; Connector; Drum 1
21 017-12203-109 Bracket B; Connector; Drum 1
22 017-21108-208 Bracket; Wire Harness 1
23 018-37129-105 Cover; Drum Lock; CE 1
24 018-37126-009 Cover; Wire Harness 1
25 635-17634-206 Stepped Screw; 6x3.1;M4x4 2
Fig. 1 Main Body Area
No. Part No. Part Name Q'ty Remark No. Part No. Part Name Q'ty Remark
019-95040-103 Unit/Write Pulse Motor 26 017-11240-108 *Print Positioning Motor 1
1 019-65002-100 *Write Pulse Motor 1 27 019-11214-004 *Bracket; Print Positioning Motor 1
2 011-15018-007 *Pulley; Write Pulse Motor 1 006-91440-001 Unit/Adj. Plate; Timing Lever
3 011-15146-102 *Bracket; Write Pulse Motor 1 28 002-11421-100 *Adj. Plate; Timing Lever 1
4 019-15125-006 *Base Plate; Write Pulse Motor 1 29 006-11308-205 *Timing Lever 1
5 665-04950-205 *Nut; E-632 4 30 006-11311-206 Spring; Timing Lever; R3 1
6 620-21429-002 Belt; B142 M x L-9.5 1 017-93220-002 Angular Sensor Ass`y
6 620-21909-004 Belt; B190 M x L-9.5 1 A3 31 017-12409-009 *Bracket; Angular Sensors 1
017-95050-007 Unit/Loading Pulse Motor 32 017-60016-000 *Angular Sensor 1
7 017-65015-207 *Loading Pulse Motor 1 33 **Junction Connector; 4P 1 Ref.Pg.II-36
8 014-15155-006 *Mount; Loading Pulse Motor 1 34 002-12537-403 Protection Sheet 1
9 011-15037-109 *Bracket; Loading Pulse Motor 1 017-92400-201 Unit/Clamp
10 009-35214-017 *Pulley PM (16); Exi◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
