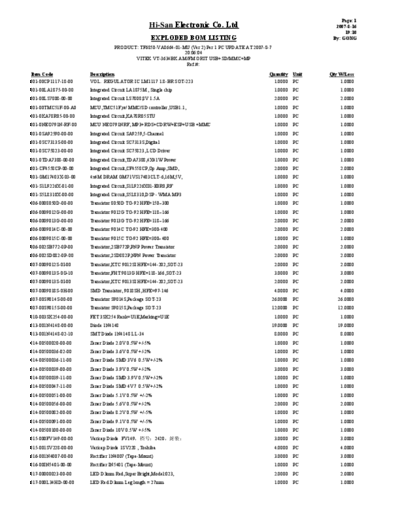

Image preview - the first page of the document
>> Download VITEK TF6850USB PART LIST documenatation <<
Text preview - extract from the document
Page: 1
Hi-San Electronic Co. Ltd 2007-8-16
19:10
EXPLODED BOM LISTING By: GONG
PRODUCT: TF6850-VA8664-01-MU (Ver 2) Per 1 PC UPDATE AT 2007-8-7
20:06:04
VITEK VT-3634BK AM/FM ORIT USB+SD/MMC+MP
Ref.#:
Item Code Description Quantity Unit Qty W/Loss
001-00CP1117-18-00 VOL. REGULATOR IC LM1117 1.8-BR SOT-223 1.0000 PC 1.0000
001-00LA1875-00-00 Integrated Circuit LA1875M , Single chip 1.0000 PC 1.0000
001-00LS7808-00-00 Integrated Circuit LS7808,8V 1.5A 2.0000 PC 2.0000
001-00TMC51F-00-A0 MCU,TMC51F,w/ MMC/SD controller,USB1.1, 1.0000 PC 1.0000
001-0KA78R05-00-00 Integrated Circuit,KA78R05STU 1.0000 PC 1.0000
001-0NEO791N-RF-00 MCU NEO791NRF, MP3+RDS+CDRW+ESP+USB +MMC 1.0000 PC 1.0000
001-0SA92590-00-00 Integrated Circuit SA9259,5-Channel 1.0000 PC 1.0000
001-0SC7313S-00-00 Integrated Circuit SC7313S,Digital 1.0000 PC 1.0000
001-0SC75823-00-00 Integrated Circuit SC75823, LCD Driver 1.0000 PC 1.0000
001-0TDA7388-00-00 Integrated Circuit,TDA7388,4X41W Power 1.0000 PC 1.0000
001-CF4558CP-00-00 Integrated Circuit,CF4558CP,Op Amp,SMD, 2.0000 PC 2.0000
001-GM17403X-03-00 4x4M DRAM GM71VS17403CLT-6,16M,5V, 1.0000 PC 1.0000
001-S1L9226X-01-00 Integrated Circuit,S1L9226X01-E0R0,RF 1.0000 PC 1.0000
001-S5L8310X-00-00 Integrated Circuit,S5L8310,DSP - WMA MP3 1.0000 PC 1.0000
006-0008050D-00-00 Transistor 8050D TO-92 HFE=150~300 1.0000 PC 1.0000
006-0009012G-00-00 Transistor 9012G TO-92 HFE=118~166 1.0000 PC 1.0000
006-0009013G-00-00 Transistor 9013G TO-92 HFE=118~166 2.0000 PC 2.0000
006-0009014C-00-00 Transistor 9014C TO-92 HFE=300-400 2.0000 PC 2.0000
006-0009015C-00-00 Transistor 9015C TO-92 HFE=300~400 1.0000 PC 1.0000
006-002SB772-0P-00 Transistor,2SB772P,PNP Power Transistor 2.0000 PC 2.0000
006-002SD882-0P-00 Transistor,2SD882P,NPN Power Transistor 2.0000 PC 2.0000
007-0009012S-0I-00 Transistor,KTC 9012SI HFE=144-202,SOT-23 2.0000 PC 2.0000
007-0009013S-0G-10 Transistor,FHT 9013G HFE=118-166,SOT-23 3.0000 PC 3.0000
007-0009013S-0I-00 Transistor,KTC 9013SI HFE=144-202,SOT-23 2.0000 PC 2.0000
007-0009018S-0H-00 SMD Transistor, 9018SH, HFE=97-146 4.0000 PC 4.0000
007-00S9014S-00-00 Transistor S9014S,Package SOT-23 26.0000 PC 26.0000
007-00S9015S-00-00 Transistor S9015S,Package SOT-23 12.0000 PC 12.0000
010-003SK254-00-00 FET 3SK254 Rank=U1E,Marking=U1E 1.0000 PC 1.0000
013-001N4148-00-00 Diode 1N4148 19.0000 PC 19.0000
013-001N4148-02-10 SMT Diode 1N4148 LL-34 8.0000 PC 8.0000
014-00500020-00-00 Zener Diode 2.0V 0.5W +/-5% 1.0000 PC 1.0000
014-00500036-02-00 Zener Diode 3.6V 0.5W +/-2% 1.0000 PC 1.0000
014-00500036-11-00 Zener Diode SMD 3V6 0.5W +/-2% 1.0000 PC 1.0000
014-00500039-00-00 Zener Diode 3.9V 0.5W +/-2% 3.0000 PC 3.0000
014-00500039-11-00 Zener Diode SMD 3.9V 0.5W +/-2% 1.0000 PC 1.0000
014-00500047-11-00 Zener Diode SMD 4V7 0.5W +/-2% 1.0000 PC 1.0000
014-00500051-00-00 Zener Diode 5.1V 0.5W +/-2% 1.0000 PC 1.0000
014-00500056-00-00 Zener Diode 5.6V 0.5W +/-2% 2.0000 PC 2.0000
014-00500082-00-00 Zener Diode 8.2V 0.5W +/-5% 1.0000 PC 1.0000
014-00500091-00-00 Zener Diode 9.1V 0.5W +/-5% 1.0000 PC 1.0000
014-00500100-00-00 Zener Diode 10V 0.5W +/-5% 1.0000 PC 1.0000
015-000FV149-00-00 Varicap Diode FV1492420 3.0000 PC 3.0000
015-001SV228-00-00 Varicap Diode 1SV228 , Toshiba 4.0000 PC 4.0000
016-001N4007-00-00 Rectifier 1N4007 (Tape-Mount) 3.0000 PC 3.0000
016-00IN5401-00-00 Rectifier IN5401 (Tape-Mount) 1.0000 PC 1.0000
017-00000023-00-00 LED D3mm Red,Super Bright,Model:023, 2.0000 PC 2.0000
017-000L34HD-00-00 LED Red D3mm Leg length = 27mm 1.0000 PC 1.0000
Page: 2
Hi-San Electronic Co. Ltd 2007-8-16
19:10
EXPLODED BOM LISTING By: GONG
PRODUCT: TF6850-VA8664-01-MU (Ver 2) Per 1 PC UPDATE AT 2007-8-7
20:06:04
VITEK VT-3634BK AM/FM ORIT USB+SD/MMC+MP
Ref.#:
Item Code Description Quantity Unit Qty W/Loss
017-00J111HD-01-00 LED 2x5mm Red <2R54PD> 1.0000 PC 1.0000
017-01206DRC-00-A0 LED 3.0X1.5MM RED, Module:YH-1206DRC 1.0000 PC 1.0000
017-0144A1MC-00-00 Infrared LED, MIE-144A1MC, Dyna-Link 2.0000 PC 2.0000
017-3AX3SBD4-N2-A0 LED(3mm Blue), 2-Pin IF=20MA, 1000mcd 7.0000 PC 7.0000
017-WW03B3SW-F4-B4 LED D=3mm White,"WW03B3SWF4-B4",1300mcd, 2.0000 PC 2.0000
051-00543100-00-00 Carbon Film Resistor 100 Ohm 1/6W +/-5% 2.0000 PC 2.0000
051-00543220-00-00 Carbon Film Resistor 220 Ohm 1/6W +/-5% 1.0000 PC 1.0000
051-00543470-00-00 Carbon Film Resistor 470 Ohm 1/6W +/-5% 3.0000 PC 3.0000
051-00543560-00-00 Carbon Film Resistor 560 Ohm 1/6W +/-5% 1.0000 PC 1.0000
051-00543680-00-00 Carbon Film Resistor 680 Ohm 1/6W +/-5% 1.0000 PC 1.0000
051-00544100-00-00 Carbon Film Resistor 1.0 K Ohm 1/6W 2.0000 PC 2.0000
051-00544220-00-00 Carbon Film Resistor 2.2 K Ohm 1/6W 1.0000 PC 1.0000
051-00544470-00-00 Carbon Film Resistor 4.7 K Ohm 1/6W 2.0000 PC 2.0000
051-00545100-00-00 Carbon Film Resistor 10 K Ohm 1/6W 1.0000 PC 1.0000
051-00546100-00-00 Carbon Film Resistor 100 K Ohm 1/6W 1.0000 PC 1.0000
051-00546680-00-00 Carbon Film Resistor 680 K Ohm 1/6W 1.0000 PC 1.0000
051-00642100-00-00 Carbon Film Resistor 10 Ohm 1/4W +/-5% 2.0000 PC 2.0000
051-00643560-00-00 Carbon Film Resistor 560 Ohm 1/4W +/-5% 1.0000 PC 1.0000
051-00842220-00-00 Carbon Film Resistor 22 Ohm 1/2W +/-5% 1.0000 PC 1.0000
051-00842680-00-00 Carbon Film Resistor 68 Ohm 1/2W +/-5% 1.0000 PC 1.0000
058-00340000-00-00 Chip Resistor (0603) 0 Ohm (Jumper wire) 18.0000 PC 18.0000
058-00342100-00-00 Chip Resistor (0603) 10 Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00342220-00-00 Chip Resistor (0603) 22 Ohm 1/10W +/-5% 6.0000 PC 6.0000
058-00342330-00-00 Chip Resistor (0603) 33 Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00342390-00-00 Chip Resistor (0603) 39 Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00342470-00-00 Chip Resistor (0603) 47 Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00342560-00-00 Chip Resistor (0603) 56 Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00342820-00-00 Chip Resistor (0603) 82 Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00343100-00-00 Chip Resistor (0603) 100 Ohm 1/10W +/-5% 24.0000 PC 24.0000
058-00343120-00-00 Chip Resistor (0603) 120 Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00343150-00-00 Chip Resistor (0603) 150 Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00343180-00-00 Chip Resistor (0603) 180 Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00343220-00-00 Chip Resistor (0603) 220 Ohm 1/10W +/-5% 8.0000 PC 8.0000
058-00343330-00-00 Chip Pesistor (0603) 330 Ohm 1/10W +/-5% 7.0000 PC 7.0000
058-00343470-00-00 Chip Pesistor (0603) 470 Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00343560-00-00 Chip Resistor(0603) 560 Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00343680-00-00 Chip Resistor(0603)680 Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00344100-00-00 Chip Resistor (0603) 1K Ohm 1/10W +/-5% 32.0000 PC 32.0000
058-00344120-00-00 Chip Resistor (0603)1.2K Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00344150-00-00 Chip Resistor(0603)1.5K Ohm 1/10W +/-5% 4.0000 PC 4.0000
058-00344220-00-00 Chip Resistor(0603) 2.2K Ohm 1/10W +/-5% 28.0000 PC 28.0000
058-00344270-00-00 Chip Resistor(0603) 2.7K Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00344330-00-00 Chip Resistor(0603) 3.3K Ohm 1/10W +/-5% 12.0000 PC 12.0000
058-00344390-00-00 Chip Resistor(0603) 3.9K Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00344470-00-00 Chip Resistor(0603) 4.7K Ohm 1/10W +/-5% 22.0000 PC 22.0000
058-00344510-00-00 Chip Resistor(0603) 5.1K Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00344560-00-00 Chip Resistor(0603) 5.6K Ohm 1/10W +/-5% 3.0000 PC 3.0000
Page: 3
Hi-San Electronic Co. Ltd 2007-8-16
19:10
EXPLODED BOM LISTING By: GONG
PRODUCT: TF6850-VA8664-01-MU (Ver 2) Per 1 PC UPDATE AT 2007-8-7
20:06:04
VITEK VT-3634BK AM/FM ORIT USB+SD/MMC+MP
Ref.#:
Item Code Description Quantity Unit Qty W/Loss
058-00344680-00-00 Chip Resistor(0603) 6.8K Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00344820-00-00 Chip Resistor(0603) 8.2K Ohm 1/10W +/-5% 6.0000 PC 6.0000
058-00344910-00-00 Chip Resistor (0603)9.1K Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00345100-00-00 Chip Resistor (0603) 10K Ohm 1/10W +/-5% 42.0000 PC 42.0000
058-00345120-00-00 Chip Resistor (0603) 12K Ohm 1/10W +/-5% 5.0000 PC 5.0000
058-00345150-00-00 Chip Resistor (0603) 15K Ohm 1/10W +/-5% 6.0000 PC 6.0000
058-00345200-00-00 Chip Resistor (0603) 20K Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00345220-00-00 Chip Resistor (0603) 22K Ohm 1/10W +/-5% 13.0000 PC 13.0000
058-00345300-00-00 Chip Resistor (0603) 30K Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00345330-00-00 Chip Resistop (0603) 33K Ohm 1/10W +/-5% 3.0000 PC 3.0000
058-00345470-00-00 Chip Resistor (0603) 47K Ohm 1/10W +/-5% 19.0000 PC 19.0000
058-00345680-00-00 Chip Resistor (0603) 68K Ohm 1/10W +/-5% 10.0000 PC 10.0000
058-00345820-00-00 Chip Resistor (0603) 82K Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00346100-00-00 Chip Resistor(0603) 100K Ohm 1/10W +/-5% 16.0000 PC 16.0000
058-00346120-00-00 Chip Resistor(0603) 120K Ohm 1/10W +/-5% 5.0000 PC 5.0000
058-00346150-00-00 Chip Resistor(0603) 150K Ohm 1/10W +/-5% 3.0000 PC 3.0000
058-00346180-00-00 Chip Resistor(0603) 180K Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00346220-00-00 Chip Resistor(0603) 220K Ohm 1/10W +/-5% 4.0000 PC 4.0000
058-00346270-00-00 Chip Resistor(0603) 270K Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00346330-00-00 Chip Resistor(0603) 330K Ohm 1/10W +/-5% 2.0000 PC 2.0000
058-00346390-00-00 Chip Resistor(0603) 390K Ohm 1/10W +/-5% 4.0000 PC 4.0000
058-00346470-00-00 Chip Resistor(0603) 470K Ohm 1/10W +/-5% 5.0000 PC 5.0000
058-00346820-00-00 Chip Resistor(0603) 820K Ohm 1/10W +/-5% 1.0000 PC 1.0000
058-00347100-00-00 Chip Resistor (0603) 1M Ohm 1/10W +/-5% 6.0000 PC 6.0000
058-00440000-00-00 Chip Resistor (0805) 0 Ohm (Jumper wire) 12.0000 PC 12.0000
058-00442390-00-00 CHIP Resistor (0805) 39 Ohm 1/8W +/-5% 3.0000 PC 3.0000
058-00443220-00-00 CHIP Resistor (0805) 220 Ohm 1/8W +/-5% 2.0000 PC 2.0000
058-00443270-00-00 CHIP Resistor (0805) 270 Ohm 1/8W +/-5% 1.0000 PC 1.0000
058-00443330-00-00 CHIP Resistor (0805) 330 Ohm 1/8W +/-5% 1.0000 PC 1.0000
058-00444100-00-00 CHIP Resistor (0805) 1K Ohm 1/8W +/-5% 1.0000 PC 1.0000
078-H3065300-00-00 Phenolic Moulding Type Semi-Fixed 1.0000 PC 1.0000
078-H3105100-00-00 Semi-Fixed Resistor , D8mm 10K Ohm 1.0000 PC 1.0000
078-V3064500-00-00 Phenolic Moulding Type Semi-Fixed 2.0000 PC 2.0000
101-025C6100-00-00 Ceramic Capacitor 0.1 uF 25V +80 -20% 7.0000 PC 7.0000
101-050C5100-00-00 Ceramic Capacitor 0.01 uF 50V +80 -20% 1.0000 PC 1.0000
107-050A6470-00-00 Axial Lead Ceramic Capacitor 0.47uF 50V 1.0000 PC 1.0000
107-050C6470-00-00 Axial Lead Ceramic Capacitor 0.47uF 50V 1.0000 PC 1.0000
108-10A6470P-K0-00 Chip Capacitor (0603) X5R 0.47uF 10V 2.0000 PC 2.0000
108-10B3100B-K0-00 Chip Capacitor (0603) X7R 100pF 50V 1.0000 PC 1.0000
108-10B3220B-K0-00 Chip Capacitor (0603) X7R 220pF 50V 2.0000 PC 2.0000
108-10B3390B-K0-00 Chip Capacitor (0603) X7R 390pF 50V 2.0000 PC 2.0000
108-10B3680B-K0-00 Chip Capacitor (0603) X7R 680pF 50V 1.0000 PC 1.0000
108-10B3820B-K0-00 Chip Capacitor (0603) X7R 820pF 50V 1.0000 PC 1.0000
108-10B4100B-K0-00 Chip Capacitor (0603) X7R 0.001uF 50V 16.0000 PC 16.0000
108-10B4150B-K0-00 Chip Capacitor (0603) X7R 0.0015uF 50V 3.0000 PC 3.0000
108-10B4220B-K0-00 Chip Capacitor (0603) X7R 0.0022uF 50V 2.0000 PC 2.0000
108-10B4270B-K0-00 Chip Capacitor (0603) X7R 0.0027uF 50V 3.0000 PC 3.0000
Page: 4
Hi-San Electronic Co. Ltd 2007-8-16
19:10
EXPLODED BOM LISTING By: GONG
PRODUCT: TF6850-VA8664-01-MU (Ver 2) Per 1 PC UPDATE AT 2007-8-7
20:06:04
VITEK VT-3634BK AM/FM ORIT USB+SD/MMC+MP
Ref.#:
Item Code Description Quantity Unit Qty W/Loss
108-10B4470B-K0-00 Chip Capacitor (0603) X7R 0.0047uF 50V 5.0000 PC 5.0000
108-10B4560B-K0-00 Chip Capacitor (0603) X7R 0.0056uF 50V 2.0000 PC 2.0000
108-10B5100B-K0-00 Chip Capacitor (0603) X7R 0.01uF 50V 16.0000 PC 16.0000
108-10B5150B-K0-00 Chip Capacitor (0603) X7R 0.015uF 50V 1.0000 PC 1.0000
108-10B5220A-K0-00 Chip Capacitor (0603) X7R 0.022uF 25V 9.0000 PC 9.0000
108-10B5330A-K0-00 Chip Capacitor (0603) X7R 0.033uF 25V 2.0000 PC 2.0000
108-10B5470A-K0-00 Chip Capacitor (0603) X7R 0.047uF 25V 9.0000 PC 9.0000
108-10B5680A-K0-00 Chip Capacitor (0603) X7R 0.068uF 25V 1.0000 PC 1.0000
108-10B6100O-K0-00 Chip Capacitor (0603) X7R 0.1uF 16V 7.0000 PC 7.0000
108-10B6220O-K0-00 Chip Capacitor (0603) X7R 0.22uF 16V 5.0000 PC 5.0000
108-10B7100P-K0-00 Chip Capacitor (0603) X7R 1uF 10V 2.0000 PC 2.0000
108-10F6100A-M0-00 Chip Capacitor (0603) Y5V 0.1uF 25V 50.0000 PC 50.0000
108-10F7100O-M0-00 Chip Capacitor (0603) Y5V 1uF 16V 11.0000 PC 11.0000
108-10N1100B-C0-00 Chip Capacitor (0603) NPO 1pF 50V 2.0000 PC 2.0000
108-10N1300B-C0-00 Chip Capacitor (0603) NPO 3pF 50V 3.0000 PC 3.0000
108-10N1500B-J0-00 Chip Capacitor (0603) NPO 5pF 50V 2.0000 PC 2.0000
108-10N1600B-J0-00 Chip Capacitor (0603) NPO 6pF 50V 1.0000 PC 1.0000
108-10N1800B-J0-00 Chip Capacitor (0603) NPO 8pF 50V 2.0000 PC 2.0000
108-10N2100B-J0-00 Chip Capacitor (0603) NPO 10pF 50V 2.0000 PC 2.0000
108-10N2250B-J0-00 Chip Capacitor (0603) NPO 25pF 50V 1.0000 PC 1.0000
108-10N2270B-J0-00 Chip Capacitor (0603) NPO 27pF 50V 2.0000 PC 2.0000
108-10N2330B-J0-00 Chip Capacitor (0603) NPO 33pF 50V 3.0000 PC 3.0000
108-10N2390B-J0-00 Chip Capacitor (0603) NPO 39pF 50V 1.0000 PC 1.0000
108-10N2470B-J0-00 Chip Capactior (0603) NPO 47pF 50V 3.0000 PC 3.0000
108-10N2560B-J0-00 Chip Capacitor (0603) NPO 56pF 50V 1.0000 PC 1.0000
108-10N3430B-J0-00 Chip Capacitor (0603) NPO 430pF 50V 2.0000 PC 2.0000
108-21F7470O-Z0-00 Chip Capacitor (0805) Y5V 4.7uF 16V 4.0000 PC 4.0000
110-016C9100-00-00 Electrolytic Capacitor 100 uF 16V 10.0000 PC 10.0000
110-016CA220-00-00 Electrolytic Capacitor 2200 uF 16V +80 1.0000 PC 1.0000
112-010C8470-00-00 Electrolytic Capacitor , Small Size 47 6.0000 PC 6.0000
112-016C7100-00-00 Electrolytic Capacitor , Small Size 1 uF 2.0000 PC 2.0000
112-016C7220-00-00 Electrolytic Capacitor,Small Sized 2.2uF 2.0000 PC 2.0000
112-016C7330-00-00 Electrolytic Capacitor , Small Size 3.3u 1.0000 PC 1.0000
112-016C7470-00-00 Electrolytic Capacitor , Small Size 4.7u 9.0000 PC 9.0000
112-016C8100-00-00 Electrolytic Capacitor , Small Size 10 9.0000 PC 9.0000
112-016C8220-00-00 Electrolytic Capacitor , Small Size 22 7.0000 PC 7.0000
112-016C8470-00-00 Electrolytic Capacitor , Small Size 47 3.0000 PC 3.0000
112-016C8470-02-00 Electrolytic Capacitor , Small Size 47 5.0000 PC 5.0000
112-050C7100-00-00 Electrolytic Capacitor , Small Size 1 1.0000 PC 1.0000
115-006C8470-00-00 SMT Electrolytic Capacitor 47 uF 6.3V 7.0000 PC 7.0000
115-006C9100-00-00 SMT Electrolytic Capacitor 100 uF 6.3V 2.0000 PC 2.0000
115-010C9100-00-00 SMD Electrolytic Capacitor 100uF 10V 1.0000 PC 1.0000
115-016C8100-00-00 SMD Electrolytic Capacitor 10 uF 16V 3.0000 PC 3.0000
117-050A4220-00-00 Mylar Capacitor 0.0022 uF 50V +/-5% 2.0000 PC 2.0000
136-06000020-00-00 Trimmer Capacitor 6 mm, 20 pF 1.0000 PC 1.0000
150-0000S634-00-00 6 mm IFT S634, Black, ARF1 1.0000 PC 1.0000
150-0000S638-00-00 6 mm IFT S638, Yellow, AM IF 1.0000 PC 1.0000
Page: 5
Hi-San Electronic Co. Ltd 2007-8-16
19:10
EXPLODED BOM LISTING By: GONG
PRODUCT: TF6850-VA8664-01-MU (Ver 2) Per 1 PC UPDATE AT 2007-8-7
20:06:04
VITEK VT-3634BK AM/FM ORIT USB+SD/MMC+MP
Ref.#:
Item Code Description Quantity Unit Qty W/Loss
150-0000S642-00-00 6 mm IFT S642, Red, AM OSC 1.0000 PC 1.0000
150-0000S646-00-00 6 mm IFT S646, Green, ARF2 1.0000 PC 1.0000
150-0007008S-00-00 6 mm IFT 7008S,FM Detector Coil 1.0000 PC 1.0000
150-00602984-00-00 6 mm IFT 602-984, FM IF COIL, INTELLECT 1.0000 PC 1.0000
156-03006500-00-01 FM Spring Coil 3.0mm x 6.5T (R) 1.0000 PC 1.0000
156-03402500-00-01 FM Spring Coil 3.4mm x 2.5T (R) 1.0000 PC 1.0000
156-03407500-00-01 FM Spring Coil 3.4mm x7.5T (R) 2.0000 PC 2.0000
156-03407500-01-01 FM Spring Coil 3.4mm x7.5T (R), 1.0000 PC 1.0000
158-10010000-00-00 Choke Coil 1uH (EC24-1R0K), Wittis 2.0000 PC 2.0000
158-10047000-01-00 Choke Coil 4.7 uH (EC24-4R7K), WITTIS 1.0000 PC 1.0000
158-10100000-00-00 Choke Coil 10uH (EC24-100K), Wittis 1.0000 PC 1.0000
158-20330000-01-00 Choke Coil 33mH +/-10% ,PREFORM L=12mm 2.0000 PC 2.0000
159-10220000-00-00 SMD POWER INDUCTORS(0805) 22UH 1.0000 PC 1.0000
169-22131730-03-00 Ferrite Choke Transformer OD=22 ID=13 1.0000 PC 1.0000
202-TS063543-00-00 Tact Switch TS-0635-4.3(White) H=4.3mm, 8.0000 PC 8.0000
204-TS063543-09-00 Surface Mount Tact Switch H=4.3,L=6.0 12.0000 PC 12.0000
209-000SW111-00-00 Push Switch SW-111, Mini Switch for KMC 1.0000 PC 1.0000
214-EC121101-00-00 Rotary Encoder,D12mm,SMT Type WithSwitch 1.0000 PC 1.0000
252-04000000-00-00 Bare Wire 40 mm 193.0000 PC 193.0000
257-28030901-00-00 Rainbow Cable 3 pin (7 x 0.12) Length= 1.0000 PC 1.0000
258-1080UA28-30-00 Shield Cable,Single Core,AWG28 UL 80mm 1.0000 PC 1.0000
350-10520000-08-00 Housing Assembly,2.0x5,#28 UL1571 L=110m 1.0000 PC 1.0000
350-107250U0-14-00 Housing Assembly,2.5x7,#26 UL1007,90mmx 1.0000 PC 1.0000
373-JZ000022-00-00 Detachable Connector (Male), 1.0000 PC 1.0000
374-JZ000022-00-00 Detachable Connector (Female), 1.0000 PC 1.0000
375-JI416100-00-00 Wire to Board Plug,Jensen Type 20P+ISO 1.0000 PC 1.0000
376-FUSE0020-15-00 Wire to Board Connector,JensenType 20p, 1.0000 PC 1.0000
377-R022100L-02-00 FPC/FFC Connector 22 pin Right Angle 1.0000 PC 1.0000
377-R033125N-02-00 FPC/FFC Connector 33 pin Right 1.0000 PC 1.0000
377-R1706228-00-00 FPC/FFC Connector 17 Pin Right Angle 1.0000 PC 1.0000
378-33125100-00-00 FFC 33 Pin AWM20798 P=1.25 L=5+100+3 1.0000 PC 1.0000
402-1009000M-01-00 Crystal 9MHz, HC49US,Height=3.5mm 1.0000 PC 1.0000
402-12000000-11-00 Crystal SMD 12MHz, HC49US,Height=3.5mm 1.0000 PC 1.0000
402-16934400-11-00 Crystal SMD 16.9344MHz,HC49US,Height 1.0000 PC 1.0000
403-0000456K-00-00 Ceramic Resonator 456KHz , CSB456F11 1.0000 PC 1.0000
404-00CF450A-00-00 Ceramic Filter 450KHz , CF450A , Midas 1.0000 PC 1.0000
404-SFE107MS-3A-00 Ceramic Filter 10.7MHz SFE10.7MS3-A 2.0000 PC 2.0000
410-00SM225A-00-02 PCB,Main Board,Size=173x148mm 94HB DO DO 1.0000 PC 1.0000
410-00SM225A-00-20 PCB,EJ Board,Size=26x11.5mm 94HB 1.0000 PC 1.0000
410-00TP5082-00-10 Flexible PCB ,TP5082, 22pin, 50x26mm, 1.0000 PC 1.0000
410-00USBMP3-02-00 PCB,DONGSUNG CD/RW+ESP+MP3+USB 1.0000 PC 1.0000
410-TF6850US-01-00 Panel PCB MP3 USB MMC SD CPU=DSC790NRF 1.0000 PC 1.0000
410-TUNER008-20-00 PCB,Radio Board,Size=96x42mm,94HB 1.0000 PC 1.0000
412-SDDMF915-B0-00 SD/MMC Card Connector.Std Size,W/Lock, 1.0000 PC 1.0000
412-USB4FAPS-00-00 USB Socket.Straight Type,Std Size, 1.0000 PC 1.0000
416-0R200040-01-00 Wafer,4 Pin,Pitch 2.0mm Right Angled 1.0000 PC 1.0000
416-0R200500-01-00 Wafer,5 Pin,Pitch 2.0mm Right Angled 1.0000 PC 1.0000
Page: 6
Hi-San Electronic Co. Ltd 2007-8-16
19:10
EXPLODED BOM LISTING By: GONG
PRODUCT: TF6850-VA8664-01-MU (Ver 2) Per 1 PC UPDATE AT 2007-8-7
20:06:04
VITEK VT-3634BK AM/FM ORIT USB+SD/MMC+MP
Ref.#:
Item Code Description Quantity Unit Qty W/Loss
416-0R250070-01-00 Wafer,7 pins,pitch 2.5mm,right angle 1.0000 PC 1.0000
419-1R250036-00-00 Pin Header,36 pins,pitch 2.5mm 0.7000 PC 0.7000
420-00000T17-00-00 Antenna Socket, T17, 1.0000 PC 1.0000
432-00CDX100-01-00 Car CD Mechanism,Model CDX-100 1.0000 PC 1.0000
440-0YBT0438-00-00 LCD,TA0438BMM0-TTN,B1,Size=78x26mm, 1.0000 PC 1.0000
443-78007020-00-00 Rubber Contact(Sponge Type),L=78.H=7.0 1.0000 PC 1.0000
444-TF685001-00-00 Rubber Cover (USB), Grey Si Rubber 1.0000 PC 1.0000
449-00000000-00-01 8x8x4 mm Spring Coil Sponge 1.0000 PC 1.0000
600-0SM88526-00-00 Locker Release Holder, ABS Black, Wah 1.0000 PC 1.0000
600-0SM88527-00-00 Locker Open, ABS Black, Wah Lee 1.0000 PC 1.0000
600-0SM88528-00-00 Locker Open Holder, ABS Black, Wah Lee 1.0000 PC 1.0000
600-0SM88542-00-00 CD Door Indicator, SAN Clear, W/Spray 1.0000 PC 1.0000
600-0SM88547-00-00 CD EJ Button,SAN(Milky White),W/Spray 1.0000 PC 1.0000
600-0SM88548-00-00 Panel Base(ETR CD),ABS(Black),W/Spray 1.0000 PC 1.0000
600-0SM88549-00-00 Connector Cover(for 22P Connector),ABS 1.0000 PC 1.0000
600-0SM88550-02-00 Trim Plate,ABS(Black) W/Spray Matt 1.0000 PC 1.0000
600-0SM88551-00-00 Locker Release, PC Black,Engraving With 1.0000 PC 1.0000
600-TF300046-00-00 Panel Case, PP(Black),Wah lee 1.0000 PC 1.0000
600-TF685001-VA-10 Lens,Clear PMMA,W/Silkscreen VITEK 1.0000 PC 1.0000
600-TF685002-00-30 Handy Front,ABS(Black),W/Spray Black 1.0000 PC 1.0000
600-TF685003-00-00 Handy Back(6850_MMC),PC(Black),W/Spray 1.0000 PC 1.0000
600-TF685004-00-00 LCD Reflector,Clear PMMA 1.0000 PC 1.0000
600-TF685005-00-00 LCD Holder,Milky White(87659) ABS 1.0000 PC 1.0000
600-TF685006-00-00 Release Button,Milky White(87659),ABS, 1.0000 PC 1.0000
600-TF685007-00-00 Open Button,Milky White(87659),ABS, 1.0000 PC 1.0000
600-TF685008-00-00 Left Ring,Milky White ABS 1.0000 PC 1.0000
600-TF685009-00-00 Right Ring,Milky White ABS 1.0000 PC 1.0000
600-TF685010-00-00 Power Button Reflector,Clear PS, 1.0000 PC 1.0000
600-TF685011-00-00 Left Reflector(Encoder),Clear PS, 1.0000 PC 1.0000
600-TF685014-00-00 Right Reflector(6850USB),Clear PS, 1.0000 PC 1.0000
600-TF685017-00-00 MID Reflector Bar (USB/MP3/6850CASS), 1.0000 PC 1.0000
600-TF685018-00-00 SCAN Button Adapter,Natural ABS 1.0000 PC 1.0000
600-TF685019-00-00 PTY Button Adapter,Natural ABS 1.0000 PC 1.0000
600-TF685020-00-00 DISP/AF Button Adapter,Natural ABS 2.0000 PC 2.0000
600-TF685021-00-00 Left Cover(6850USB/5150CD), Black ABS, 1.0000 PC 1.0000
600-TF685023-00-00 Right Cover(6850USB/5150CD), Black ABS, 1.0000 PC 1.0000
600-TF685025-00-00 VOL Knob,Black ABS,W/Dark Chrome Plated 1.0000 PC 1.0000
600-TF685026-00-00 USB Cover,Black ABS,W/Dark Chrome Plated 1.0000 PC 1.0000
600-TF685029-00-00 MID Cover(USB/MP3/6850CASS), ABS(Black), 1.0000 PC 1.0000
600-TF685032-00-00 USB Bracket,Black ABS 1.0000 PC 1.0000
600-TF685033-00-00 Power Button,Clear ABS,W/Spray Shining 1.0000 PC 1.0000
600-TF685034-00-00 Mute Button, Clear ABS,W/Spray Shining 1.0000 PC 1.0000
600-TF685035-00-00 Scan Button,Clear ABS 1.0000 PC 1.0000
600-TF685036-00-00 Mode Button,Clear ABS,W/Spray Shining 1.0000 PC 1.0000
600-TF685037-00-00 Button Set"123",Clear ABS,Spray Shining 1.0000 PC 1.0000
600-TF685038-00-00 Button Set"456",Clear ABS,Spray Shining 1.0000 PC 1.0000
600-TF685039-00-00 TA(LOUD_MODE) Button,Clear ABS,W/Spray 1.0000 PC 1.0000
Page: 7
Hi-San Electronic Co. Ltd 2007-8-16
19:10
EXPLODED BOM LISTING By: GONG
PRODUCT: TF6850-VA8664-01-MU (Ver 2) Per 1 PC UPDATE AT 2007-8-7
20:06:04
VITEK VT-3634BK AM/FM ORIT USB+SD/MMC+MP
Ref.#:
Item Code Description Quantity Unit Qty W/Loss
600-TF685040-00-00 PTY Button,Clear ABS 1.0000 PC 1.0000
600-TF685041-00-00 Track Down Button,Clear ABS,W/Spray 1.0000 PC 1.0000
600-TF685042-00-00 Track up Button,Clear ABS,W/Spray 1.0000 PC 1.0000
600-TF685044-00-00 DISP Button,Clear ABS 1.0000 PC 1.0000
600-TF685045-00-00 AF Button,Clear ABS,( USB Only ) 1.0000 PC 1.0000
600-TF900038-00-00 Gear 'A', POM Black (Bracket'R'Assembly) 1.0000 PC 1.0000
600-TF900039-00-00 Gear 'B', POM Black, Wah Lee 1.0000 PC 1.0000
600-TF900040-00-00 Damper Gear,POM Black 1.0000 PC 1.0000
600-TF900041-00-00 Damper Shaft,POM Black 1.0000 PC 1.0000
600-TF900042-00-00 Damper Cover,POM Black 1.0000 PC 1.0000
600-TF900043-00-00 Damper Bottom,POM Black 1.0000 PC 1.0000
650-00CD9011-00-00 Disc Felt Guide, 0.6t EGI, Kinetics 1.0000 PC 1.0000
650-0SM68826-00-00 Half Sleeve,0.6mm EGI 1.0000 PC 1.0000
650-0SM88505-00-00 Left Bracket,1mm EGI 1.0000 PC 1.0000
650-0SM88506-00-00 Right Bracket,1mm EGI 1.0000 PC 1.0000
650-0SM88509-00-00 Deck Bracket Front(KMC),1mm EGI 1.0000 PC 1.0000
650-0SM88527-00-01 Lock Spring A,0.3mm SUS304 1.0000 PC 1.0000
650-0SM88528-00-00 Lock Spring B,0.3mm SUS304 1.0000 PC 1.0000
650-0SM88530-00-00 Unit Key,1mm EGI 2.0000 PC 2.0000
650-0SM88531-00-00 Pin A(Left),Brass,Riveted In Loading 1.0000 PC 1.0000
650-0SM88532-00-00 Pin B(Right),Brass,Riveted In Loading 1.0000 PC 1.0000
650-0SM88533-00-00 Pin C(Gear "A"),Brass,Riveted In Right 1.0000 PC 1.0000
650-0SM88537-00-00 Spring Plate,Riveted In Loading Panel 1.0000 PC 1.0000
650-0SM88539-00-00 Bracket For L7808,1mm EGI 1.0000 PC 1.0000
650-0TF81000-19-01 Handle Screw, C.R.Steel, W/Black Oxide 1.0000 PC 1.0000
650-CS880000-25-02 Mounting Plate(Short), EGI, Kinetics 1.0000 PC 1.0000
650-SM885A01-00-00 Left Chassis,1mm EGI 1.0000 PC 1.0000
650-SM885A02-00-00 Right Chassis,1mm EGI 1.0000 PC 1.0000
650-SM885A03-A0-00 Rear Chassis For No CDC Version,1mm EGI 1.0000 PC 1.0000
650-SM885A04-00-00 Top Cover,0.6mm EGI 1.0000 PC 1.0000
650-SM885A05-00-00 Bottom Cover,0.6mm EGI 1.0000 PC 1.0000
650-SM885A06-00-00 Bracket For Half Sleeve,1mm EGI 2.0000 PC 2.0000
650-SM885A07-00-00 IC Bracket,0.8mm EGI 1.0000 PC 1.0000
650-SM885A08-00-00 Heat sink For TDA738x,No CDC Version, 1.0000 PC 1.0000
650-SM885A11-00-00 Rear Deck Bracket,1mm EGI 1.0000 PC 1.0000
650-SM885A13-00-00 Fold Down Bracket for 22P ETR, 1mm EGI, 1.0000 PC 1.0000
650-TF620002-00-00 Open Spring,WD=0.2,ID=D4.0,L=10,8 Turns 2.0000 PC 2.0000
650-TF685001-00-00 LCD Bracket,0.5mm EGI,Spray Black 1.0000 PC 1.0000
650-TF900024-00-00 Spring Push, SUS 304 D0.6, KINETICS 1.0000 PC 1.0000
650-TUN00801-00-00 Tuner Metal Case ,Kinetics 1.0000 PC 1.0000
660-EPH2006B-27-00 Taptite "S" Type, 2.0x6 Pan Head, Philip 3.0000 PC 3.0000
660-EPH2604B-27-00 Taptite `S`Type, 2.6x4 Pan Head, Philips 4.0000 PC 4.0000
660-EPH30043-21-00 Taptite `B`Type, 3x4 Pan Head, Philips, 2.0000 PC 2.0000
660-EPH30053-21-00 Taptite `B`Type, 3x5 Pan Head, Philips, 4.0000 PC 4.0000
660-EPH3005B-21-00 Taptite `S`Type, 3x5 Pan Head, Philips, 2.0000 PC 2.0000
660-EPH3006B-21-00 Taptite `S'Type, 3x6 Pan Head, Philips, 5.0000 PC 5.0000
660-EPH3010B-21-00 Taptite `S'Type, 3x10 Pan Head, Philips, 3.0000 PC 3.0000
Page: 8
Hi-San Electronic Co. Ltd 2007-8-16
19:10
EXPLODED BOM LISTING By: GONG
PRODUCT: TF6850-VA8664-01-MU (Ver 2) Per 1 PC UPDATE AT 2007-8-7
20:06:04
VITEK VT-3634BK AM/FM ORIT USB+SD/MMC+MP
Ref.#:
Item Code Description Quantity Unit Qty W/Loss
660-MBH20040-23-00 Machine Screw, 2.0x4 Binding Head, 1.0000 PC 1.0000
660-MHD50120-01-00 Machine Screw,5x12+5x4 Hexagonal Head 1.0000 PC 1.0000
660-MKF20050-24-00 Machine Screw, 2x5 Flat Countersunk, 1.0000 PC 1.0000
660-MKF26040-23-00 Machine Screw, 2.6x4 Flat Countersunk, 2.0000 PC 2.0000
660-MKF26040-24-00 Machine Screw, 2.6x4 Flat Countersunk, 4.0000 PC 4.0000
660-MKF26050-24-01 Machine Screw, 2.6x5 Flat Countersunk, 4.0000 PC 4.0000
660-MPH30040-21-00 Machine Screw, 3x4 Pan Head, Philips, 1.0000 PC 1.0000
660-MPH30040-24-00 Machine Screw, 3x4 Pan Head, Philips, 2.0000 PC 2.0000
660-MPH30160-21-00 Machine Screw,3x16 Pan Head,Philips 2.0000 PC 2.0000
660-TPH20053-23-00 Tapping `B`Type, 2x5 Pan Head, Philips, 2.0000 PC 2.0000
660-TPH20053-24-00 Tapping `B`Type, 2x5 Pan Head, Philips, 6.0000 PC 6.0000
660-TPH20103-24-00 Tapping 'A'type,2x10 Pan Head,Philips 4.0000 PC 4.0000
660-TPH30081-23-00 Tapping 'A' Type,3x8 Pan Head,Philips 1.0000 PC 1.0000
660-TPH40121-23-00 Tapping `A`Type, 4x12 Pan Head, Philips 1.0000 PC 1.0000
661-ERM02000-04-00 E-Ring, (M2) T=0.4mm (Black) 2.0000 PC 2.0000
661-PW045090-08-00 Plain Washer, (M4)ID=4.5 OD=9 T=0.8 1.0000 PC 1.0000
661-PW055103-09-00 Plain Washer, (M5)ID=5.5 OD=10.3 T=0.9 1.0000 PC 1.0000
661-SWM05000-00-00 Spring Washer M5 1.0000 PC 1.0000
662-HNM50040-00-00 Hexagon Nut M5xP0.8x4t 1.0000 PC 1.0000
701-SM885A01-00-00 Fibre For Main PCB, t=0.4mm, Kinetics 1.0000 PC 1.0000
703-00CD9001-00-00 CD Dustproof Felt, 0.5t Black Synthetic 1.0000 PC 1.0000
703-0SM99501-00-00 Connector Felt 1.0000 PC 1.0000
704-TF685001-00-00 Diffusion Sheet,0.1mm Synthetic Paper, 1.0000 PC 1.0000
706-00SMF217-01-00 Carton Sealing Label - Black Text on Red 0.4000 PC 0.4000
706-03500060-04-00 White Label, Size:35x6mm 6.0000 PC 6.0000
706-0CS88003-13-00 Wiring Label(B), for Line Out Left, 1.0000 PC 1.0000
706-0CS88003-14-00 Wiring Label(B), for Line Out Right, 1.0000 PC 1.0000
706-0CS88006-01-00 "QC Passed" Label 1.0000 PC 1.0000
706-LABEL057-00-00 " F1 " Sticker Label 1.2000 PC 1.2000
706-TF685001-VA-10 Top Label(Jensen), AM/FM ORIT,1RCA, 1.0000 PC 1.0000
706-TF685018-VA-10 Coupon NO. Sticker for VITEK VT-3634BK 4.0000 PC 4.0000
751-0SM855CD-01-15 CD Mechanism Locker Warning Card -Komec/ 1.0000 PC 1.0000
752-TF6850VA-01-10 Instruction Manual, for VITEK VT-3634BK 1.0000 PC 1.0000
754-VATF6850-01-10 Warranty Book for VITEK VT-3634BK 1.0000 PC 1.0000
756-TF6850VA-01-10 Gift Box(Premium), VITEK VT-3634BK 1.0000 PC 1.0000
759-04020001-60-60 Polybag,Open Side=40xL=200xT=0.06mm 1.0000 PC 1.0000
759-27032005-30-40 Polybag,Open Side=270 x L=320 x T=0.03mm 1.0000 PC 1.0000
761-TF660000-01-00 Polyfoam "Left" (For RC002) 1.0000 PC 1.0000
761-TF660000-02-00 Polyfoam "Right" (For RC002) 1.0000 PC 1.0000
763-00CD9001-05-00 CD90 Standard Carton,5 Sets/CTN 0.2000 PC 0.2000
850-04020080-11-00 Black Sponge L=40,W=20,H=8,W/Double 2.0000 PC 2.0000
850-04020160-11-00 Black Sponge, Size: L=40 W=20 H=16mm 1.0000 PC 1.0000
850-TF685001-00-00 Power Button Sponge,t=5mm White Color 1.0000 PC 1.0000
851-01004040-10-00 Foam Rubber, L=10 W=4 H=4 W/Double Sided 0.5000 PC 0.5000
851-02003010-10-00 Foam Rubber,Black, L=20 W=3 H=1,W/Double 1.0000 PC 1.0000
852-00808030-10-00 Neop Tape, L=8 W=8 H=3mm W/Double Sided 3.0000 PC 3.0000
XXX-XXXXXXXX-XX-XX NIL 7.0000 PC 7.0000
Page: 9
Hi-San Electronic Co. Ltd 2007-8-16
19:10
EXPLODED BOM LISTING By: GONG
PRODUCT: TF6850-VA8664-01-MU (Ver 2) Per 1 PC UPDATE AT 2007-8-7
20:06:04
VITEK VT-3634BK AM/FM ORIT USB+SD/MMC+MP
Ref.#:
Item Code Description Quantity Unit Qty W/Loss
Total Pages of Report: 9
-End of Report-
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
