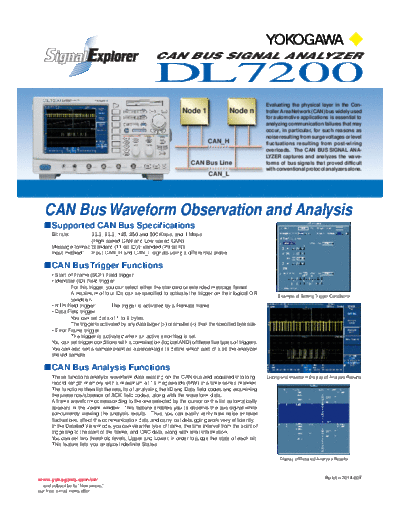

CAN BUS SIGNAL ANALYZER
Evaluating the physical layer in the Con-
Node 1 Node n troller Area Network (CAN) bus widely used
for automotive applications is essential to
analyzing communication failures that may
occur, in particular, for such reasons as
noise resulting from surge voltages or level
CAN_H fluctuations resulting from post-wiring
overloads. The CAN BUS SIGNAL ANA-
LYZER captures and analyzes the wave-
CAN Bus Line forms of bus signals that proved difficult
with conventional protocol analyzers alone.
CAN_L
CAN Bus Waveform Observation and Analysis
sSupported CAN Bus Specifications
Bit rate: 33.3, 83.3, 125, 250 and 500 Kbps, and 1 Mbps
(High-speed CAN and Low-speed CAN)
Message format: Standard (11-bit ID)/Extended (29-bit ID)
Input method: Input CAN_H and CAN_L signals using a differential probe.
sCAN Bus Trigger Functions
