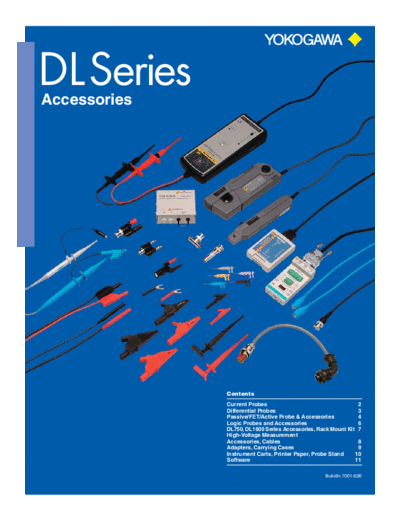

Image preview - the first page of the document



>> Download bu7001_63e_050_21 documenatation <<

Text preview - extract from the document

DL Series
Accessories




              Contents
              Current Probes                                   2
              Differential Probes                              3
              Passive/FET/Active Probe & Accessories           4
              Logic Probes and Accessories                     6
              DL750, DL1600 Series Accessories, Rack Mount Kit 7
              High-Voltage Measurement
              Accessories, Cables                              8
              Adapters, Carrying Cases                         9
              Instrument Carts, Printer Paper, Probe Stand    10
              Software                                        11

                                                  Bulletin 7001-63E
          Current Probes                                                     For High Current and Wide Bandwidth Measurements
       Yokogawa offers 4 different models of current probes to suit your various current measurement needs. Bandwidths of DC to 2, 10, 50, and 100 MHz are supported, with current
       measurement ranges of up to 30, 150, or 500A. Measuring current is a simple process of placing the probe clamp directly around the conductor to be measured. The current probes
       can be powered by the DL's probe power supply terminals. Hence, no external amplifier is required. The probes can be directly connected to the DL series instruments. Current
       values, in Amperes, can be directly selected via the current probe configuration menu of the DL series instruments, eliminating the usual hassle of voltage/current conversion.

    701931                        DC to 2 MHz, 500 A                          701930                      DC to 10 MHz, 150 A               701933                   DC to 50 MHz, 30 A




    Bandwidth: DC to 2 MHz(-3dB)                                              Bandwidth: DC to 10 MHz(-3dB)                                 Bandwidth: DC to 50 MHz(-3dB)
    Maximum continuous input range: 500 Arms                                  Maximum continuous input range: 150 Arms                      Maximum continuous current input range: 30 Arms
    Amplitude accuracy                                                        Amplitude accuracy                                            Amplitude accuracy
         (0 to 500 Arms):
