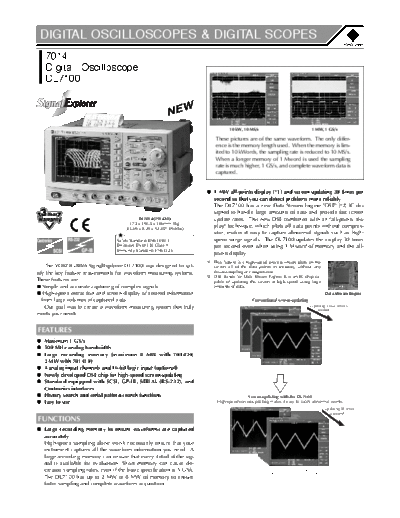

Image preview - the first page of the document
>> Download dl7100_functions documenatation <<
Text preview - extract from the document
DIGITAL OSCILLOSCOPES & DIGITAL SCOPES
7014
Digital Oscilloscope
DL7100
10 kW, 10 MS/s 1 MW, 1 GS/s
These pictures are of the same waveform. The only differ-
ence is the memory length used. When the memory is lim-
ited to 10 kWords, the sampling rate is reduced to 10 MS/s.
When a longer memory of 1 Mword is used the sampling
rate is much higher, 1 GS/s, and complete waveform data is
captured.
1 MW all-points display (*1) and screen updating 30 times per
second so that you can detect problems more reliably
The DL7100 has a new Data Stream Engine "DSE" (*2) IC de-
signed to handle large amounts of data and provide fast screen
DL7014(701420) update rates. This new DSE combined with an "all-points dis-
