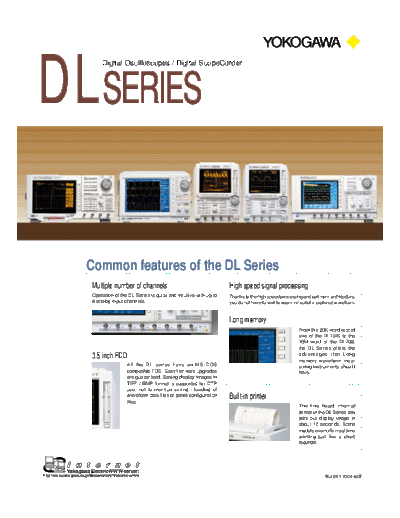

Image preview - the first page of the document
>> Download dl series documenatation <<
Text preview - extract from the document
DLSERIES
Digital Oscilloscopes / Digital ScopeCorder
Common features of the DL Series
Multiple number of channels High speed signal processing
Operation of the DL Series is quick and intuitive with up to Thanks to the high speed processing and optimum architecture,
8 analog input channels. you do not have to wait to zoom in / out of a captured waveform.
Long memory
From the 20K word record
size of the DL1520 to the
16M word of the DL708,
the DL Series offers the
3.5 inch FDD advantages that Long
memory waveform mea-
All the DL series have an MS-DOS suring instruments should
compatible FDD. Easy firmware upgrades have.
are guaranteed. Saving display images in
TIFF / BMP format is supported for DTP
use, not to mention saving / loading of
waveform data files or panel configuration Built-in printer
files.
The line head internal
printer in the DL Series can
print out display image in
about 10 seconds. Some
models even offer real time
printing just like a chart
recorder.
Yokogawa Electric WWW server:
http://www.yokogawa.co.jp/Measurement/Welcome-e.html Bulletin 7001-60E
DL Series
DL708 8 Isolated input channels (Plug in modules )
High performance/cost digital ScopeCorder Max. 10MS/s (10 bit), 100kS/s (16 bit)
Max. 16M word
Real time signal recording to the internal HDD
10.4 inch color TFT display
Light weight (approx. 6kg)
Maintenance and inspection of turbines
Measuring the behavior of engines
Monitoring large plants
Monitoring operation of press machines
Observing impact and vibration tests
DL708
Plug-in modules
High speed isolation Temperature module
/ High speed module 1 Thermocouple input
1 analog input Applicable thermocouples
Max. 10MS/s K, E, J, T, L, U, N, R
10 bit resolution S, B, W, KP vs Au7Fe
High resolution, High voltage isolation Logic input module
/ High resolution isolation module Max. 16 logic inputs
1 analog input Max. 10MS/s
Max. 100KS/s
16 bit resolution
DL2700 4 channel configurations (2,4,6 or 8 channels)
Long memory / multiple channels Max. 500MS/s (8 bit)
High speed processing 3 memory configurations
(Max. 1M, 4M or 16M word)
Built-in 3.5 inch MO drive (230MB)
8.4 inch color TFT display
Evaluating magnetic recording devices
Observing modulated signals
Evaluating transient response of a circuit
Measuring a composite TV signal
Trouble shooting electronics or electric devices
DL4100/DL4200 Full range 4 channel
10 bit Digital Oscilloscope Max. 100MS/s (10 bit)
Max. 100k word
Max. 60 displays / sec update rate
Built-in 3.5 inch FDD
On-line HELP
10 inch CRT
Analyzing a composite signal
Evaluating a complex modulated signal
Observing a servo signal
Evaluating electric control circuit
DL1540 / DL1540L Full range 4 channel
4 channel portable bench top DSO Max. 200MS/s (8 bit)
Max. 120k word (DL1540)
Max. 2M word (DL1540L)
Max. 60 displays / sec update rate
Built-in 3.5 inch FDD
Real time printing function
Evaluating magnetic recording devices
Observing modulated signals
Evaluating transient response of a circuit
Measuring a composite TV signal
Trouble shooting electronics or electric devices
DL1520 / DL1520L 2 channel inputs
2 channel model of the DL1500 series Max. 200MS/s (8 bit)
Max. 20k word (DL1520)
Max. 1M word (DL1520L)
Max. 60 displays / sec update rate
Built-in 3.5 inch FDD
Real time printing function
Light weight (approx. 6kg)
Monitoring a composite TV signal
Observing a general electric signal
Measuring long term trend of a signal
DL Series selection chart
DL1540 DL1540L DL1520 DL1520L DL4100 DL4200 DL2700 DL708
Max. Sample rate 200Ms/s 200Ms/s 200Ms/s 200Ms/s 100Ms/s 100Ms/s 500Ms/s 10MS/s (*1)
Analog BW 150M 150M 150M 150M 150M 300M 150M 4M (*1)
Single Shot BW 80M 80M 80M 80M 40M 40M 150M 4M (*1)
Number of input channels 4 4 2 2 4 4 2,4,6,8 Max. 8 (*2)
External trigger input YES YES YES YES YES YES YES YES
Max. sensitivity 1mV/div 1mV/div 2mV/div 2mV/div 2mV/div 2mV/div 2mV/div 5mV/div
Vertical resolution 8bit 8bit 8bit 8bit 10bit 10bit 8bit 16bit (*1)
Fastest sweep time 5ns/div 5ns/div 5ns/div 5ns/div 2ns/div 2ns/div 2ns/div 500ns/div (*1)
Max. record size 120K 2M 20K 1M 100K 100K 1M, 4M or 16M 16M (*3)
External clock input YES YES YES YES YES YES YES NO
Enhanced trigger YES YES YES YES YES YES YES YES
Inter channel computation YES YES YES YES YES YES YES YES
Advanced math function YES YES YES YES YES YES YES YES
FDD FDD
External recording media FDD FDD FDD FDD FDD FDD
230MB MO 2.1GB HDD
Dimensions (mm)
213 273 250 213 273 250 213 273 250 213 273 250 398 220 427 398 220 427 426 221 425 370 260 183
W H D
Weight (kg) 5 6 6 6 15 15 16 5.3 (*4)
*1) Varies depending on a plug-in module
*2) Plug-in module type NOTICE
*3) 128M word in real time HD recording mode q Before operating the product, read the instruction manual thoroughly for
*4) Main unit only (excluding the plug-in modules) proper and safe operation.
q If this product is for use with a system requiring safeguards that directly
involve personnel safety, please contact the Yokogawa sales offices.
YOKOGAWA ELECTRIC CORPORATION
Measurement Sales Dept. Represented by :
Shinjuku-Nomura Bldg. 1-26-2 Nishi-Shinjuku,
Shinjuku-ku, Tokyo 163-0522, JAPAN
Phone: 81-3-3349-1013, Fax: 81-3-3349-1017
YOKOGAWA CORPORATION OF AMERICA
2 Dart Road, Shenandoah Industrial Park, Newnan, GA 30265, U.S.A.
Phone: 770-253-7000, Fax: 770-251-2088
YOKOGAWA EUROPE B.V.
Vanadiumweg 11, 3812 PX Amersfoort, THE NETHERLANDS
Phone: 31-33-4-641611, Fax: 31-33-4-631202
YOKOGAWA ENGINEERING ASIA PTE. LTD.
11 Tampines Street 92, Singapore 1852, SINGAPORE
Phone: 65-783-9537, Fax: 65-786-6650
YOKOGAWA ELECTRIC CORPORATION
Test & Measurement Business Division
155 Takamuro-cho, Kofu-shi, Yamanashi-ken, 400-8558 Japan MM-04E
Phone: 81-552-43-0310, Fax: 81-552-43-0396
Subject to change without notice. [Ed : 01/b] Printed in Japan, 804(YG)
