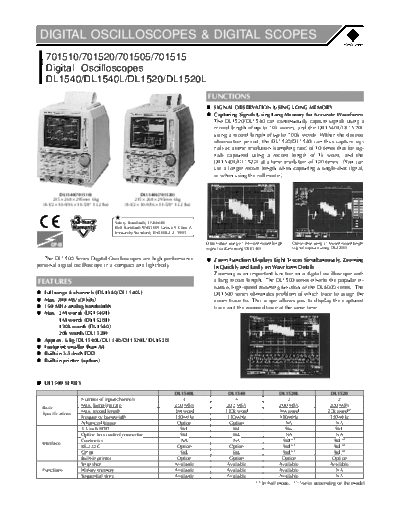

Image preview - the first page of the document



>> Download dl1540_ documenatation <<

Text preview - extract from the document

 DIGITAL OSCILLOSCOPES & DIGITAL SCOPES
  701510/701520/701505/701515
 VIEW RECORDERS
  Digital Oscilloscopes
     DL1540/DL1540L/DL1520/DL1520L
                                                                                       FUNCTIONS
                                                                                      s SIGNAL OBSERVATION USING LONG MEMORY
                                                                                      q Capturing Signals Using Long Memory for Accurate Waveforms
                                                                                        The DL1520/DL1540 can continuously capture signals using a
                                                                                        record length of up to 10k words, and the DL1540L/DL1520L
                                                                                        using a record length of up to 100k words. Within the desired
                                                                                        observation period, the DL1520/DL1540 can thus capture sig-
                                                                                        nals at a time resolution (sampling rate) of 10 times that for sig-
                                                                                        nals captured using a record length of 1k word, and the
                                                                                        DL1540L/DL1520L at a time resolution of 100 times. (You can
                                                                                        use a longer record length when capturing a single-shot signal,
                                                                                        or when using the roll mode.)


              DL1540(701510)                            DL1540L(701520)
         215
