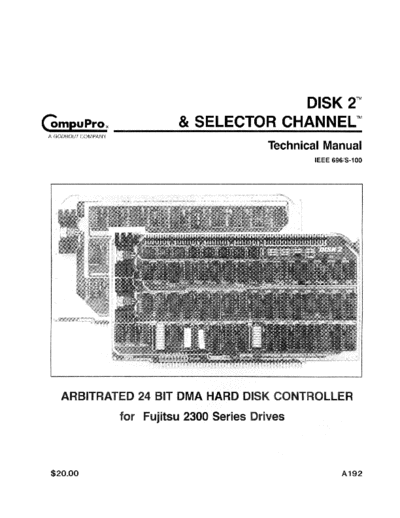

Image preview - the first page of the document



>> Download A192_Disk_2_and_Selector_Channel_Technical_Manual_Nov83 documenatation <<

Text preview - extract from the document

                                                      DISK 2TM
(OmpuPro@ _ _ _
         _     &_S_E_L_E_C_T_O_R_C_H_A_N_N_E_L_
                                              TM
 A GODBOUT COMPANY

                                               Technical Manual
                                                       IEEE 696/S-100




    ARBITRATED 24 BIT DMA HARD DISK CONTROLLER
                     for Fujitsu 2300 Series Drives



 $20.00                                                        A192
DISK 2 & SELECTOR CHANNEL
Copyright 1982 CompuPro
Hayward, CA

First edition:    February 1982
Second edition:   April 1983
Third edition:    November 1983

File name: DISK2.MAN
Document # 11721
Board No. 172/177, Revision D


DISCLAIMER - CompuPro makes no representations or warranties with
respect to the contents hereof and specifically disclaims any
implied warranties of merchantability or fitness for any particular
purpose. Further, CompuPro reserves the right to revise this
publication and to make any changes from time to time in the
content hereof without obligation of CompuPro to notify any person
of such revision or changes.

Registered trademarks: CompuPro, CompuPro; CP/M and CP/M-86 Digital
Research. Trademarks: DISK 2 & Selector Channel, CompuPro; CP/M
80, MP/M-86 and Digital Research; tiigital Research.


All rights reserved. No part of this publication may be reproduced
or transmitted in any form, or by any means, without the written
permission of CompuPro.     Printed and assembled in the United
States of America.
                                                CONTENTS
DISK 2 SECTION

About Disk 2     ....................                      1
Technical Overview
