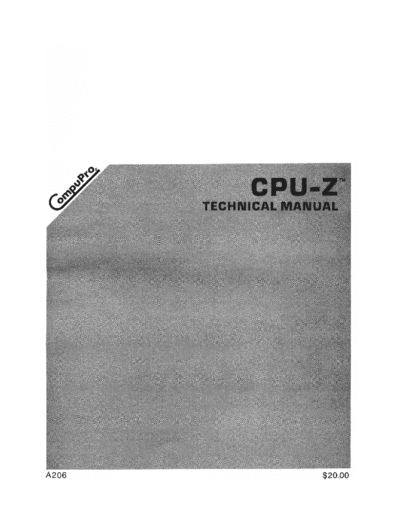

Image preview - the first page of the document
A206_CPU_Z_Technical_Manual_Aug84


>> Download A206_CPU_Z_Technical_Manual_Aug84 documenatation <<

Text preview - extract from the document
A206   $20.00
                cpu-z
            Technical Manual




                 IEEE 696/5-100
        2-6 MHz CPU (5WITCH5ELECTABLE)
WITH ON-BOARD RAM/ROM AND INTERRUPT CONTROL
CPU-Z
Technical Manual
Copyright 1982, 1984 CompuPro
Hayward, CA 94545

Document No: 11608
File Name: CPUZ.MAN
Board No: 160K

First Edition: 1982
Second Edition: February 1984
Latest Printing: August, 1984

DISCLAIHEI - CompuPro makes no representations or warranties with
respect to the contents hereof and specifically disclaims any
implied warranties of merchantability or fitness for any particular
purpose. Further, CompuPro reserves the right to revise this
publication and to make any changes from time to time in the
content hereof without obligation of CompuPro to notify any person
of such revision or changes.


CPU-Z is a trademark of CompuPro.
Z80 is ~ trad.emar~ of the Zilog Corporation. .
TRI-STATE is a trademark of National Semiconductor Corp.


All rights reserved. -No part of this publication may be reproduced
or transmitted in any form, or by any means, without the written
permission of CompuPro.      Printed and assembled in the United
S ta tes of America.
                                            CONTENTS
How to Get Your CPU-Z Up and Running
    Without Reading the Manual                        1
Technical overview                                    2
    Using vectored interrupts                         2
    Using nonmaskable interrupts                     3
    Extended addressing
