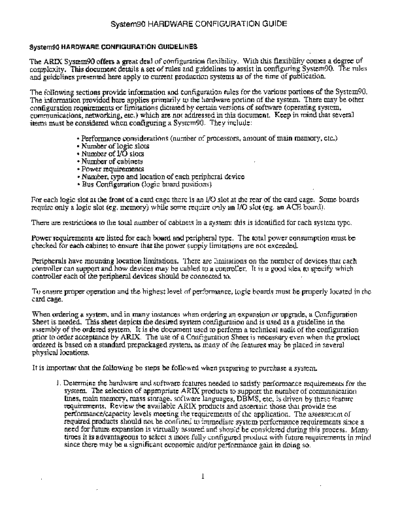

Image preview - the first page of the document



>> Download S90_Hardware_Configuration_Guide documenatation <<

Text preview - extract from the document

                          System90 HARDWARE CONFIGURATION GUIDE


System90 HARDWARE CONFIGURATION GUIDELINES

The ARIX System90 offers a great deal of configuration flexibility. With this flexibility comes a degree of
cOIl1plexity. This document details a set of rules and guidelines to assist in configuring System90. The rules
and guidelines presented here apply to current production systems as of the time of publication.

The following sections provide information and configuration rules for the various portions of the System90.
The information provided here applies primarily to the hardware portion of the system. There may be other
configuration requirements or limitations dictated by certain versions of software (operating system,
communications, networking, etc.) which are not addressed in this document. Keep in mind that several
items must be considered when configuring a System90. They include:
