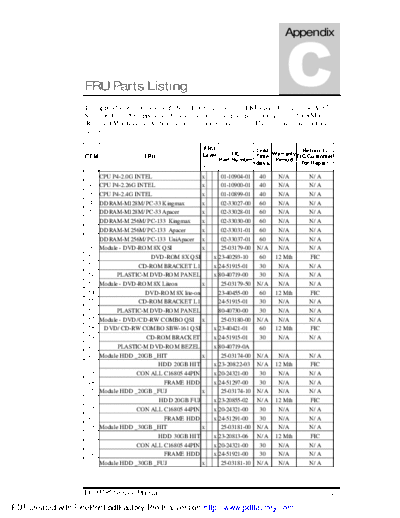

Image preview - the first page of the document
>> Download APPENB M785_Service_Manual documenatation <<
Text preview - extract from the document
Appendix
FRU Parts Listing
This appendix provides you with the field replaceable unit (FRU) parts listing of the A985
Series. Refer to this appendix whenever ordering for spare parts or requesting for RMA
(Returned Merchandise Authorization) number. Please contact FIC account manager for latest
unit price.
FRU Lead Return to
Level FIC Warranty
ITEM FRU Time FIC/Customer
Part Number Period
(days) for Repair
ABC
1 CPU P4-2.0G INTEL x 01-10904-01 40 N/A N/A
2 CPU P4-2.26G INTEL x 01-10900-01 40 N/A N/A
3 CPU P4-2.4G INTEL x 01-10899-01 40 N/A N/A
4 DDRAM-M128M/PC-33 Kingmax x 02-33027-00 60 N/A N/A
5 DDRAM-M128M/PC-33 Apacer x 02-33028-01 60 N/A N/A
6 DDRAM-M 256M/PC-133 Kingmax x 02-33030-00 60 N/A N/A
7 DDRAM-M 256M/PC-133 Apacer x 02-33031-01 60 N/A N/A
8 DDRAM-M 256M/PC-133 UniApacer x 02-33037-01 60 N/A N/A
9 Module - DVD-ROM 8X QSI x 25-03179-00 N/A N/A N/A
10 DVD-ROM 8X QSI x 23-40293-10 60 12 Mth FIC
11 CD-ROM BRACKET L1 x 24-51915-01 30 N/A N/A
12 PLASTIC-M DVD-ROM PANEL x 80-40719-00 30 N/A N/A
13 Module - DVD-ROM 8X Liteon x 25-03179-50 N/A N/A N/A
14 DVD-ROM 8X lite-on 23-40455-00 60 12 Mth FIC
15 CD-ROM BRACKET L1 24-51915-01 30 N/A N/A
16 PLASTIC-M DVD-ROM PANEL 80-40730-00 30 N/A N/A
17 Module - DVD/CD-RW COMBO QSI x 25-03180-00 N/A N/A N/A
18 DVD/CD-RW COMBO SBW-161 QSI x 23-40421-01 60 12 Mth FIC
19 CD-ROM BRACKET x 24-51915-01 30 N/A N/A
20 PLASTIC-M DVD-ROM BEZEL x 80-40719-0A
21 Module HDD _20GB _HIT x 25-03174-00 N/A N/A N/A
22 HDD 20GB HIT x 23-20822-03 N/A 12 Mth FIC
23 CON ALL C16805 44PIN x 20-24321-00 30 N/A N/A
24 FRAME HDD x 24-51297-00 30 N/A N/A
25 Module HDD _20GB _FUJ x 25-03174-10 N/A N/A N/A
26 HDD 20GB FUJ x 23-20855-02 N/A 12 Mth FIC
27 CON ALL C16805 44PIN x 20-24321-00 30 N/A N/A
28 FRAME HDD x 24-51291-00 30 N/A N/A
29 Module HDD _30GB _HIT x 25-03181-00 N/A N/A N/A
30 HDD 30GB HIT x 23-20813-06 N/A 12 Mth FIC
31 CON ALL C16805 44PIN x 20-24321-00 30 N/A N/A
32 FRAME HDD x 24-51921-00 30 N/A N/A
33 Module HDD _30GB _FUJ x 25-03181-10 N/A N/A N/A
FIC M785 Service Manual C-1
PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com
FRU Parts Listing
FRU FIC Lead Return to
Level Warranty
ITEM FRU Part Time FIC/Customer
Period
Number (days) for Repair
ABC
34 HDD 30GB FUJ x 23-20754-03 N/A 12 Mth FIC
35 CON ALL C16805 44PIN x 20-24321-00 30 N/A N/A
36 FRAME HDD x 24-51921-00 30 N/A N/A
37 Module HDD _40GB _HIT x 25-03182-00 N/A N/A N/A
38 HDD 40GB HIT x 23-20862-03 N/A 12 Mth FIC
39 CON ALL C16805 44PIN x 20-24321-00 30 N/A N/A
40 FRAME HDD x 24-51921-00 30 N/A N/A
41 Module HDD _40GB _FUJ x 25-03182-10 N/A N/A N/A
42 HDD 40GB FUJ x 23-20935-00 N/A 12 Mth FIC
43 CON ALL C16805 44PIN x 20-24321-00 30 N/A N/A
44 FRAME HDD x 24-51921-00 30 N/A N/A
45 Module HDD _60GB _HIT x 25-03183-00 N/A N/A N/A
46 HDD 60GB HIT x 23-20900-00 45 12 Mth FIC
47 CON ALL C16805 44PIN x 20-24321-00 30 N/A N/A
48 FRAME HDD x 24-51921-00 30 N/A N/A
49 USB FDD (uf0002s-106) NEC x 25-02373-03 45 N/A N/A
50 Battery Pack LI-LON 4000MA(sanyo) x 21-92093-11 90 5 Mth FIC
51 Battery Pack LI-LON 4000MA(panasonic) x 21-92093-12 90 5 Mth FIC
52 FAX MODEM MODULE (ASKEY) x 71-40183-00 N/A 12 Mth FIC
53 CABLE-M MODEM x 22-10895-00 N/A N/A N/A
54 Main Module x 56-20770-50 N/A N/A N/A
55 Main Board x 51-71456-02 30 12 Mth FIC
56 LED/B x 51-71389-02 30 12 Mth FIC
57 FPC CCABLE LED/B TO MB x 22-21279-00 30 N/A N/A
58 Audio jack Board x 51-71391-02 30 12 Mth FIC
59 BAT RTC x 21-91086-00 30 N/A N/A
60 HEAT SINK x 24-20668-00 30 N/A N/A
61 CASE HINGE COVER-L x 24-45480-00 30 N/A N/A
62 CASE HINGE COVER-R x 24-45481-00 30 N/A N/A
63 BOTTOM CASE MODULE W/O PCMCIA x 80-40717-0A 35 N/A N/A
64 CASE BOTTOM W/O PCMCIA x 24-45479-0A 35 N/A N/A
65 CASE IR x 24-45487-00 30 N/A N/A
66 Module TOP CASE x x 80-00104-00 30 N/A N/A
67 SPEAKER ZK-28E-02 x 21-20734-00 30 N/A N/A
68 FPC CCABLE GP/B TO G/P FPC x 22-21277-00 30 N/A N/A
69 GLIDE/PAD KGDDET009A x 71-23008-00 30 N/A N/A
70 M/E G/P FRAME x 80-00105-00 30 N/A N/A
71 K/B Cover x 80-40727-00 30 N/A N/A
72 PLASTIC-M TOP COVER x 80-40728-00 30 N/A N/A
73 FPC CCABLE GP/B TO MB x 22-21278-00 30 N/A N/A
C-2 FIC M785 Service Manual
PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com
FRU Parts Listing
FRU FIC Lead Return to
Level Warranty
ITEM FRU Part Time FIC/Customer
Period
Number (days) for Repair
ABC
74 GLIDE PAD BOARD x 51-71390-02 30 N/A N/A
75 Module LCD TFT 14.1' AU x 56-10620-00 N/A N/A N/A
76 LCD 14.1" B141XN04 AU x 71-10629-01 60 12 Mth FIC
77 INVETER/B x 12-01507-02 60 12 Mth FIC
78 CABLE-M LCD FPC/CABLE 14.1' AUT x 22-10902-00 60 N/A N/A
79 CASE LCD CABLE BOX x 24-45486-00 60 N/A N/A
80 RUBBER FOR LCD BEZEL x 24-83845-00 30 N/A N/A
81 LCD BEZEL FOR 14.1 x 80-40725-00 30 N/A N/A
82 LCD COVER BACK FOR 14.1 x 80-40732-00 30 N/A N/A
83 FRAME HINGE-L x 80-50197-00 30 N/A N/A
84 FRAME HINGE-R x 80-50198-00 30 N/A N/A
85 Module LCD TFT 14.1' ADT x 56-10623-00 N/A N/A N/A
86 LCD 14.1" L141X2-1 ADT x 71-10574-01 60 12 Mth FIC
87 INVETER/B x 12-01507-02 60 12 Mth FIC
88 CABLE-M LCD FPC/CABLE 14.1' AUT x 22-10902-00 60 N/A N/A
89 CASE LCD CABLE BOX x 24-45486-00 60 N/A N/A
90 RUBBER FOR LCD BEZEL x 24-83845-00 30 N/A N/A
91 LCD BEZEL FOR 14.1 x 80-40725-00 30 N/A N/A
92 LCD COVER BACK FOR 14.1 x 80-40732-00 30 N/A N/A
93 FRAME HINGE-L x 80-50197-00 30 N/A N/A
94 FRAME HINGE-R x 80-50198-00 30 N/A N/A
95 Module LCD TFT 15" HANNSTAR x 56-10624-00 N/A N/A N/A
96 LCD 15" HANNSTAR x 71-10639-01 60 12 Mth FIC
97 INVETER/B x 12-01507-02 60 12 Mth FIC
98 CABLE-M LCD FPC/CABLE 15" HANNSTAR x 22-11060-00 60 N/A N/A
99 RUBBER FOR LCD BEZEL x 24-83845-00 30 N/A N/A
100 LCD BEZEL x 80-40726-00 30 N/A N/A
101 LCD COVER BACK x 80-40732-00 30 N/A N/A
102 FRAME HINGE-R x 24-51931-00 30 N/A N/A
103 FRAME HINGE-L x 24-51930-00 30 N/A N/A
104 POWER CORD x 22-30135-00 30 N/A N/A
105 AC ADAPTOR x 12-01468-02 35 12 Mth FIC
106 Keyboard(US) x 71-31677-00 35 12 Mth FIC
107 Keyboard(UK) x 71-31677-01 35 12 Mth FIC
108 Keyboard(JAP) x 71-31677-13 35 12 Mth FIC
FIC M785 Service Manual C-3
