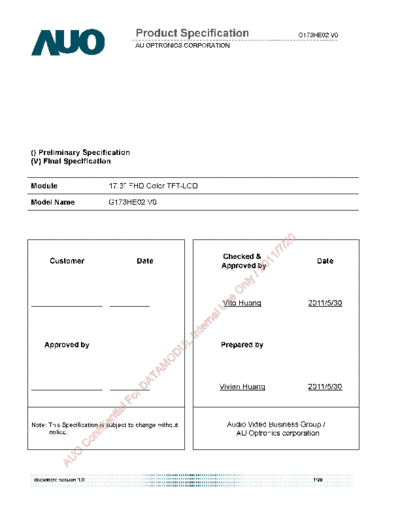

Image preview - the first page of the document
![Panel_AUO_G173HE02_V0_0_[DS]](/pics/5c36acb7025f3.gif)
>> Download Panel_AUO_G173HE02_V0_0_[DS] documenatation <<
Text preview - extract from the document
Product Specification G173HE02 V0
AU OPTRONICS CORPORATION
() Preliminary Specification
(V) Final Specification
Module 17.3" FHD Color TFT-LCD
Model Name G173HE02 V0
20
Customer Date
Checked &
7/ Date
1/
Approved by
01
/2
y
nl
O
Vito Huang 2011/5/30
se
U
al
rn
te
In
Approved by Prepared by
L
U
D
O
AM
AT
Vivian Huang 2011/5/30
D
or
lF
tia
Audio Video Business Group /
en
Note: This Specification is subject to change without
notice. AU Optronics corporation
fid
on
C
O
AU
document version 1.0 1/29
Product Specification G173HE02 V0
AU OPTRONICS CORPORATION
CoEEntents
1. Handling Precautions .................................................................................................................. 4
2. General Description ..................................................................................................................... 5
2.1 Display Characteristics .......................................................................................................... 5
3. Functional Block Diagram.........................................................................................................10
4. Absolute Maximum Ratings......................................................................................................11
4.1 Absolute Ratings of TFT LCD Module ................................................................................. 11
4.2 Absolute Ratings of Environment ........................................................................................ 11
5. Electrical characteristics ..........................................................................................................12
5.1 TFT LCD Module..................................................................................................................12
5.2 Backlight Unit .......................................................................................................................14
6. Signal Characteristic .................................................................................................................15
6.1 Pixel Format Image ..............................................................................................................15
6.2 The Input Data Format .........................................................................................................16
20
6.4 Interface Timing....................................................................................................................19
7/
6.5 Power ON/OFF Sequence...................................................................................................20
1/
01
7. Connector & Pin Assignment ...................................................................................................21
/2
7.1 TFT LCD Module..................................................................................................................21
y
7.2 Backlight Unit .......................................................................................................................22
nl
O
8. Reliability Test ............................................................................................................................23
se
9. Shipping Label............................................................................................................................24
U
al
10. Packing Form............................................................................................................................25
rn
te
10.1 Packaging material ............................................................................................................25
In
10.2 External packaging material required................................................................................25
L
U
10.3 Palletizing sequence..........................................................................................................26
D
O
10.4 Packing instruction.............................................................................................................27
AM
11. Outline Drawing........................................................................................................................28
AT
D
or
lF
tia
en
fid
on
C
O
AU
document version 1.0 2/29
Product Specification G173HE02 V0
AU OPTRONICS CORPORATION
Record of Revision
Version & Date Page Old Description New Description
0.0 2011/1/20 All First Edition for Customer
0.1 2011/1/31 12 IDD unit: A IDD unit: mA
14 VCC Max: 12.6V VCC Max: 13.4V
14 Operation Life LED life time
1.0 2011/5/30 5 White Luminance(cd/m2): 500(Typ.) White Luminance(cd/m2): 400(Typ.)
5 Optical Response Time(ms): 8(Typ.) Optical Response Time(ms): 40(Typ.)
5 Power Consumption(Watt): TBD(Typ.) Power Consumption(Watt): 17(Typ.)
5 Weight(g): TBD(Typ.) Weight(g): 1080(Typ.)
6 Update Viewing Angle
20
6 Update Optical Response Time
7/
Update Color / Chromaticity
6 1/
01
Coordinates
/2
6 Update White Luminance
y
nl
O
12 IDD (mA): 350(Typ), 600(Max) IDD (mA): 1200(Typ), 1400(Max)
se
U
12 PDD (Watt): TBD(Typ), 2(Max) PDD (Watt): 5(Typ), 6(Max)
al
rn
12 Update the diagram of Vin rising time
te
In
14 PVCC (Watt): 11.88(Typ), 13.39(Max) PVCC (Watt): 12(Typ), 15(Max)
L
U
D
14 Update LED Forward Voltage
O
AM
14 Update Note6 description
AT
25
D
Update Shipping Label
or
lF
25 Update Packing Form
tia
28 Update Outline Drawing
en
fid
on
C
O
AU
document version 1.0 3/29
Product Specification G173HE02 V0
AU OPTRONICS CORPORATION
1. Handling Precautions
1) Since front polarizer is easily damaged, please be cautious and not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or
spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or soft cloth.
5) Since the panel is made of glass, it may be broken or cracked if dropped or bumped on
hard surface.
6) To avoid ESD (Electro Static Discharde) damage, be sure to ground yourself before handling
TFT-LCD Module.
7) Do not open nor modify the module assembly.
8) Do not press the reflector sheet at the back of the module to any direction.
9) In case if a module has to be put back into the packing container slot after it was taken
out from the container, do not press the center of the LED light bar edge. Instead, press
at the far ends of the LED light bar edge softly. Otherwise the TFT Module may be
damaged.
20
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt
7/
the Interface Connector of the TFT Module.
1/
01
11) TFT-LCD Module is not allowed to be twisted & bent even force is added on module in a very
/2
short time. Please design your display product well to avoid external force applying to module
y
nl
by end-user directly.
O
se
12) Small amount of materials without flammability grade are used in the TFT-LCD module. The
U
TFT-LCD module should be supplied by power complied with requirements of Limited Power
al
rn
Source (IEC60950 or UL1950), or be applied exemption.
te
13) Severe temperature condition may result in different luminance, response time and lamp
In
L
ignition voltage.
U
D
14) Continuous operating TFT-LCD display under low temperature environment may accelerate
O
AM
lamp exhaustion and reduce luminance dramatically.
AT
15) The data on this specification sheet is applicable when LCD module is placed in landscape
D
position.
or
16) Continuous displaying fixed pattern may induce image sticking. It's recommended to use
lF
ia
screen saver or shuffle content periodically if fixed pattern is displayed on the screen.
nt
e
f id
on
C
O
AU
document version 1.0 4/29
Product Specification G173HE02 V0
AU OPTRONICS CORPORATION
2. General Description
G173HE02 V0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a LED driver
circuit, and a LED backlight system. The screen format is intended to support the FHD (1920(H) x 1080(V))
screen and 16.7M colors (RGB 6-bits + HiFRC data). All input signals are LVDS interface compatible.
Inverter card of backlight is not included.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 condition:
Items Unit Specifications
Screen Diagonal [mm] 17.3W (17.25)
Active Area [mm] 381.888 (H) x 214.812 (V)
Pixels H x V 1920(x3) x 1080
Pixel Pitch [mm] 0.1989 (per one triad) x 0.1989
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
2
White Luminance [cd/m ] 400 (Typ.)
Contrast Ratio 600 : 1 (Typ)
20
7/
Optical ResponseTime [msec] 40 (Typ, on/off)
Nominal Input Voltage VDD [Volt] 3.3 V 1/
01
17 (Typ)
/2
Power Consumption [Watt]
y
Weight [Grams] 1080 (Typ)
nl
O
Physical Size (H x V x D) [mm] 403 (H) x 240 (V) x 12.5 (D) (Typ)
se
Electrical Interface Dual channel LVDS
U
Surface Treatment Hard-coating (3H), Glare treatment
al
rn
Support Color 16.7M colors (RGB 6-bit data + HiFRC data)
te
In
Temperature Range (Ta)
[oC] 0 to +70
L
Operating
U
Storage (Non-Operating) [oC] -20 to +70
D
O
RoHS Compliance RoHS Compliance
AM
AT
D
or
lF
t ia
en
fid
on
C
O
AU
document version 1.0 5/29
Product Specification G173HE02 V0
AU OPTRONICS CORPORATION
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25 (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right) 70 80
-
CR = 10 (Left) 70 80
Viewing Angle [degree] 1
Vertical (Up) 60 70
-
CR = 10 (Down) 70 80
Luminance Uniformity [%] 13 Points 75 80 - 2, 3
Rising - 37 50
Optical Response Time [msec] Falling - 3 10 4, 5
Rising + Falling - 40 60
Red x 0.590 0.640 0.690
Red y 0.296 0.346 0.396
20
Green x 0.264 0.314 0.364
7/
Color / Chromaticity Green y 0.574 1/
0.624 0.674
01
Coordinates 4
/2
(CIE 1931) Blue x 0.100 0.150 0.200
y
nl
Blue y 0.004 0.054 0.104
O
White x 0.255 0.305 0.355
se
lU
White y 0.268 0.318 0.368
a
rn
White Luminance
te
[cd/m2 ] 320 400 - 4
(At LED=100mA)
In
L
Contrast Ratio 500 600 - 4
U
D
O
NTSC % 72
AM
AT
Optical Equipment: BM-5A, BM-7, PR880, or equivalent
D
or
lF
tia
en
fid
on
C
O
AU
document version 1.0 6/29
Product Specification G173HE02 V0
AU OPTRONICS CORPORATION
Note 1: Definition of viewing angle
Viewing angle is the measurement of contrast ratio10, or 5, at the screen center, over a 180◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
