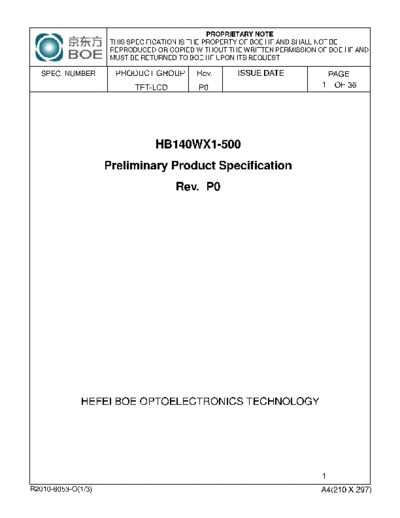

Image preview - the first page of the document
![Panel_BOE_HB140WX1-500_0_[DS]](/pics/5c8eb970c45b7.gif)
>> Download Panel_BOE_HB140WX1-500_0_[DS] documenatation <<
Text preview - extract from the document
PROPRIETARY NOTE
THIS SPECIFICATION IS THE PROPERTY OF BOE HF AND SHALL NOT BE
REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE HF AND
MUST BE RETURNED TO BOE HF UPON ITS REQUEST
SPEC. NUMBER PRODUCT GROUP Rev. ISSUE DATE PAGE
TFT-LCD P0 1 OF 36
HB140WX1-500
Preliminary Product Specification
Rev. P0
HEFEI BOE OPTOELECTRONICS TECHNOLOGY
1
R2010-6053-O(1/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT- LCD PRODUCT P0
SPEC. NUMBER SPEC. TITLE PAGE
HB140WX1-500 Preliminary Product Specification 2 OF 36
REVISION HISTORY
REV ECN No. DESCRIPTION OF CHANGES DATE PREPARED
.
P0 - Initial Release 2012.06.28
2
R2010-6053-O(2/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT- LCD PRODUCT P0
SPEC. NUMBER SPEC. TITLE PAGE
HB140WX1-500 Preliminary Product Specification 3 OF 36
Contents
No. Items Page
1.0 General Description 4
2.0 Absolute Maximum ratings 6
3.0 Electrical specifications. 7
4.0 Optical specifications. 9
5.0 Interface Connection 14
6.0 Signal Timing Specification 18
7.0 Signal Timing waveforms 20
8.0 Input Signals, Display Colors & Gray Scale of Colors 22
9.0 Power Sequence 23
10.0 Connector description 24
11.0 Mechanical Characteristics 25
12.0 Reliability Test 26
13.0 Handling & Cautions. 26
14.0 Label 27
15.0 Packing information 29
16.0 Mechanical Outline Dimension 30
17.0 EDID Table 32
3
R2010-6053-O(3/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT- LCD PRODUCT P0
SPEC. NUMBER SPEC. TITLE PAGE
HB140WX1-500 Preliminary Product Specification 4 OF 36
1.0 GENERAL DESCRIPTION
1.1 Introduction
HB140WX1-500 is a color active matrix TFT LCD module using amorphous silicon TFT's
(Thin Film Transistors) as an active switching devices. This module has a 14.0 inch
diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical Stripe and this module can display 262,144 colors. The TFT-LCD panel used for this
module is a low reflection and higher color type. Therefore, this module is suitable for
Notebook PC. The LED Driver for back-light driving is built in this model.
All input signals are LVDS interface compatible.
LED Driver
LVDS Rx
LVDS
+
Gate Driver
Input
Connector 1
T/CON
Signal
+ TFT LCD Panel
BACK LIGHT (Fluorescent Lamp)
Mini-LVDS Tx 1366 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
