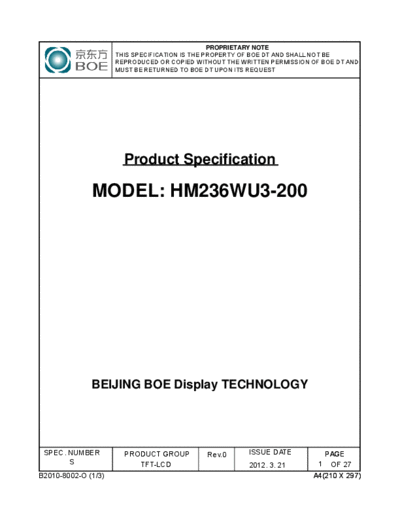

Image preview - the first page of the document
![Panel_BOE_HM236WU3-200_0_[DS]](/pics/5c8eb9c7129fa.gif)
>> Download Panel_BOE_HM236WU3-200_0_[DS] documenatation <<
Text preview - extract from the document
PROPRIETARY NOTE
THIS SPECIFICATION IS THE PROPERTY OF BOE DT AND SHALL NOT BE
REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE DT AND
MUST BE RETURNED TO BOE DT UPON ITS REQUEST
Product Specification
MODEL: HM236WU3-200
BEIJING BOE Display TECHNOLOGY
SPEC. NUMBER PRODUCT GROUP Rev.0 ISSUE DATE PAGE
S TFT-LCD 2012. 3. 21 1 OF 27
B2010-8002-O (1/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT- LCD PRODUCT 0 2012.3.21
REVISION HISTORY
REV. ECN No. DESCRIPTION OF CHANGES DATE PREPARED
0 Initial Release Mar. 21. 12' Kim Woong
SPEC. NUMBER SPEC. TITLE PAGE
S HM236WU3-200 Product Specification 2 OF 27
B2010-8002-O (2/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT- LCD PRODUCT 0 2012.3.21
Contents
No. Item Page
1.0 General Description 4
2.0 Absolute Maximum Ratings 6
3.0 Electrical Specifications 7
4.0 Optical Specifications 8
5.0 Interface Connection 10
6.0 Signal Timing Specifications 13
7.0 Signal Timing Waveforms of Interface Signal 15
8.0 Input Signals, Display Colors & Gray Scale of Colors 17
9.0 Power Sequence 18
10.0 Mechanical Characteristics 19
11.0 Reliability Test 20
12.0 Handling& Cautions 21
13.0 Product Serial Number 22
14.0 Packing 23
15.0 Appendix 25
SPEC. NUMBER SPEC. TITLE PAGE
S HM236WU3-200 Product Specification 3 OF 27
B2010-8002-O (3/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT- LCD PRODUCT 0 2012.3.21
1.0 GENERAL DESCRIPTION
1.1 Introduction
HM236WU3-200 is a color active matrix TFT LCD open cell using amorphous silicon
TFT's (Thin Film Transistors) as an active switching devices. This open cell has a 23.6
inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080
vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are
arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD
panel used for this module is adapted for a low reflection and higher color type.
LVDS LVDS Rx Source Driver
Input +
Signal T/CON
+
Connector (CN
Gate Driver
Mini LVDS Tx
TFT LCD Panel
