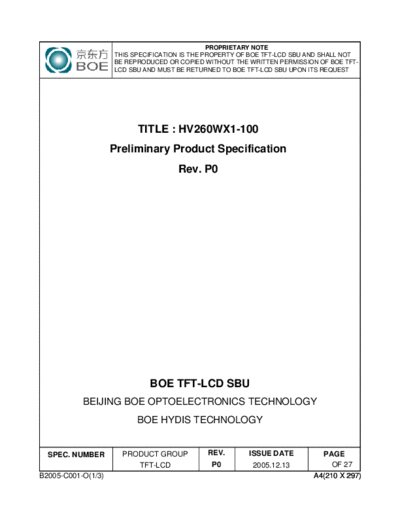

Image preview - the first page of the document
![Panel_BOE_HV260WX1-100_0_[DS]](/pics/5c8eba43613c8.gif)
>> Download Panel_BOE_HV260WX1-100_0_[DS] documenatation <<
Text preview - extract from the document
PROPRIETARY NOTE
THIS SPECIFICATION IS THE PROPERTY OF BOE TFT-LCD SBU AND SHALL NOT
BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE TFT-
LCD SBU AND MUST BE RETURNED TO BOE TFT-LCD SBU UPON ITS REQUEST
TITLE : HV260WX1-100
Preliminary Product Specification
Rev. P0
BOE TFT-LCD SBU
BEIJING BOE OPTOELECTRONICS TECHNOLOGY
BOE HYDIS TECHNOLOGY
SPEC. NUMBER PRODUCT GROUP REV. ISSUE DATE PAGE
TFT-LCD P0 2005.12.13 OF 27
B2005-C001-O(1/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
P0 2005.12.13
REVISION HISTORY
REV. ECN NO. DESCRIPTION OF CHANGES DATE PREPARED
P0 Initial Release 05.12.13 Y. J. Yoon
SPEC. NUMBER SPEC. TITLE PAGE
HV260WX1-100 Preliminary Product Specification OF 27
B2005-C001-O(2/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT- LCD PRODUCT P0 05.12.13
Contents
No ITEM Page
REVISIONS HISTORY 2
CONTENTS 3
1 GENERAL DESCRIPTION 4
1.1 Introduction
1.2 Features
1.3 Applications
1.4 General Specification
2 ABSOLUTE MAXIMUM RATINGS 6
3 ELECTRICAL SPECIFICATIONS
3.1 TFT LCD Module
3.2 Inverter
4 INTERFACE CONNECTION 9
4.1 Module Input Signal & power
4.2 LVDS Interface
4.3 Inverter Input Signal & Power
5 SIGNAL TIMING SPECIFICATIONS 12
5.1 Timing Parameter
5.2 Signal Timing Waveform
5.3 Input Signals, Basic Display Colors & Cray Scale Of Colors
5.4 Power Sequence
6 OPTICAL SPECIFICATIONS 16
7 MECHANICAL CHARACTERISTICS 18
8 RELIABLITY 19
9 PRODUCT SERIAL NUMBER 20
10 PACKING 21
11 HANDING & CAUTIONS 23
12 APPENDIX 24
SPEC. NUMBER SPEC. TITLE PAGE
HV260WX1-100 Preliminary Product Specification OF 27
B2005-C001-O(3/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT- LCD PRODUCT P0 05.12.13
1.0 GENERAL DESCRIPTION
1.1 Introduction
HV260WX1-100 is a color active matrix TFT LCD module using amorphous silicon TFT's
(Thin Film Transistors) as an active switching devices. This module has a 26.0 inch diagonally
measured active area with WXGA resolutions (1366 horizontal by 768 vertical pixel array).
Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and
this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a
low reflection and higher color type.
RGB Source Driver Circuit
LVDS S1 S1366
G1
Gate Driver Circuit
5pair
CN Timing Controller
(30pin)
(LVDS Rx + RSDS)
+5.0V TFT - LCD Panel
(1366 RGB 768 pixels)
G768
Power Circuit
Block
+24V Back light Assembly
CN2 Inverter 2pin x 16CNs ( U Type_8CCFL)
GND (14Pin) Block (High)
1.2 Features
LVDS Interface with 1 pixel / clock
High-speed response
Low power consumption
8-bit color depth, display 16.7M colors
Incorporated 8 U-type CCFL back-light
High luminance and contrast ratio, low reflection and wide viewing angle
DE (Data Enable) only mode
RoHS Compliant
SPEC. NUMBER SPEC. TITLE PAGE
HV260WX1-100 Preliminary Product Specification OF 27
B2005-C001-O(3/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT- LCD PRODUCT P0 05.12.13
1.3 Application
Home Alone Multimedia TFT-LCD TV
Display Terminals for Control System
High Definition TV(HD TV)
AV application Products
1.4 General Specification
< Table 1. General Specifications >
Parameter Specification Unit Remarks
Active area 575.77(H) * 323.71(V) mm
Number of pixels 1366(H) 768(V) pixels
Pixel pitch 0.4215(H) 0.4215(V) mm
Pixel arrangement RGB Vertical stripe
Display colors 16.7M(8bits-true) colors
Display mode Normally Black
Outline Dimension 626.0(H) 373.0(V) 51.0(D) typ. mm
Weight 4300 (typ.) gram
Surface Treatment Haze 25%, 3H
SPEC. NUMBER SPEC. TITLE PAGE
HV260WX1-100 Preliminary Product Specification OF 27
B2005-C001-O(3/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT- LCD PRODUCT P0 05.12.13
2.0 ABSOLUTE MAXIMUM RATINGS
The followings are maximum values which, if exceed, may cause faulty operation or
damage to the unit. The operational and non-operational maximum voltage and current
values are listed in Table 2.
< Table 2. LCD Module Electrical Specifications > [VSS=GND=0V]
Parameter Symbol Min. Max. Unit Remarks
Power Supply LCD Module VDD VSS-0.5 6.0 V
Voltage Ta = 25
Inverter VIN VSS-0.3 25.2 V
Back-light Lamp Frequency FL 40 80 KHz
Operating Temperature TOP 0 +50 1)
TSUR 0 +50 1)
Storage Temperature TST -20 +60 1)
Note : 1) Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be 39 OC max. and no condensation of water.
SPEC. NUMBER SPEC. TITLE PAGE
HV260WX1-100 Preliminary Product Specification OF 27
B2005-C001-O(3/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT- LCD PRODUCT P0 05.12.13
3.0 ELECTRICAL SPECIFICATIONS
3.1 TFT LCD Module
< Table 3. LCD Module Electrical Specifications > [Ta =25 2 ]
Values
Parameter Symbol Unit Notes
Min Typ Max
Power Supply Input Voltage VDD 4.5 5.0 5.5 Vdc
- TBD 1 A 1
Power Supply Current IDD
- TBD 1.2 A
Power Consumption PLCD TBD 6 Watt
Vsync Frequency fV 48 60 63 Hz
Hsync Frequency fH 44 48.54 - KHz
Main Clock Frequency PLCD 75 82 MHz
Rush current IRUSH - - 4.0 A 2
Notes : 1. The supply voltage is measured and specified at the interface connector of LCM.
The current draw and power consumption specified is for VDD=5.0V, Frame rate=60Hz and
Clock frequency = 80MHz. Test Pattern of power supply current
a) Typ : Black Pattern
b) Max : Sub Dot Pattern
2. The duration of rush current is about 2ms and rising time of Power Input is 1ms(min)
SPEC. NUMBER SPEC. TITLE PAGE
HV260WX1-100 Preliminary Product Specification OF 27
B2005-C001-O(3/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT- LCD PRODUCT P0 05.12.13
3.2 Inverter
< Table 4. Inverter Electrical Specifications >
Values
Parameter Symbol Condition Unit Notes
Min. Typ. Max.
Input Voltage VIN 22.8 24.0 25.2 V
Input Current IDDB Vadim=3.3V - TBD 5.5 A 1
Power Consumption PB Typ Luminance - TBD 100 Watt
Lamp ON = High 2.4 5.0 V
B/L on/off control VON/OFF
Lamp OFF =Low 0.0 0.8 V
Min. Luminance 0
Analog Dimming ADIM V
Max. Luminance 3.3
PWM Dimming PWMDIM TBD - 100 % 2
Life Time 50,000 Hrs 3
Notes: 1.The specified current and power consumption are under the typical supply Input voltage, 24V.
2. High-duty = On/(On+Off) * 100
3. The life time of a Lamp, 50,000Hrs, is determined as the time at which luminance of the lamp is 50%
