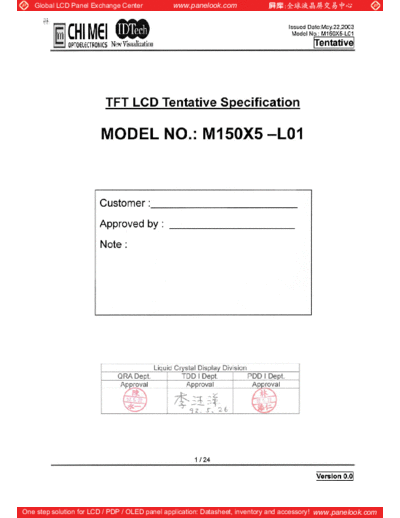

Image preview - the first page of the document
![Panel_CHIMEI_INNOLUX_M150X5-L01_0_[DS]](/pics/5c8ebb1624eef.gif)
>> Download Panel_CHIMEI_INNOLUX_M150X5-L01_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date:May.22,2003
Model No.: M150X5-L01
Tentative
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 5
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 6
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 8
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 11
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING ------------------------------------------------------- 14
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 17
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 20
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKAGING ------------------------------------------------------- 21
9.1 PACKING SPECIFICATIONS
9.2 PACKING METHOD
10. INCOMING INSPECITION DAY ------------------------------------------------------- 23
11. DEFINITION OF SHIPPING LABEL ON MODULE ------------------------------------------------------- 24
2 / 24
Version 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date:May.22,2003
Model No.: M150X5-L01
Tentative
REVISION HISTORY
Page
Version Date Section Description
(New)
Ver 0.0 May.05,'2003 All All Tentative Specification was first issued.
3 / 24
Version 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date:May.22,2003
Model No.: M150X5-L01
Tentative
REVISION HISTORY
Page
Version Date Section Description
(New)
4 / 24
Version 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date:May.22,2003
Model No.: M150X5-L01
Tentative
1. GENERAL DESCRIPTION
1.1 OVERVIEW
M150X5-L01 is a 15.0" TFT Liquid Crystal Display module with 2 CCFL Backlight units and 20 pins LVDS
interface. This module supports 1024 x 768 XGA mode and can display 16.2M colors. The optimum viewing
angle is at 6 o'clock direction. The inverter module for Backlight is not built in.
The PSWG is to establish a set of displays with standard mechanical dimensions and select electrical
interface requirements for an industry standard 15.0" XGA LCD panel ; to enable both LCD monitor makers and
panel suppliers to better manage volatile LCD supply and demand.
1.2 FEATURES
- XGA (1024 x 768 pixels) resolution
- DE(Data Enable) only mode
- LVDS Interface with 1pixel/clock
- PSWG (Panel Standardization Working Group)
1.3 APPLICATION
- Desktop monitors
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 304.128(H) x 228.096(V) (15.0" diagonal) mm
(1)
Bezel Opening Area 307.4(H) x 231.3(V) mm
Driver Element a-Si TFT active matrix - -
Pixel Number 1024 x R.G.B. x 768 pixel -
Pixel Pitch 0.297(H) x 0.297(W) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 16,194,277 color -
Transmissive Mode Normally white - -
Surface Treatment Hard coating ( 3H ) , Anti-glare ( Haze 25 ) - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 326.0 326.5 327.0 mm
(1)
Module Size Vertical(V) 253.0 253.5 254.0 mm
Depth(D) - 11.0 11.5 mm (1)(2)
Weight - - 1200 g -
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Note (2) The depth is without connector.
5 / 24
Version 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date:May.22,2003
Model No.: M150X5-L01
Tentative
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Value
Item Symbol Unit Note
Min. Max.
Storage Temperature TST -20 +60 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
