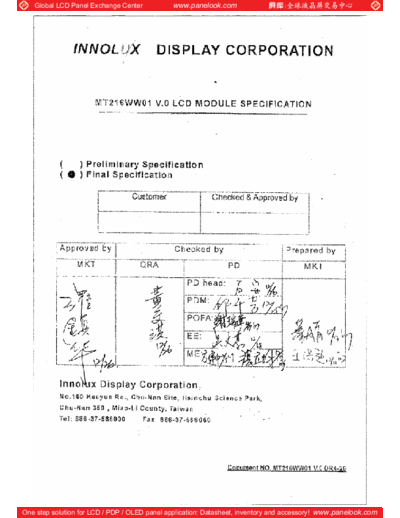

Image preview - the first page of the document

>> Download Panel_CHIMEI_INNOLUX_MT216WW01_V-0_0_[DS] documenatation <<

Text preview - extract from the document

Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

Version: 01
Innolux copyright
All rights reserved,
Copying forbidden.

Record of Revision
Version Revise Date Page Content

01 2007-12-12 All Initial release

2007-12-25 P13 Backlight driving condition

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

SPEC NO. M T 2 1 6 W W 0 1 V. 0

PAGE 3/23

Contents:
A. General Specification

B. Electrical Specifications

1. Pin assignment

2. Absolute maximum ratings

3. Electrical characteristics

a. Typical operating conditions

b. Display color vs. input data signals

c. Input signal timing

d. Display position

e. Backlight driving conditions

C. Optical specifications

D. Reliability test items

E. Safety

F. Display quality

G. Handling precaution

H. Label

I. Mechanical drawings

Appendix

ALL RIGHTS RESERVED ANY PORTION OF THIS DOCUMENT SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED
TO ANY OTHER FORMS WITHOUT PRIOR WRITTEN PERMISSION FROM INNOLUX DISPLAY CORPORATION.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

SPEC NO. M T 2 1 6 W W 0 1 V. 0

PAGE 4/23

A. General Specification
NO. Item Specification Remark

1 Display resolution (pixel) 1680(H) X 1050(V), WSXGA+ resolution

2 Active area (mm) 464.94(H) X 290.59(V)

3 Screen size (inch) 21.6 inches diagonal

4 Pixel pitch (mm) 0.277(H) X 0.277(V)

5 Color configuration R, G, B vertical stripe

6 Overall dimension (mm) 493.7 (W) X 320.1 (H) X 16.5 (D) ( typ.)

7 Weight (g) 3000 ( typ.)

8 Surface treatment Anti-glare, Haze = 25%, Hard coating (3H)

9 Input color signal 8 bit LVDS

10 Display colors 16.7 M (6 bit with Hi-FRC)

11 NTSC(%) 72% (typ)

12 Optimum viewing direction 6 o'clock

13 Backlight 4 CCFL

14 RoHS RoHS compliance

SPEC NO. M T 2 1 6 W W 0 1 V. 0

PAGE 5/23

B. Electrical Specifications
1. Pin assignment
Module connector type: JAE FI-XB30SSL-HF15 or equivalent.

SPEC NO. M T 2 1 6 W W 0 1 V. 0

PAGE 6/23

Remark: Refer to the CPT CLAA220WA01

Rear view of LCM

SPEC NO. M T 2 1 6 W W 0 1 V. 0

PAGE 7/23

2. Absolute maximum ratings

Values
Parameter Symbol Unit Remark
Min. Max.

Power voltage Vcc -0.3 6 V At 25
