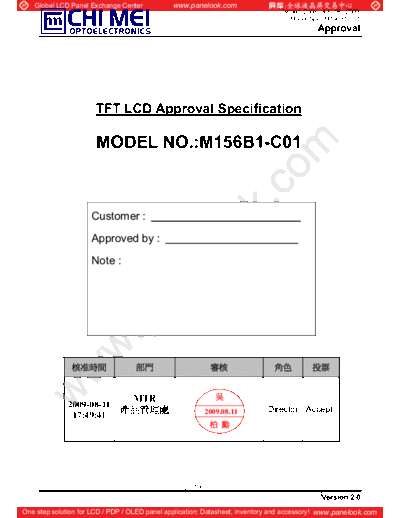

Image preview - the first page of the document
![Panel_CMO_M156B1-C01_0_[DS]](/pics/5c8ec5cb0e797.gif)
>> Download Panel_CMO_M156B1-C01_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jul. 16, 2009
Model No.: M156B1-C01
Approval
TFT LCD Approval Specification
MODEL NO.:M156B1-C01
Customer :
Approved by :
Note :
MTR
2009-08-11
2009.08.11 Director Accept
17:49:41
1 /19
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jul. 16, 2009
Model No.: M156B1-C01
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ---------------------------------------------- 5
3. SUGGESTIVE DRIVING CONDITION ---------------------------------------------- 6
4. PANEL PIN DEFINITION ------------------------------------------------------- 7
5. OPTICAL CHARACTERISTICS ---------------------------------------------- 10
5.1 TEST CONDITIONS
5.2 OPTICAL SPECIFICATIONS
6. PACKAGING --------------------------------------------- 14
6.1 PACKING SPECIFICATIONS
6.2 PACKING METHOD
7. DEFINITION OF LABELS ---------------------------------------------- 16
8. PRECAUTIONS ---------------------------------------------- 17
8.1 ASSEMBLY AND HANDLING PRECAUTIONS
8.2 SAFETY PRECAUTIONS
9. RELIABILITY TEST ---------------------------------------------- 18
10. PANEL DRAWING ---------------------------------------------- 19
2 /19
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jul. 16, 2009
Model No.: M156B1-C01
Approval
REVISION HISTORY
Version Date Section Description
Ver. 2.0 Jul, 16 '09 - M156B1-C01 approval specifications was first issued.
3 /19
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jul. 16, 2009
Model No.: M156B1-C01
Approval
1. GENERAL DESCRIPTION
1.1 OVERVIEW
The M156B1-C01 is a 15.6-inch wide LCD cell with thin film transistors as active elements and contains
1366x768 pixels. Each pixel is divided into red, green and blue dot, which are arranged in vertical stripe.
The cell is normally white mode, and can be applied to the transmission type display. Backlight unit (BLU)
and circuit board for the cell are not built in.
1.2 FEATURES
- Response time 8ms
- WXGA (1366 x 768 pixels) resolution
1.3 APPLICATION
- TFT LCD Monitor
- TFT LCD TV
1.4 GENERAL SPECIFICATIONS
Item Specification Unit
Max Panel Dimension (TFT) 353.632 X 203.086 mm
Glass thickness( TFT/ CF ) 0.7/0.7 mm
Active Area 344.232 (H) x 193.536 (V) (15.6" diagonal) mm
Driver Element a-si TFT active matrix -
Pixel Number 1366X R.G.B X 768 pixel
Pixel Pitch 0.252 (H) X 0.252 (V) mm
Pixel Arrangement RGB vertical stripe -
Transmissive Mode Normally white -
Surface Treatment Hard coating (3H), AG (Haze 25%) -
Polarizer Type TAC -
TFT 350.43 X 199.44 mm
Polarizer Dimension
CF 350.43 X 199.44 mm
TFT 0.215 mm
Polarizer Thickness
CF 0.215 mm
Weight 297(typ.) g
4 /19
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jul. 16, 2009
Model No.: M156B1-C01
Approval
2. ABSOLUTE MAXIMUM RATINGS
Value
Item Symbol Unit Note
Min. Max.
Storage Temperature TST -20 +60 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
