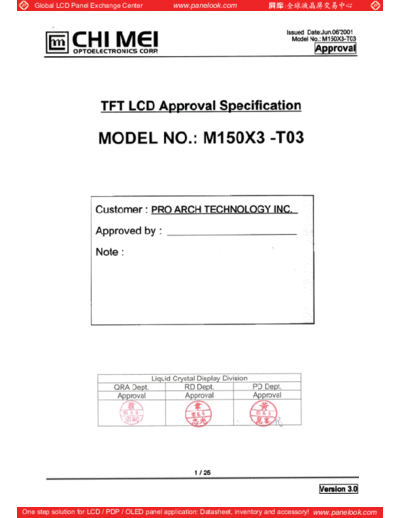

Image preview - the first page of the document
![Panel_CMO_M150X3-T03_0_[DS]](/pics/5c8ec5a6b1cd9.gif)
>> Download Panel_CMO_M150X3-T03_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date:Jun.06'2001
Model No.: M150X3-T03
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 10
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 11
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING ------------------------------------------------------- 13
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 16
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 19
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKAGING ------------------------------------------------------- 21
9.1 PACKING SPECIFICATIONS
9.2 PACKING METHOD
10. INCOMING INSPECITION DAY ------------------------------------------------------- 23
11. DEFINITION OF SHIPPING LABEL ON MODULE ------------------------------------------------------- 24
2 / 25
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date:Jun.06'2001
Model No.: M150X3-T03
Approval
REVISION HISTORY
Page
Version Date Section Description
(New)
Ver 0.0 Apr.10'2001 All All Tentative Specification was first issued.
Ver 0.1 Apr.30'2001 10 4.1 Update LVDS input to TTL input.
17 7.1 Update inverter current: 6.0mA 5.5mA
7.2 Update Color Chromaticity: Rx: TBD(Typ.) (0.629)(Typ.)
Ry: TBD(Typ.) (0.355)(Typ.)
Gx: TBD(Typ.) (0.290)(Typ.)
Gy: TBD(Typ.) (0.593)(Typ.)
Bx: TBD(Typ.) (0.142)(Typ.)
By: TBD(Typ.) (0.094)(Typ.)
Ver 1.0 May.15'2001 4 1.2 Update TTL Interface with 1pixels/clock to 2 pixels/clock
7 3.1 Update Ripple Voltage: TBD(Typ.) -(Typ.)
Rush Current: -(Typ.)/TBD(Max.) 480(Typ.)/525(Max.)
Power Supply Currrent:
White: TBD(Typ.)/-(Max.) 350(Typ.)/380(Max.)
Black: TBD(Typ.)/-(Max.) 530(Typ.)/570(Max.)
Vertical Stripe: TBD(Typ.)/-(Max.) 450(Typ.)/480(Max.)
Differential Input Voltage for LVDS Receiver Threshold:
"H" Level: 2.64(Min.)/Vcc(Max.) 2.4(Min.)/3.6(Max.)
"L" Level: GND(Min.)/0.6(Max.) 0(Min.)/0.6(Max.)
Delete Terminating Resistor.
14 6.1 Update Pixel clock period:
20(Min.)/15(Typ.)/12.5(Max.) 12.5(Min.)/15(Typ.)/20(Max.)
17 7.2 Update Response Time: TR: 15(Typ.)/30(Max.) 7(Typ.)/22(Max.)
TF: 35(Typ.)/50(Max.) 23(Typ.)/38(Max.)
Update Color Chromaticity:
Rx:-(Min.)/(0.629)(Typ.)/-(Max.) (0.607)(Min.)/(0.637)(Typ.)/(0.667)(Max.)
Ry: -(Min.)/(0.355)(Typ.)/-(Max.) (0.323)(Min.)/(0.353)(Typ.)/(0.383)(Max.)
Gx:-(Min.)/(0.290)(Typ.)/-(Max.) (0.272)(Min.)/(0.302)(Typ.)/(0.332)(Max.)
Gy: -(Min.)/(0.593)(Typ.)/-(Max.) (0.558)(Min.)/(0.588)(Typ.)/(0.618)(Max.)
Bx: -(Min.)/(0.142)(Typ.)/-(Max.) (0.111)(Min.)/(0.141)(Typ.)/(0.171)(Max.)
By: -(Min.)/(0.094)(Typ.)/-(Max.) (0.064)(Min.)/(0.094)(Typ.)/(0.124)(Max.)
21~22 9 Add 9. PACKAGING
23 10 Add 10. INCOMING INSPECTION DAY
24 11 Add 11. DEFINITION OF SHIPPING LABEL ON MODULE.
Ver 2.0 May.15'2001 All All Approval Specification was issued.
17 7.2 Update Color Chromaticity (take away parentheses).
Ver.2.1 May.23'2001 All All Change Vcc to VDD.
7 2.2.1 Update Power Supply Voltage: Vss-0.3(Min.) -0.3(Min.)
2.2.2 Update Lamp Voltage:(640)(Min)/(800)(Max) 603(Min)/737(Max)
9 3.2 Update Lamp Input Voltage:
(640)(Min.)/(720)(Typ.)/(800)(Max.) 603(Min.)/670(Typ.)/737(Max.)
o o
Update Lamp Turn On Voltage:25 C:(1150) 870/ 0 C:(1500) 1090
3 / 25
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date:Jun.06'2001
Model No.: M150X3-T03
Approval
REVISION HISTORY
Page
Version Date Section Description
(New)
Ver 2.1 May.23'2001 9 3.2 Update Lamp Life Time: 50000(Min.) 40000(Min.)/50000(Typ.)
Update Power Consumption: (9360)(Typ.) 14740(Typ.)
10 - Update Note (5): IL = 7.0mA IL = 6.5mA
11 4.1 Update Input Signal.
15 6.1 Update Pixel clock frequency: 65(Typ.)/80(Max.) 32.5(Typ.)/40(Max.)
clock period:12.5(Min.)/15(Typ.)/20(Max.) 25(Min.)/30(Typ.)/40(Max.)
Update Horizontal display active period:
1024(Min.)/1024(Typ.)/1024(Typ.) 512(Min.)/512(Typ.)/512(Max.)
Update Horizontal display blank period:
76(Min.)/320(Typ.)/776(Max.) 38(Min.)/160(Typ.)/388(Max.)
Update Horizontal period:
1100(Min.)/1344(Typ.)/1800(Typ.) 550(Min.)/672(Typ.)/900(Max.)
18 7.1 Update Supply Voltage: 5.0V 3.3V
7.2 Update Color Chromaticity:
Wx: -(Min.)/0.310(Typ.)/-(Max.) 0.280(Min.)/0.310(Typ.)/0.340(Max.)
Wy: -(Min.)/0.330(Typ.)/-(Max.) 0.300(Min.)/0.330(Typ.)/0.360(Max.)
25 11 Update shipping label.
Ver3.0 Jun.06'2001 All All Issue approval spec. for PRO ARCH TECHNOLOGY INC.
8 3.1 Delete Ripple Voltage.
Update Rush Current: 480mA(Typ.)/525mA(Max.) -(Typ.)/1.5A(Max.)
Update Note(2) VDD rising time to 470 s.
4 / 25
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date:Jun.06'2001
Model No.: M150X3-T03
Approval
1. GENERAL DESCRIPTION
1.1 OVERVIEW
M150X3-T03 is a 15.0" TFT Liquid Crystal Display module with 4 CCFL Backlight units and 60 pins TTL
interface. This module supports 1024 x 768 XGA mode and can display 262,144. The optimum viewing
angle is at 6 o'clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- XGA (1024 x 768 pixels) resolution
- DE (Data Enable) only mode
-TTL Interface with 2pixels/clock
1.3 APPLICATION
- Desktop monitors
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 304.1(H) x 228.1(V) (15.0" diagonal) mm
(1)
Bezel Opening Area 308.2(H) x 232.1(V) mm
Driver Element a-Si TFT active matrix - -
Pixel Number 1024 x R.G.B. x 768 pixel -
Pixel Pitch 0.297(H) x 0.297(W) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 262,144 color -
Transmissive Mode Normally white - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) - 331.6 - mm
(1)
Module Size Vertical(V) - 254.76 - mm
Depth(D) - 13.0 - mm (1)(2)
Weight - - 1,350 g -
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Note (2) The depth is without connector.
5 / 25
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date:Jun.06'2001
Model No.: M150X3-T03
Approval
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Value
Item Symbol Unit Note
Min. Max.
