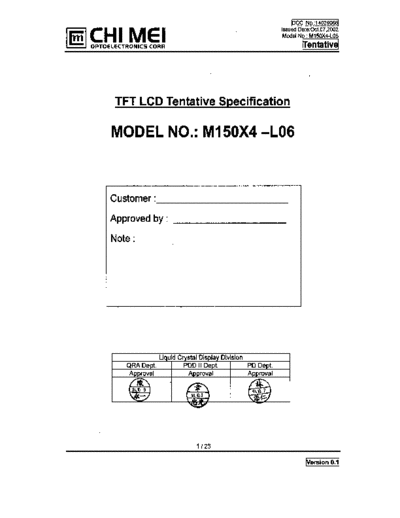

Image preview - the first page of the document
![Panel_CMO_M150X4-L06_0_[DS]](/pics/5c8ec5bb953d2.gif)
>> Download Panel_CMO_M150X4-L06_0_[DS] documenatation <<
Text preview - extract from the document
DCC No.:14029066
Issued Date:Oct.07,2002
Model No.: M150X4-L06
Tentative
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 10
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 11
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING ------------------------------------------------------- 13
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 16
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 19
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKAGING ------------------------------------------------------- 21
9.1 PACKING SPECIFICATIONS
9.2 PACKING METHOD
10. INCOMING INSPECITION DAY ------------------------------------------------------- 23
11. DEFINITION OF SHIPPING LABEL ON MODULE ------------------------------------------------------- 24
2 / 23
Version 0.1
DCC No.:14029066
Issued Date:Oct.07,2002
Model No.: M150X4-L06
Tentative
REVISION HISTORY
Page
Version Date Section Description
(New)
Ver 0.0 Aug.15,'2002 All All Tentative Specification was first issued.
Ver 0.1 Oct.07,'2002 7 3.1 Power Supply Current WhiteTBD(Typ.) 400(Typ.).
Power Supply Current BlackTBD(Typ.) 550(Typ.).
9 3.2 Lamp Turn On Voltage(1150)(25)(Max.) (1180)(25)(Max.).
Lamp Turn On Voltage(1360)(0)(Max.) (1330)(0)(Max.).
16 7.2 Response Time TR:5(Typ.) / TF:12(Typ.) TR:6(Typ.) / TF:17(Typ.)
Response Time TR:TBD(Max.) / TF:TBD(Max.) TR:10(Max.) / TF:25(Max.)
3 / 23
Version 0.1
DCC No.:14029066
Issued Date:Oct.07,2002
Model No.: M150X4-L06
Tentative
1. GENERAL DESCRIPTION
1.1 OVERVIEW
M150X4-L06 is a 15.0" TFT Liquid Crystal Display module with 2 CCFL Backlight units and 20 pins LVDS
interface. This module supports 1024 x 768 XGA mode and can display 16.2M colors. The optimum viewing
angle is at 6 o'clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- XGA (1024 x 768 pixels) resolution
- DE(Data Enable) only mode
- LVDS Interface with 1pixel/clock
1.3 APPLICATION
- Desktop monitors
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 304.1(H) x 228.1(V) (15.0" diagonal) mm
(1)
Bezel Opening Area 307.5(H) x 231.4(V) mm
Driver Element a-Si TFT active matrix - -
Pixel Number 1024 x R.G.B. x 768 pixel -
Pixel Pitch 0.297(H) x 0.297(W) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 16,194,277 color -
Transmissive Mode Normally white - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) - 321.0 - mm
(1)
Module Size Vertical(V) - 245.4 - mm
Depth(D) - 9.7 - mm (1)(2)
Weight - - (930) g -
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Note (2) The depth is without connector.
4 / 23
Version 0.1
DCC No.:14029066
Issued Date:Oct.07,2002
Model No.: M150X4-L06
Tentative
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Value
Item Symbol Unit Note
Min. Max.
Storage Temperature TST -20 +60 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
