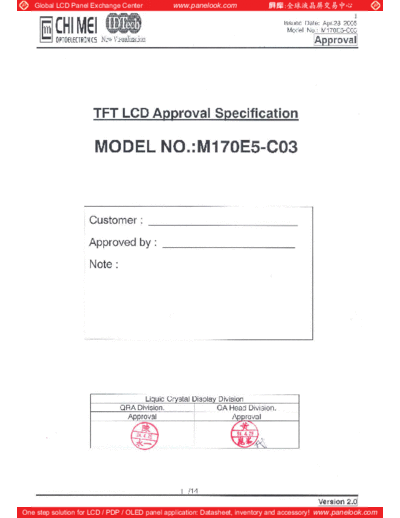

Image preview - the first page of the document
![Panel_CMO_M170E5-C03_0_[DS]](/pics/5c8ec62d01c76.gif)
>> Download Panel_CMO_M170E5-C03_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
2
Issued Date: Apr.28 2005
Model No.: M170E5-C03
Approval
- CONTENTS -
. REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ---------------------------------------------- 4
3. SUGGESTIVE DRIVING CONDITION ---------------------------------------------- 5
4. PANEL PIN DEFINITION ------------------------------------------------------- 6
5. OPTICAL CHARACTERISTICS ---------------------------------------------- 7
5.1 TEST CONDITIONS
5.2 OPTICAL SPECIFICATIONS
6. PACKAGING --------------------------------------------- 11
6.1 PACKING SPECIFICATIONS
6.2 PACKING METHOD
7. DEFINITION OF LABELS ---------------------------------------------- 12
8. PRECAUTIONS ---------------------------------------------- 13
8.1 ASSEMBLY AND HANDLING PRECAUTIONS
8.2 SAFETY PRECAUTIONS
9. PANEL DRAWING ---------------------------------------------- 14
2 /14
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
3
Issued Date: Apr.28 2005
Model No.: M170E5-C03
Approval
REVISION HISTORY
Version Date Section Description
Ver 1.0 Mar, 01 '05 - M170E5-C03 Specifications was first issued
Ver 2.0 Apr, 28 `05 1.4 Add "Weight" item , Weight=400g(typ.)
5.2 Delete R,G,B,W color coordinate which uses CMO's BLU
Center point Transmittance : typ. from 5.25%to 5.3%
9 Add "PANEL DRAWING"
3 /14
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
4
Issued Date: Apr.28 2005
Model No.: M170E5-C03
Approval
1.GENERAL DESCRIPTION
1.1 OVERVIEW
The M170E5-C03 is a 17-inch LCD cell with thin film transistors as active elements and contains
1280x1024 pixels. Each pixel is divided into red, green and blue dot, which are arranged in vertical stripe.
The cell is normally white mode, and can be applied to the transmission type display. Backlight unit (BLU)
and circuit board for the cell are not built in.
1.2 FEATURES
- Wide viewing angle
- High contrast ratio
- Fast response time
- SXGA (1280 x 1024 pixels) resolution
1.3 APPLICATION
- LCD Monitor
- LCD TV
1.4 GENERAL SPECIFICATIONS
Item Specification Unit
Max Panel Dimension (TFT) 348.3 X 280.9 mm
Glass thickness( TFT/ CF ) 0.7/ 0.7 mm
Active Area 337.92 (H) x 270.34 (V) (17.0" diagonal) mm
Driver Element a-si TFT active matrix -
Pixel Number 1280X R.G.B X 1024 pixel
Pixel Pitch 0.264 (H) X 0.264 (V) mm
Pixel Arrangement RGB vertical stripe -
Transmissive Mode Normally white -
Surface Treatment Hard coating (3H), AG (Haze 25%) -
Polarizer Type Super Wide View -
TFT 344.1 X 276.5 mm
Polarizer Dimension
CF 340.6 X 273.0 mm
TFT 0.245 mm
Polarizer Thickness
CF 0.245 mm
Weight 400(typ.) g
2. ABSOLUTE MAXIMUM RATINGS
1. Storage condition : With shipping package.
