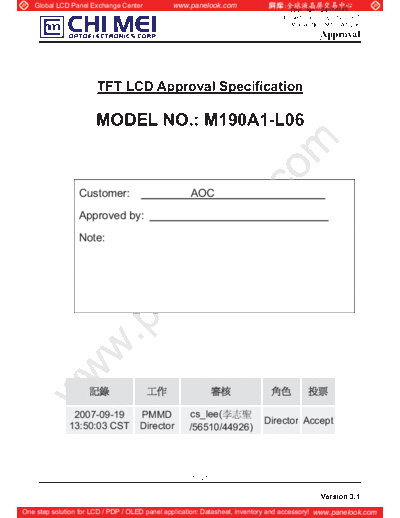

Image preview - the first page of the document



>> Download Panel_CMO_M190A1-L06_2_[DS] documenatation <<

Text preview - extract from the document

   Global LCD Panel Exchange Center           www.panelook.com
                                                                                    Doc. No.: 24079183
                                                                                 Issued Date: Sep., 12, 2007
                                                                                    Model No.: M190A1-L06
                                                                                             Approval




                       TFT LCD Approval Specification

                      MODEL NO.: M190A1-L06



                 Customer:                          AOC
                 Approved by:
                 Note:




               2007-09-19           PMMD           cs_lee(
                                                                          Director Accept
              13:50:03 CST          Director       /56510/44926)




                                                    1 / 25

                                                                                              Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center           www.panelook.com
                                                                                    Doc. No.: 24079183
                                                                                 Issued Date: Sep., 12, 2007
                                                                                    Model No.: M190A1-L06
                                                                                             Approval

                                              - CONTENTS -

     1. GENERAL DESCRIPTION
       1.1 OVERVIEW
       1.2 FEATURES
       1.3 APPLICATION
       1.4 GENERAL SPECIFICATIONS
       1.5 MECHANICAL SPECIFICATIONS

     2. ABSOLUTE MAXIMUM RATINGS
       2.1 ABSOLUTE RATINGS OF ENVIRONMENT
       2.2 ELECTRICAL ABSOLUTE RATINGS
          2.2.1 TFT LCD MODULE
          2.2.2 BACKLIGHT UNIT

     3. ELECTRICAL CHARACTERISTICS
       3.1 TFT LCD MODULE
       3.2 BACKLIGHT UNIT

     4. BLOCK DIAGRAM
       4.1 TFT LCD MODULE
       4.2 BACKLIGHT UNIT

     5. INPUT TERMINAL PIN ASSIGNMENT
       5.1 TFT LCD MODULE
       5.2 BACKLIGHT UNIT
       5.3 COLOR DATA INPUT ASSIGNMENT

     6. INTERFACE TIMING
       6.1 INPUT SIGNAL TIMING SPECIFICATIONS
       6.2 POWER ON/OFF SEQUENCE

     7. OPTICAL CHARACTERISTICS
       7.1 TEST CONDITIONS
       7.2 OPTICAL SPECIFICATIONS

     8. PACKAGING
       8.1 PACKING SPECIFICATIONS
       8.2 PACKING METHOD

     9. DEFINITION OF LABELS

     10. PRECAUTIONS
       10.1 ASSEMBLY AND HANDLING PRECAUTIONS
       10.2 SAFETY PRECAUTIONS

     11. MECHANICAL CHARACTERISTICS




                                                    2 / 25

                                                                                              Version 3.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center                 www.panelook.com
                                                                                               Doc. No.: 24079183
                                                                                            Issued Date: Sep., 12, 2007
                                                                                               Model No.: M190A1-L06
                                                                                                        Approval

                                                  REVISION HISTORY


                  Date        Section                                   Description

        3.0   Aug., 31, 07'     All     M190A1-L06 Specifications was first issued.
        3.1   Sep., 12, 07      7.2     OPTICAL SPECIFICATIONS
                                        White Variation: Typ:1.3, Max:1.5-
