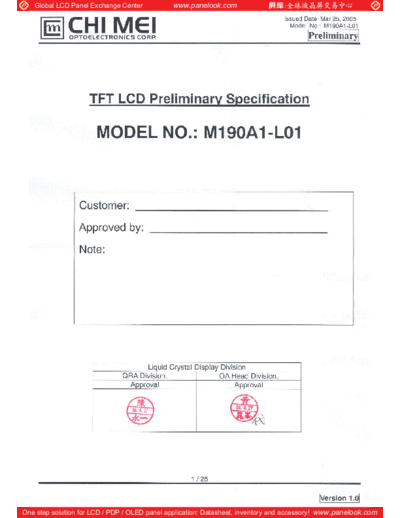

Image preview - the first page of the document
![Panel_CMO_M190A1-L01_0_[DS]](/pics/5c8ec726cd25e.gif)
>> Download Panel_CMO_M190A1-L01_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Mar 25, 2005
Model No.: M190A1-L01
Preliminary
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 11
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING ------------------------------------------------------- 15
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 17
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PACKAGING ------------------------------------------------------- 23
8.1 PACKING SPECIFICATIONS
8.2 PACKING METHOD
9. DEFINITION OF LABELS ------------------------------------------------------- 25
10. PRECAUTIONS ------------------------------------------------------- 26
10.1 ASSEMBLY AND HANDLING PRECAUTIONS
10.2 SAFETY PRECAUTIONS
11. MECHANICAL CHARACTERISTICS ------------------------------------------------------- 27
2 / 25
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Mar 25, 2005
Model No.: M190A1-L01
Preliminary
REVISION HISTORY
Version Date Section Description
Ver 0.0 Dec, 09, 04' All M190A1 -L01 Specifications was first issued.
Ver.1.0 Mar, 25, 05 1.4 Change Active Area to 410.4 (H) x 256.5 (V)
1.4 Change Bezel Opening Area From 412.2x259.2 to 414.36x260.45
1.4 Change Pixel Pitch to 0.285 (H) x 0.285 (V)
1.5 Change Module Size tolerance
1.5 Change Module weight from 2800 to 2500
3.1 Change Logic "L" input voltage (SELLVDS) to Logic "L" input voltage
5.1 Change Pin 27 name from SELLVDS to NC : Not connection
5.1 Delete "SELLVDS = Low or Open"
6.2 Change POWER ON/OFF SEQUENCE from 0 <= T1 <= 10ms to 0.5ms <= T1
<= 10ms
7.2 R G B of Color Chromaticity
Note3 Definition of Response Time (TR, TF)
3 / 25
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Mar 25, 2005
Model No.: M190A1-L01
Preliminary
1. GENERAL DESCRIPTION
1.1 OVERVIEW
M190A1-L01 is an 19" wide TFT Liquid Crystal Display module with 4 CCFL Backlight unit and 30 pins
2ch-LVDS interface This module supports 1440 x 900 WXGA+ mode and can display 16.2M colors. The
inverter module for Backlight is not built in.
1.2 FEATURES
- Wide viewing angle.
- High contrast ratio
- Super fast response time
- High color saturation
- WXGA+ (1440 x 900 pixels) resolution
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface
1.3 APPLICATION
- TFT LCD Monitor
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Diagonal Size 481.4 (19.05" diagonal) mm
Active Area 410.4 (H) x 256.5 (V) mm
(1)
Bezel Opening Area 414.36 x 260.45 mm
Driver Element a-si TFT active matrix - -
Pixel Number 1440 x R.G.B. x 900 pixel -
Pixel Pitch 0.285 (H) x 0.285 (V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 16.2M color -
Transmissive Mode Normally White - -
Surface Treatment Hard coating (3H), Anti-glare (Haze 25) - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) (426.7) (427.2) (427.70) mm
Module Size Vertical(V) (276.9) (277.40 (277.90) mm (1)
Depth(D) - (17) (17.5) mm
Weight - - (2500) g -
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
4 / 25
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Mar 25, 2005
Model No.: M190A1-L01
Preliminary
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Value
Item Symbol Unit Note
Min. Max.
