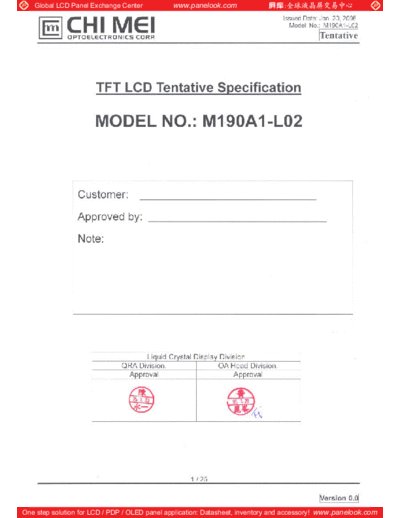

Image preview - the first page of the document
![Panel_CMO_M190A1-L02_0_[DS]](/pics/5c8ec729d8ddb.gif)
>> Download Panel_CMO_M190A1-L02_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jan. 20, 2006
Model No.: M190A1-L02
Tentative
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 5
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 6
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 8
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 12
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 13
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING ------------------------------------------------------- 16
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 18
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PACKAGING ------------------------------------------------------- 21
8.1 PACKING SPECIFICATIONS
8.2 PACKING METHOD
9. DEFINITION OF LABELS ------------------------------------------------------- 23
10. PRECAUTIONS ------------------------------------------------------- 24
10.1 ASSEMBLY AND HANDLING PRECAUTIONS
10.2 SAFETY PRECAUTIONS
11. MECHANICAL CHARACTERISTICS ------------------------------------------------------- 25
2 / 25
Version 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jan. 20, 2006
Model No.: M190A1-L02
Tentative
REVISION HISTORY
Version Date Section Description
Ver 0.0 Jan, 20, 06' All M190A1 -L02 specifications was first issued.
3 / 25
Version 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jan. 20, 2006
Model No.: M190A1-L02
Tentative
1. GENERAL DESCRIPTION
1.1 OVERVIEW
M190A1-L02 is a 19" wide TFT Liquid Crystal Display module with 4 CCFL Backlight unit and 30 pins
2ch-LVDS interface. This module supports 1440 x 900 WXGA+ mode and can display 16.2M colors. The
inverter module for Backlight is not built in.
1.2 FEATURES
- Super Wide viewing angle.
- Super High contrast ratio
- Super fast response time
- High color saturation
- WXGA+ (1440 x 900 pixels) resolution
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface
- RoHS Compliance
1.3 APPLICATION
- TFT LCD Monitor
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Diagonal Size 481.4 (19.05" diagonal) mm
Active Area 410.4 (H) x 256.5 (V) mm
(1)
Bezel Opening Area 414.36 x 260.45 mm
Driver Element a-si TFT active matrix - -
Pixel Number 1440 x R.G.B. x 900 pixel -
Pixel Pitch 0.285 (H) x 0.285 (V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 16.2M color -
Transmissive Mode Normally White - -
Surface Treatment Hard coating (3H), Anti-glare (Haze 25) - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 426.7 427.2 427.7 mm
Module Size Vertical(V) 276.9 277.4 277.9 mm (1)
Depth(D) - 17 17.5 mm
Weight - - 2500 g -
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
4 / 25
Version 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jan. 20, 2006
Model No.: M190A1-L02
Tentative
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Value
Item Symbol Unit Note
Min. Max.
Storage Temperature TST -20 +60 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
